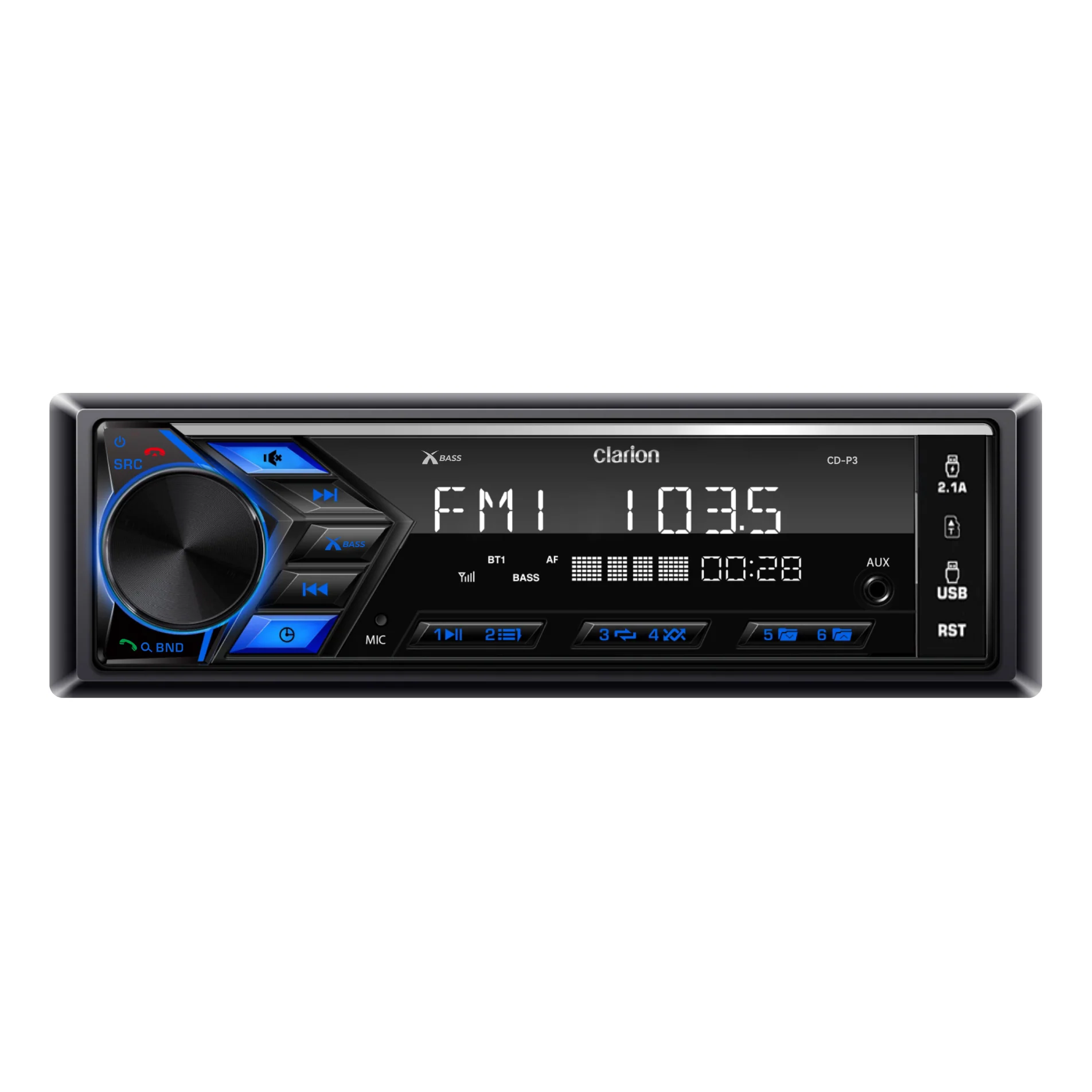

Clarion CD-P3 P17 Mechless Single DIN Head Unit with Bluetooth and Dual USB
Clarion CD-P3 P17 Mechless Single DIN Head Unit with Bluetooth and Dual USB
Upgrade your vehicle's audio system with the Clarion CD-P3, a compact single-DIN mechless head unit combining Bluetooth hands-free and streaming, dual front USB inputs with fast charging, BT app control, and 4x45W maximum power with 4 RCA pre-outs and dual subwoofer outputs.
Product Overview
The Clarion CD-P3 is a feature-rich single-DIN mechless head unit designed to deliver modern connectivity and flexible media options in a compact chassis that installs into most standard dashboard openings. Built-in Bluetooth enables hands-free calling and wireless music streaming, with an included external microphone for clearer conversations on every drive.
Multiple playback options accommodate a wide range of listening preferences. Dual front USB inputs support music playback and simultaneous 2.1A smartphone charging, while a front 3.5mm AUX input allows direct connection of external devices. A Micro SD card slot accepts cards up to 32GB, and Bluetooth streaming provides wireless access to phone music libraries. The CD-P3 supports MP3, WMA, APE, and FLAC formats for high-quality playback from a range of sources.
The Clarion BT App allows source mode switching, EQ adjustment across seven presets, and backlight colour selection from seven options to match dashboard illumination. With 4x45W maximum power, four RCA pre-outputs, and dual subwoofer outputs, the CD-P3 suits both standard factory speaker upgrades and more advanced audio system builds.
Features & Benefits
Built-in Bluetooth provides hands-free calling and wireless music streaming, with the included external microphone ensuring clear audio for calls during daily commutes and long trips. The BT App connects to the head unit via Bluetooth for source mode switching, EQ customisation, and backlight colour selection directly from a smartphone.
Dual front USB inputs handle music playback and 2.1A fast smartphone charging simultaneously, eliminating the need to choose between powering a device and playing music. The front 3.5mm AUX input and Micro SD card slot (up to 32GB) add further flexibility, while support for MP3, WMA, APE, and FLAC formats ensures compatibility with a wide range of audio libraries.
Seven EQ presets allow quick sound customisation to suit different music genres and vehicle acoustic environments. The 4x45W maximum power output drives factory speakers directly, while four RCA pre-outputs and dual subwoofer outputs provide the foundation for external amplifiers and subwoofer systems. Seven selectable backlight colours allow the illumination to be matched to the vehicle's interior lighting theme.
Technical Specs
| Specification | Detail |
|---|---|
| Brand | Clarion |
| Model | CD-P3 (P17) |
| Form Factor | Single DIN |
| Chassis Type | Single DIN |
| Power Output | 4 x 45W Maximum |

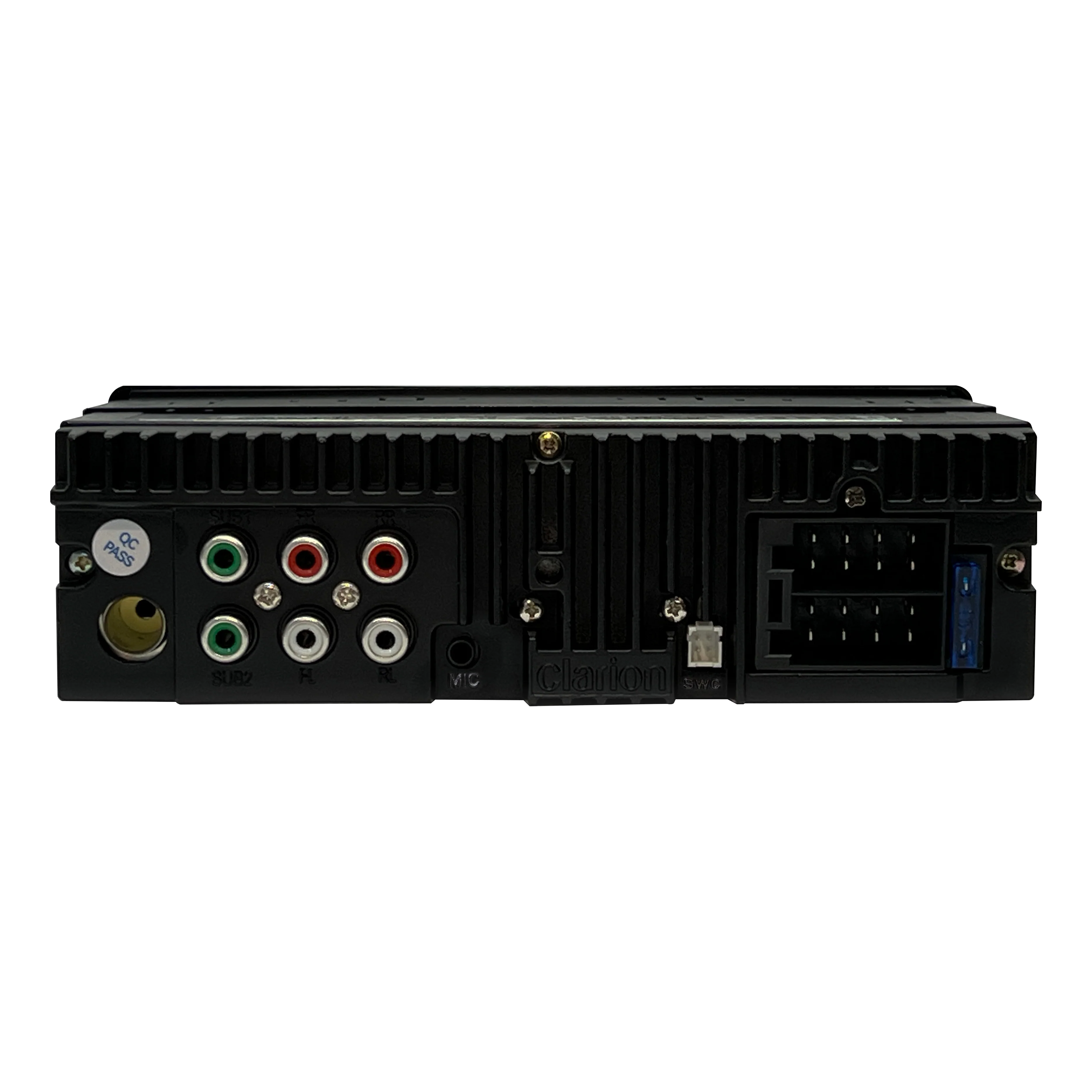

| RCA Pre-Outputs | 4 x RCA |
| Subwoofer Outputs | 2 x RCA |
| Tuner | AM/FM with RDS |
| Bluetooth | Yes (Hands-Free Calling and Audio Streaming) |
| Microphone | External Microphone Included |
| USB Inputs | Dual Front USB |
| USB Charging | 2.1A Fast Charge |
| Auxiliary Input | Front 3.5mm AUX |
| Micro SD | Yes (Up to 32GB) |
| Supported Formats | MP3, WMA, APE, FLAC |
| EQ Presets | 7 Presets |
| App Control | Yes (Clarion BT App) |
| Button Illumination | 7 Selectable Backlight Colours |
| Remote Control | Not Included |
| Steering Wheel Control | No |
Compatible With
The CD-P3 suits any vehicle with a standard single-DIN radio opening. It works with factory speakers via the 4x45W output, external amplifiers via the 4 RCA pre-outputs, subwoofers via the dual subwoofer outputs, USB flash drives, Micro SD cards (up to 32GB), Bluetooth-enabled smartphones and tablets, and auxiliary audio devices.
A vehicle-specific 1DIN fascia kit, wiring harness adaptor, and antenna adaptor (if required) are needed for installation. This head unit does not include steering wheel control support — a separate SWC interface adaptor will be required for vehicles requiring SWC retention.
Frequently Asked Questions
Does this head unit support steering wheel controls?
No. The Clarion CD-P3 does not include built-in steering wheel control support. If your vehicle has steering wheel controls and you wish to retain this functionality, a separate aftermarket steering wheel control interface adaptor compatible with your vehicle make and model will be required.
Can I connect external amplifiers and a subwoofer to this head unit?
Yes. The CD-P3 features four RCA pre-outputs for connecting external amplifiers plus two dedicated subwoofer RCA outputs for powered subwoofer connection, supporting both simple factory speaker upgrades and more advanced multi-amplifier audio system builds.
What audio formats are supported for USB, SD, and media playback?
The CD-P3 supports MP3, WMA, APE, and FLAC audio formats from USB inputs and Micro SD cards. SD cards up to 32GB are supported.
How does the BT App control feature work?
The Clarion BT App connects to the CD-P3 via Bluetooth and allows you to switch source modes, adjust EQ settings across seven presets, and select from seven backlight colours directly from your smartphone, providing convenient control without reaching for dashboard buttons.
What installation components do I need for my vehicle?
Beyond the head unit, a vehicle-specific 1DIN fascia kit, a wiring harness adaptor, and potentially an antenna adaptor are required depending on your vehicle's antenna connection type. These components vary by vehicle make, model, and year.
