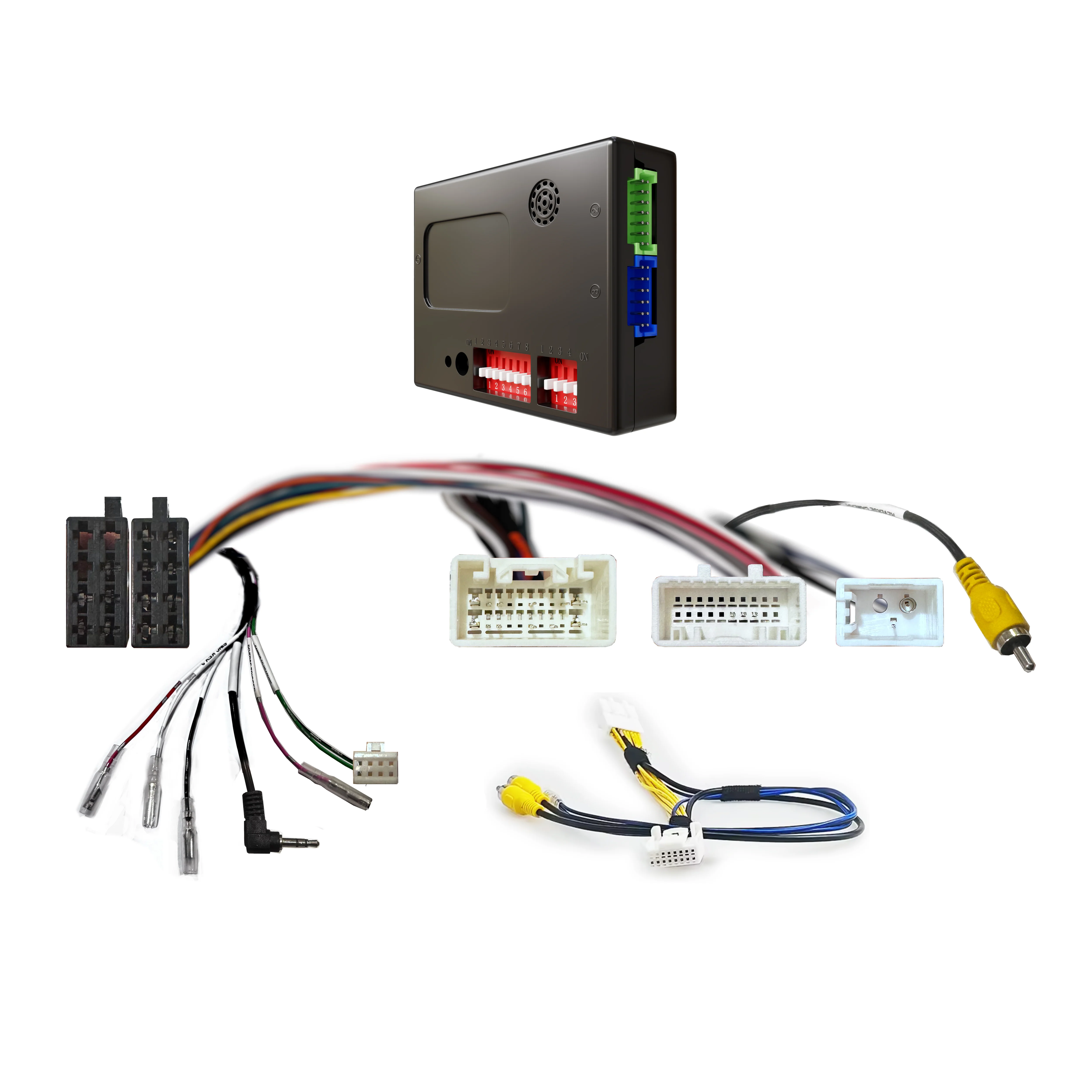

CAC HTY6K1 - Toyota Prado Harness with JBL/Amplified, SWC, Camera, Antenna
CAC HTY6K1 - Toyota Prado Harness with JBL/Amplified, SWC, Camera, Antenna
Plug-and-play integration harness for Toyota Prado 2009-2013 with factory JBL or amplified audio system enabling aftermarket head unit installation while retaining factory steering wheel controls, reverse camera, and antenna connection. The Car Audio Connect CAC HTY6K1 harness is specifically designed for Toyota Prado 2009-2013 Dash 3 models equipped with factory JBL or amplified audio systems providing seamless connection between aftermarket stereos and factory wiring systems without cutting or splicing factory harnesses. This professional-grade integration solution retains steering wheel controls, factory reverse camera functionality (selected models), and includes factory radio antenna adapter ensuring complete functionality preservation during head unit upgrades. Compatible with Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other brand stereos featuring standard wiring configurations, this versatile harness eliminates complex wiring modifications through direct plug-and-play connection to factory wiring enabling professional installation.
Product Overview
Car Audio Connect CAC harness is designed to suit a range of vehicles. Upgrade your head unit without losing factory functions. Plug and Play connect directly to factory wiring with easy installation. Suits Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony and other brand stereos.
Compatible With:
- Toyota Prado 2009-2013 Dash 3 With Factory JBL or Amplified
Important Notes:
Factory JBL or Amplified System Required: This harness is specifically designed for Toyota Prado 2009-2013 with factory JBL premium audio or factory amplified systems. Not compatible with standard non-amplified factory audio systems. Verify your Prado has JBL badges (typically on speakers or dashboard) or factory amplifier before purchase. This harness ensures proper signal-level integration with amplified systems.
Dash 3 Configuration Only: This harness is designed exclusively for Toyota Prado 2009-2013 with Dash 3 configuration. Not compatible with other dash configurations. Verify your Prado matches Dash 3 before purchase. If uncertain about your dash configuration, contact us with photos of your dashboard or vehicle VIN.
Camera Retention - Selected Models: Factory reverse camera retention is available on selected Prado models equipped with factory reverse cameras. Not all Prado 2009-2013 models came with factory reverse cameras. Verify your specific Prado has factory reverse camera before expecting this feature to be retained.
Dash Kit Required: This harness does NOT include dashboard mounting kit. You must purchase appropriate Toyota Prado 2009-2013 Dash 3 fascia kit separately for physical head unit mounting. The harness handles wiring connections only—the dash kit provides physical mounting structure and trim pieces.
Camera-Compatible Head Unit Required: For Prado models with factory reverse camera, your aftermarket head unit must have camera input capability. Most modern head units with touchscreen displays include camera inputs, but verify compatibility before purchase.
Key Features
Factory JBL/Amplified System Compatibility - Specifically designed for Toyota Prado factory JBL premium audio and amplified systems ensuring proper signal-level integration and premium audio quality preservation.
Steering Wheel Control Retention - Maintains full functionality of factory steering wheel audio controls including volume, track skip, source change, and phone controls for safe hands-free operation without removing hands from wheel.
Factory Reverse Camera Retention - Retains factory reverse camera functionality on selected models displaying on aftermarket head unit screen (camera-compatible head unit required) maintaining valuable safety feature and parking assistance for Prado.
Factory Antenna Adapter Included - Includes radio antenna adapter connecting factory antenna to aftermarket head unit ensuring uninterrupted AM/FM radio reception without requiring separate adapter purchase.
Plug-and-Play Installation - Direct connection to factory wiring without cutting or splicing factory harnesses enabling professional installation and maintaining vehicle warranty compliance.
Toyota Prado Specific Design - Engineered specifically for Toyota Prado 2009-2013 Dash 3 with JBL or amplified audio ensuring optimal compatibility with this popular Australian SUV.
Multi-Brand Head Unit Support - Compatible with Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other aftermarket brands featuring standard wiring configurations and camera inputs.
Complete Factory Feature Retention - Maintains steering wheel controls, reverse camera (selected models), and antenna eliminating compromise during aftermarket head unit upgrades.
No Factory Wiring Modifications - Preserves factory wiring integrity allowing complete system reversal to factory configuration maintaining vehicle value and warranty.
Professional Grade Quality - High-quality connectors and wiring ensuring reliable long-term performance with amplified system integration and camera retention.
CarPlay/Android Auto Ready - Enables installation of modern head units with Apple CarPlay, Android Auto, Bluetooth, and navigation while retaining all factory steering wheel controls replacing aging factory systems.
Premium Audio Quality Preservation - Proper JBL and amplified system integration maintains factory premium sound quality without degradation ensuring high-fidelity audio performance.
4WD Vehicle Optimization - Designed for Toyota Prado 4WD applications supporting both family and touring vehicle requirements.
Reversible Installation - Complete reversibility to factory configuration valuable for maintaining vehicle value in resale situations.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Car Audio Connect (CAC) |
| Product Type | Vehicle Integration Harness |
| SKU | HTY6K1 |
| Product Code | HTY6K1 |
| Vehicle Compatibility | Toyota Prado 2009-2013 Dash 3 (JBL or Amplified Audio) |
| Factory Audio System | JBL Premium Audio or Factory Amplified (Required) |
| Dash Configuration | Dash 3 Only |
| Steering Wheel Control Retention | Yes |
| Reverse Camera Retention | Yes (Selected Models with Factory Camera) |
| Antenna Adapter | Included |
| USB Retention | Not Specified (Contact for Details) |
| Amplified System Compatibility | Yes (JBL/Factory Amplified Specific) |
| Head Unit Compatibility | Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, Other Standard Brands with Camera Input |
| Installation Type | Plug-and-Play (Professional Installation Recommended) |
| Wiring Preservation | Complete Factory Wiring Integrity Maintained |
| Reversibility | Fully Reversible to Factory Configuration |
| Applications | Toyota Prado 2009-2013 JBL/Amplified Audio Aftermarket Head Unit Installation |
| Warranty | Standard Manufacturer Warranty |
Frequently Asked Questions
Q: How do I know if my Toyota Prado has factory JBL or amplified audio?
A: Check for "JBL" badges on door speakers, dashboard, or head unit area. Many Toyota Prado 2009-2013 models came with JBL premium audio as optional equipment, particularly in higher trim levels like Kakadu and Grande. You can also check your vehicle's window sticker, owner's manual, or original purchase documentation for audio system specifications. If your Prado has factory subwoofer and premium speakers with noticeably enhanced sound quality, it likely has JBL or amplified system. If uncertain, contact us with your VIN for verification before purchase.
Q: Does my 2011 Prado have factory reverse camera?
A: Not all Toyota Prado 2009-2013 models came with factory reverse cameras—it depended on trim level and options. Higher trim levels like Kakadu, Grande, and some GXL variants typically had factory reverse cameras, while base models may not. Check your current vehicle—if you have a reverse camera display on your factory head unit when shifting to reverse, you have factory camera and the HTY6K1 harness will retain it. If you don't have factory camera, the harness still provides steering wheel control and amplified audio integration.
Q: Will this harness work with my 2014 Prado?
A: No, the HTY6K1 harness is compatible with Toyota Prado 2009-2013 only. Your 2014 Prado is the next generation (150 Series facelift) and requires a different harness due to wiring architecture changes. For Prado 2014+ models, see harness HTY3AK1 which supports newer Prado models with JBL or amplified audio. Contact us with your specific 2014+ Prado details and we'll identify the correct harness for your generation.
Q: What aftermarket head units are compatible with this harness?
A: Compatible with most aftermarket single-DIN and double-DIN head units from Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other brands using standard ISO wiring configurations. For Prado models with factory reverse camera, your chosen head unit must have camera input capability. Modern head units with Apple CarPlay, Android Auto, Bluetooth, touchscreen, and navigation all work—perfect for updating Prado 2009-2013 with modern smartphone integration and replacing aging factory systems. Verify head unit has standard wiring harness and camera input if your Prado has camera (most modern units do). You'll also need appropriate Toyota Prado 2009-2013 Dash 3 fascia kit for physical mounting.
Q: Can I install this myself or should I hire a professional?
A: While the harness is plug-and-play designed, JBL/amplified system integration and camera retention add complexity. Installation requires: Toyota Prado dashboard removal (moderately complex—Dash 3 configuration requires careful trim removal), disconnecting factory head unit, connecting HTY6K1 harness ensuring proper JBL/amplifier connections and camera wiring (if equipped), mounting new head unit in Dash 3 fascia kit, connecting camera input (if equipped) and antenna adapter, testing steering wheel controls, camera display (if equipped), and audio quality. If experienced with car audio and amplified system installation, DIY is possible—allow 3-4 hours. However, professional installation strongly recommended (typically $200-350) to ensure JBL/amplifier properly integrated and premium audio quality maintained. Improper amplifier integration can damage speakers or head unit.
