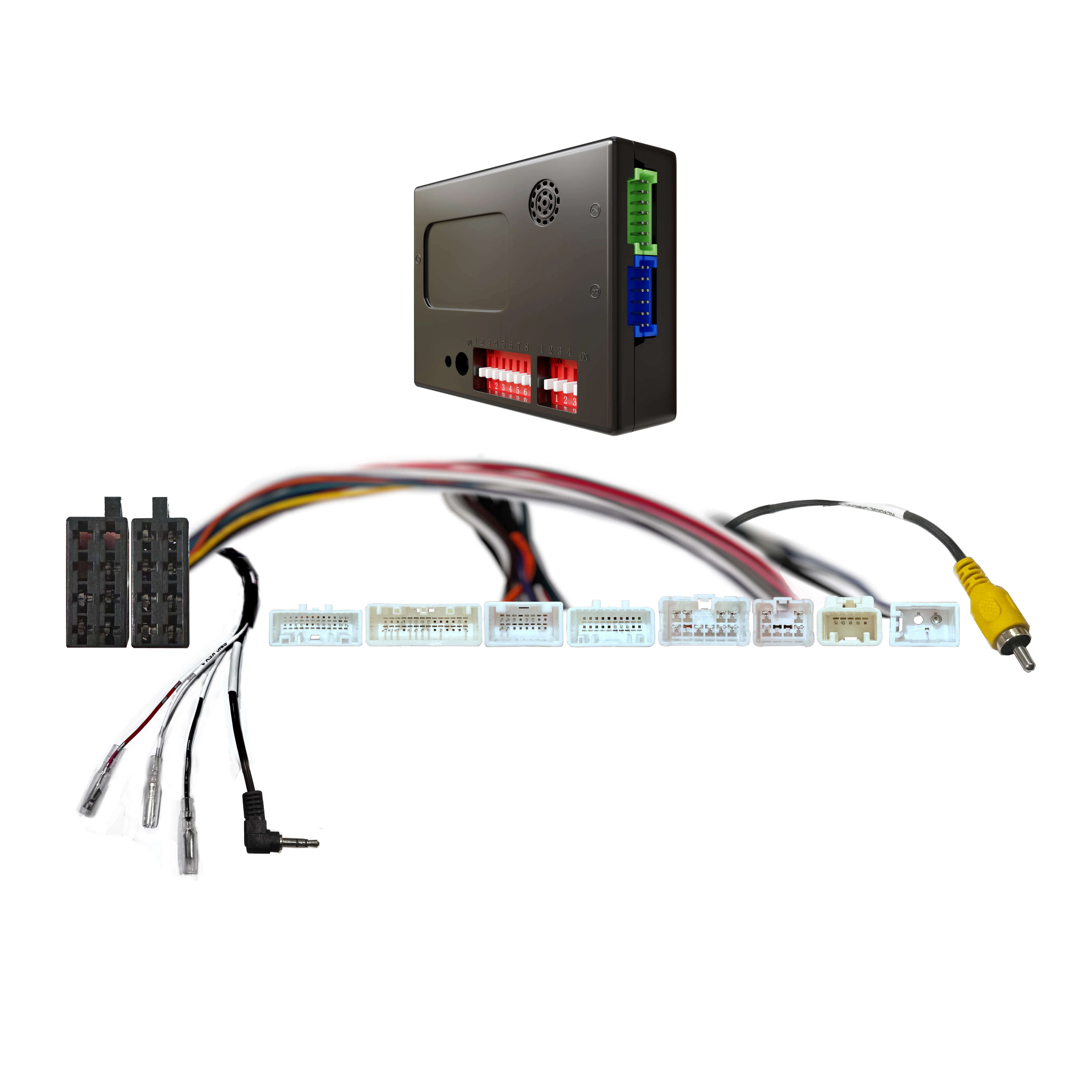

CAC HTY4K - Subaru Toyota Harness with SWC, Camera, Antenna
CAC HTY4K - Subaru Toyota Harness with SWC, Camera, Antenna
Plug-and-play integration harness for Subaru and Toyota vehicles enabling aftermarket head unit installation while retaining factory steering wheel controls, reverse camera (selected models), and antenna connection. The Car Audio Connect CAC HTY4K harness is specifically designed for Subaru Forester, Levorg, Impreza, Liberty, Outback, WRX, XV, and Toyota models providing seamless connection between aftermarket stereos and factory wiring systems without cutting or splicing factory harnesses. This professional-grade integration solution retains steering wheel controls, factory reverse camera functionality (selected models), and includes factory radio antenna adapter ensuring complete functionality preservation during head unit upgrades. Compatible with Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other brand stereos featuring standard wiring configurations, this versatile harness eliminates complex wiring modifications through direct plug-and-play connection to factory wiring enabling professional installation.
Product Overview
Car Audio Connect CAC harness is designed to suit a range of vehicles. Upgrade your head unit without losing factory functions. Plug and Play connect directly to factory wiring with easy installation. Suits Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony and other brand stereos.
Compatible With:
- Subaru Forester 2013-2014 Dash 2 Harman Kardon
- Subaru Forester 2015-2018 Dash 1 2 Standard
- Subaru Forester 2018+ Dash 1 2 Standard & Rear Camera
- Subaru Levorg 2016-2020 Dash 1 2 Standard
- Subaru Impreza 2012-2014 Dash 2 Harman Kardon
- Subaru Impreza 2015-2016 Dash 1 2 Standard
- Subaru Impreza 2017+ Dash 1 2 Standard & Rear Camera
- Subaru Liberty 2015-2017 Dash 1 2 Standard & Rear Camera
- Subaru Liberty 2018-2020 Dash 1 2 Standard & Rear Camera
- Subaru Outback 2015-2017 Dash 1 2 Standard & Rear Camera
- Subaru Outback 2018-2020 Dash 1 2 Standard & Rear Camera
- Subaru WRX 2014-2015 Dash 2 Harman Kardon
- Subaru WRX 2015-2021 Dash 1 2 Standard
- Subaru XV 2012-2015 Dash 2 Harman Kardon
- Subaru XV 2016-2017 Dash 1 2 Standard
- Subaru XV 2017+ Dash 1 2 Standard & Rear Camera
Important Notes:
Dual Audio System Compatibility: This harness works with BOTH Subaru vehicles with Harman Kardon premium audio (2012-2015 models) AND standard audio systems (2015+ models). This is unique—most harnesses support only one audio system type. Verify your specific vehicle's audio system and year to confirm compatibility.
Selective Camera Retention: Factory reverse camera retention is available on selected models—specifically Forester 2018+, Impreza 2017+, Liberty 2015-2020, Outback 2015-2020, and XV 2017+. Earlier models and some variants do not include camera retention. Verify your vehicle matches models listed as "& Rear Camera" for camera retention functionality.
Multiple Dash Configuration Support: This harness supports Dash 1 and Dash 2 configurations across multiple Subaru models. Verify your specific vehicle's dash configuration before purchase to ensure you order the matching dash kit for physical mounting.
Dash Kit Required: This harness does NOT include dashboard mounting kit. You must purchase appropriate Subaru or Toyota dash kit separately matching your specific model, year, and dash configuration for physical head unit mounting. The harness handles wiring connections only.
Camera-Compatible Head Unit Required: For models with camera retention, your aftermarket head unit must have camera input capability. Most modern head units with touchscreen displays include camera inputs, but verify compatibility before purchase.
Key Features
Steering Wheel Control Retention - Maintains full functionality of factory steering wheel audio controls including volume, track skip, source change, and phone controls for safe hands-free operation without removing hands from wheel across all compatible models.
Factory Reverse Camera Retention - Retains factory reverse camera functionality on selected models (Forester 2018+, Impreza 2017+, Liberty 2015-2020, Outback 2015-2020, XV 2017+) displaying on aftermarket head unit screen maintaining valuable safety feature.
Factory Antenna Adapter Included - Includes radio antenna adapter connecting factory antenna to aftermarket head unit ensuring uninterrupted AM/FM radio reception without requiring separate adapter purchase.
Plug-and-Play Installation - Direct connection to factory wiring without cutting or splicing factory harnesses enabling professional installation and maintaining vehicle warranty compliance.
Dual Audio System Support - Unique compatibility with both Harman Kardon premium audio (2012-2015) and standard audio systems (2015+) providing versatile integration solution across model generations.
Comprehensive Subaru Compatibility - Supports Forester, Levorg, Impreza, Liberty, Outback, WRX, and XV covering extensive Subaru range from 2012-2021+ across multiple dash configurations and audio systems.
Multi-Brand Head Unit Support - Compatible with Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other aftermarket brands featuring standard wiring configurations and camera inputs.
Complete Factory Feature Retention - Maintains steering wheel controls, reverse camera (selected models), and antenna eliminating compromise during aftermarket head unit upgrades.
No Factory Wiring Modifications - Preserves factory wiring integrity allowing complete system reversal to factory configuration maintaining vehicle value and warranty.
Professional Grade Quality - High-quality connectors and wiring ensuring reliable long-term performance across multiple Subaru models, audio systems, and dash configurations.
CarPlay/Android Auto Ready - Enables installation of modern head units with Apple CarPlay, Android Auto, Bluetooth, and navigation while retaining all factory steering wheel controls and camera.
Harman Kardon Integration - Proper amplifier integration for 2012-2015 models with Harman Kardon premium audio maintaining factory premium sound quality.
Extended Model Year Coverage - Covers Subaru vehicles from 2012-2021+ providing nearly 10 years of model compatibility across multiple model generations.
Cross-Brand Compatibility - Works with both Subaru and Toyota vehicles due to shared platform engineering providing versatile integration solution.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Car Audio Connect (CAC) |
| Product Type | Vehicle Integration Harness |
| SKU | HTY4K |
| Product Code | HTY4K |
| Vehicle Compatibility | Subaru: Forester, Levorg, Impreza, Liberty, Outback, WRX, XV (2012-2021+); Toyota (Selected Models) |
| Audio System Compatibility | Harman Kardon (2012-2015) and Standard Audio (2015+) |
| Dash Configurations | Dash 1, 2 (Varies by Model and Year) |
| Steering Wheel Control Retention | Yes |
| Reverse Camera Retention | Yes (Forester 2018+, Impreza 2017+, Liberty 2015-2020, Outback 2015-2020, XV 2017+) |
| Antenna Adapter | Included |
| USB Retention | Not Specified (Contact for Details) |
| Amplified System Compatibility | Yes (Harman Kardon and Standard) |
| Head Unit Compatibility | Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, Other Standard Brands with Camera Input |
| Installation Type | Plug-and-Play |
| Wiring Preservation | Complete Factory Wiring Integrity Maintained |
| Reversibility | Fully Reversible to Factory Configuration |
| Applications | Subaru and Toyota Aftermarket Head Unit Installation |
| Warranty | Standard Manufacturer Warranty |
Frequently Asked Questions
Q: How does this harness work with both Harman Kardon and standard audio systems?
A: The HTY4K harness is uniquely engineered to support both Harman Kardon premium audio (found in 2012-2015 models) and standard audio systems (found in 2015+ models). The harness includes proper signal-level integration for Harman Kardon amplified systems while also supporting direct speaker connection for standard systems. This dual compatibility means you can use the same harness model across different Subaru model years with different audio systems. Verify your specific vehicle's audio system type (check for Harman Kardon badges) and match it to the compatibility list.
Q: Does my 2016 Subaru Forester have camera retention?
A: No, camera retention is only available on Forester 2018+ models according to the compatibility list. Your 2016 Forester (which falls under "Forester 2015-2018 Dash 1 2 Standard") does NOT have camera retention with this harness—it retains steering wheel controls and antenna only. Camera retention is specifically noted as "& Rear Camera" in the compatibility list for later models. If you want camera retention, you'll need a different harness or additional interface module. Contact us to explore camera retention options for 2015-2018 Forester.
Q: What's the difference between Dash 1 and Dash 2 for Subaru models?
A: Dash 1 and Dash 2 refer to different dashboard configurations used across Subaru model years and trim levels. The dash configuration affects the physical mounting kit needed but the wiring harness works with both. Generally, Dash 2 is more common in older models (2012-2015) while Dash 1 becomes more prevalent in newer models (2015+), though many model years support both configurations depending on trim. Check your current dashboard layout or contact us with photos of your dashboard to identify which configuration you have for correct dash kit selection.
Q: What aftermarket head units are compatible with this harness?
A: Compatible with most aftermarket single-DIN and double-DIN head units from Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other brands using standard ISO wiring configurations. For models with camera retention, your chosen head unit must have camera input capability. Modern head units with Apple CarPlay, Android Auto, Bluetooth, touchscreen, and navigation all work—perfect for updating Subaru vehicles with modern smartphone integration. Verify head unit has standard wiring harness and camera input if your vehicle supports camera retention (most modern units do). You'll also need appropriate Subaru dash kit matching your model, year, and dash configuration.
Q: Can I install this myself or should I hire a professional?
A: The harness is plug-and-play designed for simplified installation. However, complete installation requires: Subaru dashboard removal (complexity varies by model—Forester, Levorg, Impreza, Liberty, Outback, WRX, and XV have different procedures, dash configurations add complexity), disconnecting factory head unit, connecting HTY4K harness to factory wiring and aftermarket head unit ensuring proper audio system connections (Harman Kardon or standard) and camera connections (if equipped), mounting new unit in model-specific dash kit, connecting antenna adapter, testing steering wheel controls, camera display (if equipped), and audio operation. If you have car audio installation experience and proper tools (trim removal tools, panel tools), DIY installation is feasible—allow 3-4 hours depending on model and features. Due to dual audio system support and selective camera retention, professional installation recommended (typically $200-350) to ensure proper integration, especially for Harman Kardon models requiring correct amplifier connection.
Original: $108.43
-65%$108.43
$37.95Product Information
