CAC HTY3SRK - Subaru Toyota Harness with Harman Kardon/JBL, SWC, Camera, Antenna
CAC HTY3SRK - Subaru Toyota Harness with Harman Kardon/JBL, SWC, Camera, Antenna

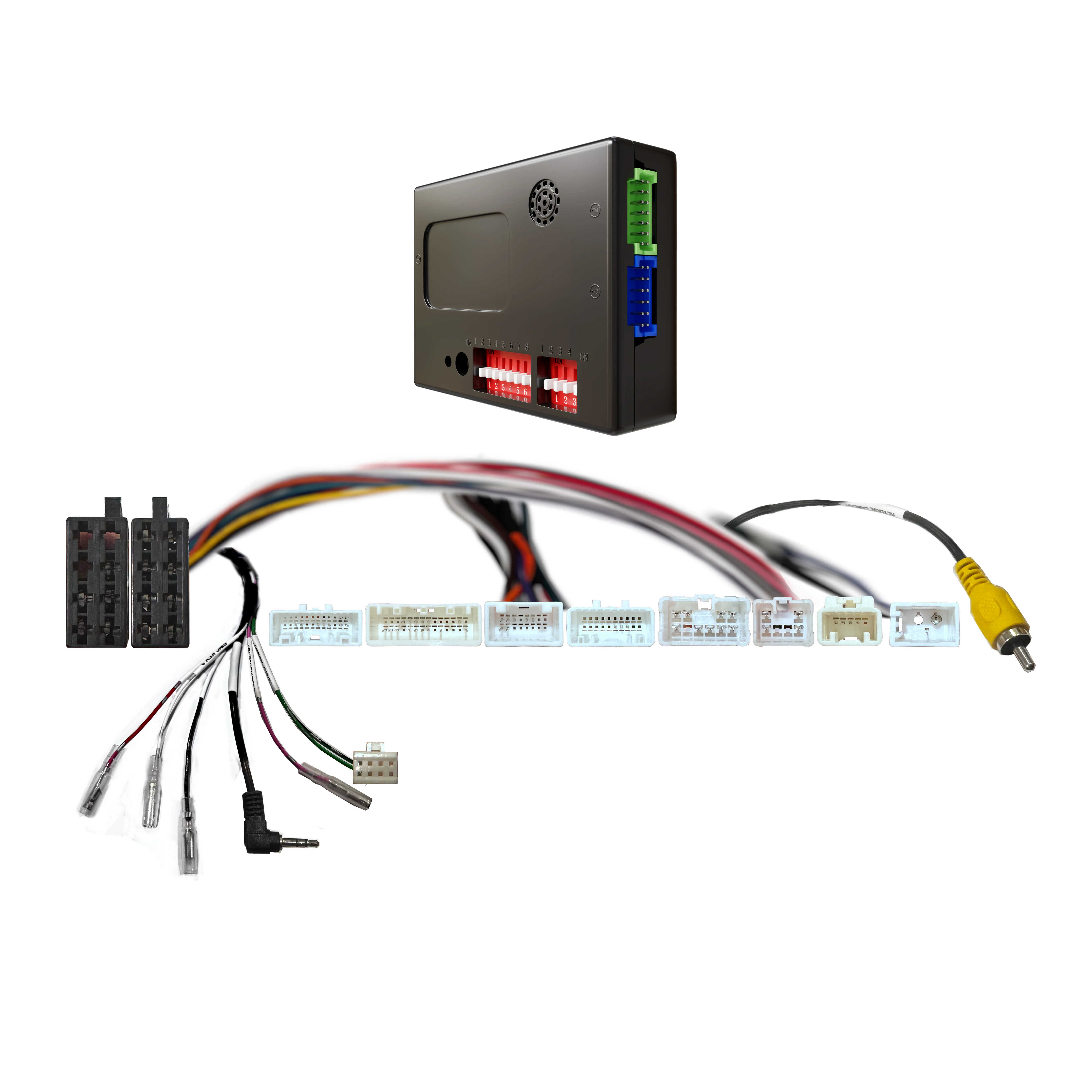

Plug-and-play integration harness for Subaru and Toyota vehicles with factory Harman Kardon or JBL premium audio systems enabling aftermarket head unit installation while retaining factory steering wheel controls, reverse camera, and antenna connection. The Car Audio Connect CAC HTY3SRK harness is specifically designed for Subaru Forester, Levorg, Impreza, Liberty, Outback, WRX, XV, and Toyota models equipped with factory Harman Kardon or JBL sound systems providing seamless connection between aftermarket stereos and factory wiring systems without cutting or splicing factory harnesses. This professional-grade integration solution retains steering wheel controls, factory reverse camera functionality, and includes factory radio antenna adapter ensuring complete functionality preservation during head unit upgrades. Compatible with Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other brand stereos featuring standard wiring configurations, this versatile harness eliminates complex wiring modifications through direct plug-and-play connection to factory wiring enabling professional installation.
Product Overview
Car Audio Connect CAC harness is designed to suit a range of vehicles. Upgrade your head unit without losing factory functions. Plug and Play connect directly to factory wiring with easy installation. Suits Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony and other brand stereos.
Compatible With:
- Subaru Forester 2015-2018 Dash 2 Harman Kardon
- Subaru Levorg 2016-2020 Dash 2 Harman Kardon
- Subaru Impreza 2015-2016 Dash 2 Harman Kardon
- Subaru Liberty 2015-2017 Dash 1 2 Harman Kardon
- Subaru Outback 2015-2017 Dash 1 2 Harman Kardon
- Subaru WRX 2015-2021 Dash 2 Harman Kardon
- Subaru XV 2016-2017 Dash 2 Harman Kardon
Important Notes:
Harman Kardon or JBL System Required: This harness is specifically designed for Subaru and Toyota vehicles equipped with factory Harman Kardon or JBL premium audio systems. Not compatible with standard factory audio systems without premium amplification. Verify your vehicle has Harman Kardon or JBL badges (typically on speakers, dashboard, or head unit area) before purchase. All listed Subaru models require Harman Kardon system—standard audio not supported.
Dash Configuration Verification: Multiple Subaru models have specific dash configurations requiring matching components. Most models use Dash 2, while Liberty and Outback 2015-2017 use Dash 1 or Dash 2. Verify your vehicle's dash configuration before purchase to ensure compatibility with correct dash kit and harness. If uncertain, contact us with photos of your dashboard or vehicle VIN.
Dash Kit Required: This harness does NOT include dashboard mounting kit. You must purchase appropriate Subaru or Toyota dash kit separately matching your specific model and dash configuration for physical head unit mounting. The harness handles wiring connections only—the dash kit provides physical mounting structure and trim pieces.
Camera-Compatible Head Unit Required: To utilize factory reverse camera retention feature, your aftermarket head unit must have camera input capability. Most modern head units with touchscreen displays include camera inputs, but verify compatibility before purchase.
Professional Installation Recommended: Due to Harman Kardon and JBL amplifier integration complexity, professional installation by experienced installer recommended ensuring proper functionality and premium audio quality preservation.
Key Features
Harman Kardon System Compatibility - Specifically designed for Subaru factory Harman Kardon premium audio systems ensuring proper signal-level integration and premium audio quality preservation across multiple Subaru models.
JBL System Compatibility - Also compatible with factory JBL premium audio systems for Toyota vehicles maintaining high-fidelity audio performance through proper amplifier integration.
Steering Wheel Control Retention - Maintains full functionality of factory steering wheel audio controls including volume, track skip, source change, and phone controls for safe hands-free operation without removing hands from wheel.
Factory Reverse Camera Retention - Retains factory reverse camera functionality displaying on aftermarket head unit screen (camera-compatible head unit required) maintaining valuable safety feature and parking assistance.
Factory Antenna Adapter Included - Includes radio antenna adapter connecting factory antenna to aftermarket head unit ensuring uninterrupted AM/FM radio reception without requiring separate adapter purchase.
Plug-and-Play Installation - Direct connection to factory wiring without cutting or splicing factory harnesses enabling professional installation and maintaining vehicle warranty compliance.
Wide Subaru Compatibility - Supports Forester, Levorg, Impreza, Liberty, Outback, WRX, and XV models with Harman Kardon covering popular Australian Subaru vehicles across multiple years and dash configurations.
Multi-Brand Head Unit Support - Compatible with Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other aftermarket brands featuring standard wiring configurations and camera inputs.
Premium Audio Quality Preservation - Proper Harman Kardon and JBL amplifier integration maintains factory premium sound quality without degradation ensuring high-fidelity audio performance.
Complete Factory Feature Retention - Maintains steering wheel controls, reverse camera, and antenna eliminating compromise during aftermarket head unit upgrades.
No Factory Wiring Modifications - Preserves factory wiring integrity allowing complete system reversal to factory configuration maintaining vehicle value and warranty.
Professional Grade Quality - High-quality connectors and wiring ensuring reliable long-term performance with premium amplified systems.
CarPlay/Android Auto Ready - Enables installation of modern head units with Apple CarPlay, Android Auto, Bluetooth, and navigation while retaining all factory features.
Reversible Installation - Complete reversibility to factory configuration valuable for maintaining vehicle value in lease returns or resale situations.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Car Audio Connect (CAC) |
| Product Type | Vehicle Integration Harness |
| SKU | HTY3SRK |
| Product Code | HTY3SRK |
| Vehicle Compatibility | Subaru Forester, Levorg, Impreza, Liberty, Outback, WRX, XV (2015-2021); Toyota with JBL |
| Factory Audio System | Harman Kardon or JBL Premium Audio (Required) |
| Dash Configurations | Subaru: Dash 1, Dash 2 (Liberty/Outback Dash 1 or 2) |
| Steering Wheel Control Retention | Yes |
| Reverse Camera Retention | Yes (Camera-Compatible Head Unit Required) |
| Antenna Adapter | Included |
| USB Retention | Not Specified (Contact for Details) |
| Amplified System Compatibility | Yes (Harman Kardon/JBL Specific) |
| Head Unit Compatibility | Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, Other Standard Brands with Camera Input |
| Installation Type | Plug-and-Play (Professional Installation Recommended) |
| Wiring Preservation | Complete Factory Wiring Integrity Maintained |
| Reversibility | Fully Reversible to Factory Configuration |
| Applications | Subaru and Toyota Vehicles with Harman Kardon or JBL Premium Audio |
| Warranty | Standard Manufacturer Warranty |
Frequently Asked Questions
Q: How do I know if my Subaru has factory Harman Kardon audio?
A: Check for "Harman Kardon" badges on door speakers, dashboard, or head unit area. Subaru Forester, Levorg, Impreza, Liberty, Outback, WRX, and XV models within the specified year ranges often came with Harman Kardon premium audio as optional equipment. You can also check your vehicle's window sticker, owner's manual, or original purchase documentation for audio system specifications. If your vehicle has factory subwoofer and premium speakers, it likely has Harman Kardon system. If uncertain, contact us with your VIN or vehicle details for verification before purchase.
Q: Does this harness work with both Harman Kardon and JBL systems?
A: Yes, the HTY3SRK harness is compatible with both factory Harman Kardon premium audio systems (Subaru vehicles) and factory JBL premium audio systems (Toyota vehicles). The harness is engineered for proper signal-level integration with both amplified system types. However, it will NOT work with standard non-amplified factory audio systems. Your vehicle must have either Harman Kardon or JBL premium audio for this harness to function correctly.
Q: What's the difference between Dash 1 and Dash 2 for Liberty and Outback?
A: Subaru Liberty and Outback 2015-2017 have different dashboard configurations designated as Dash 1 and Dash 2. These configurations affect the physical mounting and trim requirements. The HTY3SRK harness works with both configurations, but you'll need the matching dash kit (Dash 1 or Dash 2) for your specific vehicle. Check your current dashboard layout or contact us with photos of your dashboard to identify which configuration you have before purchasing a dash kit. Most other models (Forester, Levorg, Impreza, WRX, XV) use Dash 2.
Q: What aftermarket head units are compatible with this harness?
A: Compatible with most aftermarket single-DIN and double-DIN head units from Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other brands using standard ISO wiring configurations. Your chosen head unit must have camera input capability to utilize the reverse camera retention feature. Modern head units with Apple CarPlay, Android Auto, Bluetooth, touchscreen, and navigation all work. Verify head unit has standard wiring harness and camera input (most modern units do). The harness provides plug-and-play connection for audio, power, speakers, steering wheel controls, and camera.
Q: Can I install this myself or should I hire a professional?
A: While the harness is plug-and-play designed, Harman Kardon and JBL amplifier integration adds complexity. Installation requires: Subaru dashboard removal (complexity varies by model—different procedures for each Subaru model), disconnecting factory head unit, connecting HTY3SRK harness ensuring proper amplifier connections, mounting new head unit in dash kit, connecting camera input and antenna adapter, testing steering wheel controls, audio quality, and camera display operation. If experienced with car audio and amplified system installation, DIY is possible—allow 3-5 hours depending on model. However, professional installation strongly recommended (typically $200-400) to ensure Harman Kardon or JBL amplifier properly integrated and premium audio quality maintained. Improper amplifier integration can damage speakers or head unit.
Original: $289.17
-65%$289.17
$101.21Product Information
