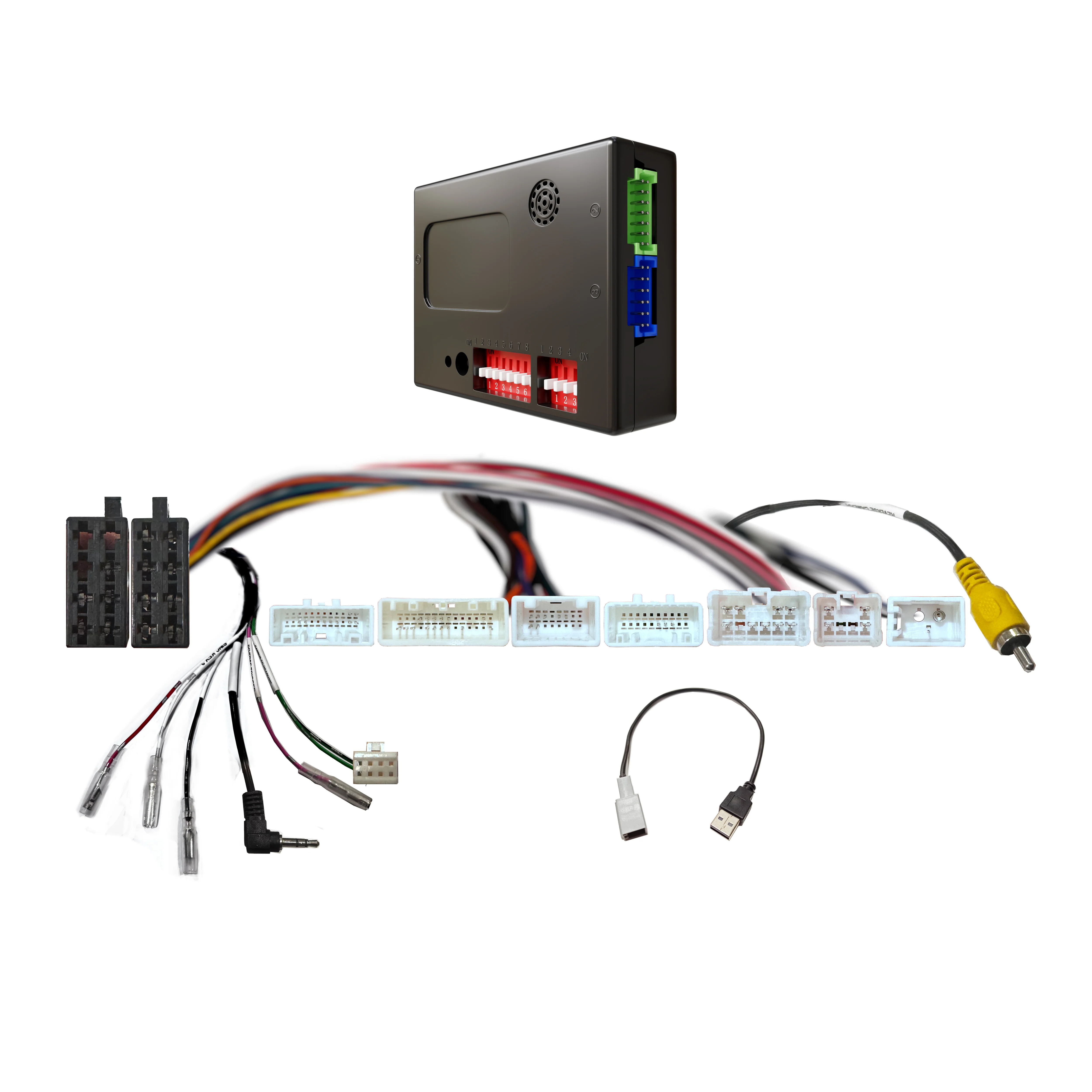

CAC HTY3AK1 - Toyota Harness with JBL/Amplified, 360° Camera, SWC, USB, Antenna
CAC HTY3AK1 - Toyota Harness with JBL/Amplified, 360° Camera, SWC, USB, Antenna
Plug-and-play integration harness for Toyota vehicles with factory JBL or amplified audio systems enabling aftermarket head unit installation while retaining factory steering wheel controls, 360° camera system with button functions, USB connectivity, and antenna connection. The Car Audio Connect CAC HTY3AK1 harness is specifically designed for Toyota Aurion, Camry, Fortuner, Hilux, Kluger, Prado, and RAV4 models equipped with factory JBL or amplified audio systems providing seamless connection between aftermarket stereos and factory wiring systems without cutting or splicing factory harnesses. This professional-grade integration solution retains steering wheel controls, factory reverse camera and 360° camera system functionality with adjustable viewing angles via steering wheel buttons, factory USB connectivity (selected models), and includes factory radio antenna adapter ensuring complete functionality preservation during head unit upgrades. Compatible with Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other brand stereos featuring standard wiring configurations, this versatile harness eliminates complex wiring modifications through direct plug-and-play connection to factory wiring enabling professional installation.
Product Overview
Car Audio Connect CAC harness is designed to suit a range of vehicles. Upgrade your head unit without losing factory functions. Plug and Play connect directly to factory wiring with easy installation. Suits Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony and other brand stereos.
Compatible With:
- Toyota Aurion 2012-2015 Dash 2
- Toyota Aurion 2015-2018 Dash 2
- Toyota Camry 2012-2017 Dash 3
- Toyota Fortuner 2015-2020 With Factory JBL or Amplified
- Toyota Hilux 2015-2020 With Factory JBL or Amplified
- Toyota Kluger 2014-2019 Dash 3 With Factory JBL or Amplified
- Toyota Prado 2014-2017 Dash 2 With Factory JBL or Amplified 360° Camera
- Toyota Prado 2017-2020 Dash 1
- Toyota RAV4 2013-2018 Dash 4 With Factory JBL or Amplified 360° Camera
Important Notes:
Factory JBL or Amplified System Required: This harness is specifically designed for Toyota vehicles equipped with factory JBL premium audio or factory amplified systems. Not compatible with standard non-amplified factory audio systems. Verify your vehicle has JBL badges (typically on speakers or dashboard) or factory amplifier before purchase. Fortuner, Hilux, Kluger require JBL or amplified system—standard audio not supported.
360° Camera System Compatibility: Selected models (Prado 2014-2017 Dash 2, RAV4 2013-2018 Dash 4) with factory 360° camera systems retain full functionality including 360° camera button operation and adjustable viewing angles via steering wheel control buttons. Your aftermarket head unit must support multi-camera input or 360° camera processing. All models retain standard reverse camera functionality.
Dash Configuration Verification: Multiple models have specific dash configurations requiring matching components. Aurion uses Dash 2, Camry uses Dash 3, Kluger uses Dash 3, Prado uses Dash 2 (2014-2017) or Dash 1 (2017-2020), and RAV4 uses Dash 4. Verify your vehicle's dash configuration before purchase to ensure compatibility with correct dash kit and harness.
Dash Kit Required: This harness does NOT include dashboard mounting kit. You must purchase appropriate Toyota dash kit separately matching your specific model and dash configuration for physical head unit mounting. The harness handles wiring connections only—the dash kit provides physical mounting structure and trim pieces.
USB Retention - Selected Models: Factory USB retention applies to selected Toyota models equipped with factory USB ports. Verify your specific vehicle has factory USB port before expecting this feature to be retained. Contact us with your vehicle details for USB retention confirmation.
Key Features
Factory JBL/Amplified System Compatibility - Specifically designed for Toyota factory JBL premium audio and amplified systems ensuring proper signal-level integration and premium audio quality preservation across multiple Toyota models.
Steering Wheel Control Retention - Maintains full functionality of factory steering wheel audio controls including volume, track skip, source change, phone controls, and 360° camera view adjustment for safe hands-free operation.
Factory 360° Camera Retention - Retains factory 360° camera system (selected Prado and RAV4 models) displaying multi-angle parking assistance on aftermarket head unit screen with full button function and adjustable viewing angles via steering wheel buttons.
360° Camera Button Function - Maintains factory 360° camera activation button allowing manual camera view activation independent of reverse gear engagement for parking assistance in tight spaces.
Steering Wheel Camera Control - Allows 360° camera view adjustment through steering wheel control buttons enabling drivers to switch camera angles without removing hands from wheel during parking maneuvers.
Factory Reverse Camera Retention - Retains factory reverse camera functionality on all compatible models displaying on aftermarket head unit screen (camera-compatible head unit required) maintaining valuable safety feature.
Factory USB Retention - Maintains factory USB connectivity on selected models preserving convenient charging and media connectivity in original factory locations without requiring USB extension cables.
Factory Antenna Adapter Included - Includes radio antenna adapter connecting factory antenna to aftermarket head unit ensuring uninterrupted AM/FM radio reception without requiring separate adapter purchase.
Plug-and-Play Installation - Direct connection to factory wiring without cutting or splicing factory harnesses enabling professional installation and maintaining vehicle warranty compliance.
Wide Toyota Compatibility - Supports Aurion, Camry, Fortuner, Hilux, Kluger, Prado, and RAV4 covering popular Australian Toyota sedans, SUVs, and utility vehicles across multiple years and dash configurations.
Multi-Brand Head Unit Support - Compatible with Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other aftermarket brands featuring standard wiring configurations and camera inputs.
Premium Audio Quality Preservation - Proper JBL and amplified system integration maintains factory premium sound quality without degradation ensuring high-fidelity audio performance.
Complete Factory Feature Retention - Maintains steering wheel controls, 360° camera with buttons, reverse camera, USB (selected models), and antenna eliminating compromise during upgrades.
No Factory Wiring Modifications - Preserves factory wiring integrity allowing complete system reversal to factory configuration maintaining vehicle value and warranty.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Car Audio Connect (CAC) |
| Product Type | Vehicle Integration Harness |
| SKU | HTY3AK1 |
| Product Code | HTY3AK1 |
| Vehicle Compatibility | Toyota Aurion, Camry, Fortuner, Hilux, Kluger, Prado, RAV4 (Multiple Years) |
| Factory Audio System | JBL Premium Audio or Factory Amplified (Required) |
| Dash Configurations | Aurion Dash 2, Camry Dash 3, Kluger Dash 3, Prado Dash 1/2, RAV4 Dash 4 |
| Steering Wheel Control Retention | Yes (Including 360° Camera View Adjustment) |
| Reverse Camera Retention | Yes (All Models, Camera-Compatible Head Unit Required) |
| 360° Camera Retention | Yes (Prado 2014-2017 Dash 2, RAV4 2013-2018 Dash 4) |
| 360° Camera Button Function | Yes (Selected Models) |
| 360° Camera Steering Wheel Control | Yes (Selected Models) |
| USB Retention | Yes (Selected Models) |
| Antenna Adapter | Included |
| Amplified System Compatibility | Yes (JBL/Factory Amplified Specific) |
| Head Unit Compatibility | Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, Other Standard Brands with Camera Input |
| Installation Type | Plug-and-Play (Professional Installation Recommended) |
| Wiring Preservation | Complete Factory Wiring Integrity Maintained |
| Reversibility | Fully Reversible to Factory Configuration |
| Applications | Toyota Vehicles with JBL or Amplified Audio Systems |
| Warranty | Standard Manufacturer Warranty |
Frequently Asked Questions
Q: How do I know if my Toyota has factory JBL or amplified audio?
A: Check for "JBL" badges on door speakers, dashboard, or head unit area. Many Fortuner, Hilux, Kluger, Prado, and RAV4 models came with JBL premium audio as optional equipment. You can also check your vehicle's window sticker, owner's manual, or original purchase documentation for audio system specifications. If your vehicle has factory subwoofer or premium speakers, it likely has amplified system. If uncertain, contact us with your VIN or vehicle details for verification before purchase.
Q: Will my factory 360° camera button and steering wheel camera controls still work?
A: Yes, for vehicles equipped with factory 360° camera systems (Prado 2014-2017 Dash 2, RAV4 2013-2018 Dash 4), the HTY3AK1 harness retains factory 360° camera button function and steering wheel camera view adjustment controls. You can manually activate the 360° camera view using the factory button and adjust viewing angles using steering wheel buttons, just like the factory system. Your aftermarket head unit must support multi-camera input or 360° camera processing. Contact us for head unit recommendations compatible with Toyota's 360° camera system.
Q: Does this harness work with standard non-JBL Camry or Hilux audio systems?
A: No, the HTY3AK1 harness is specifically designed for Toyota vehicles with factory JBL premium audio or factory amplified systems. It will NOT work correctly with standard non-amplified factory audio systems. The harness is engineered for proper signal-level integration with amplified systems. If your vehicle has standard factory audio without JBL or amplification, you need a different harness model. Contact us to identify the correct harness for your specific vehicle and audio system configuration.
Q: What aftermarket head units are compatible with this harness and 360° camera system?
A: Compatible with most aftermarket single-DIN and double-DIN head units from Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other brands using standard ISO wiring configurations. Your chosen head unit must have camera input capability. For vehicles with factory 360° camera systems, you need specialized head units with multi-camera processing capability—standard head units may only display rear camera view. Modern head units with Apple CarPlay, Android Auto, Bluetooth, and navigation work for basic features. Contact us for specific recommendations on 360° camera-compatible head units for Toyota applications.
Q: Can I install this myself or should I hire a professional?
A: While the harness is plug-and-play designed, JBL/amplified system integration and 360° camera retention add significant complexity. Installation requires: Toyota dashboard removal (complexity varies by model—different procedures for Aurion, Camry, Fortuner, Hilux, Kluger, Prado, RAV4), disconnecting factory head unit, connecting HTY3AK1 harness ensuring proper amplifier connections and camera wiring (including 360° camera button and steering wheel controls if equipped), mounting new unit in dash kit, connecting camera inputs, antenna adapter, testing steering wheel controls, USB functionality (selected models), audio quality, and camera display with button functions. If experienced with car audio, amplified systems, and advanced camera integration, DIY is possible—allow 4-6 hours depending on model and features. However, professional installation strongly recommended (typically $250-450) to ensure JBL/amplifier properly integrated, 360° camera functions correctly with button controls, and all features work as intended. Improper amplifier integration can damage speakers or head unit.
