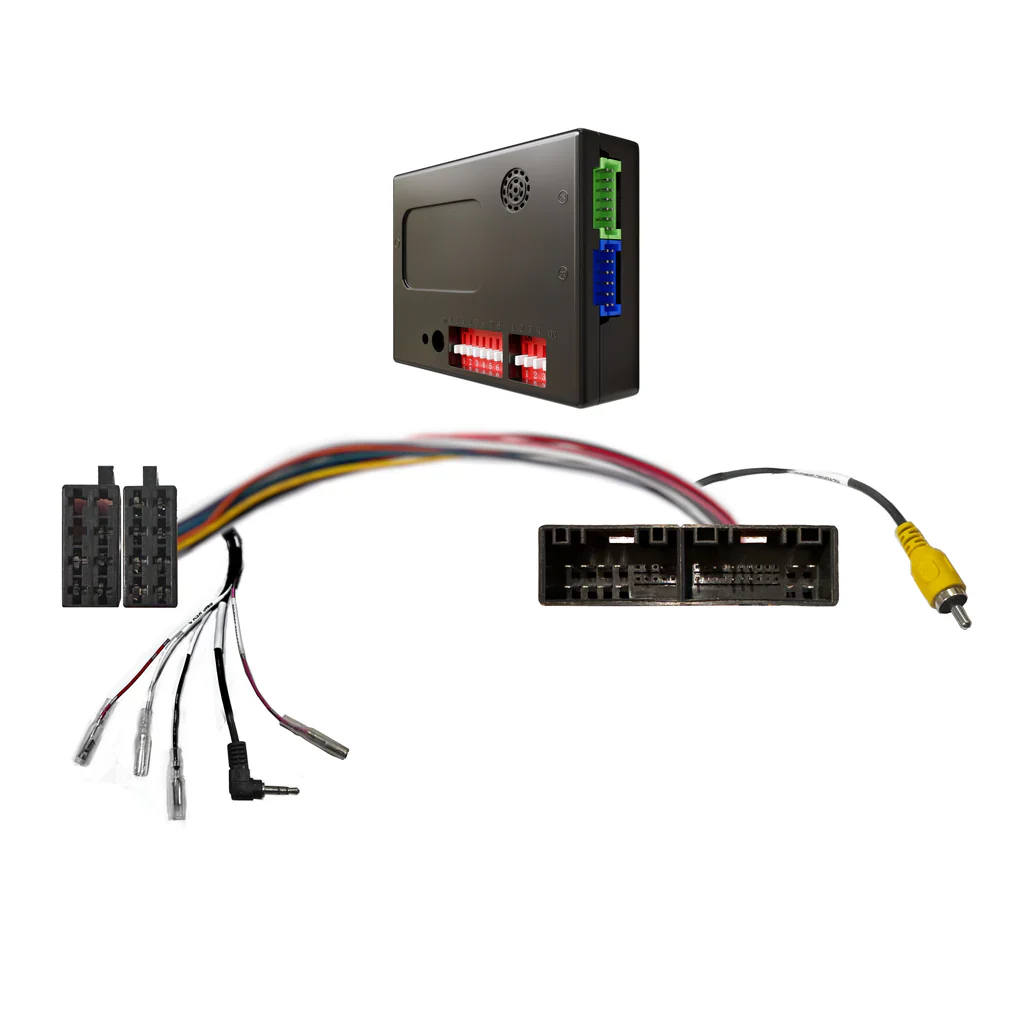

CAC HHY4K Wiring Harness - Plug-and-Play Integration Harness for Hyundai/Kia 2011-2020 with SWC and Camera Retention (Selected Models)
CAC HHY4K Wiring Harness - Plug-and-Play Integration Harness for Hyundai/Kia 2011-2020 with SWC and Camera Retention (Selected Models)
Upgrade your Hyundai or Kia head unit while retaining factory steering wheel controls with Car Audio Connect HHY4K Integration Harness—featuring plug-and-play wiring system eliminating cutting, splicing, or modification to factory wiring, steering wheel control retention maintaining thumb control operation of volume, track, source, and phone functions on Hyundai/Kia multifunction steering wheel, reverse camera retention on selected models maintaining factory backup camera functionality with aftermarket head unit display, universal aftermarket head unit compatibility supporting Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other major brands using ISO connector format, direct factory connector compatibility enabling DIY installation or simplified professional fitting, and specific vehicle coverage for Hyundai Accent (2011-2015 Dash 2, 2016-2020), Elantra (2016-2020 Dash 1, 2), i30 (2012-2017 Dash 1, 2 with factory camera), iLoad (2015-2017), iMax (2015-2018), Tucson (2015-2018 Dash 1), and Kia Cerato (2013-2018 Dash 3 with factory MAP button and SD card slot) with standard audio systems. Complete wiring integration solution for mid-generation Hyundai/Kia vehicles transforming factory head unit replacement from complex custom wiring to simple plug-and-play connection while preserving steering wheel control convenience and camera functionality (where equipped) for modern multimedia receiver upgrades, Bluetooth connectivity, USB audio playback, Apple CarPlay/Android Auto integration, and enhanced features in these 2011-2020 generation vehicles with standard audio configurations.
Product Overview
The Car Audio Connect HHY4K represents comprehensive wiring solution specifically engineered for mid-generation Hyundai and Kia vehicles from 2011-2020 spanning popular models including Accent, Elantra, i30, iLoad, iMax, Tucson, and Cerato with standard audio systems. HHY4K eliminates complex aftermarket installation through plug-and-play design with Hyundai/Kia factory-matched connectors on one end and standardized ISO connectors on other end compatible with major aftermarket brands—maintaining factory steering wheel controls and selective camera retention (i30 2012-2017 with factory camera) through integrated harness solution designed for Australian and international market Hyundai/Kia vehicles including models with specific equipment like Cerato's factory MAP button and SD card slot.
Key Features
Steering Wheel Control Retention - Integrated steering wheel control interface maintains Hyundai/Kia factory steering wheel control operation with aftermarket head unit—volume up/down, track forward/back, source selection, phone answer/end, voice control activation. Interface translates Hyundai/Kia-specific button signals (resistance-based or CANbus protocols in 2011-2020 vehicles) into universal format compatible with aftermarket head units supporting steering control input. Most modern Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony head units include steering control compatibility—verify selected stereo specifications. Some head units require brief programming procedure mapping button functions—consult head unit manual for steering control setup. Maintains driver-focused controls enabling complete head unit operation from steering wheel without dashboard reaching maintaining focus on road and driving safety.
Factory Reverse Camera Retention (Selected Models) - Factory reverse camera retention adapter converts Hyundai/Kia factory camera signal to standard composite video format compatible with aftermarket head unit camera inputs—maintains automatic camera activation when shifting to reverse gear displaying camera image on aftermarket head unit screen. Critical safety feature preservation—backup cameras functionally essential for safe reversing in modern vehicles. Camera retention selective on specific models: Hyundai i30 2012-2017 Dash 1, 2 with factory camera includes integrated camera retention through HHY4K harness. Other compatible vehicles without specific camera notation may require separate camera adapter or may not support camera retention—verify vehicle equipment and camera retention capabilities before ordering. Aftermarket head unit must include rear camera input—most modern multimedia receivers include camera compatibility as standard feature.
Kia Cerato MAP Button and SD Card Slot Compatibility - HHY4K specifically designed for Kia Cerato 2013-2018 Dash 3 models equipped with factory MAP button and SD card slot. These factory features represent integrated navigation controls and expandable storage capabilities in certain Cerato trim levels. HHY4K maintains electrical compatibility with these factory components though functionality depends on aftermarket head unit capabilities—MAP button functionality and SD card slot operation may be limited or non-functional with aftermarket head units lacking compatible input support. Verify aftermarket head unit specifications for external button input support and SD card compatibility if maintaining these factory features critical. Cerato Dash 3 configuration represents specific dashboard design requiring verification before ordering—other Cerato dash configurations require different harnesses.
Hyundai/Kia 2011-2020 Vehicle Coverage - Compatible with multiple Hyundai and Kia models spanning 2011-2020: Hyundai Accent 2011-2015 Dash 2 and 2016-2020 (subcompact sedan/hatchback across two generations), Elantra 2016-2020 Dash 1, 2 (compact sedan covering sixth generation), i30 2012-2017 Dash 1, 2 with factory camera (compact hatchback/wagon popular in international markets), iLoad 2015-2017 (commercial van mid-generation), iMax 2015-2018 (passenger van mid-generation), Tucson 2015-2018 Dash 1 (compact SUV third generation), Kia Cerato 2013-2018 Dash 3 with factory MAP button and SD card slot (compact sedan specific equipment configuration). Dash configuration critical for compatibility—verify specific dashboard type matching vehicle year and trim level. Single harness solution accommodating diverse lineup from compact cars to SUVs and commercial vans representing 2011-2020 Hyundai/Kia generation vehicles.
Plug-and-Play Installation - Direct Hyundai/Kia factory connector compatibility eliminates cutting and splicing—harness plugs directly into factory wiring harness behind head unit, other end connects to aftermarket head unit via standard ISO connectors. Installation process: remove factory head unit (dashboard trim removal procedures vary by model—Accent, Elantra, i30, iLoad, iMax, Tucson, Cerato each have different dashboard designs), disconnect factory harness and camera connections (if equipped), connect factory harness to HHY4K input side, connect factory camera to camera retention adapter (if i30 with factory camera), connect HHY4K output side to aftermarket head unit ISO connectors, test functionality including steering wheel controls and camera display (if equipped), secure head unit, reinstall dashboard trim. Typical DIY installation 1-2 hours depending on model complexity. Reversible installation preserves factory harness integrity enabling future factory stereo reinstallation maintaining vehicle value.
Technical Specifications
| Specification | Details |
|---|---|
| Model | HHY4K |
| Product Code | HHY4K |
| Brand | Car Audio Connect |
| Product Type | Head Unit Integration Wiring Harness |
| Connector Type | Hyundai/Kia factory connectors to ISO standard |
| Vehicle Compatibility | Hyundai Accent/Elantra/i30/iLoad/iMax/Tucson, Kia Cerato 2011-2020 |
| Audio System | Standard non-amplified audio systems |
| Included Features | Steering wheel control retention, camera retention (i30 2012-2017 with factory camera) |
| Head Unit Compatibility | Universal ISO connector head units (Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, others) |
| Installation Type | Plug-and-play (no cutting/splicing required) |
| Retained Features | Steering wheel controls, reverse camera (i30 with factory camera only) |
| Camera Retention | Integrated for i30 2012-2017 Dash 1, 2 with factory camera only |
| Aftermarket Head Unit Requirements | ISO connectors, steering wheel control input, camera input (if i30 with camera) |
| Installation Recommendation | DIY installation suitable for mechanically inclined owners |
| Additional Requirements | Vehicle-specific fascia kit (sold separately), antenna adapter may be required (sold separately) |
| Application | Hyundai/Kia 2011-2020 head unit replacement, multimedia receiver installation, Apple CarPlay/Android Auto integration |
Frequently Asked Questions
Q: Does my vehicle support camera retention with HHY4K?
A: Camera retention through HHY4K specifically available for Hyundai i30 2012-2017 Dash 1, 2 models equipped with factory camera only. Other compatible vehicles (Accent, Elantra, iLoad, iMax, Tucson, Cerato) do not include integrated camera retention through HHY4K harness—separate camera adapter may be available for certain models, contact supplier for vehicle-specific camera adapter recommendations. Verify your i30 has factory camera installed before expecting camera retention functionality. Aftermarket head unit must include camera input for camera display. Camera retention critical safety feature particularly important for i30 models—verify camera compatibility before ordering if maintaining backup camera functionality essential.
Q: Will factory MAP button and SD card slot work on Kia Cerato?
A: HHY4K maintains electrical compatibility with Kia Cerato 2013-2018 Dash 3 factory MAP button and SD card slot however functionality depends on aftermarket head unit capabilities. MAP button represents factory navigation control—aftermarket head units lacking external navigation button input support cannot utilize factory MAP button functionality. SD card slot functionality depends on aftermarket head unit SD card reader support and input compatibility. Most aftermarket head units include built-in SD card slots or USB inputs for expandable storage—factory SD card slot may be non-functional with aftermarket systems. Verify aftermarket head unit specifications for external button support and SD card compatibility if maintaining these factory features critical. Steering wheel controls maintain full functionality regardless of MAP button or SD card slot operation.
Q: What's the difference between Accent 2011-2015 Dash 2 and 2016-2020?
A: Hyundai Accent 2011-2015 Dash 2 represents fourth generation (RB chassis) specific dashboard configuration, Accent 2016-2020 represents fifth generation (HC chassis) with updated electrical architecture. Both generations compatible with HHY4K though represent different model generations with distinct dashboard designs and wiring systems. 2011-2015 Dash 2 specification indicates particular dashboard variant within fourth generation requiring verification against vehicle year and trim level. 2016-2020 covering entire fifth generation indicates broader compatibility across all fifth generation Accent models. Verify your Accent generation: 2011-2015 models (fourth generation rounded body style), 2016-2020 models (fifth generation sharper styling)—both compatible with HHY4K maintaining steering wheel control retention.
Q: Does HHY4K include antenna adapter?
A: No, HHY4K provides wiring integration with steering wheel control retention and selective camera retention only—antenna adapter not included. Most vehicles require separate antenna adapter for proper AM/FM radio reception with aftermarket head unit. Hyundai/Kia vehicles from 2011-2020 use manufacturer-specific antenna connector formats incompatible with standard aftermarket head unit antenna inputs. Purchase separate antenna adapter matching your specific vehicle model ensuring proper radio functionality. Contact supplier for correct antenna adapter part number for your vehicle. HHY4K focuses on steering wheel control and camera retention (i30 only)—additional adapters including antenna adapter available separately for complete installation solution based on vehicle requirements.
Q: Can I install HHY4K myself or do I need professional installation?
A: DIY installation suitable for mechanically inclined owners comfortable with Hyundai/Kia dashboard procedures—typical installation 1-2 hours depending on model complexity. Installation requires: removing factory head unit (dashboard trim removal procedures vary by model—clips and screws), connecting harness correctly to factory wiring and aftermarket head unit, connecting camera adapter if i30 with factory camera, configuring aftermarket stereo for steering wheel controls and camera trigger (if equipped), testing all features, securing head unit, reinstalling dashboard trim. Basic mechanical skills and proper tools (trim removal tools, screwdrivers) required for successful installation. Professional installation recommended if unfamiliar with dashboard disassembly or uncomfortable with electrical connections. Professional car audio shops experienced with Hyundai/Kia installations ensure: correct harness connections, proper camera integration for i30 models, steering wheel control programming, complete feature testing, proper dashboard reassembly. Professional installation provides warranty on work ensuring optimal functionality.
