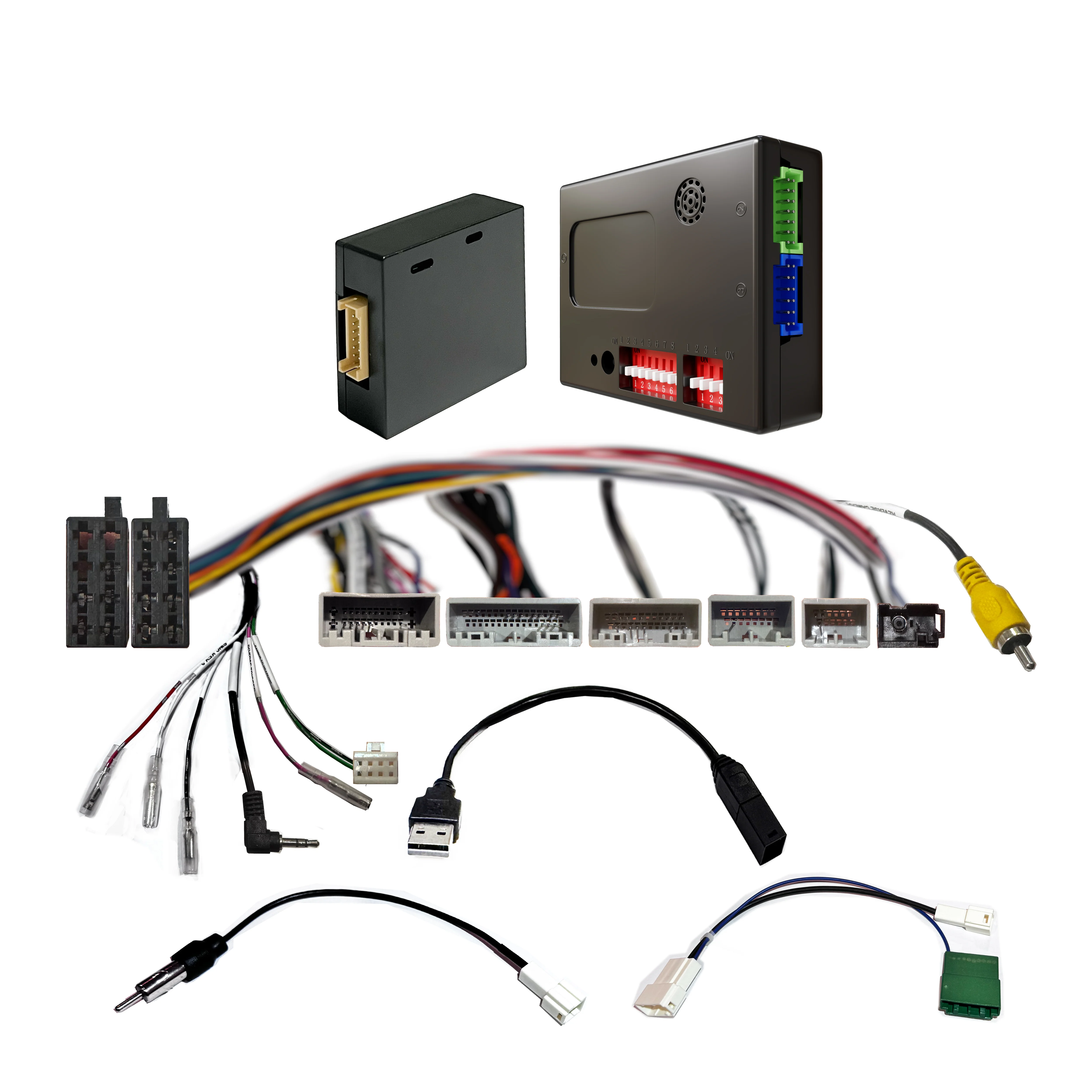

CAC HHD9K2 - Honda Harness with SWC, Side Camera, 3-Angle Camera, USB, Antenna
CAC HHD9K2 - Honda Harness with SWC, Side Camera, 3-Angle Camera, USB, Antenna
Plug-and-play integration harness for Honda Civic and CR-V enabling aftermarket head unit installation while retaining factory steering wheel controls including Bluetooth buttons, side camera with blinker activation and button function, reverse camera with 3-angle adjustment, USB connectivity, antenna connection, and time setting via steering wheel controls without cutting or splicing factory harnesses. The Car Audio Connect CAC HHD9K2 harness is specifically designed for Honda Civic 2015+ and Honda CR-V 2017+ Dash 2 with factory side camera systems providing seamless connection between aftermarket stereos and factory wiring systems. This professional-grade integration solution retains steering wheel control functionality including Bluetooth phone buttons, factory side camera operation with blinker activation and side camera button continuing to function normally, factory reverse camera with adjustable 3-angle rear views, factory USB connectivity on selected models, time setting support via steering wheel controls, and includes factory radio antenna adapter ensuring complete functionality preservation during head unit upgrades. Compatible with Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other brand stereos featuring standard wiring configurations and camera inputs, this versatile harness eliminates complex wiring modifications through direct plug-and-play connection to factory wiring enabling professional installation. Not compatible with factory amplified systems.
Product Overview
Car Audio Connect CAC harness is designed to suit a range of vehicles. Upgrade your head unit without losing factory functions. Plug and Play connect directly to factory wiring with easy installation. Suits Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony and other brand stereos.
Compatible With:
- Honda Civic 2015+ With Side Camera
- Honda CR-V 2017+ Dash 2 With Side Camera
Important Notes:
Factory Side Camera System Required: This HHD9K2 harness is specifically designed for Honda vehicles WITH factory side camera systems. Models without side cameras are NOT compatible with this harness and require different harness models. The side camera will activate with blinker signal and the side camera button will continue to function normally. Verify your Civic or CR-V has factory side cameras before purchase.
Not Compatible with Factory Amplified Systems: This harness is NOT compatible with Honda vehicles equipped with factory amplified audio systems or premium audio systems. If your Civic or CR-V has factory amplified system, this harness will result in audio issues or complete lack of sound. Verify your vehicle does NOT have factory amplified system before purchase. For vehicles with amplified systems, a different harness is required.
CR-V Dash 2 Configuration Required: For Honda CR-V 2017+, this harness is compatible with Dash 2 configuration only. Different dash configurations are NOT compatible with this harness and require different harness models. Verify your CR-V has Dash 2 configuration before purchase and ensure you order matching Dash 2 dash kit for physical mounting.
Civic 2015+ and CR-V 2017+ Specific Years: Honda Civic coverage is 2015+ models with side camera. Honda CR-V coverage is 2017+ models with Dash 2 and side camera. Earlier model years use different wiring configurations and require different harness models. Verify your exact Honda Civic or CR-V model year and side camera presence before purchase.
Dash Kit Required: This harness does NOT include dashboard mounting kit. You must purchase appropriate Honda dash kit separately matching your specific model and year (Civic 2015+ or CR-V 2017+ Dash 2) for physical head unit mounting.
Camera-Compatible Head Unit Required: To utilize factory reverse camera and side camera retention, your aftermarket head unit must support multiple camera inputs with camera switching capability. Standard head units with single camera input will only display one camera view. For full multi-camera functionality including side camera and 3-angle reverse camera, select head units designed for multi-camera systems.
USB Retention - Selected Models: Factory USB retention applies to selected Honda models equipped with factory USB ports. Not all compatible vehicles support USB retention feature. Verify your specific vehicle has factory USB port before expecting this feature to be retained. Contact us with your vehicle details for USB retention confirmation.
Key Features
Complete Steering Wheel Control Retention with Bluetooth Buttons - Maintains full functionality of factory steering wheel audio controls including volume, track skip, source change, and Bluetooth phone buttons for answering/ending calls providing safe hands-free operation.
Factory Side Camera Retention with Blinker Activation - Retains factory side camera (lane watch camera) functionality with automatic blinker activation and side camera button operation continuing normally maintaining enhanced visibility and safety features during lane changes.
Side Camera Button Function - Preserves factory side camera button operation allowing manual activation of side camera display maintaining convenient access to side visibility features.
Factory Reverse Camera Retention with 3-Angle Views - Retains factory reverse camera functionality with adjustable 3-angle rear view perspectives (camera-compatible head unit required) allowing optimal viewing angles for different parking situations maintaining enhanced safety features.
Time Setting via Steering Wheel Controls - Supports factory time adjustment via steering wheel controls allowing convenient head unit clock setting without navigating head unit menus using familiar factory steering wheel button combinations.
Bluetooth Button Integration - Retains factory steering wheel Bluetooth phone buttons allowing convenient call management without removing hands from wheel during aftermarket head unit upgrades compatible with Bluetooth-enabled head units.
Factory USB Retention - Maintains factory USB connectivity on selected models preserving convenient charging and media connectivity in original factory locations without requiring USB extension cables or modifications.
Factory Antenna Adapter Included - Includes radio antenna adapter connecting factory antenna to aftermarket head unit ensuring uninterrupted AM/FM radio reception without requiring separate adapter purchase.
Plug-and-Play Installation - Direct connection to factory wiring without cutting or splicing factory harnesses enabling professional installation and maintaining vehicle warranty compliance.
Honda Civic and CR-V Coverage - Supports Civic 2015+ and CR-V 2017+ covering current generation popular Australian Honda models with factory side camera systems.
Multi-Brand Head Unit Support - Compatible with Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other aftermarket brands featuring standard wiring configurations and multiple camera input capability.
Factory Wiring Preservation - Maintains complete factory wiring integrity allowing full system reversal to factory configuration maintaining vehicle value and warranty.
Professional Grade Construction - High-quality connectors and wiring ensuring reliable long-term electrical connections for power, speakers, accessories, steering wheel controls, multiple camera signals, and USB connectivity.
No Amplifier Compatibility - Specifically designed for non-amplified Honda systems ensuring proper audio integration without amplified system complications.
CarPlay/Android Auto Ready - Enables installation of modern head units with Apple CarPlay, Android Auto, Bluetooth, touchscreen, and navigation features while maintaining factory steering wheel controls including Bluetooth buttons, side camera, and 3-angle reverse camera functionality.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Car Audio Connect (CAC) |
| Product Type | Vehicle Integration Harness |
| SKU | HHD9K2 |
| Product Code | HHD9K2 |
| Vehicle Compatibility | Honda Civic 2015+ (With Side Camera), Honda CR-V 2017+ Dash 2 (With Side Camera) |
| Side Camera Requirement | Factory Side Camera System Required |
| Amplified System Compatibility | NOT Compatible with Factory Amplified Systems |
| CR-V Dash Configuration | Dash 2 Only |
| Steering Wheel Control Retention | Yes (Including Bluetooth Buttons and Time Setting) |
| Bluetooth Button Support | Yes |
| Side Camera Retention | Yes (With Blinker Activation and Side Camera Button) |
| Reverse Camera Retention | Yes (3-Angle Adjustment, Camera-Compatible Head Unit Required) |
| Camera Angle Views | 3 Adjustable Angles |
| USB Retention | Yes (Selected Models) |
| Antenna Adapter | Included |
| Head Unit Compatibility | Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, Other Standard Brands with Multi-Camera Support |
| Installation Type | Plug-and-Play |
| Wiring Preservation | Complete Factory Wiring Integrity Maintained |
| Reversibility | Fully Reversible to Factory Configuration |
| Applications | Honda Non-Amplified System Aftermarket Head Unit Installation |
| Warranty | Standard Manufacturer Warranty |
Frequently Asked Questions
Q: How do I know if my Honda has side cameras?
A: Check for additional cameras mounted on side mirrors or front fenders of your Honda. Side cameras (also called lane watch cameras) are separate from the rear reverse camera. If you see extra camera lenses on the sides of your vehicle, have a button to activate side camera views, or the camera automatically activates with your turn signal, your Honda has side cameras and the HHD9K2 is compatible. If you only have rear reverse camera (no side cameras), you need a different harness model. Most Civic 2015+ and CR-V 2017+ models with side camera have this feature on higher trim levels.
Q: Why isn't this harness compatible with factory amplified systems?
A: This HHD9K2 harness is designed for Honda vehicles with standard non-amplified audio systems only. Vehicles with factory amplified systems or premium audio systems use different wiring and signal levels that are not compatible with this harness. Using this harness on an amplified vehicle will result in audio issues or no sound. To verify if your Honda has amplified system, check for premium audio badging, amplifier location under seats or in cargo area, or consult your owner's manual. If you have factory amplified system, contact us to identify the correct harness for amplified Honda systems.
Q: What does the 3-angle camera adjustment feature do?
A: The HHD9K2 harness retains Honda's factory 3-angle reverse camera system allowing you to switch between three different viewing perspectives (wide angle, normal view, and top-down view) when reversing. This provides optimal visibility for different parking situations—wide angle for tight spaces, normal for general parking, top-down for precise positioning. The angle switching is typically controlled through steering wheel buttons or head unit interface. Your aftermarket head unit must support multi-angle camera input signals to utilize this feature fully.
Q: What aftermarket head units are compatible with this harness?
A: Compatible with most aftermarket single-DIN and double-DIN head units from Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other brands using standard ISO wiring configurations. Your chosen head unit must support multiple camera inputs for side camera and reverse camera display. For full 3-angle camera adjustment functionality and side camera switching, select a head unit that supports multi-camera systems with camera input switching. Modern head units with Apple CarPlay, Android Auto, Bluetooth, touchscreen, and navigation typically include camera inputs, though multi-camera support varies by model. Verify head unit has standard wiring harness, multiple camera input capability, and USB connectivity. You'll also need appropriate Honda dash kit matching your model and year (Civic 2015+ or CR-V 2017+ Dash 2).
Q: Can I install this myself or should I hire a professional?
A: The harness is plug-and-play designed for simplified installation. Complete installation requires: Honda dashboard removal (complexity varies between Civic 2015+ and CR-V 2017+—different procedures and Dash 2 configuration for CR-V), disconnecting factory head unit, connecting HHD9K2 harness to factory wiring and aftermarket head unit ensuring proper connections for side camera and reverse camera, mounting new unit in vehicle-specific dash kit, connecting camera inputs for side camera and 3-angle reverse camera functionality, connecting antenna adapter, testing steering wheel controls including Bluetooth buttons and time setting, USB functionality (if equipped), side camera display with blinker activation and button function, reverse camera display with angle switching, and audio operation. If you have car audio installation experience and proper tools (trim removal tools, panel tools), DIY installation is feasible—allow 3-4 hours depending on model due to multi-camera system complexity. If unfamiliar with multi-camera integration or Honda dashboard disassembly, professional installation recommended (typically $200-350) to ensure side camera, 3-angle reverse camera, and all features work correctly.
