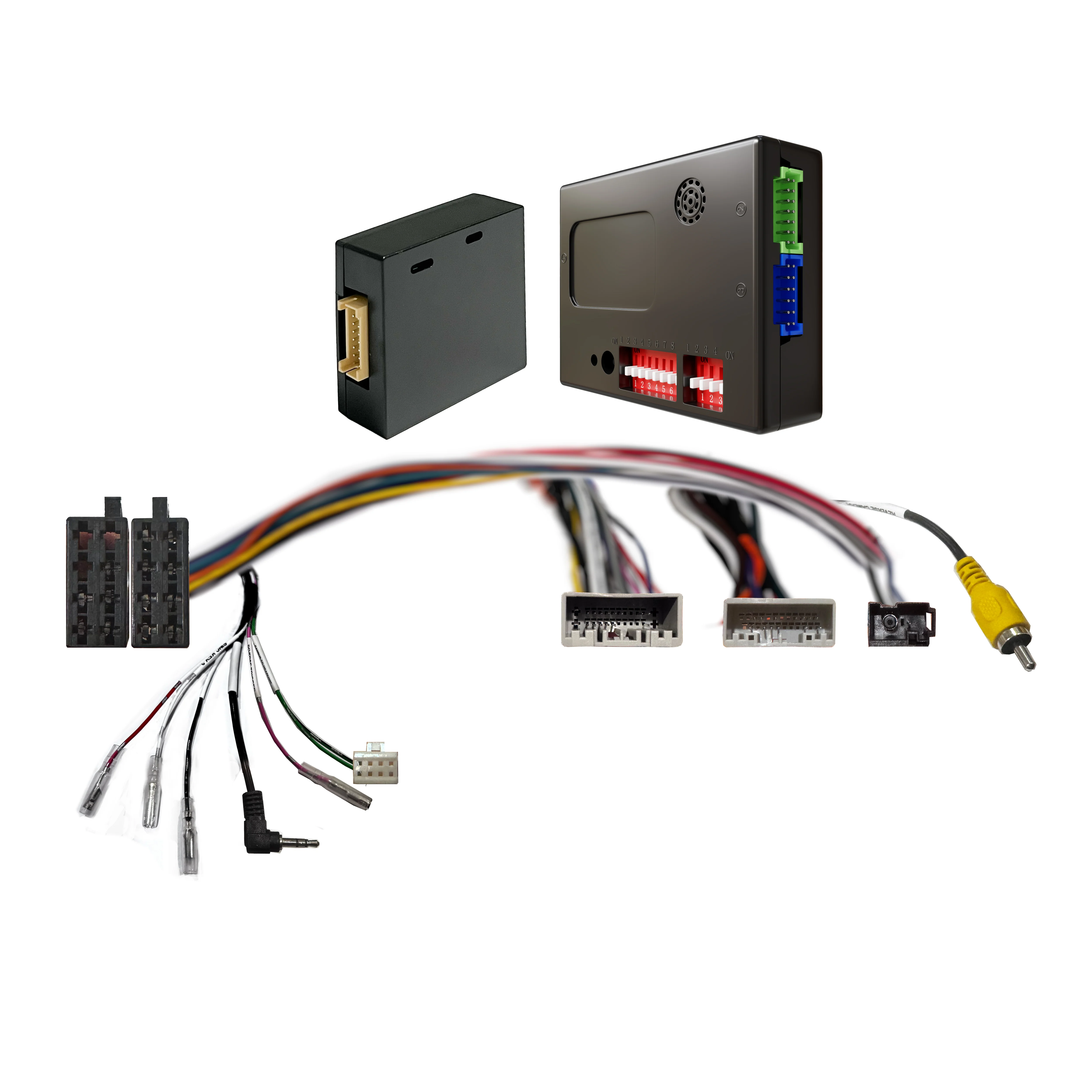

CAC HHD23K2 - Honda Harness with SWC, Camera Retention, Antenna
CAC HHD23K2 - Honda Harness with SWC, Camera Retention, Antenna
Advanced plug-and-play integration harness for Honda HR-V with factory side camera enabling aftermarket head unit installation while retaining all factory camera systems. The Car Audio Connect CAC HHD23K2 harness is specifically designed for Honda HR-V 2017-2021 models equipped with factory side camera (lane watch) systems providing seamless connection between aftermarket stereos and factory wiring systems without cutting or splicing factory harnesses. This professional-grade integration solution retains steering wheel controls (including Bluetooth buttons), factory reverse camera with adjustable 3-angle rear views, factory side camera with full functionality (blinker and side camera button continue to function as normal), and factory radio antenna adapter ensuring complete functionality preservation during head unit upgrades. Compatible with Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other brand stereos featuring standard wiring configurations with video input capabilities, this versatile harness eliminates complex wiring modifications through direct plug-and-play connection to factory wiring enabling professional installation. Specifically designed for Honda HR-V 2017-2021 WITH side camera providing exact-fit integration for HR-V models equipped with Honda's LaneWatch side camera technology—a unique feature displaying passenger-side blind spot view when turn signal activated or side camera button pressed. The retention of both reverse camera and side camera systems is particularly valuable maintaining Honda's advanced safety features crucial for safe lane changes and reversing maneuvers. Perfect for Honda HR-V owners upgrading to modern aftermarket head units with CarPlay/Android Auto, enhanced navigation, or premium audio features while maintaining factory safety cameras and convenient controls. Important: This harness is specifically for HR-V models WITH side camera—verify your vehicle has side camera functionality before purchase.
Product Overview
Car Audio Connect CAC harness is designed to suit a range of vehicles. Upgrade your head unit without losing factory functions. Plug and Play connect directly to factory wiring with easy installation. Suits Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony and other brand stereos.
Compatible With:
- Honda HR-V 2017-2021 With Side Camera
Important Notes:
Side Camera Required: This harness is specifically designed for Honda HR-V 2017-2021 models WITH factory side camera (LaneWatch) system. Not compatible with HR-V models without side camera. Verify your vehicle has side camera functionality (displays passenger-side view when right turn signal activated) before purchase.
Aftermarket Head Unit Must Support Multiple Video Inputs: To utilize both reverse camera and side camera, your aftermarket head unit must support multiple video inputs with appropriate switching capability. Verify head unit has this capability before purchase. Some head units may require additional video switching solutions.
Year Range 2017-2021: This harness is designed for Honda HR-V 2017-2021 models specifically. Earlier or later model years may have different wiring configurations requiring different harnesses. Verify your exact vehicle year before purchase.
Aftermarket Head Unit Required: This is an integration harness only—does not include head unit. Compatible with aftermarket stereos from Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other brands using standard wiring configurations with video input capabilities.
Professional Installation Recommended: Due to complexity of dual-camera system integration (reverse and side cameras), professional installation by experienced installer recommended ensuring proper functionality of all retained features and camera switching.
Key Features
Steering Wheel Control Retention - Retains factory steering wheel controls including volume, track, source, and Bluetooth buttons maintaining convenient audio control.
Factory Side Camera Retention - Preserves Honda LaneWatch side camera functionality with factory blinker activation and side camera button operation continuing to function as normal.
Factory Reverse Camera Retention - Retains factory reverse camera with adjustable 3-angle rear views providing optimal visibility during reversing maneuvers.
Complete Camera System Integration - Both reverse camera and side camera systems retained maintaining Honda's comprehensive safety camera technology.
Bluetooth Button Retention - Steering wheel Bluetooth buttons continue functioning for hands-free phone operation and voice commands.
Factory Antenna Adapter Included - Includes factory radio antenna adapter ensuring AM/FM radio reception with aftermarket head units.
Plug-and-Play Installation - Direct connection to factory wiring without cutting or splicing factory harnesses enabling professional installation.
Honda HR-V 2017-2021 Compatible - Specifically designed for Honda HR-V 2017-2021 models WITH side camera providing exact-fit integration.
LaneWatch Technology Support - Maintains Honda's proprietary LaneWatch side camera system displaying passenger-side blind spot view for safe lane changes.
Blinker-Activated Side Camera - Factory turn signal integration continues triggering side camera display when right turn signal activated as designed.
Side Camera Button Function - Factory side camera button operation preserved allowing manual activation of side camera view without turn signal.
Multi-Brand Head Unit Support - Compatible with Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, and other aftermarket head units with multiple video inputs.
Advanced Safety System Retention - Maintains both reverse camera and side camera safety technologies crucial for safe vehicle operation.
No Factory Wiring Modifications - Preserves factory wiring integrity allowing complete system reversal to factory configuration maintaining vehicle value.
Professional Grade Quality - High-quality connectors and wiring ensuring reliable long-term performance with complex dual-camera systems.
CarPlay/Android Auto Ready - Enables installation of modern head units with CarPlay, Android Auto, Bluetooth, and navigation while retaining all factory features.
Complete Feature Preservation - Maintains steering wheel controls, dual-camera systems, and antenna functionality eliminating compromise during upgrades.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Car Audio Connect (CAC) |
| Product Type | Vehicle Integration Harness |
| SKU | HHD23K2 |
| Product Code | HHD23K2 |
| Vehicle Compatibility | Honda HR-V 2017-2021 WITH Side Camera |
| Side Camera System | Required (LaneWatch Technology) |
| Steering Wheel Control Retention | Yes (Including Bluetooth Buttons) |
| Reverse Camera Retention | Yes (Adjustable 3-Angle Rear Views) |
| Side Camera Retention | Yes (Blinker and Button Activation) |
| Antenna Adapter | Included (Factory Radio Antenna) |
| USB Retention | Not specified (contact for details) |
| Head Unit Compatibility | Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony, Other Brands with Multiple Video Inputs |
| Video Inputs Required | Multiple Video Inputs for Dual-Camera Functionality |
| Installation Type | Plug-and-Play (Professional Installation Recommended) |
| Wiring Preservation | Complete Factory Wiring Integrity Maintained |
| Reversibility | Fully Reversible to Factory Configuration |
| Applications | Honda HR-V with LaneWatch Side Camera System |
| Warranty | Standard Manufacturer Warranty |
Frequently Asked Questions
Q: How do I know if my HR-V has the side camera (LaneWatch) system?
A: If your HR-V has LaneWatch, when you activate the right turn signal, a camera view of the passenger-side blind spot displays on your factory head unit screen. There's also typically a button near the turn signal stalk to manually activate this view. Look for a small camera mounted under the passenger-side mirror. If your HR-V doesn't have this feature, you need a different harness without side camera support.
Q: Will my aftermarket head unit support both cameras?
A: Your aftermarket head unit must have multiple video inputs and appropriate switching capability. Most modern head units support rear camera input; however, adding a second video source (side camera) requires verification. Some head units have dedicated auxiliary video inputs, while others may require external video switcher. Contact us with your intended head unit model for compatibility verification before purchase.
Q: How does the side camera activate with an aftermarket head unit?
A: The harness maintains factory side camera trigger functionality. When you activate the right turn signal or press the factory side camera button, the trigger signal is sent to the aftermarket head unit switching to side camera video input (assuming head unit properly configured). Setup may require head unit configuration during installation to assign video input to side camera trigger.
Q: What happens if I buy this harness but my HR-V doesn't have side camera?
A: If your HR-V doesn't have side camera (LaneWatch), this harness will still function for basic features (steering wheel controls, reverse camera, antenna), but you're paying for side camera integration you can't use. Contact us to identify appropriate harness for HR-V models WITHOUT side camera for better value and correct compatibility.
Q: Can I install this myself or do I need a professional?
A: Due to dual-camera system integration complexity, professional installation strongly recommended. Installation requires: Honda HR-V dashboard removal (moderately complex), disconnecting factory head unit, connecting integration harness, configuring aftermarket head unit for multiple video inputs and camera switching triggers, mounting new head unit in dash kit, testing both camera systems and all triggers, programming steering wheel controls. Improper installation results in non-functional cameras compromising safety. Expect professional installation cost of $250-400 reflecting dual-camera complexity. DIY only recommended for experienced installers familiar with multi-camera integration.
