CAC F9SZ24K1 9" Fascia Kit - Suzuki Swift 2012-2017 Dash 1 Configuration

Transform your Swift with a modern 9" touchscreen while keeping your factory USB port—engineered specifically for Dash 1 configuration.

Product Overview

The CAC F9SZ24K1 is a precision-engineered 9-inch fascia kit designed specifically for 2012-2017 Suzuki Swift models with Dash 1 configuration. This complete installation solution enables seamless upgrades from factory headunits to modern 9" touchscreen systems while retaining critical features including steering wheel controls, factory antenna connection, and factory USB port functionality on selected models. Compatible with Alpine, Pioneer, Kenwood, and Nakamichi aftermarket headunits, the kit features plug-and-play installation using factory wiring points with integrated steering wheel control interface and USB retention circuitry. Engineered to match factory dashboard specifications for the fourth-generation Swift's Dash 1 layout, this fascia delivers OEM-quality fitment with straightforward installation for professional workshops and experienced DIY installers looking to add modern connectivity features like Apple CarPlay, Android Auto, and high-resolution displays to their popular city hatchback.

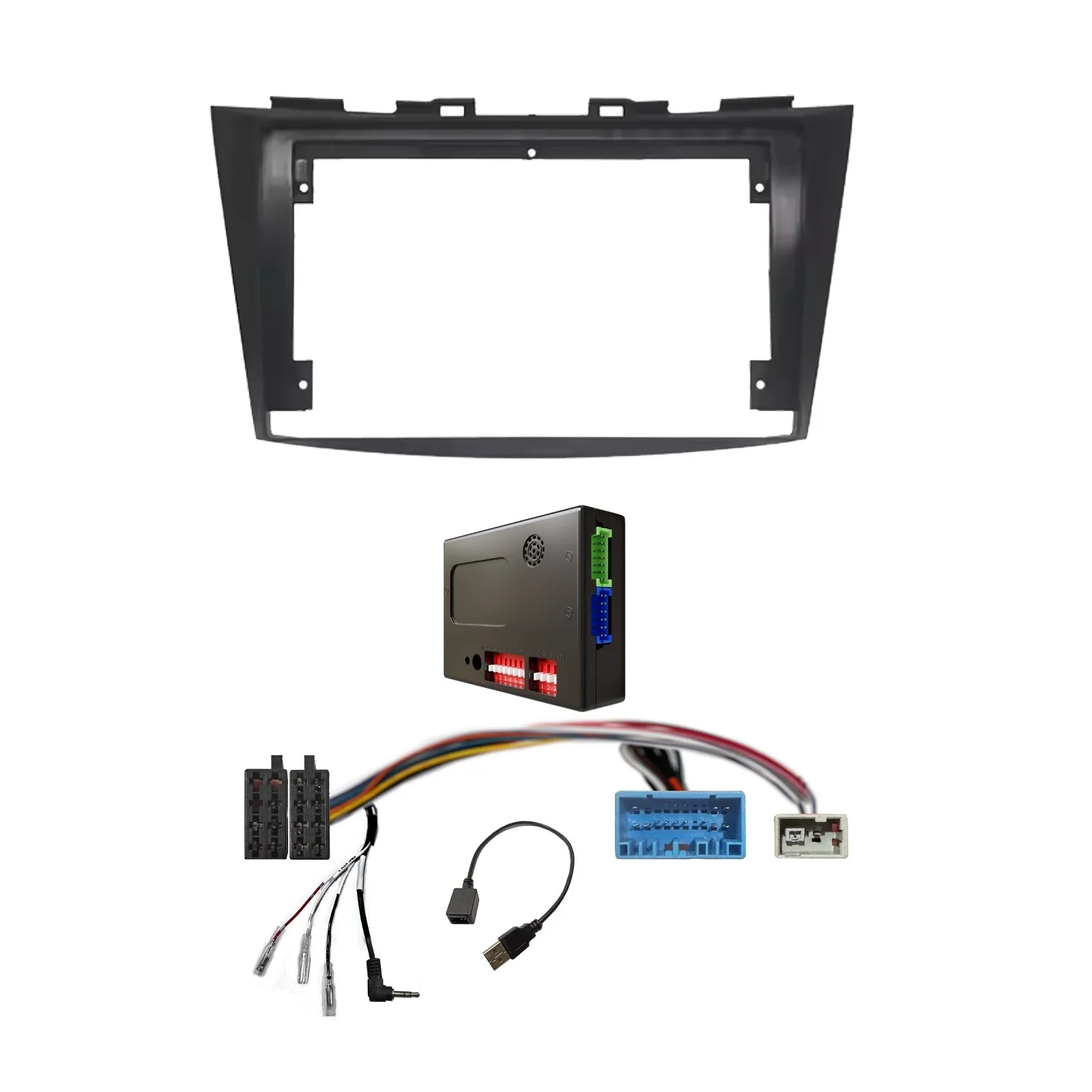

Key Specifications

• Fits universal trapezoid 9-inch aftermarket headunits
• Includes steering wheel control interface harness
• Includes factory radio antenna adapter
• Includes USB adapter for factory USB retention (selected models)
• Compatible with Alpine AW409S, AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems
• Fits Suzuki Swift 2012-2017 with Dash 1 configuration only
• Factory USB retention on selected models (verify your specific vehicle configuration)
• Plug-and-play installation with factory connectors
• Compatible with standard factory audio systems
• No factory camera retention included
• Fourth generation Swift (FZ/NZ series)

Features & Benefits

Factory USB Port Retention (Selected Models): Advanced wiring maintains your factory USB port functionality on compatible trim levels, allowing you to charge devices and maintain USB connectivity through the original dashboard location while using your new headunit's USB for CarPlay/Android Auto, giving you multiple USB options for passengers and devices.

Complete Steering Wheel Control Retention: Integrated SWC interface preserves all factory steering wheel buttons—volume adjustment, track skip, source selection, and phone controls—allowing you to control your new headunit safely without taking hands off the wheel during city commuting or highway driving.

Factory Antenna Integration: Included antenna adapter maintains your factory AM/FM antenna connection, ensuring proper radio reception across metropolitan and regional areas without signal loss or the need for aftermarket antenna solutions that compromise your Swift's clean exterior appearance.

Plug-and-Play Installation Harness: Pre-wired connectors match factory plugs exactly with additional circuitry for USB retention on compatible models, eliminating wire cutting, splicing, or electrical modifications that could void vehicle warranty or create future reliability issues during ownership.

OEM-Quality Dashboard Integration: Precision-molded fascia matches factory dashboard contours, panel gaps, and finish texture specifically for Dash 1 configuration, ensuring seamless visual integration that maintains your Swift's sporty interior quality rather than the obvious aftermarket appearance of universal mounting solutions.

Modern Connectivity Upgrade: Transform your Swift's entertainment system by adding wireless CarPlay, Android Auto, high-resolution touchscreen displays, Bluetooth streaming, and modern navigation capabilities that enhance daily city commuting, quick shopping trips, and weekend coastal drives with mates.

Technical Specs

• Screen Accommodation: Universal trapezoid 9-inch headunit format
• Steering Wheel Control: Integrated interface harness (feature retention depends on headunit model)
• USB Retention: Factory USB port functionality maintained on selected models
• Audio System: Compatible with factory standard audio systems
• Antenna Connection: Factory radio antenna adapter included
• Camera Retention: Not included (2012-2017 Swift typically not equipped with factory cameras)
• Dashboard Configuration: Dash 1 only (not compatible with other dash configurations)
• Installation Method: Plug-and-play using factory connectors
• Compatible Headunit Models: Alpine AW409S, AX809; Kenwood DMX80AXS; Pioneer DMH-AP6650BT; Nakamichi Canbus/Android systems; universal aftermarket Android stereos
• Vehicle Application: 2012-2017 Suzuki Swift with Dash 1 configuration (USB retention on selected models)
• Model Generation: Fourth generation Swift (FZ/NZ series)

Frequently Asked Questions

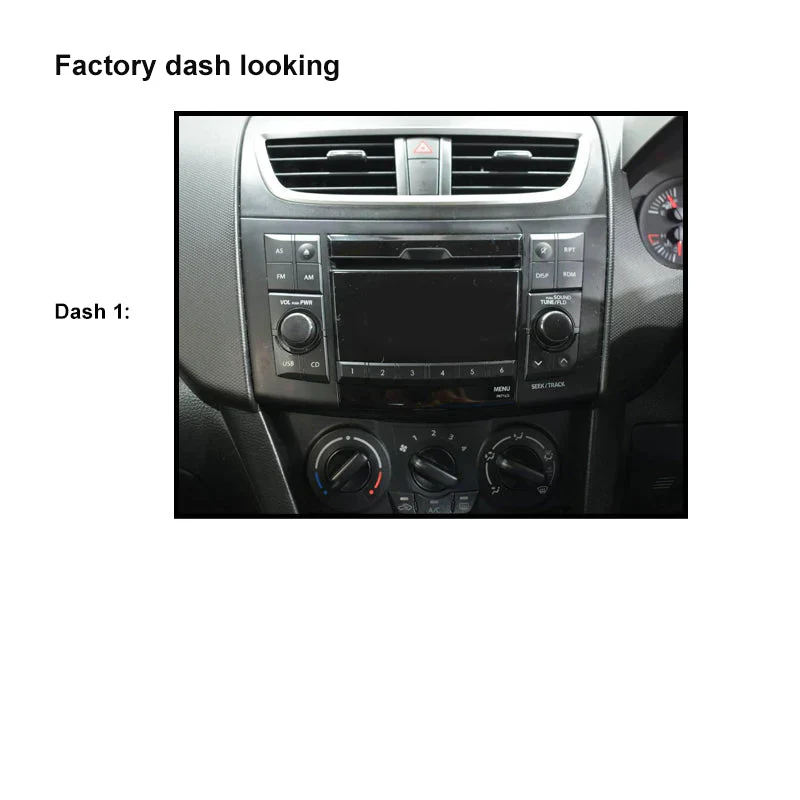

How do I know if I have Dash 1 configuration?

Dash 1 refers to a specific factory dashboard layout used in certain 2012-2017 Swift trim levels. Check your vehicle against the provided compatibility photos showing the Dash 1 configuration, or contact us with your VIN to confirm your dashboard type before ordering.

Will the factory USB port work on my Swift model?

USB retention is available on selected Swift models depending on factory configuration. The kit includes USB adapter hardware, but compatibility depends on your specific trim level and factory wiring. Contact us with your VIN to confirm USB retention capability for your vehicle before ordering.

Does this fascia kit include reverse camera retention?

No, this kit does not include camera retention wiring as 2012-2017 Swift models were not typically equipped with factory reverse cameras. If you want to add an aftermarket reverse camera, most compatible headunits support aftermarket camera inputs with separate wiring.

Can I install this kit myself or should I use a professional?

The plug-and-play design allows experienced DIY installers with basic automotive electrical knowledge to complete installation. You'll need panel removal tools and basic understanding of automotive wiring. Professional installation is recommended if you're unfamiliar with car audio installation or want warranty protection.

Which 9-inch headunit should I choose for this fascia?

The kit works with Alpine AW409S/AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, and quality Nakamichi or Android-based units. Choose based on your feature priorities—wireless CarPlay/Android Auto, screen resolution, built-in navigation, DAB+ radio, or budget—as all compatible units will integrate properly with the fascia.

Compatible With / Goes Well With

Compatible Vehicles:

• Suzuki Swift 2012-2017 with Dash 1 configuration only
• Fourth generation Swift (FZ/NZ series)
• USB retention available on selected models (verify before purchase)

Compatible Headunits:

• Alpine AW409S, AX809
• Kenwood DMX80AXS
• Pioneer DMH-AP6650BT
• Nakamichi Android-based systems with Canbus integration
• Universal aftermarket 9" trapezoid Android stereos

Recommended Accessories:

• Aftermarket reverse camera (if adding camera functionality)
• Panel removal tools for dashboard trim
• Wire harness electrical tape
• Multimeter for USB circuit verification
• Trim tool set for safe removal

Goes Well With:

• Aftermarket reverse cameras with universal inputs
• USB charging cables for passenger use
• GPS antenna boosters for improved navigation
• DAB+ digital radio tuners
• Steering wheel control programming tools

Caution: This kit is ONLY compatible with Dash 1 configuration. Verify your Swift's dashboard layout against compatibility photos before purchase. USB retention capability depends on your specific trim level—contact us to verify if USB retention is essential for your installation.
