CAC F9SR7K2 9" Fascia Kit - Subaru Liberty/Outback 2018-2020 Multi-Camera System

Upgrade to a modern 9" touchscreen without losing your factory multi-camera system—engineered for 2018-2020 Liberty/Outback with front, side, and rear cameras.

Product Overview

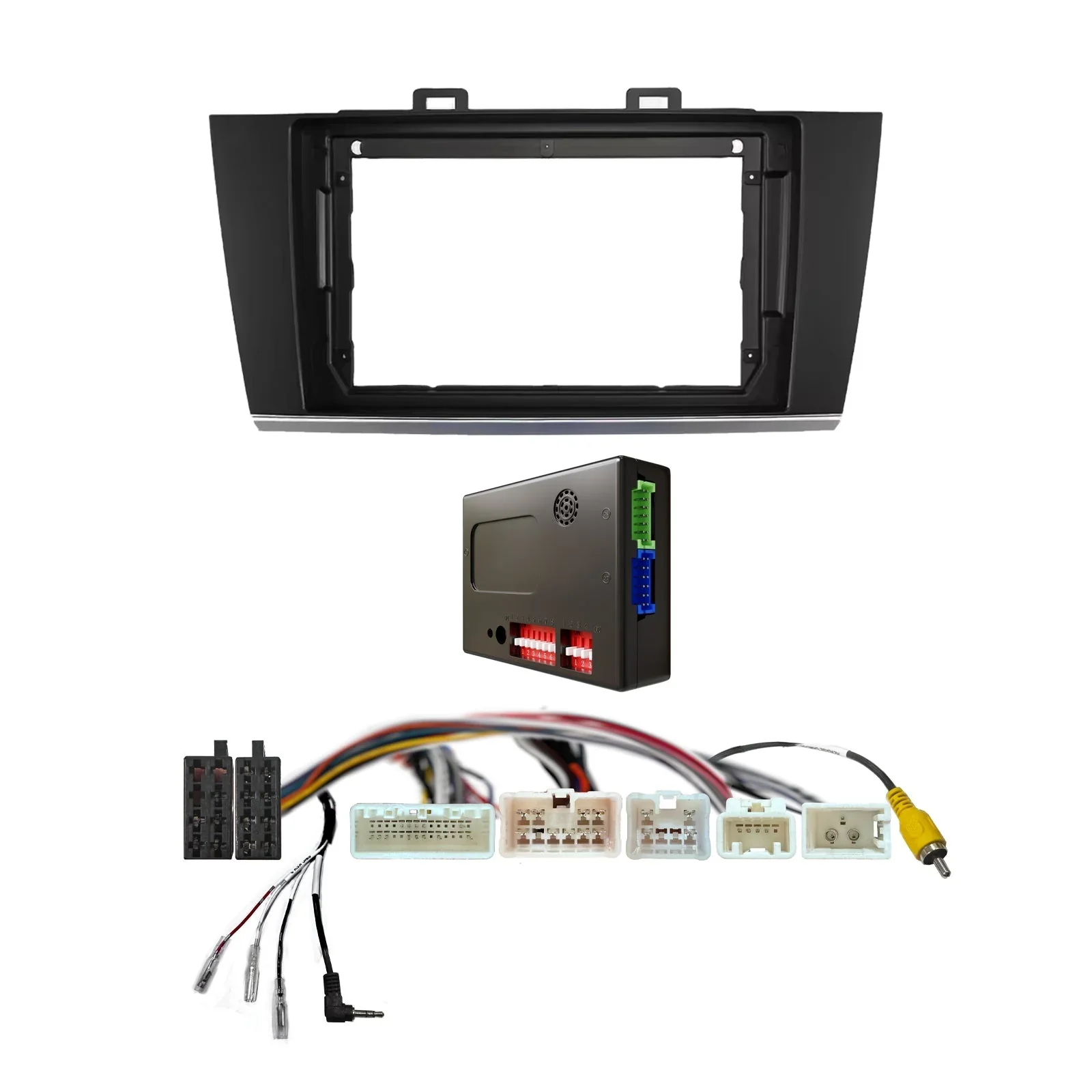

The CAC F9SR7K2 is a precision-engineered 9-inch fascia kit designed for 2018-2020 Subaru Liberty and Outback models equipped with factory standard audio systems and multi-camera configurations including front, side, and rear cameras. This advanced installation solution enables seamless upgrades to modern 9" touchscreen headunits while retaining all factory camera inputs—essential for vehicles with EyeSight safety systems or surround view monitoring. Compatible with Alpine, Pioneer, Kenwood, and Nakamichi aftermarket headunits, the kit features plug-and-play installation using factory wiring points with comprehensive camera retention circuitry. Engineered for both Dash 1 and Dash 2 configurations, this fascia delivers OEM-quality fitment with complete camera system integration for professional workshops and experienced installers who refuse to compromise safety features during infotainment upgrades.

Key Specifications

• Fits universal trapezoid 9-inch aftermarket headunits
• Compatible with factory standard audio systems (non-Harman Kardon)
• Includes steering wheel control interface harness
• Retains factory front camera input
• Retains factory side camera inputs (left and right)
• Retains factory rear camera input with automatic switching
• Includes factory radio antenna adapter
• Compatible with Alpine AW409S, AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems

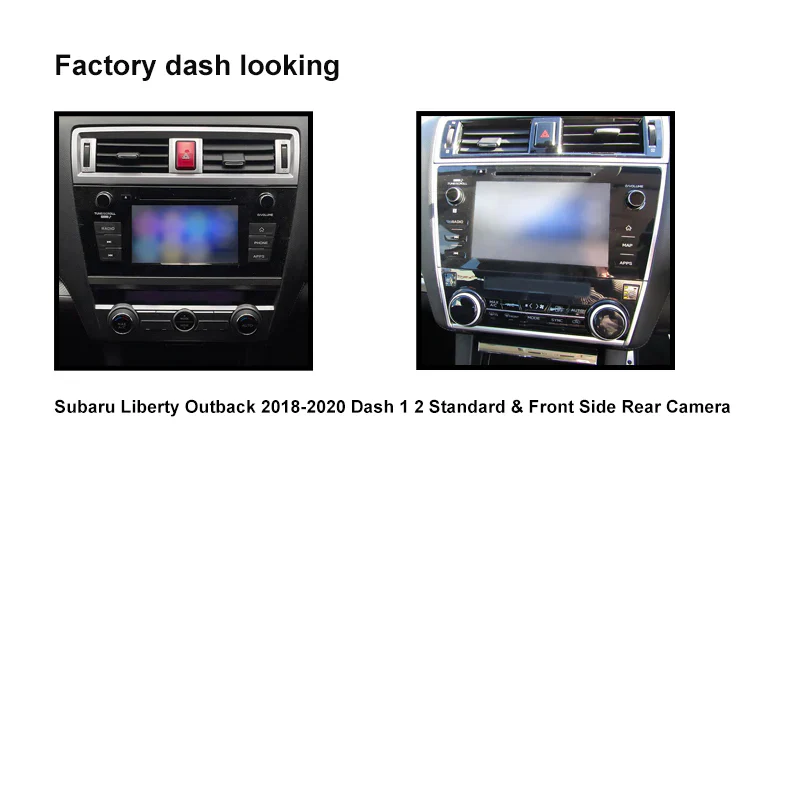

• Fits Subaru Liberty 2018-2020 (Dash 1 & 2, Standard system with multi-camera)
• Fits Subaru Outback 2018-2020 (Dash 1 & 2, Standard system with multi-camera)
• Factory USB retention not supported
• Plug-and-play installation with factory connectors

Features & Benefits

Complete Multi-Camera System Retention: Advanced wiring harness maintains all factory camera inputs—front, left side, right side, and rear—ensuring your EyeSight safety features and surround view monitoring continue functioning after headunit upgrades, critical for low-speed manoeuvring, tight 4WD trails, and parking safety.

Standard Audio System Integration: Purpose-built wiring maintains compatibility with factory standard speaker systems, ensuring proper impedance matching and signal flow for optimal audio performance from your upgraded headunit without the complexity required for premium audio integration.

Complete Steering Wheel Control Retention: Integrated SWC interface preserves all factory steering wheel buttons—volume adjustment, track skip, source selection, and voice commands—allowing you to control your new headunit safely without taking hands off the wheel during highway cruising or navigating busy city traffic.

Front and Side Camera Functionality: Dedicated camera retention circuits maintain your factory front and side camera feeds, essential for navigating tight car park spaces, checking obstacles during low-speed manoeuvres, and monitoring wheel positioning when traversing narrow tracks or tight urban streets without aftermarket camera additions.

Automatic Rear Camera Switching: Factory reverse camera maintains full functionality with automatic video switching when you shift into reverse, essential for tight car park manoeuvres, parallel parking, and safe reversing with trailers or caravans without visual blind spots.

Plug-and-Play Installation Harness: Pre-wired connectors match factory plugs exactly with additional circuits for multi-camera integration, eliminating wire cutting, splicing, or electrical modifications that could void vehicle warranty or create future reliability issues during ownership.

OEM-Quality Dashboard Integration: Precision-molded fascia matches factory dashboard contours, panel gaps, and finish texture for seamless visual integration that maintains your Liberty or Outback's interior quality while supporting advanced headunit features like split-screen camera displays.

Wide Headunit Compatibility: Supports leading 9" aftermarket units from Alpine, Pioneer, Kenwood, and Nakamichi, plus quality Android-based systems with multiple video inputs, giving you flexibility to choose features like wireless CarPlay, high-resolution displays, or advanced camera switching logic.

Technical Specs

• Screen Accommodation: Universal trapezoid 9-inch headunit format
• Steering Wheel Control: Integrated interface harness (feature retention depends on headunit model)
• Audio System: Compatible with factory standard audio systems only (not Harman Kardon)
• Front Camera: Factory front camera retention included
• Side Cameras: Factory left and right side camera retention included
• Rear Camera: Factory rear camera retention with automatic switching
• Camera System: Compatible with EyeSight and surround view monitoring systems
• Antenna Connection: Factory radio antenna adapter included
• Dashboard Configuration: Dash 1 and Dash 2 fitments (model-specific, see compatibility list)
• Installation Method: Plug-and-play using factory connectors
• USB Retention: Factory USB not compatible (aftermarket headunit USB available)
• Compatible Headunit Models: Alpine AW409S, AX809; Kenwood DMX80AXS; Pioneer DMH-AP6650BT; Nakamichi Canbus/Android systems; universal aftermarket Android stereos with multiple video inputs
• Vehicle Application: 2018-2020 Subaru Liberty and Outback (Standard audio system with factory front, side, and rear cameras)
• Model Generation: Sixth generation Liberty and Outback (2018-2020)

Frequently Asked Questions

What's the difference between this kit and the F9SR7K1 model?

The F9SR7K2 retains front, side, and rear cameras (multi-camera/EyeSight systems) for 2018-2020 models, while the F9SR7K1 only retains the rear camera for 2015-2020 models. If your Liberty or Outback has front and side cameras for surround view, you need this F9SR7K2 model.

Does this work with Harman Kardon premium audio systems?

No, this kit is specifically designed for Liberty and Outback models equipped with factory standard audio systems. If your vehicle has the Harman Kardon premium system, you'll need a different fascia kit with amplifier integration wiring.

Will all my camera views work with any aftermarket headunit?

Camera retention depends on your chosen headunit having sufficient video inputs and switching capability. Alpine, Pioneer, Kenwood, and quality Nakamichi units support multiple camera inputs. Verify your headunit supports at least 4 video inputs before purchase.

Can I install this kit myself or should I use a professional?

While the harness is plug-and-play, multi-camera integration requires verifying all camera feeds and configuring headunit video switching logic. Professional installation is strongly recommended to ensure proper camera operation, steering wheel control programming, and to maintain EyeSight system warranty coverage.

What happens to my EyeSight system with this upgrade?

EyeSight cameras and functionality remain completely independent and unaffected by headunit replacement. This fascia retains the auxiliary camera feeds that display on your screen (front/side/rear views), while EyeSight continues operating through its dedicated system for collision avoidance and cruise control.

Compatible With / Goes Well With

Compatible Vehicles (Standard Audio with Multi-Camera Systems):

• Subaru Liberty 2018-2020 (Dash 1 & 2 configurations with factory front, side, and rear cameras)
• Subaru Outback 2018-2020 (Dash 1 & 2 configurations with factory front, side, and rear cameras)

Compatible Headunits (Must Support Multiple Video Inputs):

• Alpine AW409S, AX809 (multiple camera inputs)
• Kenwood DMX80AXS (multiple camera inputs)
• Pioneer DMH-AP6650BT (multiple camera inputs)
• Nakamichi Android-based systems with Canbus integration and multi-camera support
• Universal aftermarket 9" trapezoid Android stereos with 4+ video inputs

Installation Accessories:

• Panel removal tools for dashboard trim
• Wire harness electrical tape
• Multimeter for camera circuit verification
• Video signal tester for camera validation
• Trim tool set for safe removal

Goes Well With:

• Parking sensors for enhanced safety
• GPS antenna boosters for improved navigation
• DAB+ digital radio tuners
• Reversing beepers for additional alerts

Caution: This kit requires vehicles with factory front, side, and rear cameras. Verify your vehicle has all three camera systems and confirm Dash 1 or Dash 2 configuration before purchase. Standard audio systems only—not compatible with Harman Kardon.
