BlackVue DR770X-BX-PRO-64 DR770X Box Pro 64GB Up To 3-Channel Full HD Stealth Dash Cam System
BlackVue DR770X-BX-PRO-64 DR770X Box Pro 64GB Up To 3-Channel Full HD Stealth Dash Cam System
Combining stealth and security, the BlackVue DR770X Box Pro pairs a compact front camera with a hidden recording unit, delivering Full HD Sony STARVIS footage across every channel and the flexibility to expand to a complete three-camera system.
Product Overview
The DR770X-BX-PRO is BlackVue's modular Box Pro dash cam system, designed for drivers who want powerful, discreet recording with the ability to build out their coverage over time. The system ships as a base single-camera setup with the front camera and main recording unit, and can be expanded with up to two additional cameras chosen from BlackVue's compatible range — including a standard rear camera, waterproof external rear camera (IP69K-rated, ideal for trucks and heavy vehicles), or infrared interior camera with a 180-degree ultra-wide angle for cabin coverage.
Every camera in the DR770X-BX-PRO system features a Sony STARVIS CMOS sensor for outstanding low-light performance, with 15% improved low-light sensitivity over previous sensors. The front camera records in Full HD at 60FPS for smooth, high-detail footage, while rear and interior channels record at Full HD 30FPS. The secure recording main unit installs out of sight, keeping hardware away from potential theft or tampering.
Built-in Wi-Fi, an included external GPS, optional LTE connectivity via the CM100G module (sold separately), and BlackVue Cloud support round out the feature set with remote live view, video backup, and push notifications. The included SOS button triggers manual event recording on demand.
The 64GB BlackVue microSD card in this SKU provides a starting point for the base single-camera configuration. Note that adding additional cameras increases recording data across all channels, and larger capacity cards are recommended when running the full three-channel setup.

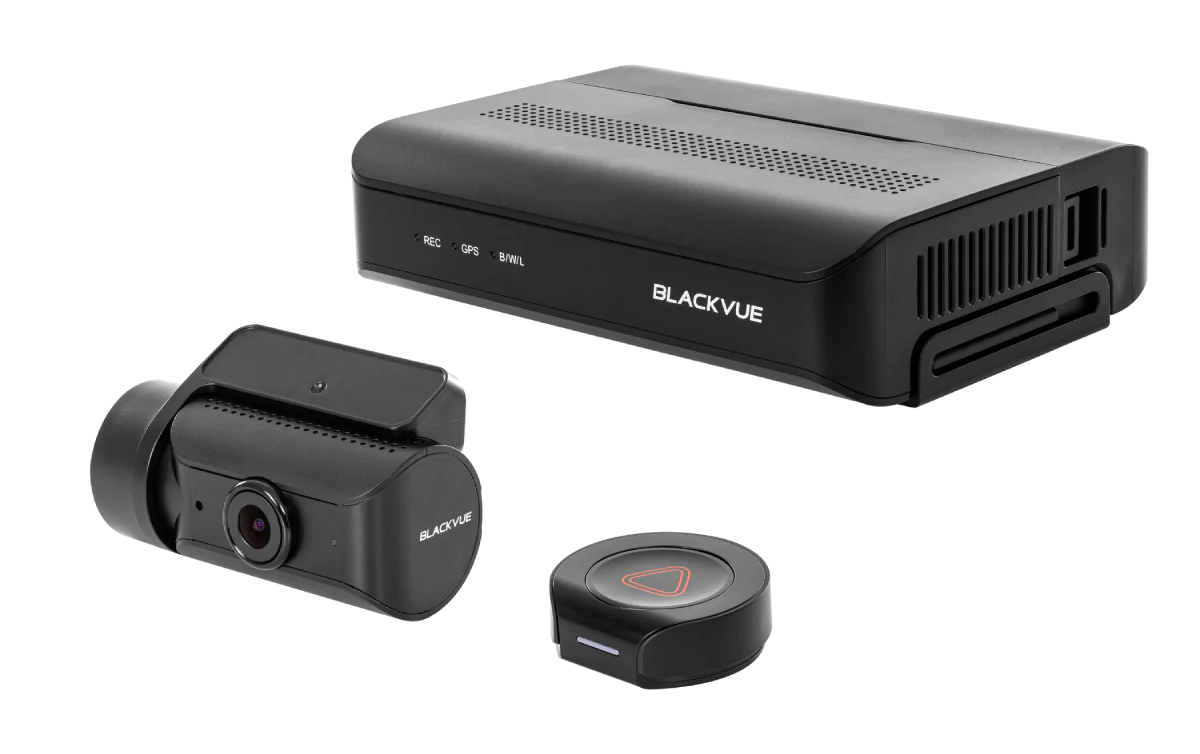

What's in the Box
- DR770X Box Pro Main Unit
- Front Camera (FC1)
- SOS Button (EB-1)
- External GPS
- 64GB BlackVue microSD Card
- microSD Card Reader
- BlackVue Hardwiring Kit
- 12V Power Cable (3-pole)
- 1x Coaxial Connection Cable
- Hex Wrench
- Screws
- Cable Clips (2 per camera)
- Mounting Bracket Tape
- Velcro Mounting Strips
- Tape Pry Tool
- Quick Start Guide
Rear Camera, Rear IR Camera, and Rear External Camera are optional and sold separately.
Features & Benefits
Every camera in the DR770X-BX-PRO system is equipped with a Sony STARVIS CMOS sensor delivering approximately 2.1MP resolution with back-illuminated sensor technology for high sensitivity and wide dynamic range across all lighting conditions. The 15% improvement in low-light sensitivity over previous generation sensors means clear, usable footage well into the night on every active channel.
The front camera records at Full HD 1920x1080 at 60FPS — twice the frame rate of standard 30FPS systems — for smooth motion rendering and sharper detail on fast-moving objects such as number plates. Rear and interior cameras record at Full HD 30FPS, providing consistent high-quality coverage across the full system.
The modular design allows the system to start as a discreet single front-camera setup and expand with any combination of two additional cameras — rear, waterproof external rear (IP69K for trucks and heavy vehicles), or IR interior with 180-degree ultra-wide angle lens and dual 940nm infrared LEDs for automatic night vision inside the cabin. All camera combinations are supported using custom configurations.
The secure main recording unit installs out of sight, reducing the visual footprint compared to windshield-mounted dashcams and protecting recorded footage from easy access. The included SOS button triggers manual event recording and can be mounted within reach of the driver.
Intelligent Parking Mode with buffered recording detects motion and impact when the vehicle is unattended, capturing footage from the seconds before and after any triggered event to provide full context. For extended parking protection without draining the vehicle battery, the BlackVue B-130A dedicated battery pack is recommended.
BlackVue Cloud support with built-in Wi-Fi and optional LTE (CM100G module, sold separately) enables remote live view, video backup to cloud, and push notifications from anywhere. The included external GPS provides speed and location data overlay on all recorded footage.
Technical Specs
| Specification | Detail |
|---|---|
| Model | DR770X-BX-PRO |
| Channels | Up to 3 Channel (Front + up to 2 additional cameras) |
| Camera Sensor | Sony STARVIS CMOS (Approx. 2.1MP) — all cameras |
| Front Resolution / FPS | Full HD (1920 x 1080) @ 60FPS |
| Rear / Interior Resolution / FPS | Full HD (1920 x 1080) @ 30FPS |
| Front Viewing Angle (FC1) | Diagonal 139°, Horizontal 116°, Vertical 61° |
| Rear Viewing Angle (RC1) | Diagonal 139°, Horizontal 116°, Vertical 61° |
| Rear Truck Viewing Angle (ERC1) | Diagonal 116°, Horizontal 97°, Vertical 51° |
| Interior IR Viewing Angle (RC1-IR) | Diagonal 180°, Horizontal 150°, Vertical 93° |
| Infrared Illumination (Interior IR) | 940nm, 2x IR LEDs |
| Image Quality (Bitrate) | Highest Extreme: 16+10+10Mbps / Highest: 12+10+10Mbps / High: 10+8+8Mbps / Normal: 8+6+6Mbps |
| Video Codec | H.264 (AVC) |
| Video File Format | MP4 |
| Format-Free | Yes (Adaptive) |
| Included Storage | 64GB microSD (BlackVue) |
| Maximum Storage | 512GB microSD |
| Wi-Fi | Built-in |
| GPS | External GPS (included) |
| LTE | Optional via CM100G LTE Module (sold separately) |
| Recording Modes | Normal / Event (Impact) / Manual Event / Parking (Impact + Motion) |
| SOS Button | Yes — triggers manual event recording (EB-1) |
| Impact Sensor | 3-Axis Acceleration Sensor |
| Power Storage | Built-in Supercapacitor |
| Input Voltage | DC 12V–24V |
| Power Consumption (Normal, 3CH) | Avg. 750mA @ 12V (GPS On) |
| Power Consumption (Parking, 3CH) | Avg. 600mA @ 12V (GPS Off) |
| IR LED Power Draw | +Approx. 40mA (Interior IR LEDs on) |
| Rear Truck Camera IR Draw | +Approx. 60mA (ERC1 IR LEDs on) |
| Voltage Cut-off | 11.8V–12.5V (12V) / 22.8V–24V (24V) |
| Operating Temperature | -20°C to 80°C |
| High Temp Cut-off | Approx. 80°C |
| Main Unit Dimensions | 135.0 x 101.0 x 33mm |
| Main Unit Weight | 209g |
| Front Camera Dimensions | 62.5 x 34.3 x 34.0mm |
| Front Camera Weight | 43g |
| Rear Camera Dimensions | 63.5 x 32.0 x 32.0mm |
| Rear Camera Weight | 33g |
| Interior IR Camera Dimensions | 63.5 x 32.0 x 32.0mm |
| Interior IR Camera Weight | 34g |
| Rear Truck Camera Dimensions | 70.4 x 56.6 x 36.1mm |
| Rear Truck Camera Weight | 157g |
| SOS Button Dimensions | 45.2 x 42.0 x 14.5mm |
| SOS Button Weight | 23g |
| App Compatibility | BlackVue App (iOS and Android) |
| Warranty | 36 months |
Goes Well With
- BlackVue RC1 Rear Camera to add Full HD rear coverage to the base system
- BlackVue RC1-IR Interior IR Camera for 180-degree cabin surveillance with automatic night vision
- BlackVue ERC1 Waterproof Rear External Camera for trucks and heavy vehicle applications
- BlackVue CM100G LTE Module for always-on cloud connectivity and remote live view
- BlackVue B-130A Dedicated Battery Pack for extended parking mode recording
Frequently Asked Questions
Does the DR770X-BX-PRO come with rear or interior cameras included?
The base system includes the main recording unit and front camera only. The rear camera, interior IR camera, and waterproof external rear camera are optional and sold separately. The system supports up to two additional cameras simultaneously, giving you complete flexibility to configure the setup that suits your vehicle and coverage needs.
What additional cameras are compatible with the DR770X-BX-PRO?
The system is compatible with the BlackVue RC1 standard rear camera, RC1-IR infrared interior camera, and ERC1 waterproof external rear camera. Any combination of two from these options can be added to the base system to complete a three-channel setup.
Why is 64GB recommended mainly for the base single-camera setup?
In a single front-camera configuration, 64GB provides a workable starting point for daily recording. However, once additional cameras are added the system records across two or three channels simultaneously, filling storage considerably faster. Drivers planning to expand to a two or three-channel setup are recommended to use 128GB or above.
Does the DR770X-BX-PRO support cloud features without the LTE module?
Yes. When connected to a Wi-Fi hotspot, the DR770X-BX-PRO can access BlackVue Cloud features including live view, video backup, and push notifications. The optional CM100G LTE module (sold separately) enables always-on cloud connectivity without relying on a Wi-Fi hotspot, including while parked.
Why is a supercapacitor better than a battery in a dashcam?
A supercapacitor provides short-term power for safe recording shutdown on sudden power loss, without the degradation risk that lithium batteries face at high temperatures. In Australian conditions where a parked vehicle's interior can reach extreme heat, a supercapacitor-based design provides more reliable long-term performance.
