BlackVue DR770X-2CH-TR-64-II Truck Full HD Dual Dash Cam with Waterproof IR Rear Camera, 15m Coax Cable and 64GB microSD
BlackVue DR770X-2CH-TR-64-II Truck Full HD Dual Dash Cam with Waterproof IR Rear Camera, 15m Coax Cable and 64GB microSD
A commercial-grade dual Full HD dash cam system built for trucks and heavy vehicles, featuring a 1080P 60fps front camera and a ruggedised IP69K waterproof external rear camera with 6 infrared LEDs and a 15m coaxial cable for complete front and rear coverage on larger vehicles. Includes a 64GB microSD card and hardwiring kit. Backed by a 3 year warranty for Australian customers.
Product Overview

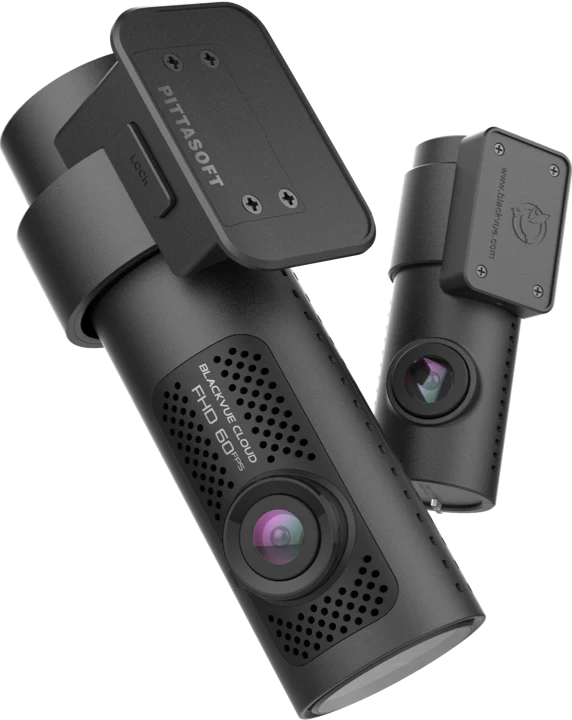

The BlackVue DR770X-2CH-TR-64-II is a truck-specific dual channel Full HD dash cam designed for commercial vehicles, trucks, and heavy vehicles where a standard internal rear camera cannot be used. The front camera records at 1920 x 1080 at 60fps using a Sony STARVIS CMOS sensor. The external rear camera features a ruggedised metal waterproof casing rated IP69K, enabling it to withstand high-pressure washdowns and harsh weather conditions. The rear camera is fitted with six 940nm infrared LEDs that automatically activate based on ambient light for clear night vision recording of the rear of the vehicle or cargo area.
A 15m waterproof coaxial cable connects the front and rear cameras, providing sufficient reach for large trucks, trailers, and heavy commercial vehicles where a 6m cable would fall short. Built-in dual-band GPS with GLONASS, built-in Wi-Fi, native parking mode with built-in power management, and BlackVue Cloud compatibility via optional CM100GLTE module (sold separately) are all included. A 64GB BlackVue microSD card and hardwiring kit are included. Backed by a 3 year warranty for Australian customers.
Features & Benefits
IP69K Waterproof External Rear Camera for Trucks and Heavy Vehicles: The external rear camera is housed in a ruggedised metal casing rated IP69K, allowing it to withstand high-pressure washdowns and all weather conditions. Designed for external mounting at the rear of trucks and heavy commercial vehicles.
6 Infrared LEDs for Night Vision: The rear camera is fitted with six 940nm infrared LEDs that automatically activate based on ambient light levels, providing clear footage in complete darkness for monitoring of the rear of the vehicle or cargo area.
15m Waterproof Coaxial Cable: A 15m waterproof coaxial cable is included, providing sufficient cable reach for large trucks, trailers, and heavy commercial vehicles without compromising video quality over the longer cable run.
Full HD 1080P Front Camera at 60fps: The front camera records at 1920 x 1080 at 60fps with a Sony STARVIS back-illuminated CMOS sensor, delivering smooth, high-detail footage with 15% improved low-light sensitivity.
Built-In Power Management and Native Parking Mode: Built-in power management hardware supports reliable parking mode with both impact and motion detection, and buffered event recording capturing the seconds before and after an incident.
BlackVue Cloud Compatible for Fleet Management: Connects to BlackVue Cloud via Wi-Fi or optional CM100GLTE LTE module for Live View, emergency alarm, video backup, GPS tracking, and remote video playback. Ideal for fleet management applications. Requires mobile data.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | DR770X-2CH-TR-64-II |
| Brand | BlackVue |
| Type | 2 Channel (Front and External Rear - Truck) |
| Origin | Made in Korea |
| Video | |
| Front Resolution | Full HD (1920 x 1080) @ 60fps |
| Rear Resolution | Full HD (1920 x 1080) @ 30fps |
| Front Sensor | Sony STARVIS CMOS (Approx. 2.1MP) |
| Rear Sensor | Sony STARVIS CMOS (Approx. 2.1MP) |
| Front Viewing Angle | Diagonal 139°, Horizontal 116°, Vertical 61° |
| Rear Viewing Angle | Diagonal 139°, Horizontal 116°, Vertical 61° |
| Rear Camera IR | 6 x 940nm Infrared LEDs (auto-activating) |
| Rear Camera Casing | IP69K Waterproof Metal |
| Image Quality / Bitrate | Highest Extreme: 25+10 Mbps / Highest: 12+10 Mbps / High: 10+8 Mbps / Normal: 8+6 Mbps |
| Video Codec | H.264 (AVC) |
| Video Format | MP4 |
| Format Free | Adaptive Format-Free |
| Memory | |
| Included Storage | 64GB BlackVue microSD card |
| Maximum Storage | Up to 1TB microSD (BlackVue cards recommended) |
| Connectivity | |
| Wi-Fi | Built-in 802.11n (2.4GHz) |
| GPS | Built-in Dual-Band (GPS and GLONASS) |
| 4G LTE | Optional via CM100GLTE module (sold separately) |
| Cloud | BlackVue Cloud compatible (BYO data) |
| App | BlackVue App (Android 8.0 or later, iOS 13.0 or later) |
| Software | BlackVue PC Viewer (Windows 7 or higher, Mac OS X Sierra 10.12 or higher) |
| Recording | |
| Recording Modes | Normal, Event (Impact Detection), Manual Event, Parking Mode (Impact and Motion Detection) |
| Power | |
| Input Voltage | DC 12V-24V (max 1A / 12V) |
| Normal Mode (2CH) | Avg. 380mA / 12V |
| Parking Mode (2CH) | Avg. 300mA / 12V |
| Voltage Cut-Off | Passenger: 11.8-12.5V / Heavy Vehicle: 22.8-24V (variable, built-in) |
| Supercapacitor | Built-in |
| Physical | |
| Front Dimensions | 118.5mm (W) x 36mm (H) |
| Front Weight | 103g |
| Coax Cable | 15m waterproof (included) |
| Other | |
| Microphone | Built-in |
| Speaker | Built-in |
| G-Sensor | Built-in 3-Axis |
| Operating and Storage Temperature | -20°C to 80°C |
| High Temp Cut-Off | Approx. 80°C |
| Certifications | Front: FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC / Rear: FCC, ISED, CE, UKCA, RCM, RoHS, WEEE, KC |
| Warranty | 3 Years (Australian customers - T&Cs apply) |

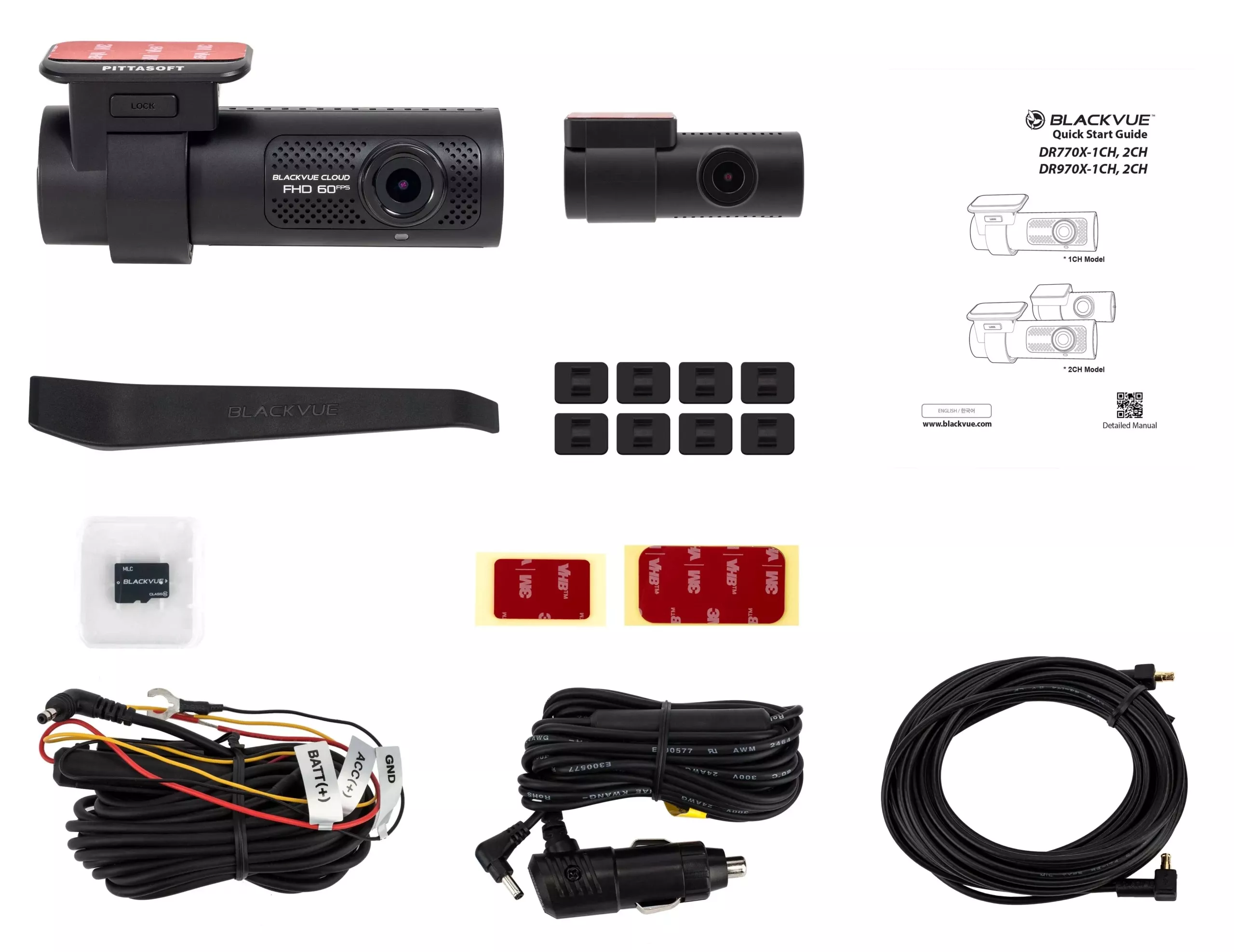

What's in the Box
- BlackVue DR770X-2CH-TR-II Front Camera
- BlackVue DR770X-2CH-TR-II IP69K Waterproof IR Rear Camera
- 64GB BlackVue microSD Card
- BlackVue Hardwiring Kit
- 12V Power Cable
- 15m Waterproof Coax Cable
- Cable Clips
- Spare Mounting Tabs
- Tape Pry Tool
- Quick Start Guide
Goes Well With
- BlackVue B-130A Power Magic Ultra Battery (sold separately - recommended for extended parking mode)
- BlackVue CM100GLTE 4G LTE Module (sold separately - enables LTE cloud connectivity for fleet management)
Frequently Asked Questions
Why does the DR770X-2CH-TR-64-II use a 15m cable instead of the standard 6m?
The 15m waterproof coaxial cable is designed specifically for trucks and heavy commercial vehicles where the standard 6m cable does not provide sufficient reach from the front cab to the rear of the vehicle. The waterproof cable also protects the connection in outdoor weather conditions.
Can the rear camera of the DR770X-2CH-TR-64-II withstand rain and pressure washing?
Yes. The external rear camera is rated IP69K, meaning it can withstand high-pressure washdowns in addition to rain and general weather exposure. It is designed for permanent external mounting at the rear of trucks and heavy vehicles.
Does the IR rear camera work automatically in the dark?
Yes. The six 940nm infrared LEDs on the rear camera activate automatically based on ambient light levels detected by the camera's luminosity sensor, providing clear night vision footage without any manual switching required.
Is the DR770X-2CH-TR-64-II suitable for passenger vehicles?
The Truck variant is specifically designed for trucks and heavy commercial vehicles requiring an external waterproof rear camera and long coaxial cable. For standard passenger vehicle installations, the DR770X-2CH-64-II standard variant is recommended.
Does this dash cam support BlackVue Cloud for fleet management?
Yes. The DR770X-2CH-TR-64-II connects to BlackVue Cloud via Wi-Fi or optional CM100GLTE LTE module for Live View, GPS tracking, push notifications, event auto-upload, and remote video playback - all well suited to fleet management applications. Requires mobile data.
