BlackVue DR770X-2CH-IR-64-II Full HD Front and Infrared Interior Dash Cam with 64GB microSD and Built-In GPS
BlackVue DR770X-2CH-IR-64-II Full HD Front and Infrared Interior Dash Cam with 64GB microSD and Built-In GPS
A dual channel Full HD dash cam combining a 1080P 60fps front road camera with an infrared interior cabin camera for monitoring driver and passenger behaviour day or night, ideal for rideshare drivers, taxi operators, parents of teen drivers, and company vehicles. Includes a 64GB microSD card and hardwiring kit. Backed by a 3 year warranty for Australian customers.
Product Overview

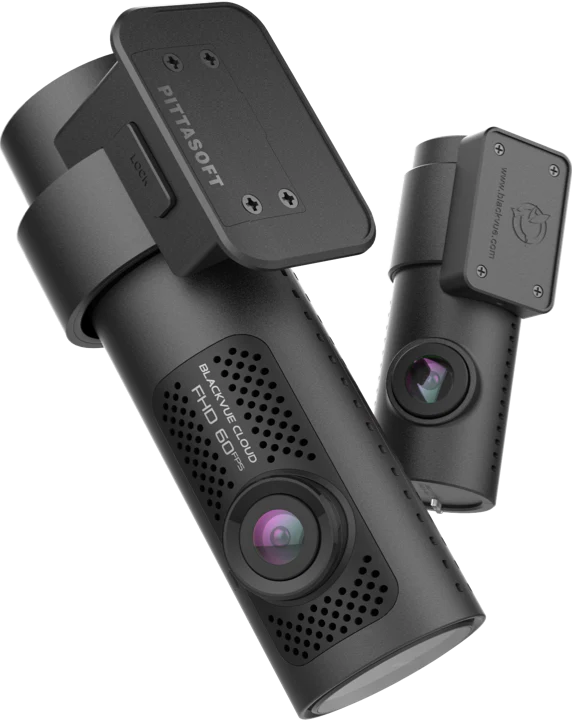

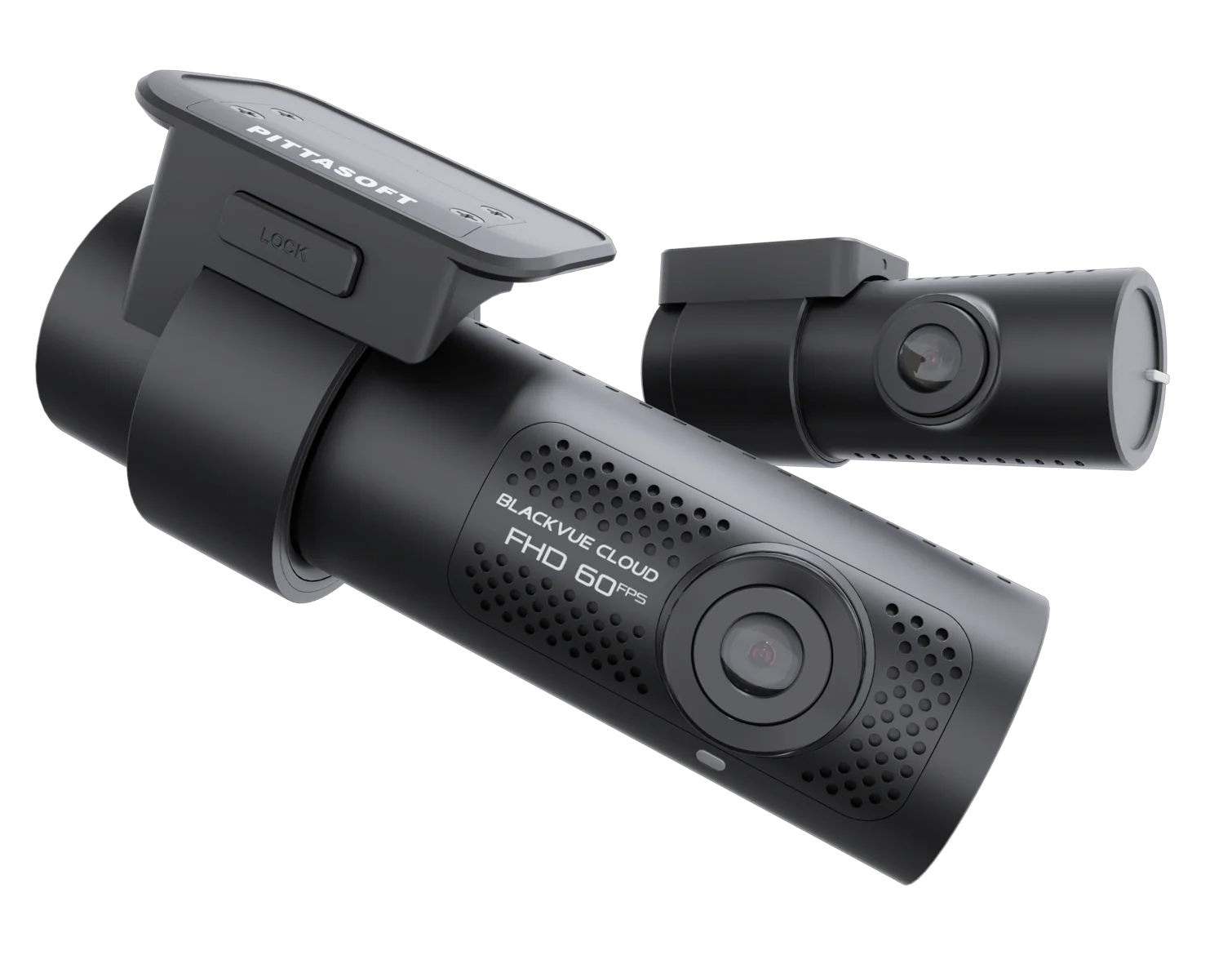

The BlackVue DR770X-2CH-IR-64-II is a dual channel Full HD dash cam featuring a front road-facing camera and an infrared interior cabin camera. The front camera records at 1920 x 1080 at 60fps using a Sony STARVIS CMOS sensor. The interior IR camera monitors the cabin in Full HD with infrared LEDs that automatically activate in low-light and pitch-black conditions, providing clear cabin footage regardless of lighting. The interior camera features a 180° wide viewing angle, capturing both the driver-side and passenger-side of the cabin simultaneously in most vehicles.
This system is designed for rideshare and taxi drivers, parents of teen drivers, company fleets, and any application where cabin monitoring is required alongside road recording. The interior camera can also be repositioned to face rearward through the rear window if exterior rear coverage is preferred. Built-in dual-band GPS with GLONASS, built-in Wi-Fi, native parking mode, built-in power management, and BlackVue Cloud compatibility via optional CM100GLTE module are all included. A 64GB BlackVue microSD card and hardwiring kit are included. Backed by a 3 year warranty for Australian customers.
Features & Benefits
Infrared Interior Camera with Auto-Activating LEDs: The interior IR camera features infrared LEDs that automatically activate in low-light conditions, providing clear cabin monitoring footage even in complete darkness. No manual switching required.
180° Wide-Angle Interior View: The interior camera's 180° viewing angle captures both the driver-side and passenger-side of the cabin simultaneously in most vehicles, providing comprehensive interior coverage in a single camera.
Front Full HD 1080P Recording at 60fps: The front camera records at 1920 x 1080 at 60fps with a Sony STARVIS back-illuminated CMOS sensor, delivering smooth, high-detail road footage with 15% improved low-light sensitivity.
Designed for Rideshare, Taxi, and Fleet Applications: The front and interior camera combination provides simultaneous road and cabin recording, ideal for Uber, rideshare, taxi, and company vehicle monitoring for driver accountability and passenger safety.
Flexible Camera Positioning: The interior IR camera can be repositioned to face rearward through the rear window for exterior rear coverage if preferred, offering flexibility in how the system is deployed.
BlackVue Cloud Compatible: Connects to BlackVue Cloud via Wi-Fi or optional CM100GLTE LTE module for Live View, emergency alarm, video backup, and remote video playback. Requires mobile data.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | DR770X-2CH-IR-64-II |
| Brand | BlackVue |
| Type | 2 Channel (Front Road and Interior IR) |
| Origin | Made in Korea |
| Video | |
| Front Resolution | Full HD (1920 x 1080) @ 60fps |
| Interior Resolution | Full HD (1920 x 1080) @ 30fps |
| Front Sensor | Sony STARVIS CMOS (Approx. 2.1MP) |
| Interior Sensor | Sony STARVIS CMOS (Approx. 2.1MP) |
| Front Viewing Angle | Diagonal 139°, Horizontal 116°, Vertical 61° |
| Interior Viewing Angle | Diagonal 180°, Horizontal 150°, Vertical 93° |
| Interior Camera IR | 2 x 940nm Infrared LEDs (auto-activating based on ambient light) |
| Interior Camera Use | Interior cabin monitoring - not designed for exterior use |
| Image Quality / Bitrate | Highest Extreme: 25+10 Mbps / Highest: 12+10 Mbps / High: 10+8 Mbps / Normal: 8+6 Mbps |
| Video Codec | H.264 (AVC) |
| Video Format | MP4 |
| Format Free | Adaptive Format-Free |
| Event File Overwrite Protection | Up to 50 event files |
| SD Card Failure Alert | Yes |
| Scheduled Reboot | Yes |
| Parking Mode Event Voice Notifications | Yes |
| Memory | |
| Included Storage | 64GB BlackVue microSD card |
| Maximum Storage | Up to 256GB microSD (BlackVue cards recommended) |
| Connectivity | |
| Wi-Fi | Built-in 802.11 b/g/n |
| GPS | Built-in Dual-Band (GPS and GLONASS) |
| Bluetooth | Built-in (V2.1+EDR / 4.2) |
| 4G LTE | Optional via CM100GLTE module (sold separately) |
| Cloud | BlackVue Cloud compatible (BYO data) |
| App | BlackVue App (Android 8.0 or later, iOS 13.0 or later) |
| Software | BlackVue PC Viewer (Windows 7 or higher, Mac OS X Sierra 10.12 or higher) |
| Recording | |
| Recording Modes | Normal, Event (Impact Detection), Manual Event, Parking Mode (Impact and Motion Detection) |
| Power | |
| Input Voltage | DC 12V-24V |
| Normal Mode (2CH) | Avg. 380mA / 12V |
| Parking Mode (2CH) | Avg. 300mA / 12V |
| IR LED Current Draw | Approx. +40mA when IR LEDs are active |
| Voltage Cut-Off | Passenger: 11.8-12.5V / Heavy Vehicle: 22.8-24V (variable, built-in) |
| Supercapacitor | Built-in |
| Physical | |
| Front Dimensions | 118.5mm (W) x 36mm (H) |
| Front Weight | 103g |
| Interior Dimensions | 67.4mm (W) x 25mm (H) |
| Interior Weight | 27g |
| Other | |
| Microphone | Built-in |
| Speaker | Built-in |
| G-Sensor | Built-in 3-Axis |
| Operating and Storage Temperature | -20°C to 80°C |
| High Temp Cut-Off | Approx. 80°C |
| Certifications | Front: FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC / Interior: FCC, ISED, CE, UKCA, RCM, RoHS, WEEE, KC |
| Warranty | 3 Years (Australian customers - T&Cs apply) |

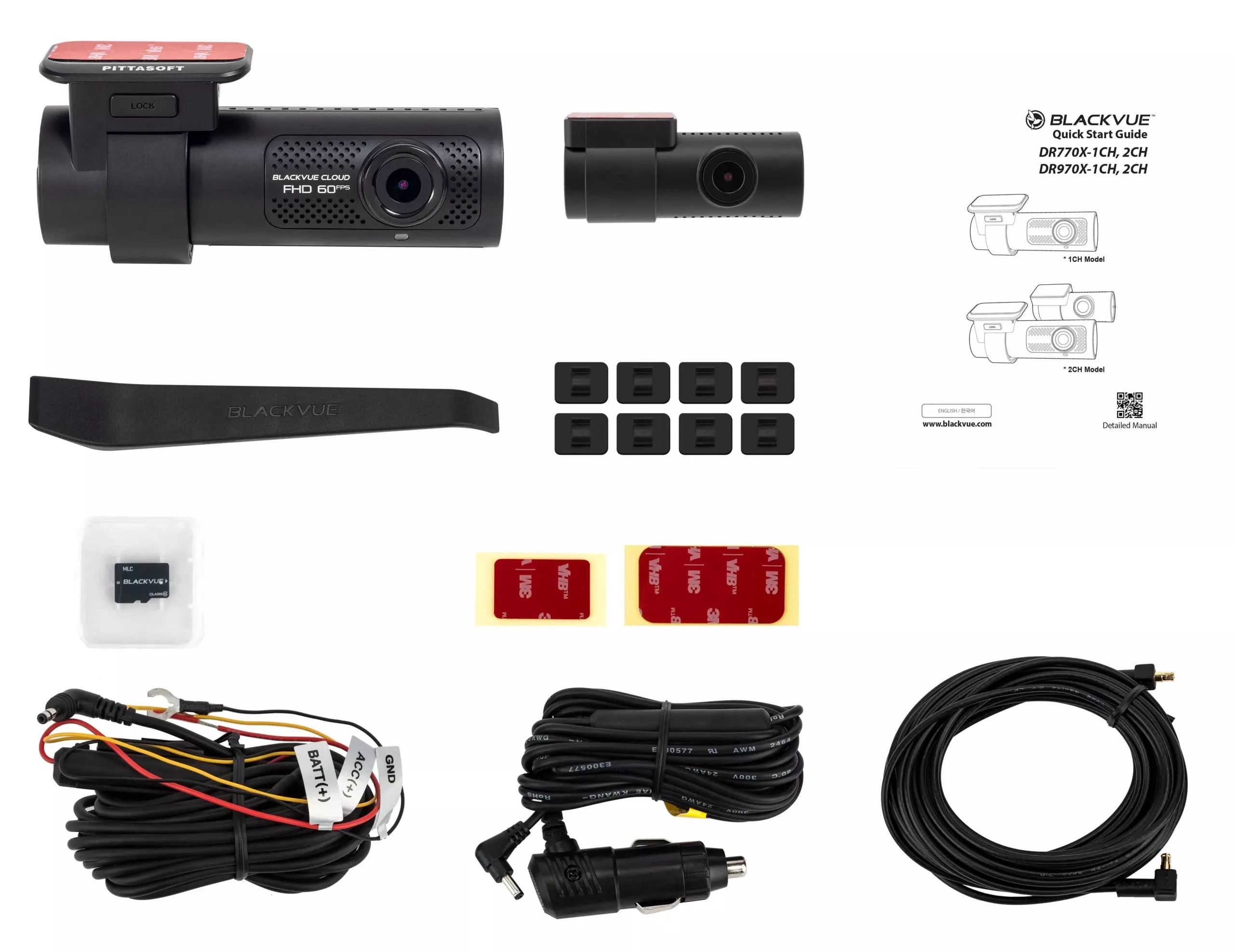

What's in the Box
- BlackVue DR770X-2CH-IR-II Front Camera
- BlackVue DR770X-2CH-IR-II Infrared Interior Camera
- 64GB BlackVue microSD Card
- BlackVue Hardwiring Kit
- 12V Power Cable
- Cable Clips
- Spare Mounting Tabs
- Tape Pry Tool
- Quick Start Guide
Goes Well With
- BlackVue B-130A Power Magic Ultra Battery (sold separately - recommended for extended parking mode)
- BlackVue CM100GLTE 4G LTE Module (sold separately - enables LTE cloud connectivity)
Frequently Asked Questions
What is the DR770X-2CH-IR-64-II designed for?
The DR770X-2CH-IR-64-II is designed for applications where both road and cabin monitoring are required simultaneously. This includes rideshare and taxi drivers, parents of teen drivers, company fleet vehicles, and any operator needing interior cabin footage alongside the standard front road recording.
Does the interior IR camera work in complete darkness?
Yes. The interior camera features infrared LEDs that automatically activate based on ambient light levels, providing clear cabin footage even in pitch-black conditions without any manual switching required.
Can I use the interior IR camera to record outside the rear window instead?
Yes. The interior camera can be repositioned to face rearward through the rear window if exterior rear coverage is preferred. Please note the interior IR camera is not designed for exterior mounting - for external rear recording on trucks or heavy vehicles, see the DR770X-2CH-TR-64-II.
Does the 180° interior camera capture both driver and passenger sides at the same time?
Yes. The 180° wide-angle view of the interior camera captures both the driver-side and passenger-side of the cabin simultaneously in most vehicles, providing comprehensive cabin coverage in a single camera unit.
Does the DR770X-2CH-IR-64-II have built-in LTE?
No. LTE connectivity is available via the optional CM100GLTE module sold separately. BlackVue Cloud requires mobile data (BYO data).
