BlackVue DR770X-2CH-64-II Full HD Dual Channel Dash Cam with 64GB microSD and Built-In GPS
BlackVue DR770X-2CH-64-II Full HD Dual Channel Dash Cam with 64GB microSD and Built-In GPS
BlackVue's most popular and most robust Full HD dual dash cam system, delivering 1080P at 60fps front and 1080P at 30fps rear with dual Sony STARVIS sensors, built-in GPS, native parking mode, built-in power management, and BlackVue Cloud compatibility. Includes a 64GB microSD card and a hardwiring kit. Backed by a 3 year warranty for Australian customers.
Product Overview

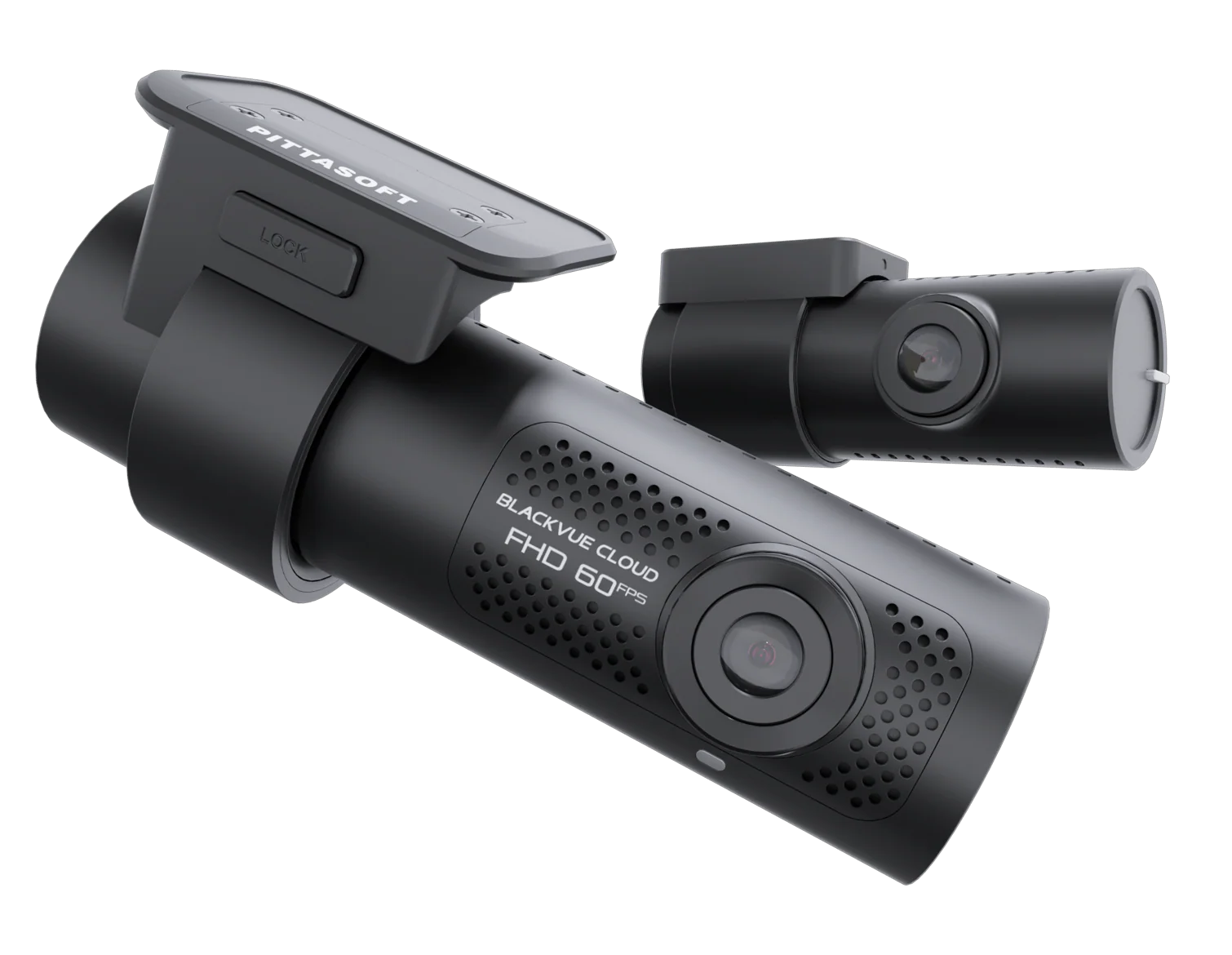

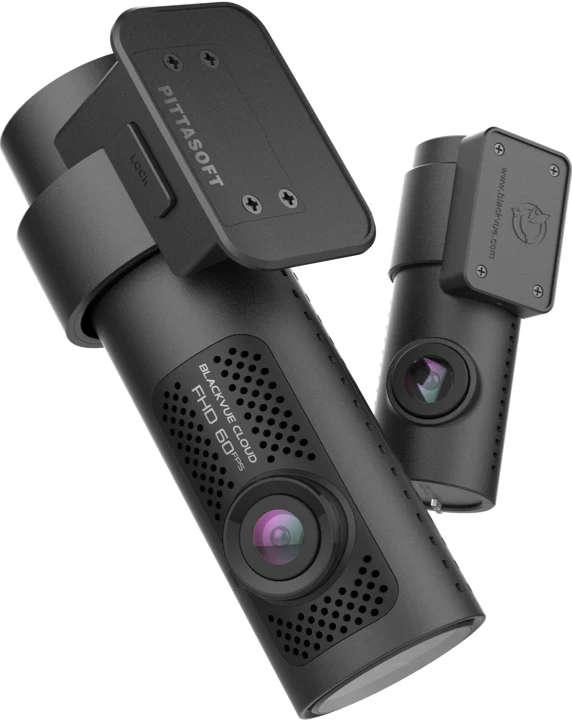

The BlackVue DR770X-2CH-64-II is a dual channel Full HD dash cam recording at 1920 x 1080 at 60fps on the front and 1920 x 1080 at 30fps on the rear. Both cameras use upgraded Sony STARVIS back-illuminated CMOS sensors with 15% improved low-light sensitivity for enhanced night vision performance. Built-in dual-band GPS with GLONASS logs location and speed data with every recording.
Built-in Wi-Fi (802.11n 2.4GHz) enables footage access and settings management via the BlackVue app. The DR770X-2CH II includes built-in power management hardware for reliable parking mode operation supporting both impact and motion detection, with buffered event recording. LTE connectivity is available via the optional CM100GLTE module (sold separately). BlackVue Cloud is compatible for Live View, emergency alarm, video backup, and remote video playback. Includes a 64GB BlackVue microSD card, a hardwiring kit, and a 6m coax cable. Backed by a 3 year warranty for Australian customers.
Features & Benefits
Dual Full HD Recording - 1080P Front at 60fps and 1080P Rear at 30fps: The front camera records at 1920 x 1080 at 60fps for smooth, motion-blur-reduced footage, with the rear recording at 1920 x 1080 at 30fps for complete front and rear vehicle coverage.
Dual Sony STARVIS Back-Illuminated Sensors with Enhanced Night Vision: Upgraded Sony STARVIS back-illuminated CMOS sensors in both cameras provide 15% improved low-light sensitivity for high-quality footage in low-light and night-time conditions.
Built-In Power Management Hardware: All-new built-in power management hardware protects the vehicle battery during parking mode and supports reliable continuous recording without requiring an external battery cutoff device.
Native Parking Mode with Impact and Motion Detection: Parking mode detects both vehicle impacts and motion, triggering buffered event recordings that include the seconds before and after the event for complete incident capture.
Built-In Dual-Band GPS with GLONASS: Dual-band GPS and GLONASS log location and speed data with every recording for accurate incident documentation.
BlackVue Cloud Compatible: Connects to BlackVue Cloud for Live View, emergency alarm, video backup, and remote video playback via Wi-Fi or optional CM100GLTE module. Requires mobile data.
Hardwiring Kit and 6m Coax Cable Included: A hardwiring kit and 6m coaxial cable are included for permanent vehicle installation. Optional 10m and 15m cables are available separately.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | DR770X-2CH-64-II |
| Brand | BlackVue |
| Type | 2 Channel (Front and Rear) |
| Origin | Made in Korea |
| Video | |
| Front Resolution | Full HD (1920 x 1080) @ 60fps |
| Rear Resolution | Full HD (1920 x 1080) @ 30fps |
| Front Sensor | Sony STARVIS CMOS (Approx. 2.1MP) |
| Rear Sensor | Sony STARVIS CMOS (Approx. 2.1MP) |
| Front Viewing Angle | Diagonal 139°, Horizontal 116°, Vertical 61° |
| Rear Viewing Angle | Diagonal 139°, Horizontal 116°, Vertical 61° |
| Image Quality / Bitrate | Highest Extreme: 25+10 Mbps / Highest: 12+10 Mbps / High: 10+8 Mbps / Normal: 8+6 Mbps |
| Video Codec | H.264 (AVC) |
| Video Format | MP4 |
| Format Free | Adaptive Format-Free |
| Memory | |
| Included Storage | 64GB BlackVue microSD card |
| Maximum Storage | Up to 1TB microSD (BlackVue cards recommended) |
| Connectivity | |
| Wi-Fi | Built-in 802.11n (2.4GHz) |
| GPS | Built-in Dual-Band (GPS and GLONASS) |
| 4G LTE | Optional via CM100GLTE module (sold separately) |
| Cloud | BlackVue Cloud compatible (BYO data) |
| App | BlackVue App (Android 8.0 or later, iOS 13.0 or later) |
| Software | BlackVue PC Viewer (Windows 7 or higher, Mac OS X Sierra 10.12 or higher) |
| Recording | |
| Recording Modes | Normal, Event (Impact Detection), Manual Event, Parking Mode (Impact and Motion Detection) |
| Power | |
| Input Voltage | DC 12V-24V (max 1A / 12V) |
| Normal Mode (2CH) | Avg. 380mA / 12V |
| Parking Mode (2CH) | Avg. 300mA / 12V |
| Voltage Cut-Off | Passenger: 11.8-12.5V / Heavy Vehicle: 22.8-24V (variable, built-in) |
| Supercapacitor | Built-in |
| Physical | |
| Front Dimensions | 118.5mm (W) x 36mm (H) |
| Front Weight | 103g |
| Rear Dimensions | 67.4mm (W) x 25mm (H) |
| Rear Weight | 25g |
| Other | |
| Microphone | Built-in |
| Speaker | Built-in |
| G-Sensor | Built-in 3-Axis |
| Operating and Storage Temperature | -20°C to 80°C |
| High Temp Cut-Off | Approx. 80°C |
| Coax Cable Included | 6m (10m and 15m optional - sold separately) |
| Certifications | Front: FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC / Rear: FCC, ISED, CE, UKCA, RCM, RoHS, WEEE, KC |
| Warranty | 3 Years (Australian customers - T&Cs apply) |

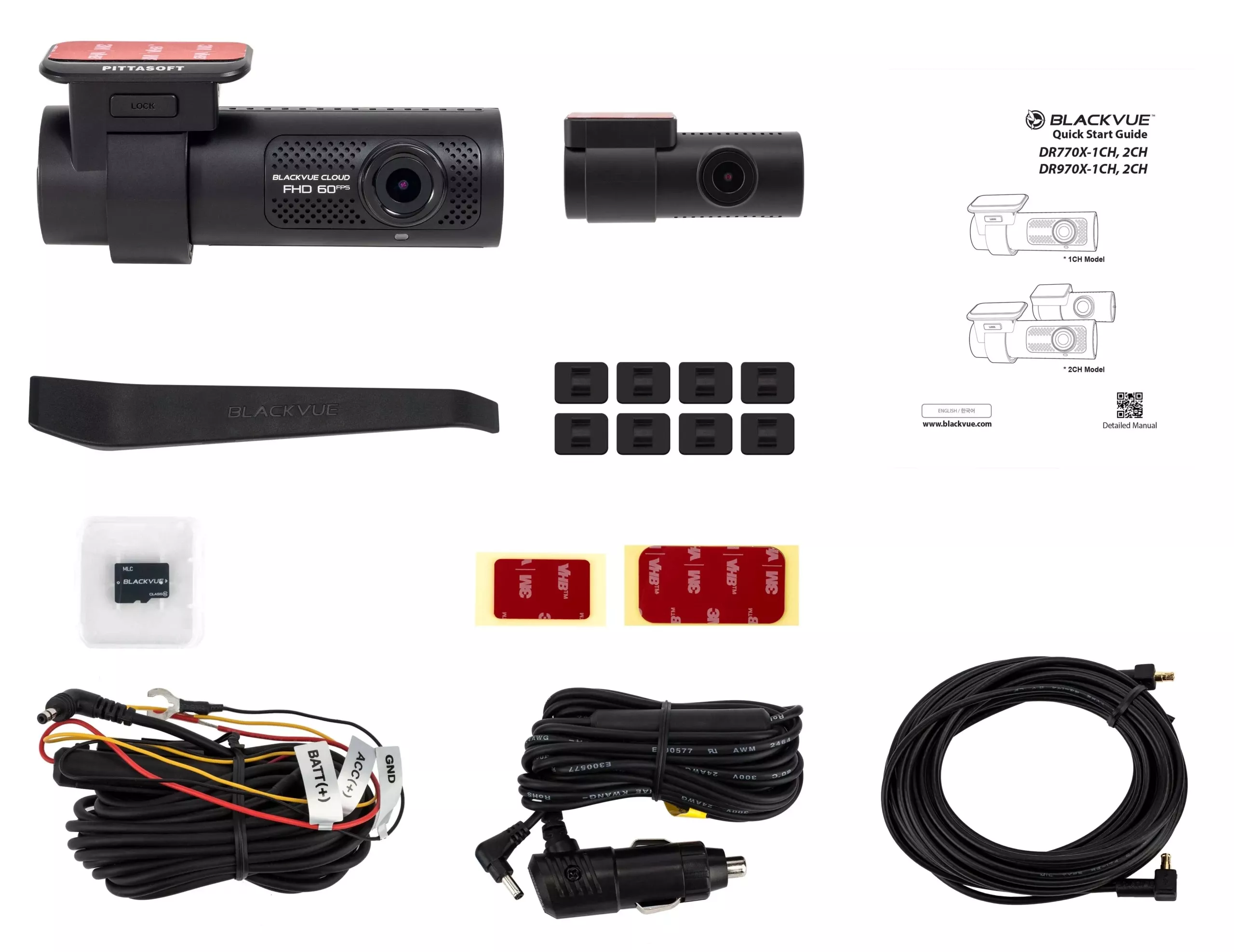

What's in the Box
- BlackVue DR770X-2CH-II Front Camera
- BlackVue DR770X-2CH-II Rear Camera
- 64GB BlackVue microSD Card
- BlackVue Hardwiring Kit
- 12V Power Cable
- 6m Coax Cable
- Cable Clips
- Spare Mounting Tabs
- Tape Pry Tool
- Quick Start Guide
Goes Well With
- BlackVue B-130A Power Magic Ultra Battery (sold separately - recommended for extended parking mode)
- BlackVue CM100GLTE 4G LTE Module (sold separately - enables LTE cloud connectivity)
- 10m or 15m Coax Cable (sold separately - optional extended rear camera cable)
Frequently Asked Questions
What is the difference between the front and rear frame rates?
The front camera records at 60fps for smooth, sharp footage with reduced motion blur at speed. The rear camera records at 30fps. The 60fps front camera is particularly useful for capturing licence plates and road details at highway speeds.
Does the DR770X-2CH-64-II require a hardwire kit for parking mode?
A hardwiring kit is included in the box and is required for parking mode. For extended parking mode without draining the vehicle battery, the BlackVue B-130A dedicated battery pack is recommended separately.
Does the DR770X-2CH-64-II support dual-band Wi-Fi?
The DR770X-2CH II features built-in 802.11n Wi-Fi on the 2.4GHz band only. For dual-band 2.4GHz and 5GHz Wi-Fi, refer to the ELITE 9 or ELITE 10 series models.
Does the DR770X-2CH-64-II have built-in LTE?
No. LTE connectivity is available via the optional CM100GLTE module sold separately. BlackVue Cloud requires mobile data (BYO data).
What coax cable lengths are available for the rear camera?
The standard 6m coax cable is included. Optional 10m and 15m cables are available separately for installations requiring greater cable reach.
