BlackVue DR770X-1CH-64-II Full HD 1080P 60fps Single Channel Dash Cam with 64GB microSD and Built-In GPS
BlackVue DR770X-1CH-64-II Full HD 1080P 60fps Single Channel Dash Cam with 64GB microSD and Built-In GPS
BlackVue's most popular and most robust Full HD dash cam, delivering 1080P recording at 60fps with a Sony STARVIS sensor for enhanced night vision, built-in GPS, native parking mode support, built-in power management, and BlackVue Cloud compatibility. Includes a 64GB microSD card and a hardwiring kit. Backed by a 3 year warranty for Australian customers.
Product Overview
The BlackVue DR770X-1CH-64-II is a single channel Full HD dash cam recording at 1920 x 1080 at 60fps using an upgraded Sony STARVIS back-illuminated CMOS sensor. The back-illuminated sensor design delivers improved light sensitivity and wide dynamic range for enhanced night vision performance with 15% improved low-light sensitivity over previous models.
Built-in dual-band GPS with GLONASS logs location and speed data with every recording. Built-in Wi-Fi (802.11n 2.4GHz) enables footage access and settings management via the BlackVue app. The DR770X-1CH II includes built-in power management hardware for reliable parking mode operation. Parking mode supports both impact detection and motion detection recording, with buffered event recording capturing the seconds before and after a triggered event. A BlackVue B-130A dedicated battery pack is recommended for extended parking mode recording. LTE connectivity is available via the optional CM100GLTE module (sold separately). BlackVue Cloud is compatible for Live View, emergency alarm, video backup, and remote video playback.
A port is available to add a rear camera at a later date. The DR770X-1CH-64-II includes a 64GB BlackVue microSD card, a hardwiring kit, and a 12V power cable. Backed by a 3 year warranty for Australian customers.
Features & Benefits
Full HD 1080P Recording at 60fps: The DR770X-1CH II records Full HD (1920 x 1080) at 60fps, delivering smooth, high-detail footage with a fast shutter speed to capture sharp detail at speed.
Sony STARVIS Back-Illuminated Sensor with Enhanced Night Vision: The upgraded Sony STARVIS back-illuminated CMOS sensor provides 15% improved low-light sensitivity over previous models, producing high-quality footage in low-light and night-time conditions.
Built-In Power Management Hardware: All-new built-in power management hardware protects the vehicle battery during parking mode and supports reliable continuous recording without requiring an external battery cutoff device.
Native Parking Mode with Impact and Motion Detection: Parking mode detects both vehicle impacts and motion around the vehicle, triggering buffered event recordings that include the seconds before and after the event for complete incident capture.
Built-In Dual-Band GPS with GLONASS: Dual-band GPS and GLONASS log location and speed data with every recording for accurate incident documentation and playback in BlackVue Viewer and the app.
BlackVue Cloud Compatible: The DR770X-1CH II connects to BlackVue Cloud for Live View, emergency alarm notifications, video backup, and remote video playback. LTE connectivity available via optional CM100GLTE module. Requires mobile data.
Expandable to 2 Channel: A rear camera port is built in, allowing a rear camera to be added to the DR770X-1CH II at a later date without replacing the front unit.
Hardwiring Kit Included: A hardwiring kit is included in the box for permanent vehicle wiring, supporting continuous parking mode operation without relying on the cigarette socket.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | DR770X-1CH-64-II |
| Brand | BlackVue |
| Type | 1 Channel (Front) - rear camera port included for future upgrade |
| Origin | Made in Korea |
| Video | |
| Resolution | Full HD (1920 x 1080) @ 60fps |
| Image Sensor | Sony STARVIS CMOS (Approx. 2.1MP) |
| Viewing Angle | Diagonal 139°, Horizontal 116°, Vertical 61° |
| Image Quality / Bitrate | Highest Extreme: 25 Mbps / Highest: 12 Mbps / High: 10 Mbps / Normal: 8 Mbps |
| Video Codec | H.264 (AVC) |
| Video Format | MP4 |
| Format Free | Adaptive Format-Free |
| Memory | |
| Included Storage | 64GB BlackVue microSD card |
| Maximum Storage | Up to 1TB microSD (BlackVue cards recommended) |
| Connectivity | |
| Wi-Fi | Built-in 802.11n (2.4GHz) |
| GPS | Built-in Dual-Band (GPS and GLONASS) |
| 4G LTE | Optional via CM100GLTE module (sold separately) |
| Cloud | BlackVue Cloud compatible (BYO data) |
| App | BlackVue App (Android 8.0 or later, iOS 13.0 or later) |
| Software | BlackVue PC Viewer (Windows 7 or higher, Mac OS X Sierra 10.12 or higher) |
| Recording | |
| Recording Modes | Normal, Event (Impact Detection), Manual Event, Parking Mode (Impact and Motion Detection) |
| Parking Mode | Impact Detection and Motion Detection with buffered event recording |
| Power | |
| Input Voltage | DC 12V-24V (max 1A / 12V) |
| Normal Mode (1CH) | Avg. 240mA / 12V |
| Parking Mode (1CH) | Avg. 190mA / 12V |
| Voltage Cut-Off | Passenger: 11.8-12.5V / Heavy Vehicle: 22.8-24V (variable, built-in) |
| Supercapacitor | Built-in |
| Physical | |
| Dimensions | 118.5mm (W) x 36mm (H) |
| Weight | 103g |
| Other | |
| Microphone | Built-in |
| Speaker | Built-in |
| G-Sensor | Built-in 3-Axis |
| LED Indicators | Security LED, Recording LED, Touch Sensor LED, Bluetooth / Wi-Fi / LTE LED |
| Operating and Storage Temperature | -20°C to 80°C |
| High Temp Cut-Off | Approx. 80°C |
| Certifications | FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC |
| Warranty | 3 Years (Australian customers - T&Cs apply) |

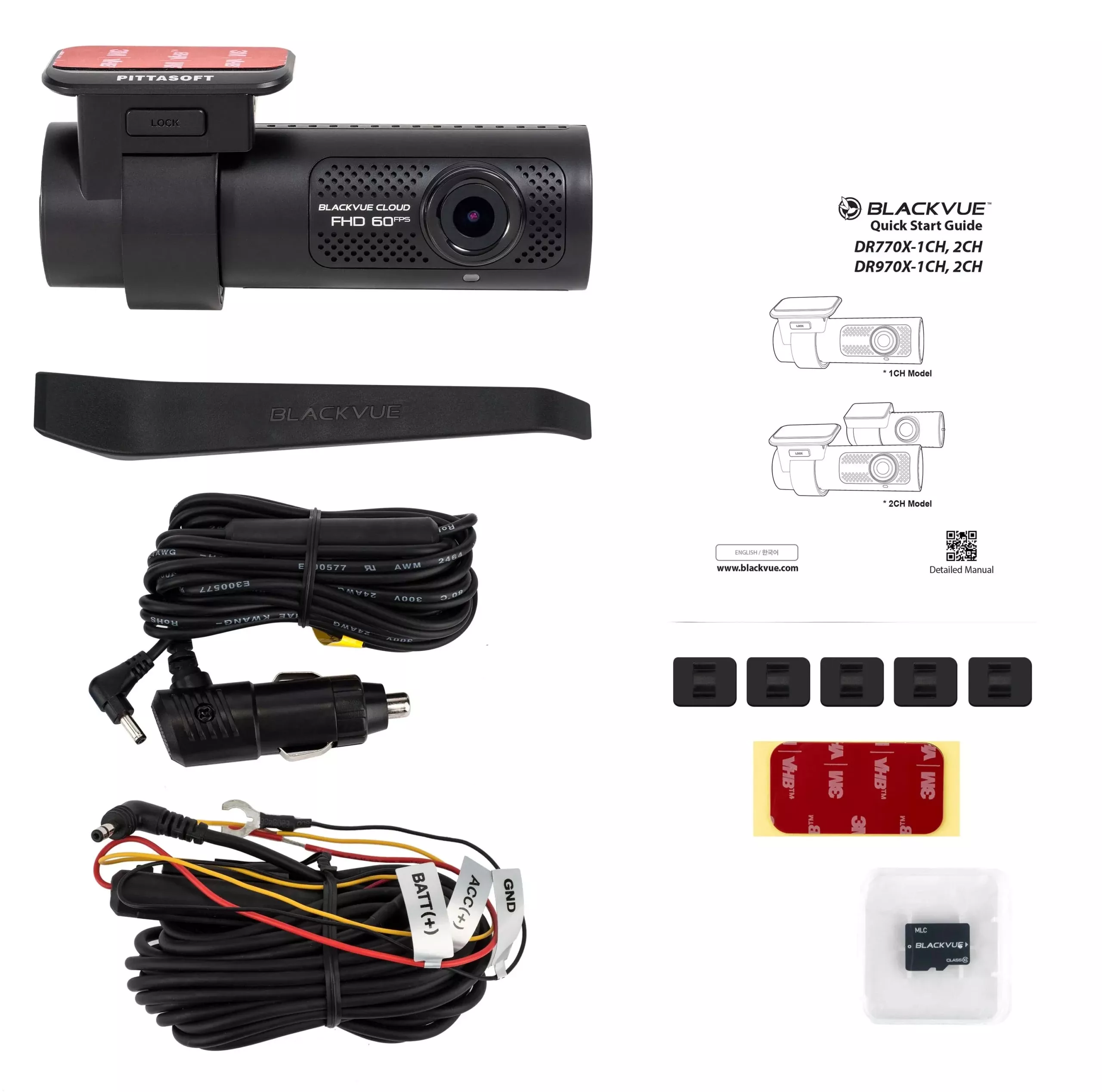

What's in the Box
- BlackVue DR770X-1CH II Front Camera
- 64GB BlackVue microSD Card
- BlackVue Hardwiring Kit
- 12V Power Cable
- Cable Clips
- Spare Mounting Tabs
- Tape Pry Tool
- Quick Start Guide
Goes Well With
- BlackVue B-130A Power Magic Ultra Battery (sold separately - recommended for extended parking mode without vehicle battery drain)
- BlackVue CM100GLTE 4G LTE Module (sold separately - enables LTE cloud connectivity)
- BlackVue DR770X Rear Camera (sold separately - compatible with the built-in rear camera port)
Frequently Asked Questions
Can a rear camera be added to the DR770X-1CH-64-II later?
Yes. The DR770X-1CH II includes a rear camera port, allowing a compatible BlackVue rear camera to be added at a later date without replacing the front unit. Please contact us for compatible rear camera options.
Does the DR770X-1CH-64-II require a hardwire kit for parking mode?
A hardwiring kit is included in the box and is required for parking mode operation, connecting the unit directly to the vehicle's electrical system. For extended parking mode recording without vehicle battery drain, the BlackVue B-130A dedicated battery pack is recommended separately.
Does the DR770X-1CH-64-II support dual-band Wi-Fi?
The DR770X-1CH II features built-in 802.11n Wi-Fi on the 2.4GHz band. For dual-band 2.4GHz and 5GHz Wi-Fi connectivity, please refer to the ELITE 9 or ELITE 10 series models.
Does the DR770X-1CH II have built-in LTE?
No. LTE connectivity is available via the optional CM100GLTE module, sold separately. BlackVue Cloud connectivity is available over Wi-Fi or LTE and requires mobile data (BYO data).
What is the difference between the DR770X-1CH II and the ELITE series dash cams?
The DR770X-1CH II records Full HD (1080P) at 60fps with a Sony STARVIS sensor. The ELITE series records at 4K UHD and uses Sony STARVIS 2 sensors with HDR for higher resolution and improved image quality. The DR770X-1CH II is BlackVue's most popular Full HD model and is ideal for drivers wanting reliable, proven performance at a more accessible price point.
