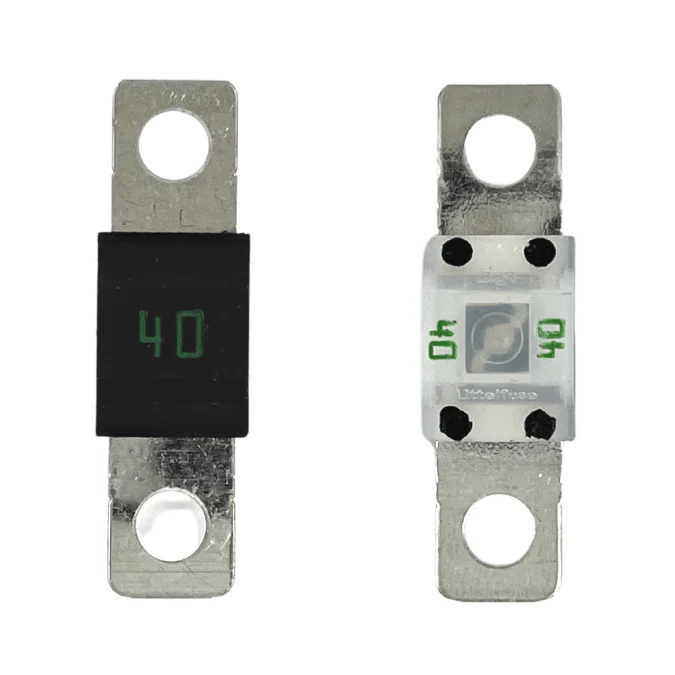

BAINTECH SWE-MID040R 40A MIDI Fuse

BAINTECH SWE-MID040R 40A MIDI Fuse - Replacement Automotive Fuse for Circuit Protection in 12V/24V Electrical Systems

Replace blown fuses and maintain circuit protection with the Baintech SWE-MID040R 40A MIDI Fuse—featuring standard MIDI fuse format compatible with all MIDI fuse holders, 40A current rating suitable for medium inverters, high-output DC-DC chargers, LED lighting arrays, multiple accessory distribution, and higher-current circuits, robust blade-style construction withstanding vibration and mechanical stress in mobile installations, clear fuse body enabling visual inspection of fuse element condition, reliable overcurrent protection preventing wire overheating and electrical fires, corrosion-resistant terminals ensuring dependable electrical contact, and trusted replacement fuse solution for caravans, 4WD vehicles, boats, camper trailers, commercial vehicles, and mobile installations requiring 40A circuit protection in automotive and marine electrical systems.

Product Overview

The Baintech SWE-MID040R provides replacement 40A MIDI fuse for circuit protection in 12V and 24V electrical systems—essential consumable component for maintaining proper overcurrent protection in auxiliary battery circuits, medium inverter installations, LED lighting systems, high-output charging systems, and medium to high-current accessory distribution. MIDI fuse format represents industry-standard automotive fuse design offering 30-100A current capacity range—bridges gap between standard blade fuses (2-40A typical) and larger MEGA fuses (80-500A) providing optimal solution for medium to high-current applications common in recreational vehicles, marine installations, and commercial vehicle auxiliary systems. 40A rating makes this fuse suitable for protecting circuits including medium power inverters (500-700W continuous), high-output DC-DC chargers (30-40A output rating), auxiliary battery charging systems with increased capacity, LED light bar arrays (multiple high-power bars totaling 400-480W combined), multiple parallel accessory distribution (consolidating several circuits at distribution point), solar charge controllers (30-40A output capacity), dual portable fridge installations, and general medium-current accessories drawing up to 40A continuous operation. Clear transparent fuse body enables visual inspection of internal fuse element—allows quick determination of fuse condition without electrical testing equipment by observing whether metal strip remains intact or has melted/separated indicating blown fuse requiring replacement. Robust blade-style terminal construction ensures reliable mechanical retention in MIDI fuse holders and maintains positive electrical contact despite vibration, temperature cycling, and mechanical stress typical in mobile installations—prevents loose fuse connections causing intermittent circuits, voltage drops, or heating from poor electrical contact. Corrosion-resistant terminal plating withstands exposure to moisture, road salt, engine bay heat, and environmental contamination maintaining reliable electrical conductivity throughout fuse service life—particularly important in marine environments and coastal regions where corrosion rapidly degrades unprotected electrical connections.

Key Features

Standard MIDI Fuse Format Compatibility: Universal MIDI fuse design ensures compatibility with all standard MIDI fuse holders from Baintech and other manufacturers—enables direct replacement of blown fuses without compatibility concerns or adaptor requirements. Standardized dimensions and terminal configuration guarantee proper mechanical fit and electrical contact in any MIDI holder. Widely adopted industry standard ensures replacement fuse availability from automotive retailers, marine suppliers, electrical distributors, and mobile accessory shops—eliminates extended downtime from specialty part sourcing difficulties. Compatible with existing MIDI fuse holder installations in caravans, 4WD vehicles, boats, commercial vehicles, and auxiliary electrical systems requiring 40A circuit protection.

40A Current Rating for Medium-Current Applications: 40A rating provides appropriate circuit protection for medium power inverters (500-700W continuous at 12V drawing 40-60A accounting for efficiency losses and surge capacity), high-output DC-DC chargers (30-40A output rating protecting charging circuits), auxiliary battery charging with increased capacity (alternator feeds up to 40A), LED lighting arrays (multiple high-power light bars totaling approximately 480W at 12V), multiple parallel accessory distribution (consolidating various circuits at central distribution point), solar charging systems (charge controllers 30-40A output rating), dual portable fridge installations (two fridges or large capacity units with combined startup surge up to 40A), accessory circuits powering combination of devices (lights, pumps, fans, electronics), and general accessories up to 40A continuous current draw. Fuse rating selected based on circuit requirements—40A appropriate for circuits drawing 27-32A continuous operation providing 25% safety margin for normal operation while protecting from dangerous overcurrent conditions.

Clear Body Visual Inspection: Transparent fuse body enables quick visual determination of fuse condition without removal from holder or electrical testing—internal metal element visible showing intact conductor indicating good fuse or severed/melted element indicating blown fuse requiring replacement. Visual inspection particularly valuable during troubleshooting electrical problems—allows rapid identification of blown fuse as potential cause of circuit failure without multimeter testing or trial-and-error component substitution. Clear body construction also permits observation of fuse element condition during installation verifying new fuse intact before installation preventing installation of damaged fuse causing immediate circuit failure. Saves troubleshooting time in field repairs and roadside situations where testing equipment may be unavailable or inconvenient to access.

Robust Blade Terminal Construction: Heavy-duty blade-style terminals ensure positive mechanical retention in MIDI fuse holder preventing accidental fuse dislodgement from vibration, mechanical shock, or thermal cycling common in mobile installations. Terminal geometry provides secure friction fit while enabling tool-free hand installation and removal for convenient fuse replacement during maintenance or troubleshooting. Blade thickness and material selection withstand repeated insertion/removal cycles without terminal deformation or mechanical wear affecting electrical contact quality. Terminal design maintains reliable low-resistance electrical connection under high-current conditions—40A continuous current generates substantial heat requiring robust terminal construction preventing contact degradation or resistance increases causing voltage drops or connection failures.

Corrosion-Resistant Terminal Plating: Terminal surfaces feature corrosion-resistant plating maintaining reliable electrical conductivity despite exposure to moisture, road salt spray, engine bay heat, and environmental contamination typical in automotive and marine electrical systems. Plating prevents oxidation and corrosion formation on terminal surfaces—critical for maintaining low contact resistance ensuring minimal voltage drop and efficient current delivery through fuse to protected circuit. Enhanced corrosion resistance particularly important in marine installations, coastal environments, vehicles operating in salty conditions, or under-bonnet locations exposed to heat, moisture, and contamination where unprotected terminals rapidly corrode degrading electrical performance. Maintains consistent fuse performance throughout service life without resistance increases from terminal corrosion affecting circuit operation.

Reliable Overcurrent Protection: Fuse element engineered to reliably interrupt circuit current when load exceeds 40A rating protecting circuit wiring, connected equipment, and vehicle electrical system from damage caused by overcurrent conditions. Time-current characteristics provide appropriate tradeoff between nuisance tripping during brief surge currents (motor starting, inverter inrush, compressor startup) and rapid interruption during sustained overloads or short circuits preventing wire overheating and fire hazards. Consistent blow characteristics ensure predictable circuit protection—fuse interrupts current within specified timeframe after overcurrent event preventing progressive damage to wiring insulation or connected equipment from sustained overload conditions before fuse activation.

Quality Replacement Component: Manufactured to automotive industry standards ensuring reliable performance, consistent blow characteristics, and proper fit in MIDI fuse holder applications. Quality construction provides dependable circuit protection without premature failure from manufacturing defects or substandard materials common in economy fuses. Appropriate replacement fuse for maintaining proper circuit protection in auxiliary electrical systems after blown fuse events from overload conditions, short circuits, or equipment faults. Essential consumable component for mobile electrical system maintenance—prudent practice maintaining spare fuses in vehicle tool kit enabling rapid circuit restoration after fuse replacement without extended downtime waiting parts delivery.

Versatile Circuit Protection Applications: Suitable for medium inverter systems (500-700W), high-output DC-DC chargers (30-40A), auxiliary battery charging circuits, LED lighting arrays, multiple accessory distribution, solar charging systems, dual fridge installations, combination accessory loads, and general 40A circuits in caravans, 4WD vehicles, boats, camper trailers, commercial vehicles, agricultural equipment, and mobile installations requiring reliable 40A overcurrent protection in 12V or 24V electrical systems.

Part of Baintech's Electrical Protection Range: Component of comprehensive electrical protection product range offering diverse fuse ratings and formats for automotive and marine circuit protection requirements. Baintech reputation built on quality electrical components, reliable performance under demanding conditions, and proper engineering ensuring circuit protection functions correctly. Available through established Australian distribution networks providing convenient replacement fuse availability through auto electrical retailers, caravan accessory suppliers, marine equipment distributors, and 4WD specialty stores.

Technical Specifications

Frequently Asked Questions

Q: What size inverter can 40A fuse protect?

A: 40A fuse suitable for inverters up to approximately 600-700W continuous output at 12V. Calculate: 600W ÷ 12V ÷ 0.9 efficiency = 56A peak draw requiring 60-70A fuse for surge capacity, however 500W continuous (42A draw) operates comfortably with 40A fuse if inverter surge handled by brief overload tolerance. More conservatively, 40A fuse appropriate for inverters rated 400-500W continuous ensuring adequate protection margin. For larger inverters (800W+), use higher amperage fuse—50-60A for 800W, 70-80A for 1000W. Undersized fuse causes nuisance tripping during inverter startup or peak loads, oversized fuse fails protecting wiring from overheating. Consult inverter manufacturer specifications for recommended fuse size—some inverters specify exact fuse rating accounting for surge characteristics and efficiency.

Q: What wire gauge required for 40A circuit using this fuse?

A: 40A circuit requires minimum 8AWG (10mm²) wire for short runs under 2-3 meters, 6AWG (16mm²) wire recommended for longer runs 3-5 meters minimizing voltage drop. Wire sizing critical: 8AWG rated approximately 40-50A continuous (depending on ambient temperature and installation method), 6AWG rated approximately 55-65A providing additional safety margin. Consider voltage drop: 8AWG wire over 4 meters at 40A experiences approximately 3-4% voltage drop potentially affecting equipment performance, heavier 6AWG reduces drop to 2-3% maintaining voltage at load. For critical circuits like inverters where voltage drop impacts performance, use 6AWG minimum even for short runs. Install fuse within 200-300mm of battery protecting entire cable. Never use wire smaller than 8AWG for 40A circuit regardless of fuse rating—creates fire hazard from wire overheating before fuse protection activates.

Q: Can I replace 30A fuse with 40A fuse to stop repeated fuse blowing?

A: Only if circuit legitimately requires 40A capacity and wiring adequate for increased current. Before increasing fuse rating: determine why 30A fuse repeatedly blows (measure actual circuit current, check for short circuits, verify equipment specifications), confirm wire gauge adequate for 40A (minimum 8AWG required), ensure equipment rated for increased current capacity. Legitimate reasons to increase: equipment specifications indicate 30-40A requirement, measured circuit current 27-35A requiring 40A fuse, or circuit modified adding equipment increasing total load. Never increase fuse rating to bypass underlying problem: faulty equipment drawing excessive current, short circuit in wiring, or overloaded circuit exceeding design capacity. Installing oversized fuse without addressing root cause risks wire overheating, equipment damage, and fire hazards from sustained overcurrent before inadequate fuse protection activates.

Q: How long do MIDI fuses last—when should I replace?

A: MIDI fuses have indefinite shelf life if stored properly (dry location, protected from physical damage) and operate indefinitely until blown from overcurrent event—fuses don't wear out or degrade from age alone. Replace fuse when: visually confirmed blown (element severed/melted visible through clear body), circuit fails and fuse testing shows open circuit (infinite resistance), or preventive replacement after multiple thermal cycles if fuse exposed to repeated high currents near rating (element may weaken from repeated heating though typically fuse operates reliably until blown). Check fuse condition during routine electrical system inspections: verify element intact, inspect terminals for corrosion, ensure secure fit in holder. Replace if terminals corroded degrading contact quality or fuse body cracked from physical damage. Maintain spare fuses for rapid replacement after blown fuse events—blown fuse indicates circuit problem requiring investigation before reinstalling new fuse.

Q: What's difference between 40A MIDI fuse and 40A standard blade fuse?

A: Physical size and current capacity range distinguish MIDI from standard blade fuses: MIDI fuses physically larger with more robust terminals and element construction handling 30-100A current range, standard blade fuses (ATO/ATC type) smaller fitting compact fuse boxes typically rated 2-40A maximum. MIDI fuses required for circuits exceeding standard blade fuse 40A maximum capacity, situations requiring physical robustness for vibration/shock resistance, or installations using MIDI fuse holders for consistency across higher-current circuits. Cannot interchange: MIDI fuses don't fit standard blade fuse holders due to larger terminal spacing and body size, standard blade fuses don't fit MIDI holders and wouldn't provide adequate current capacity or mechanical robustness. Use MIDI fuses for auxiliary electrical systems, inverter circuits, high-output chargers, and substantial accessory loads—use standard blade fuses for lower-current circuits, factory vehicle circuits, and compact fuse panel installations.
