Transform your caravan, motorhome, camper trailer, or 4WD into a complete off-grid power station with the Baintech Standard Stal 30 Smart Power Board — a premium pre-wired Victron Energy power management system that eliminates the complexity, guesswork, and wiring risk of DIY builds.

Product Overview

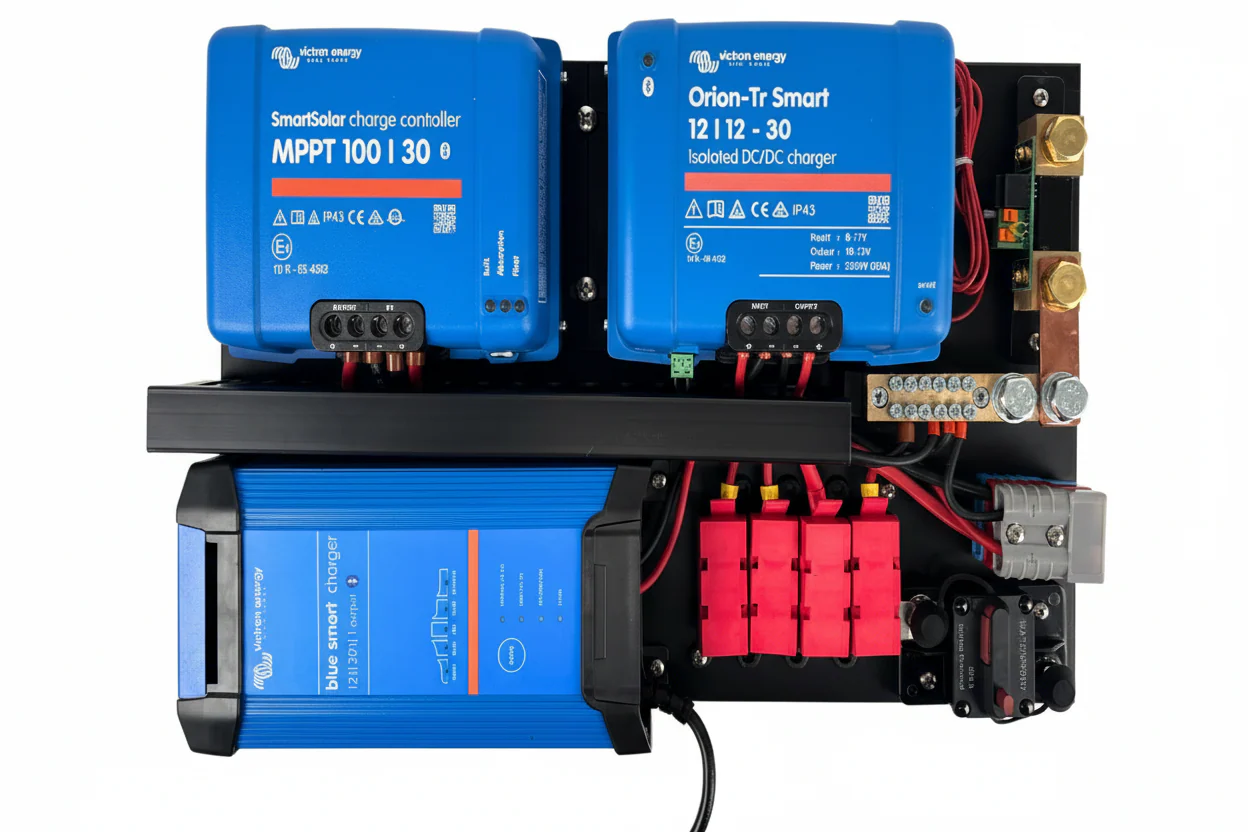

The Baintech Standard Stal 30 Smart Power Board is a turnkey 12V power management solution combining Australia's trusted Baintech expertise with world-leading Victron Energy components, all factory pre-wired on a professional rigid distribution board (720mm x 270mm) ready for professional installation.

At the core of the system is the Victron SmartSolar MPPT 100/30 solar charge controller, supporting up to 420W of solar panel capacity and delivering up to 30A of solar charging current using Maximum Power Point Tracking technology to extract maximum power regardless of shading, temperature, or panel conditions. The dedicated 30A circuit breaker (E2) on the MPPT PV solar input provides independent solar overcurrent protection, while the 40A fuse block (F2) protects the MPPT output. Paired with the Orion-Tr Smart 12/12-30 isolated DC-DC charger, the system draws 30A from the vehicle alternator while driving, protecting modern smart alternators from the damage caused by outdated VSR systems.

Shore power charging is handled by the Blue Smart IP22 30A mains charger, enabling rapid battery replenishment at caravan parks, marinas, or home with a full seven-stage adaptive charging algorithm. Battery monitoring is delivered by the Victron Smart Shunt 500A/50mV, providing real-time and historical visibility over every amp entering and leaving the battery bank wirelessly through the Victron Connect smartphone app — without requiring a dash-mounted physical display.

Three individually fused 40A distribution bars cover the DC-DC output (F1), MPPT output (F2), and a spare block (F3) for custom loads or future expansion. A dual circuit breaker configuration with E1 (100A) protecting the main battery connection and E2 (30A) protecting the MPPT PV solar input enables selective isolation during servicing. A negative busbar and 50A Anderson Plug and Play connector complete the board.

Backed by Victron Energy's industry-leading 5-year warranty, the Baintech Standard Stal 30 is engineered for caravans, motorhomes, camper trailers, expedition 4WDs, and marine house battery installations.

Features & Benefits

• Complete pre-wired Victron Energy system with all components factory-wired on a professional 720mm x 270mm rigid distribution board, eliminating DIY wiring complexity and installation errors
• Victron SmartSolar MPPT 100/30 delivering up to 30A solar charging and supporting up to 420W solar panel capacity with Bluetooth monitoring via Victron Connect
• Dedicated 30A circuit breaker (E2) on MPPT PV solar input providing independent solar overcurrent protection and selective solar disconnect during maintenance
• Orion-Tr Smart 12/12-30 isolated DC-DC charger providing 30A alternator charging with full electrical isolation protecting vehicle electronics from modern smart alternator damage
• Blue Smart IP22 30A mains charger enabling rapid shore power charging with adaptive seven-stage charging algorithm and temperature compensation for maximum battery health
• Victron Smart Shunt 500A/50mV battery monitor providing real-time voltage, current, state of charge, time remaining, and historical data wirelessly via Victron Connect app without a dash-mounted display
• Three 40A individually fused distribution bars with F1 (DC-DC output), F2 (MPPT output), and F3 (SPARE for custom loads or future expansion) ensuring individual circuit protection and flexibility
• Dual circuit breaker configuration with E1 (100A main battery) and E2 (30A MPPT PV input) enabling selective isolation of the solar system or full system shutdown independently
• 50A Anderson Plug and Play connector for quick-disconnect auxiliary battery connection and system expandability
• Negative busbar consolidating all ground connections for a clean, professional installation
• Victron Connect app compatibility for wireless monitoring and configuration of all Smart components through a single smartphone interface on iOS and Android
• Compatible with lithium LiFePO4 and all lead-acid battery types (flooded, AGM, GEL, calcium) via Victron Connect battery preset selection
• 5-year Victron Energy warranty providing industry-leading long-term peace of mind for a substantial investment

Technical Specs

Compatible With / Goes Well With

The Baintech Standard Stal 30 Smart Power Board is suited for a wide range of off-grid and mobile power applications including:

• Caravans and motorhomes requiring a complete multi-source 12V charging system with solar, alternator, and shore power capability
• Camper trailers and expedition setups needing professional-grade power management in a compact, pre-wired format
• 4WD auxiliary power systems where alternator charging, solar, and shore power are all required for extended remote travel
• Marine house battery installations requiring robust, Bluetooth-monitored components with app-based visibility
• Off-grid lifestyle vehicles where battery state of charge visibility and system redundancy are critical for safe extended use

Battery compatibility:

• Lithium LiFePO4 (with built-in BMS)
• AGM and GEL sealed lead-acid
• Flooded lead-acid
• Calcium lead-acid

Goes well with:

• Baintech lithium and AGM auxiliary batteries (for a complete Baintech power system)
• Victron Energy GX touch display (for advanced system monitoring and control)
• Anderson-compatible solar panels and portable power accessories (for system expandability via the F3 spare fuse block)

Frequently Asked Questions

Q: Is this board completely plug-and-play or does it still require professional installation?

A: The board arrives fully pre-wired between all Victron components but requires professional installation to connect the external systems including the auxiliary battery, solar panels, vehicle alternator, and 240V mains power. A qualified electrician or experienced installer will need to mount the board, connect the main battery positive through the E1 100A circuit breaker, connect the battery negative through the Smart Shunt, wire the solar panels to the MPPT controller (protected by the E2 30A breaker), connect the vehicle start battery to the DC-DC charger input, and wire the 240V mains to the AC charger. The pre-wired board reduces installation time from days to hours while ensuring professional-grade inter-component connections.

Q: The Smart Shunt has no physical display — how do I check my battery status?

A: The Victron Smart Shunt provides all battery monitoring data wirelessly through the free Victron Connect app on iOS and Android via Bluetooth. The app displays real-time voltage, current, state of charge, time remaining, amp-hours consumed, and historical data. For users wanting a dedicated physical display without phone dependency, a Victron BMV-712 display can be added separately to work with the Smart Shunt. The app-only approach also keeps the dash cleaner and reduces installation complexity compared to boards with a hard-wired physical display.

Q: What can I use the F3 SPARE fuse block for?

A: The F3 SPARE 40A fuse block provides a protected power distribution point for custom loads, auxiliary equipment, or future system expansion. Common applications include a dedicated fridge circuit, auxiliary lighting, water pump, UHF radio, USB charging stations, 12V outlets, or any 12V accessory requiring protected power up to 40A. The pre-installed fuse holder eliminates the need for additional external fusing for custom loads, allowing system customisation without compromising the factory board wiring.

Q: Why are there two circuit breakers and when would I use each one?

A: The dual circuit breaker configuration provides selective isolation capability. E1 (100A) protects the main battery connection and acts as a full system emergency disconnect for maintenance, storage, or fault isolation. E2 (30A) protects the MPPT PV solar input specifically, allowing the solar panels to be isolated for servicing, cleaning, or fault diagnosis without disconnecting the battery or shutting down the DC-DC and AC chargers. This selective isolation is particularly useful for professional servicing and extended trips where maintaining some charging capability during maintenance is important.

Q: Will this system work with lithium LiFePO4 batteries?

A: Yes. All Victron components support lithium LiFePO4 batteries with appropriate configuration through the Victron Connect app. Select the lithium battery preset and configure the correct charge voltages and float settings to match your battery manufacturer's specifications. The Smart Shunt accurately monitors lithium batteries — configure battery capacity and charging efficiency for precise state of charge calculations. Note that lithium batteries require a built-in BMS for cell balancing and protection. All lead-acid types including flooded, AGM, GEL, and calcium are also fully supported through battery preset selection.
