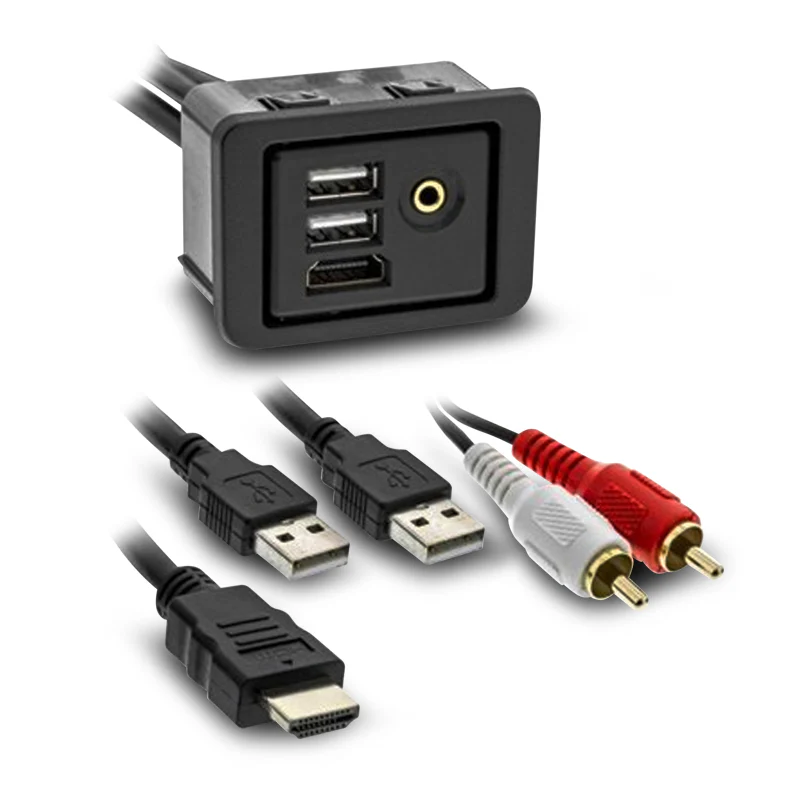

Axxess AXUSB-RAM1 RAM USB/AUX/HDMI Replacement Panel

Axxess AXUSB-RAM1 HDMI, Dual USB and 3.5mm Rectangle Panel Jack and 3-foot Extension Cable

Features:

• Replaces exiting Jeep Hub when replacing the factory radio to retain jacks to the new radio
• HDMI, (2) USB’s and 3.5mm Auxiliary mount jack with extension cable
• Can be used with any radio that supports HDMI, USB and 3.5mm inputs
• 3.5 mm jack is a 2 ring type for audio connection
• Enables you to conveniently mount the USB on the dash and make connections to the rear of the radio
• Works with USB 2.0 storage devices
• Up to 12Mbps transfer rate
• Hot pluggable
• 3-foot cable

Dimensions:

• Jack Panel Overall: 1-1/4″ (H) x 1-11/16″ (W) x 2-1/2″ (D)
• Jack Panel Cutout: 1-1/16″ (H) x 1-1/2″ (W) x 2-1/2″ (D)
• Trim Cutout: 1-9/16″ (H) x 2-3/16″ (W)
• Trim Overall: 1-3/4″ (H) x 2-7/16″ (W) x 1-1/4″ (D)

Vehicle specific fitment: RAM

• 2015 – and Up
• Media Hub located in the Centre Mounted Centre Console

Compatible with models 2015 and Up with floor mounted centre console.

Vehicle Compatibility:

• Dodge Ram 2013 - 2020 (4th Gen)
