AXIS AVT3 - Commercial Vehicle GPS Tracker with 4G LTE and Fleet Management
AXIS AVT3 - Commercial Vehicle GPS Tracker with 4G LTE and Fleet Management
Rugged IP67 rated 4G LTE GPS tracking device designed for commercial vehicles, trailers, and heavy equipment featuring high-sensitivity 72-channel GLONASS GPS tracking with internal antennas, accident and rollover detection with automatic incident reconstruction, driver ID via RFID/iButton for access control and logbooking, driver safety monitoring including speeding, harsh acceleration, braking, and cornering alerts, remote immobilization capability for theft prevention and fleet security, geofence alerts with up to 500 downloadable geofences, GPS jamming detection, real-time tracking while moving, preventative maintenance reminders based on distance and run hours, lone worker safety with duress pendant support, sensor monitoring for seatbelts and panic buttons, 1100mAh backup battery with intelligent power management, 10+ days flash memory storage for out-of-coverage areas, 8-36V DC operation with self-resetting fuse, ideal for fleet management, equipment monitoring, theft recovery, driver safety programs, and commercial vehicle compliance.
Product Overview

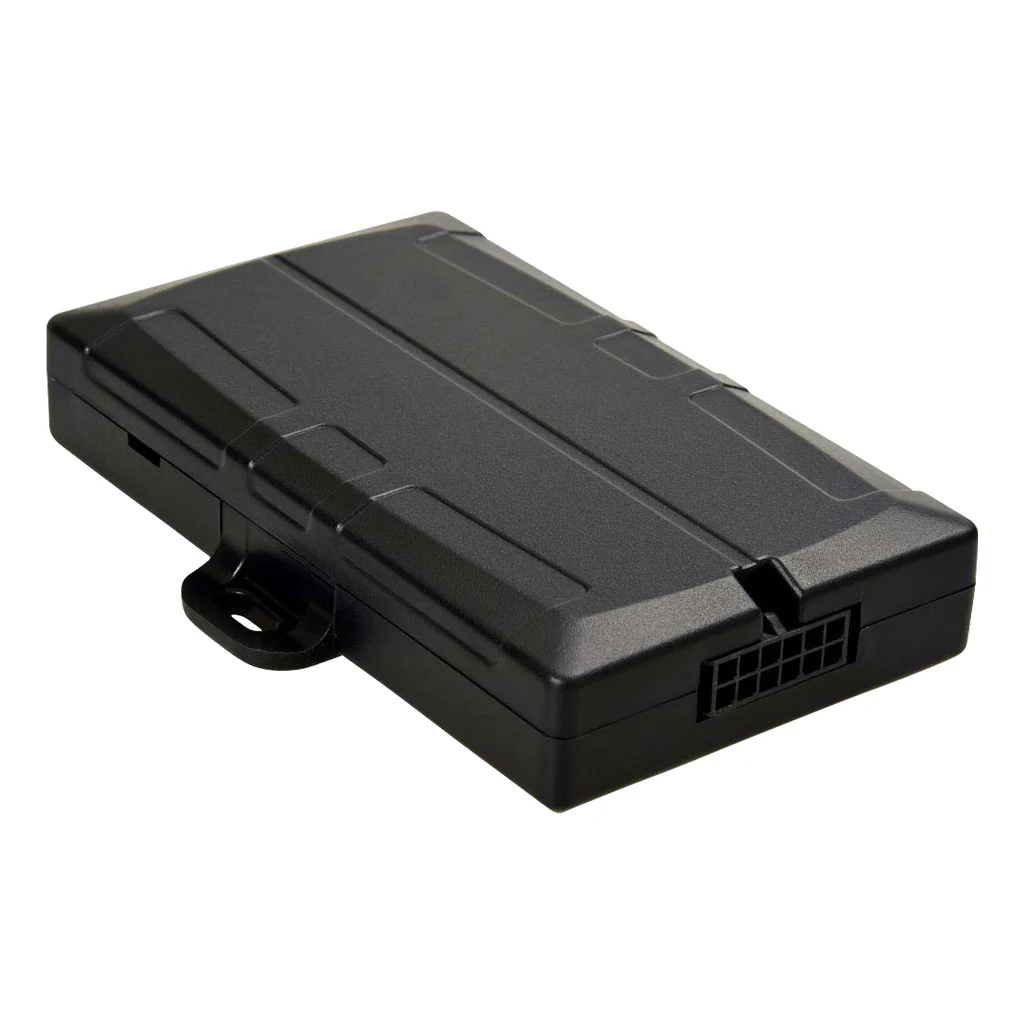

The AXIS AVT3 is a professional-grade 4G LTE GPS tracking device engineered specifically for commercial vehicle fleet management, equipment monitoring, and asset protection in demanding Australian conditions. The ultra-rugged IP67 rated housing withstands fine dust, high-pressure spray, 30-minute submersion in 1m water, and extreme temperatures from -30°C to +60°C, ensuring reliable operation in mining, construction, agriculture, and heavy-duty commercial applications. The high-sensitivity 72-channel GLONASS GPS system with low-noise amplifier provides accurate positioning even in challenging environments with limited sky visibility. Advanced smart technology features including accident and rollover detection automatically save second-by-second GPS data with 60-second pre-incident and 10-second post-incident reconstruction capability, driver ID integration via RFID or iButton for access control and compliance, comprehensive driver safety monitoring detecting speeding, harsh acceleration/braking, and dangerous cornering for insurance and safety programs. The 1100mAh internal backup battery with intelligent power management ensures continuous tracking even when disconnected from vehicle power, while 10+ days flash memory storage preserves tracking data during cellular coverage gaps common in remote Australian operations.
Important Notes:
Subscription Required: Requires ongoing telematics platform subscription for GPS tracking, data transmission, and fleet management features. Contact for subscription pricing.
Professional Installation Recommended: 10-wire harness installation requires automotive electrical expertise for proper power, ground, ignition sensing, and input/output connections.
4G LTE Network: Uses 4G LTE cellular network. Verify coverage in your operating areas, especially remote locations with limited cellular service.
Driver ID Hardware Separate: RFID readers, iButton, or Wiegand interfaces for driver ID sold separately if required.
Backup Battery Charging Limits: Internal battery won't charge below 0°C or above 40°C as safety precaution preventing battery damage.
Key Features
4G LTE Connectivity - High-speed cellular communication for real-time tracking and data transmission with auto-configured APN.
72-Channel GLONASS GPS - High-sensitivity GPS with GLONASS support and low-noise amplifier for accurate positioning in challenging environments.
IP67 Ultra-Rugged Housing - Withstands dust, high-pressure spray, 30-min submersion in 1m water, and -30°C to +60°C temperatures.
Accident & Rollover Detection - Automatic detection with 2-hour flash memory storing second-by-second data for incident reconstruction.
Driver ID Support - Compatible with RFID, iButton, or Wiegand interfaces for driver identification, access control, and logbook compliance.
Driver Safety Monitoring - Tracks speeding, harsh acceleration, braking, cornering, and idling to improve safety and reduce vehicle wear.
Geofence Alerts - Up to 500 downloadable geofences with 100 points each for location-based alerts and fleet management.
Remote Immobilization - Digital outputs connect to relay for remote vehicle shutdown in theft, abuse, or unauthorized use situations.
GPS Jamming Detection - Alerts when GPS interference or jamming detected protecting against theft and tampering.
Real-Time Tracking - Continuous connection while moving for live asset location monitoring and fleet visibility.
Preventative Maintenance - Distance and run-hour based reminders reduce maintenance costs and prevent unexpected breakdowns.
Lone Worker Safety - Interfaces with duress pendants for man-down alerts in lone worker monitoring applications.
Sensor Monitoring - Multiple inputs for seatbelt detection, panic buttons, door switches, and warning device integration.
Theft Recovery Mode - Switches to real-time tracking for stolen asset retrieval with continuous location updates.
Tamper Alerts - Instant notification if device disconnected from power source indicating tampering or theft attempts.
Run Hour & Odometer - Calculates engine hours and distance traveled for asset utilization analysis and billing.
10+ Days Memory Storage - Flash memory stores weeks of tracking data when out of cellular coverage for later upload.
1100mAh Backup Battery - Internal LiPo battery continues tracking when vehicle power disconnected for theft protection.
Intelligent Power Management - Automatically enters <1mA sleep mode when vehicle inactive preventing battery drain.
Self-Resetting Fuse - Built-in automotive fuse simplifies installation and protects device from electrical faults.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AXIS |
| Model | AVT3 |
| SKU | AVT3 |
| Barcode | 9321886016031 |
| Product Type | 4G LTE Commercial Vehicle GPS Tracker |
| Network Type | 4G LTE (LTE-M / NB-IoT) |
| Cellular Antenna | Internal |
| APN Configuration | Auto APN Preloaded |
| GPS Antenna | Internal |
| GPS Tracking | High Sensitivity 72-Channel GLONASS |
| GPS Amplifier | Low Noise Signal Booster (LNA) |
| Accident Detection | Yes - With Incident Reconstruction |
| Flash Memory Capacity | 2 Hours Second-by-Second Data / 10+ Days at 30-Second Intervals |
| Driver ID | RFID / iButton / Wiegand (Hardware Sold Separately) |
| Geofence Capacity | Up to 500 Geofences (100 Points Each) |
| Remote Immobilization | Yes - Via Digital Outputs |
| GPS Jamming Detection | Yes |
| Input Voltage | 8-36V DC |
| Operating Current (Moving) | 50mA (LTE-M/NB-IoT) |
| Battery Charging Current | +60mA (When Charging) |
| Sleep Current | <1mA |
| Backup Battery | 1100mAh LiPo Internal |
| IP Rating | IP67 (Dust/Water Resistant) |
| Dimensions | 125 x 80 x 25mm |
| Operating Temperature | -30°C to +60°C (With External Power) |
| Battery Charging Range | 0°C to +40°C (Safety Limitation) |
| 3-Axis Accelerometer | Yes - Movement & G-Force Detection |
| On-Board Speed Monitoring | Yes - Continuous Speed & Heading |
| On-Board Temperature | Yes - Internal Temperature Monitoring |
| Installation Harness | 10-Wire, 1 Metre Length |
| Diagnostic LED | Yes - Operation Status Indicator |
| Warranty | Standard Manufacturer Warranty |
Frequently Asked Questions
Q: Does the AVT3 require an ongoing subscription, and what does it include?
A: Yes, the AVT3 requires an ongoing telematics platform subscription (typically monthly or annual) covering cellular data transmission, GPS tracking platform access, fleet management features, geofence alerts, driver safety reports, and maintenance reminders. Contact us for specific subscription pricing and platform options. The device cannot operate standalone without subscription as GPS tracking data must transmit to and be processed by the telematics platform server.
Q: Can I track my vehicle in real-time, or does it only update periodically?
A: The AVT3 supports both real-time tracking and periodic updates depending on configuration and vehicle status. When moving, the device remains continuously connected providing real-time location updates (typically every 10-30 seconds). When stationary with intelligent power management enabled, it enters sleep mode and updates less frequently to conserve power. The flash memory stores up to 10+ days of tracking data at 30-second intervals when out of cellular coverage.
Q: How does the accident and rollover detection work, and what data is captured?
A: The 3-axis accelerometer continuously monitors vehicle movement, orientation, and G-forces. When extreme velocity changes or orientation shifts exceeding configured thresholds occur, the device triggers accident detection. Second-by-second GPS data including location, speed, heading, and G-forces is saved to flash memory. Upon accident detection, a critical subset (60 seconds before impact + 10 seconds after) automatically uploads for detailed incident reconstruction.
Q: What's involved in installing the AVT3, and can I do it myself?
A: Installation requires connecting the 10-wire harness to vehicle electrical systems including constant 12V/24V power, ground, ignition sense, and optional inputs/outputs for immobilization relays, driver ID readers, or sensors. While mechanically straightforward, proper installation requires automotive electrical knowledge. Professional installation by auto electricians ensures correct power connections, secure mounting, proper configuration, and device activation with the telematics platform.
Q: Will the AVT3 work in remote areas without cellular coverage?
A: The AVT3 includes 10+ days flash memory storage that preserves tracking data when operating outside cellular coverage areas. GPS tracking continues using satellite positioning, with all location and event data saved to internal memory. When the vehicle returns to cellular coverage, stored data automatically uploads reconstructing the complete journey. However, real-time tracking, geofence alerts, and remote commands won't function without cellular connectivity.
