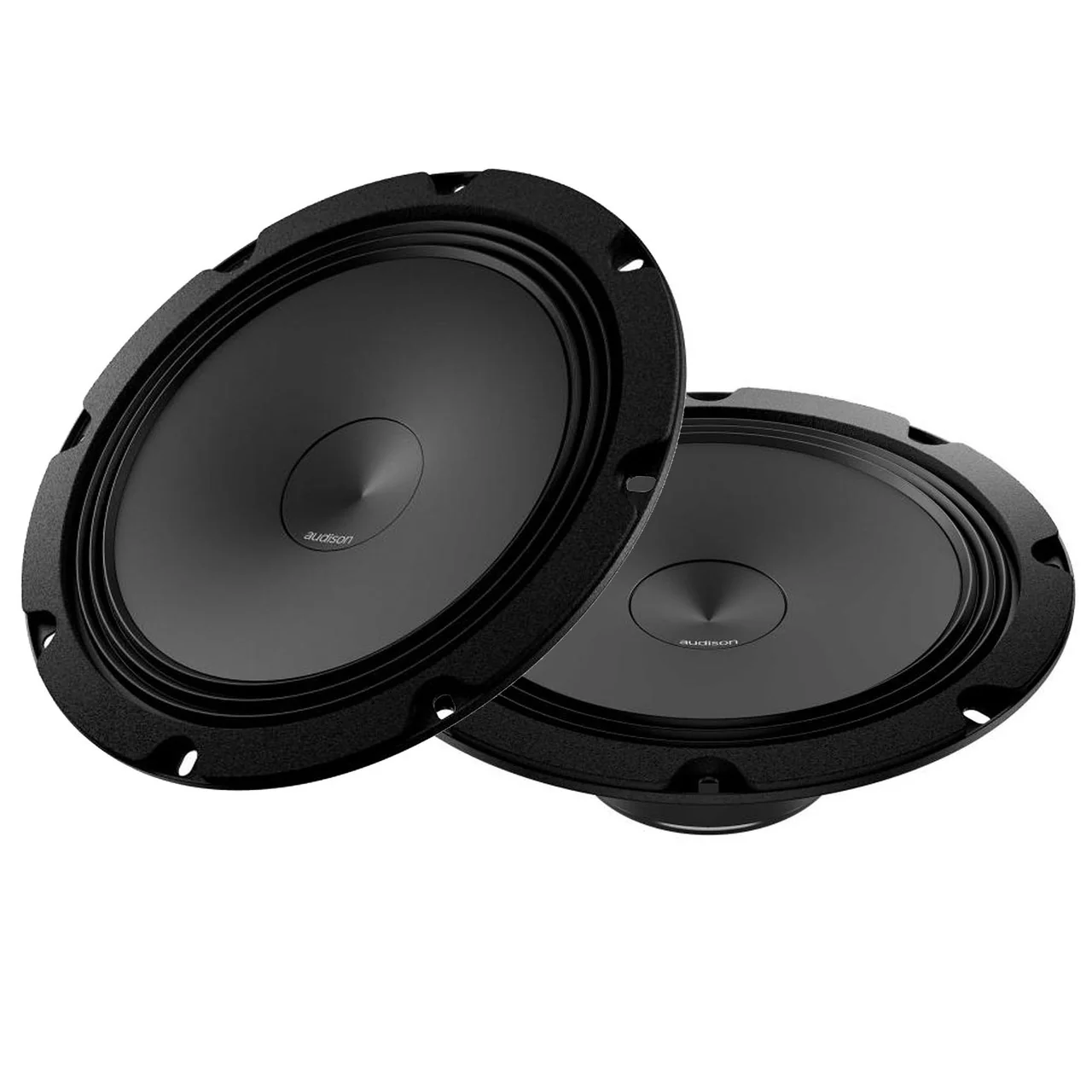

Audison ELAP8 AP 8 Prima Series 8" 300W Woofer Set With Grilles - Pair

High Power Handling & Outstanding Low-Frequency Control!

Audison Prima Series 8″ Woofer
For the vehicles equipped with an 8"woofer as a standard OEM component, the Audison Technical Department developed the AP 8 which, also thanks to the wide emission surface, provides higher energy in the low-frequency range, ensuring excellent performance when the use of a subwoofer is prohibited due to space limitations.

Features:

• Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer
• No Passive Crossover Required to Maximize Efficiency: dome profile optimised with Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency
• Reduced mounting depth, providing ease of installation in OEM placements
• TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity
• Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive
• High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection
• The terminal features a temperature-resistant plastic cover, protecting it against accidental short circuits
• 7 Developed with the KLIPPEL suite

Specifications:

• Component: Woofer
• Size: 8″(200mm)
• Power Handling
  Continuous Power: 100W
  Peak Power: 300W
• Impedance: 4Ω
• Frequency Response: 35 ÷ 3kHz
• Sensitivity: 93.50dB/SPL
• Magnet: High-Density Flux Ferrite
• Dome: Water-Repellent Pressed Paper
• Voice Coil Ø: 25mm (1")
• Weight: 1.20kg (Single Woofer)
