Audison BIT ONE Multi-Function Digital Audio Processor

Multi-Function Digital Processor Capable of Interfacing with Any Analog & Digital Source

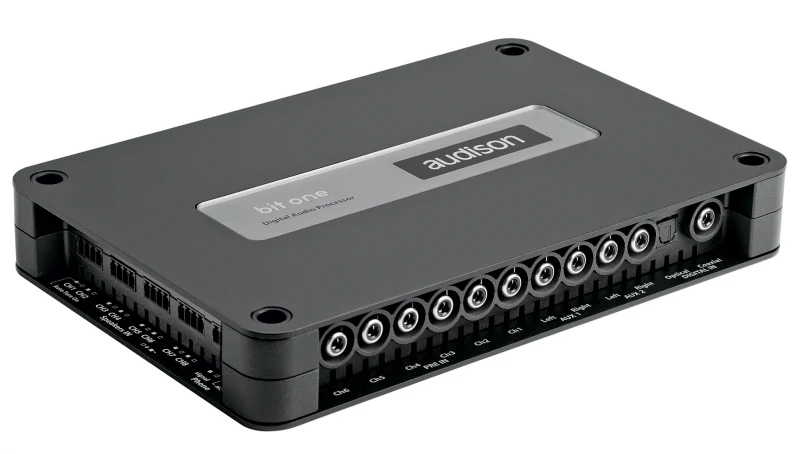

BIT ONE Audio Processor
Despite its compact size, the bit One is equipped with a powerful 266 MHz / 32 bit floating point DSP microprocessor, working in real time on all the functions of the most complete systems. Managed and configured by a simple and intuitive computer software, it is possible to make adjustments to improve the signal through each phase of its path; from input to output.

Eight input channels for four different signal typologies (amplified, pre-amplified, coaxial electric and TOSLINK optical digital) and six different sources managed through a remote control, making the bit One a unique interface suitable for any need. Eight analog and/or digital output channels ensure a wide expandability for any audio system configuration.

Features:

• Analog Device Shark™ DSP: Analog Device SHARC™ series chip with floating point precision, to reach the highest audio quality.
• Bit Drive: Auto tuning by Audison bit Tune and communication with bit Drive portal.
• DE-EQ: De-Equalization function to “flatten” any equalization applied by default by OEM sources.

Specifications:

• Analog Inputs: 8 High Level + 6 Pre-In
• Digital Inputs: 2
• Analog Outputs: 8
• Digital Outputs: 8
• Equalizers For Each Outputs: 31-Band Graphic Equalizer (1/3 Oct.; ±12dB)
• Crossover Filter Type: Full / Hi-Pass / Low Pass / Band Pass
• Filter Mode & Slope:
  • Linkwitz: @ 12 / 24 / 36 / 48 dB
  • Butterworth: @ 6 / 12 / 18 / 24 / 30 / 36 / 42 / 48 dB
