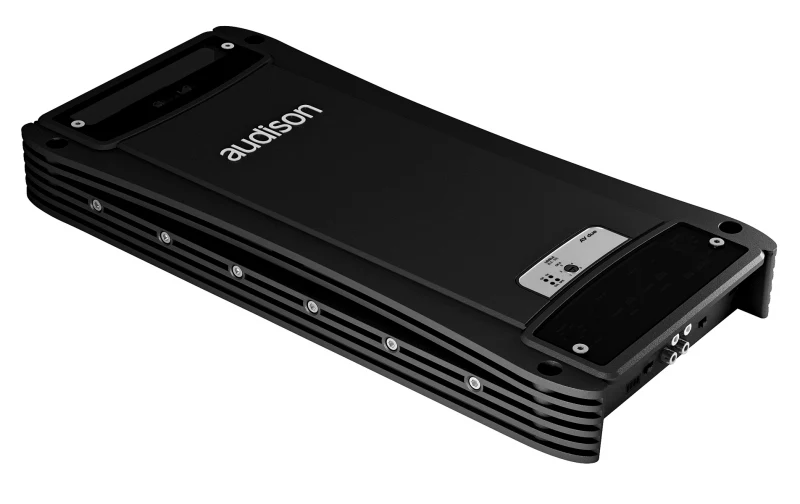

Audison AV Due Voce 900 Watts RMS 2-Channel Power Amplifier
Designed to Work Also in Mono & Tri-Mode, Ensure Very High Output Current!
Audison Voce Series AV Due Amplifier
The Audison VOCE AV Due is a powerful stereo amplifier with the power supply section and final stage designed to work also in mono and tri-mode, ensure very high output current, with powers up to 900 Watts (RMS). AMP (Amplifier Management Processor) constantly checks the operating status system and communicates with the user through 4 different coloured LEDs, located on the top panel; ART (Automatic Remote Turn On-Off) allows automatic turn-on/off when a remote signal isn’t available from the source.
Hi-Res Audio
According to the definition of HiRes audio provided by JAS (Japan Audio Society - jas-audio.or.jp), Voce amplifiers exceed the above 40 kHz bandwith analog requirement, providing an astonishing 4 ÷ 60k Hz (@ -3 dB, 2 VRMS, 4 Ω).
Specifications:
- Power Supply:
Power Supply Voltage: 11 ÷ 15 VDC
Idling Current: 1.7A
Idling Current when Off: 0.02 mA
Consumption @ 14.4 VDC (Max Musical Power): 65 A - Amplifier Stage:
Distortion – THD (1kHz @ 4Ω): 0.04 %
Bandwidth (-3 dB): 4 ÷ 60k Hz
S/N Ratio (A-Weighted @ 1V): 100 dBA
Damping Factor (1k Hz @ 4Ω): 120
Input Sensitivity: 0.3 ÷ 5 V RMS
Input Impedance: 15k Ω
Speaker-In Sensitivity: 1.4 ÷ 24V RMS
Speaker-In Impedance: 5k Ω
Minimum Load Impedance: 2Ω
Nominal Power (RMS) @ 12 VDC, THD 0.3%, 4Ω: 210 W x 2 - Output Power (RMS) @ 14.4 VDC,THD 1%:
2 Ch: 260 W x 2 (4Ω)
2 Ch: 450 W x 2 (2Ω)
1 Ch: 900 W x 1 (4Ω)
Signals Inputs / Filters:
Inputs: Pre-In / Speakers In
Outputs: Pre-Out Full Range
Filters (Full / Hi-Pass / Lo-Pass): 50 ÷ 5k Hz (2 range) @ 12 dB/Oct.
Filter (Lo-Pass 24 dB Mono): 50 ÷ 500 Hz @ 24 dB/Oct. - Other Functions:
Remote In: 7 ÷ 15 VDC – 1mA
Remote Out: 12 VDC – 50mA
Fuse (Strip Type): 60 A
Remote Sub Volume Adj. (With Lo-Pass 24 dB): (-50 ÷ 6) dB
Speakers In Turn-On (ART): Selectable - Dimensions: 220mm x 470mm x 58mm
- Weight: 4.00kg
Original: $1,214.54
-65%$1,214.54
$425.09Product Information
