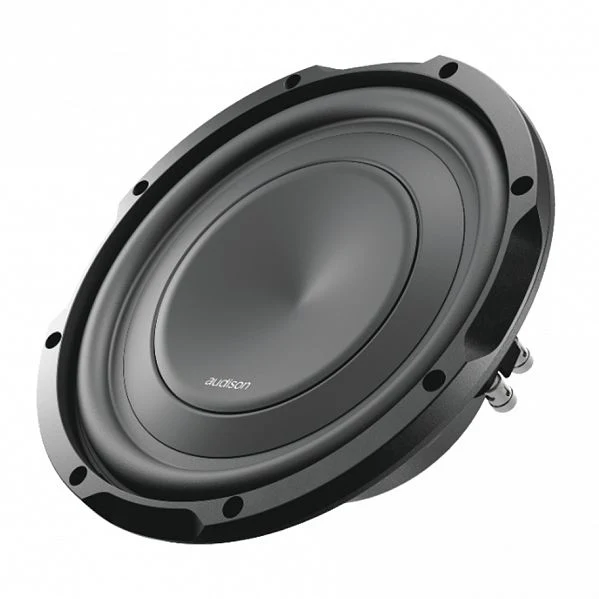

Audison APS10S4S Prima Line Series 10" 800W Shallow Subwoofer (APS 10 S4S)

Delivers Maximum Performance in a Sealed Enclosure With Ultra-Compact Volumes!

Prima Series 10" Shallow Subwoofer
The APS 10 S4S (Order Code APS10S4S) is designed to deliver maximum performance in a sealed enclosure with ultra-compact volumes, from 10 lt. to 12 lt. The dual voice - coil and single voice-coil versions feature push connectors for ease of wiring and configuration. Prima subwoofer components have been developed with a primary goal: to deliver high output in tight spaces. Output is a matter of excursion; the more air the cone moves, the more output. However, reduced mounting depth traditionally has meant low excursion.

Prima subwoofers employ a special cone-dust cap-basket geometry which guarantees large excursion of the mobile group while keeping the mounting depth to a minimum. The surround and spider have been carefully designed to prevent the "rocking - -mode" phenomenon. The cooling circuit has been designed with air vents on the basket underneath the spider, eliminating the need for vents on the bottom - plate. This allows the subwoofer to be mounted close to the back wall of the enclosure, making the most of the reduced mounting depth.

Features:

• Ultra-low profile (4.7 in. / 120 mm) for maximum installation flexibility.
• Designed to deliver maximum performance in a sealed enclosure starting from 10 lt.
• Specially designed cone-dust cap-basket geometry guarantees a long linear excursion capability (11 mm, one-way) while keeping the mounting depth to a minimum.
• Air vents on the basket underneath the spider, eliminating the need for the central pole vent allowing mounting close to the rear wall of the enclosure.
• Massive motor assembly, optimized with FEM (Finite Element Modelling) for perfect control under high power, high excursion conditions.
• Water-repellent pressed paper 10 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer.
• Single Voice Coil design specifically developed to be combined with either AP8.9 bit (2 CH bridged), APF8.9bit (2 CH Bridged)
• Steel mesh grille and plastic gasket included.

Specifications:

• Component: Subwoofer
• Size: 250mm (10")
• Power Handling - Peak: 800W
• Power Handling - Continuous: 400W
• Impedance: 4-Ohm
• Centre ~ Centre Distance: 255mm (10.04")
• Magnet Size: (D) 140mm x (D) 70mm x (H) 30mm (5.51" x 2.76" x 1.18")
• Total Driver Displacement: 1.12
• Magnet - High-Density Flux Ferrite
• Cone: Water-Repellent Pressed Paper Subwoofer
• Voice Coil: 60mm (2.36")
• Xmech: +/-18 (0.71)
• Mounting Cut-Out: 233mm
• Mounting Depth: 88mm
• Weight: 5.24kg
