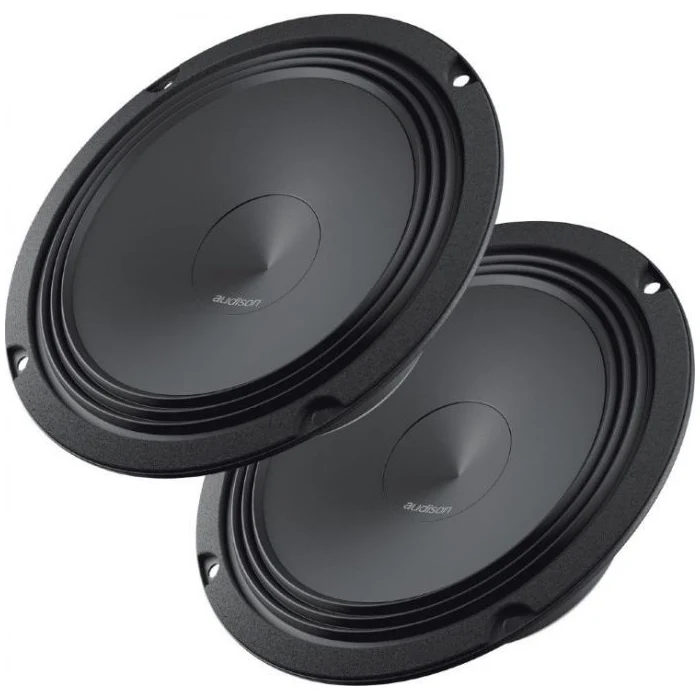

Audison AP65OHM2 Prima Line 6.5" 210W Woofer Speaker - Pair (AP 6.5 2OHM)

Perfect Match For the Prima Range of Compact Amplifiers!

AP 6.5 2OHM Prima Line - Individual Speaker Components
The Audison AP 6.5 2 OHM woofer has been developed with a 2-ohm nominal impedance with the purpose of exploiting all the power made available by the AP8.9 Bit Amplifier capable of 65W into a 2-Ohms load. To maximize the woofer efficiency achieving 95dB, a 25mm diameter 10mm winding height coil, so a more lightweight coil has been employed, at the same time also providing a linear excursion 2.8mm higher than the one of AP 6.5 (4-Ohms), therefore ensuring high SPL values with minimum distortion even at high listening levels. To extend the woofer's frequency range down to low frequencies up to 50Hz a 75Hz resonance frequency has been chosen, achieving excellent low-frequency output even without the use of a subwoofer.

Features:

• 2 Ohm impedance, to fully exploit the 65W power per channel at 2-Ohms of the AP8.9 Bit amplifier.
• 75Hz resonance frequency, to extend the frequency range down to low frequencies up to 50Hz and increase the SPL in the low range.
• 25mm mobile voice coil to maximize efficiency achieving 95dB.
• 10mm winding height mobile voice coil to increase maximum linear excursion up to 2.8mm and minimize distortion, even at high listening levels.
• Water-repellent treated paper cone, featuring profile developed with FEM simulation technology and optimized with the Klippel Scan Vibrometer.
• Reduced mounting depth, providing ease of installation in OEM placements.
• TPU (Thermoplastic Polyurethane) surround, featuring the exclusive "Triple Wave" shallow profile, for maximum excursion linearity.
• Compact basket, protected by abrasion-resistant and scratch-proof coating. Damping epoxy glue provides perfect coupling with the motor system.
• High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection.
• The terminal features a temperature-resistant plastic cover, protecting it against accidental short circuits.
• Developed with the KLIPPEL suite.
• Grilles not included

Specifications:

• Component: Woofer
• Size: 165mm (6.5")
• Power Handling - Peak: 210W
• Power Handling - Continuous: 70W
• Impedance: 2Ω
• Frequency Response: 60 - 5kHz
• Voice Coil: 25mm (1")
• Grilles: Optional
• Mounting Diameter: 141mm
• Mounting Depth: 58.5mm
• Packaging Type: Plain Brown Packaging
• Weight: 2.27kg
