Audison AFBMWRE3 T-Harness Suit BMW (AFBMW REAMP 3)

Provides the Ability to Install an Audison AF Bit Amplifier on BMW Vehicles Equipped With a RAM Module!

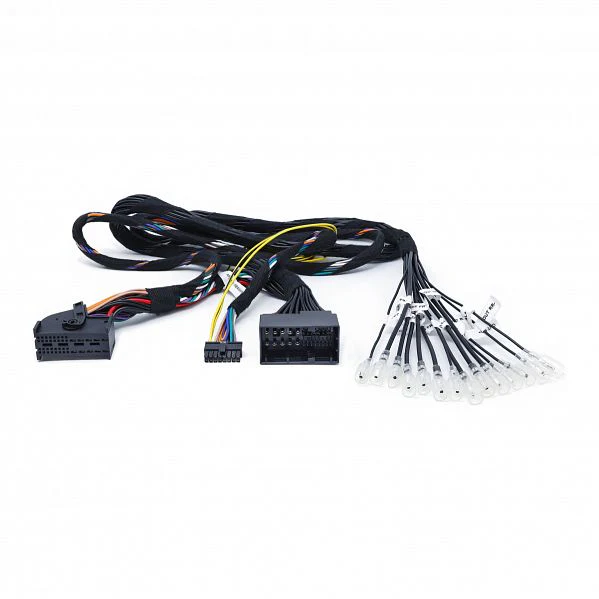

T-Harness (AFBMW REAMP 3)
This plug-and-play T-Harness provides the ability to install an Audison AF bit amplifier on BMW vehicles equipped with a RAM module. It is compatible with Standard and Hi-Fi sound systems. The OEM seven-channel amplifier is connected via a forty-two-pin multipolar connector. AFBMW ReAMP 3 allows AF Forza user to:

• Retrieve the OEM source front mid/high, rear mid/high, under seat low-pass, and center signals;
• Route the AF bit amplifier outputs to each of the OEM amplifier's seven channels: (Mid-Hi FL; Mid-Hi FR; WF FL; WF FR; RL; RR; Centre)
  The plug-and-play terminals enable the user to choose which AF bit output to connect to each of the seven channels of the OEM audio system
  It is also possible to bridge the outputs of the AF bit amplifier
• Keep the OEM amplifier on.

The AFBMW ReAMP 3 can also be used with the Audison AP F IN ADP accessory (not included in the box) for a full plug-and-play connection to an AP F8.9-bit amplifier.

Features:

• Compatibility with RAM module-equipped 676 Hi-Fi audio package and Audison AF bit amplifier
  The use of other products may require modifications and additional connections to the vehicle
  676 Hi-Fi systems use 2 Ohm woofers. Do not bridge two channels into a 2 Ohm load, since protection shutdown or amplifier damage may result. To use a bridged channel, the user needs to replace the OEM 2 Ohm woofers with Audison APBMW S8-4.2 4 Ohm woofers. Please, make sure to confirm proper bridge wiring.
  Use the Hi-level input configuration number 11 (2-way front - rear - centre) during the bit Drive Wizard configuration process. This is essential to properly route the input signal to the bit processor section.
• Confirm proper application: APBMW ReAMP 1, APBMW ReAMP 2, and AFBMW ReAMP 3 use identical connectors, but with different pinouts. They are not interchangeable.

Specifications:

• Suitable For: BMW Equipped With RAM Module
• Plug & Play Harness: Yes
• Weight: 0.06kg
