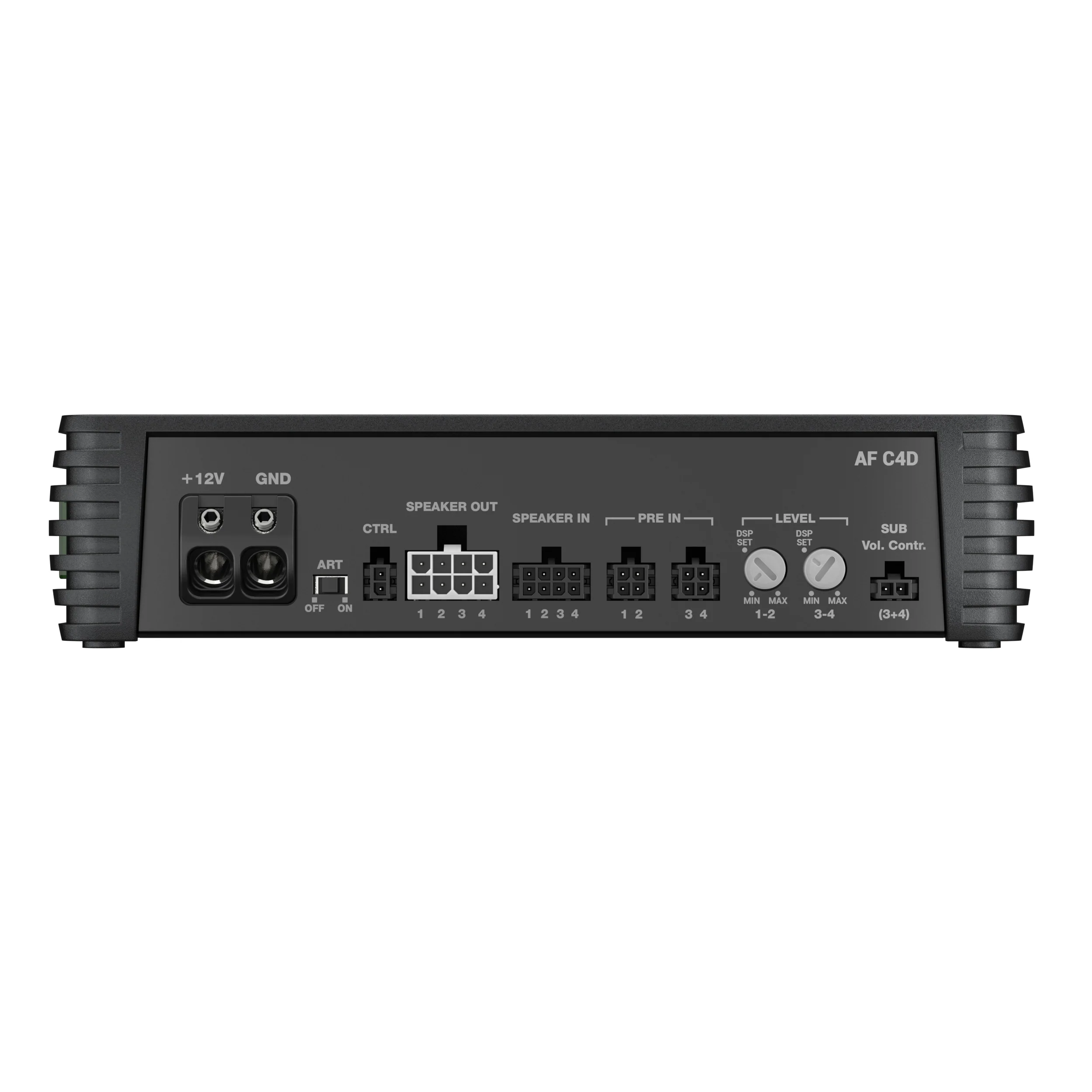

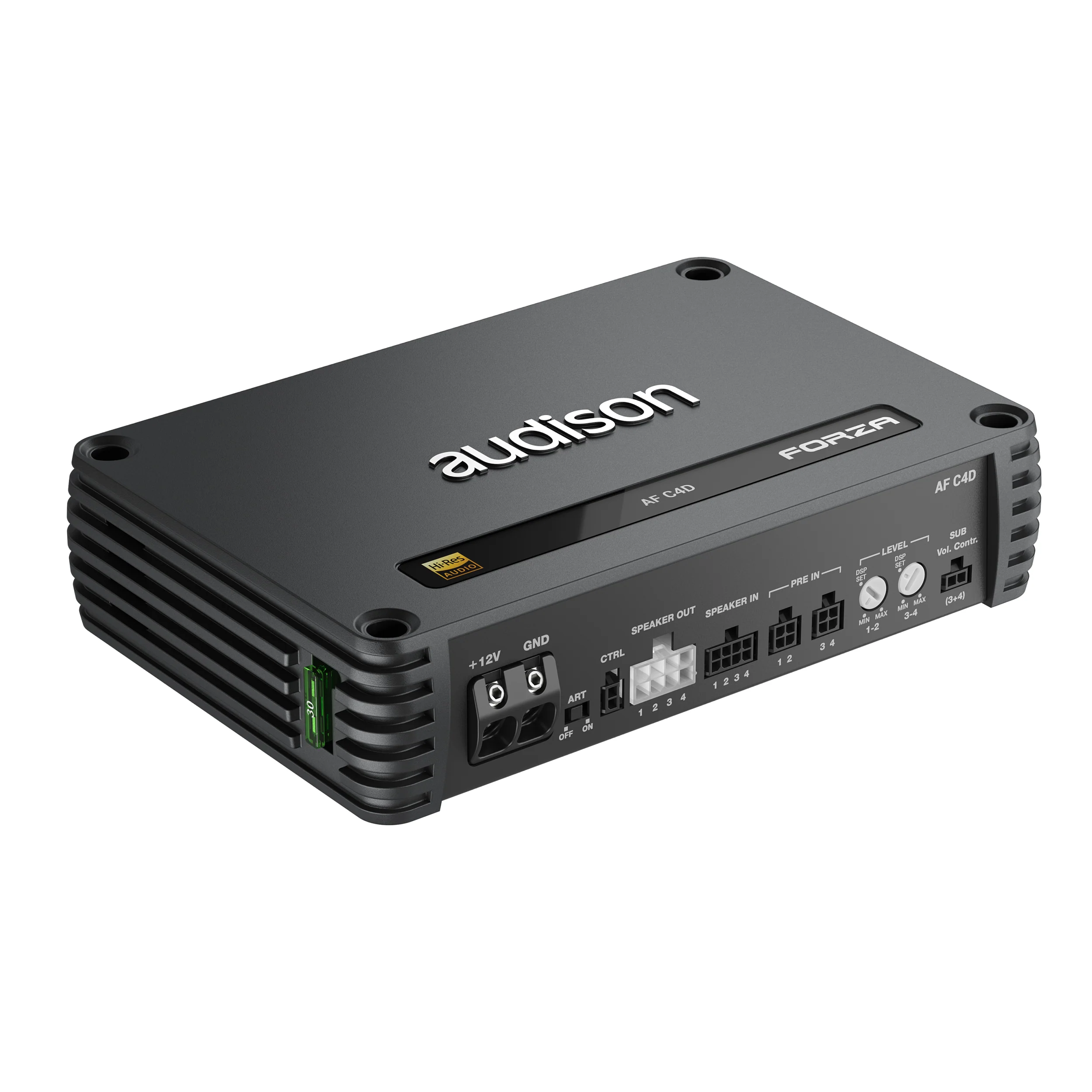

Audison AF C4D Forza Line 600W 4-Channel Amplifier

AF Companion Amplifiers Are Designed to Add Powerful Amplifier Channels to AF Bit Processor Amplifiers!

FORZA Hi-RES Audio 4-Channel Amplifier
Introducing the new Audison Forza Line AF C4D (Order Code AFC4D) 600W 4 Channel D-Class amplifier. AF companion amplifiers are designed to add powerful amplifier channels to AF bit processor amplifiers. A plug-and-play signal input harness is included to make connection to AF bit amplifiers straightforward. AF companion amplifiers are also perfect for use with systems controlled and managed by a standalone bit processor, such as a bit One HD Virtuoso. AF companions have a “straight wire" architecture, without analog preamp functions such as crossover filtering, and are intended for use with external processors.

The AF C4D boasts four high-fidelity amplified channels 90W x 4 @4 Ohm, 150W x 4 @2 Ohm with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! The audio band is extended up to 40 kHz earning the coveted High-Resolution certification. Bridging channel pairs results in 300W x 2 @4 Ohm, guaranteeing flexible and powerful performance.

Features:

• Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
• Unbeatable power/volume ratio up to 0.47 W RMS/cm³ reaching 81% of efficiency
• Hi-Res compatibility performance, with an extended audio band up to 40 kHz
• Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs
• Designed to be used by itself or as companion amplifiers for AF bit processor amplifiers, facilitating seamless integration and expanded channels.
• Compact design ensures powerful sound without sacrificing valuable space in the vehicle.

Specifications:

• Channels: 4Ch
• Class: D-Class
• Efficiency: 84%
• Hi-Level Input: Yes
• Low-Level Input: Yes
• Digital Input: No
• Power Supply Voltage/Fuse: 11 - 15V DC
• Operating Power Supply Voltage: 6.5 - 17.5V DC
• Idling Current: 0.6A
• Idling Current when Off: 0.004mA
• Consumption @ 14.4V DC, 2 Ohm, Max Musical Power: 25A
• Remote-OUT: 6.5 - 15V DC (150mA)
• Remote-IN: 4 - 15 V DC (1mA)
• ART - Automatic Remote Turn ON/OFF From Output BTL Speakers (Selectable): 1.5V DC
• Distortion - THD @ 100Hz, 4 Ohm, 70% Rated Power: 0.03%
• Bandwidth @ -3dB, 2V RMS, 4 Ohm: 10Hz - 40kHz
• S/N Ratio A (A Weighted @ 1V): 102dBA
• Input Sensitivity Pre-IN: 0.6 - 6 V RMS
• Input Sensitivity Speaker-IN: 2.2 - 22 V RMS
• Total Power RMS: 600W
• Minimum Load Impedance: 2 Ohm
• Output Power (RMS) @ 14.4 V DC, 1% THD:
  4Ch @ 4 Ohm: 90W x 4
  4Ch @ 2 Ohm: 150W x 4
  2Ch (Bridge) @ 4 Ohm: 300W x 2
• Adjustable Crossover: No
• CEA Specifications:
  Output Power @ 4 Ohm, 1% THD+N, 14.4V: 90W x 4
  SN Ratio (Ref. 1W Output): 81dB
• Remote Sub Volume: (-12 - +12) dB
• Fuse: 1 x 30A
• Weight: 1.49 kg
