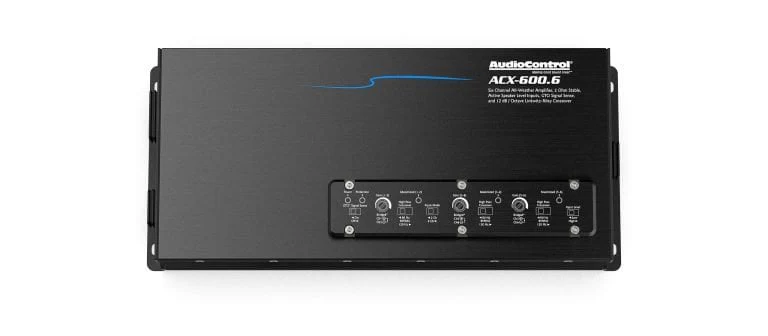

AudioControl ACX-600.6 ACX Series 6-Channel Amplifier

Ensure Your Open-Air Speakers & Subwoofers Deliver Plenty of Punch & Clarity, All Day Long!

All Weather 6-Channel Amplifier
AudioControl’s ACX-600.6 all-weather amplifier delivers honest power levels to the sound system in your boat, UTV, motorcycle, and more. The ACX-600.6 will ensure your open-air speakers and subwoofers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-600.6 all-weather amplifier the perfect solution for your next adventure.

Features:

• 6 x 50 Watts @ 4 Ohms
• 6 x 100 Watts @ 2 Ohms
• 3 x 200 Watts @ 4 Ohms, Bridged Mono
• IPX6 Rated
• GTOTM Signal Sense
• High & Low Input Modes
• Linkwitz-Riley Crossover
• Bulletproof 5-Year Warranty (When Installed by An Authorized Audio Control Dealer)

Specifications:

• Inputs:
  Preamp/Speaker Level Inputs: 2
  Input Voltage Low: 500 mV – 6V RMS
  Input Voltage Range High: 1V RMS – 12V RMS
• Outputs:
  Rated Continuous (RMS) Power @ 14.4V:
  4 Ω – 50W x 4
  2 Ω – 100W x 6
  Bridged 4 Ω – 200 W x 3
• Performance:
  Frequency Response: 26Hz – 22kHz
  Signal-To-Noise: 102 dBA, Ref 50W @ 4Ohm
  THD+N: < 0.05%
  Crossover: 12dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
  IP Rating: IPX6
• General:
  Recommended Fuse Rating: 30A
  Rated Continuous (RMS) Power @ 14.4V: 4Ω – 50W x 6 RMS / 2Ω – 100W x 6 RMS / 4Ω – 200W x3 Bridged Mono
  High-Level Input Voltage: 12 V RMS (120 Watts Per Channel)
  Input Channels: 6-Channel RCA/Speaker Level Input
  RCA Pre-Outs: N/A
  Remote Turn-On Feature: Yes
  Total Harmonic Distortion Rating: 0.20%
  Crossover Frequency: Selectable 80Hz / 120Hz / Bypass
  Crossover Type: Independent 12 dB Linkwitz-Riley Crossovers
  Dimensions: 11.97″ (W) x 5.31″ (D) x 2.36″ (H)
  Weight: 2.45kg
