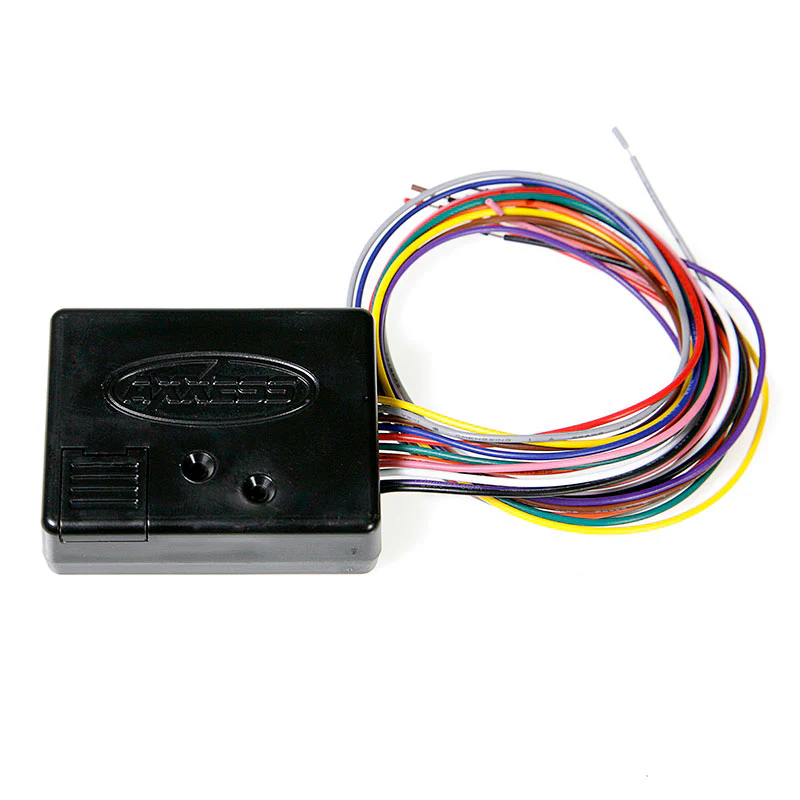

Aerpro TRIGGER USB Programmable Output Module

Get Creative With Your Next Install with Aerpro's Trigger Output Module

The Aerpro Trigger is a universal module that provides 15 different preset functions that are activated from a positive or negative trigger. In addition to the preset features the Trigger has 8 custom modes with customisable settings that allows the installer to utilise their imagination.
*Requires USB-CAB (sold separately) and downloaded trigger program to access custom modes.

Features:

• Programmable by USB*
• 15 Preset Functions
• 8 Custom Functions
• Positive or Negative Trigger

Specifications:

• Default: EBrake Emulator

• Mode 1: Retained accessory power

• Mode 2: Delayed amp turn-on

• Mode 3: Low voltage turn-on

• Mode 4: Latched outputs

• Mode 5: GMLAN aftermarket amp turn-on

• Mode 6: Active edge pulse generator

• Mode 7: Turn-off delay

• Mode 8: Double pulse latch

• Mode 9: Double pulse to one-second output

• Mode 10: Theft detection/closed loop trigger

• Mode 11: Channel expander

• Mode 12: Simple data detector (amp turn-on signal from data)

• Mode 13: Long delayed turn-off (for headlights)

• Mode 14: Dome light delay

• Mode 15: Custom program

• Custom Mode 1: Channel expander/latched

• Custom Mode 2: Channel expander/pulsed

• Custom Mode 3: Delayed turn-off

• Custom Mode 4: Delayed turn-on

• Custom Mode 5: Delayed three-output delay/pulse width/ edge driven

• (for use with linear actuators)

• Custom Mode 6: Generic three-output delay/pulse width/ level driven (validity)

• Custom Mode 7: Square wave-generator (sounds horns/ blinks lights)
• Custom Mode 8: Multiple pulse generator

What's in the Box:

• 1x TRIGGER interface
• 1x TRIGGER harness (with open-end leads)
• 1x Installation guide
