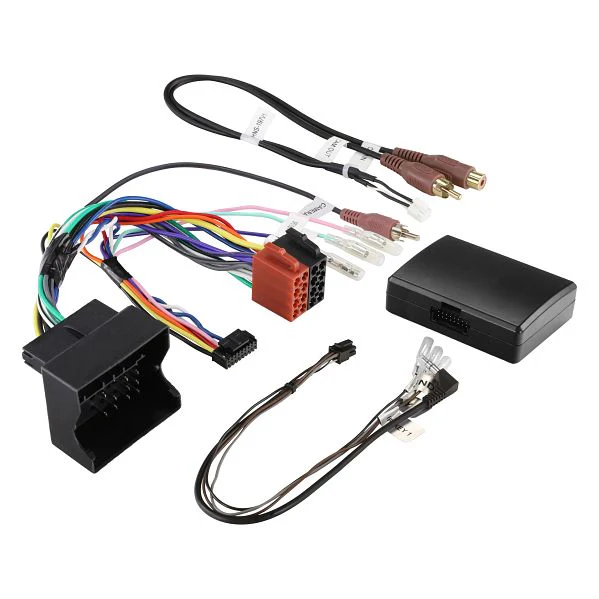

Aerpro SAVW02 Infolink Adapter Interface to Suit Volkswagen
Aerpro SAVW02 Infolink Adapter Interface to Suit Volkswagen
A CANBUS steering wheel control and vehicle information interface designed for Volkswagen vehicles, retaining factory steering wheel controls, HVAC display, parking sensor visuals, and OEM amplifier integration when upgrading to an aftermarket head unit.
Product Overview
The Aerpro SAVW02 Infolink Adapter Interface is a purpose-built CANBUS integration solution designed to take aftermarket head unit installations in Volkswagen vehicles to the next level. More than a standard steering wheel control interface, the SAVW02 retains factory steering wheel functions while also preserving access to essential vehicle information that would otherwise be lost when replacing the factory radio.
With the SAVW02 installed, the aftermarket head unit gains on-screen access to climate control settings and HVAC visualisations, parking sensor display with OPS radar overlay, and key vehicle system menus. These features ensure the advanced conveniences built into the vehicle remain fully accessible alongside the benefits of an upgraded audio system.
Configuration is straightforward thanks to selectable dipswitches, allowing precise setup to suit the specific vehicle and head unit combination. The interface supports factory-installed amplified audio systems, auto-detects reverse camera input in PAL and NTSC formats, and provides outputs for speed pulse, park brake, and reverse signals. Multi-language support and software updateability ensure the SAVW02 remains a reliable, long-term integration solution.
Note: To retain a factory-fitted camera, an additional vehicle-specific camera retention harness is required and sold separately. The aftermarket head unit must be SWC compatible and steering wheel control functions may vary from OEM functions. A rear camera input on the aftermarket head unit is required. When installing a High Definition camera, image resolution will be reduced through this interface.
Features & Benefits
Steering Wheel Control Retention Retains full factory steering wheel control functionality for seamless, familiar operation after aftermarket head unit installation.
On-Screen Vehicle Information Access Provides on-screen access to vehicle climate control settings, HVAC visualisations, and parking sensor displays directly through the aftermarket head unit.
OPS Parking Camera Overlay Supports parking camera display with OPS radar overlay for enhanced reversing visibility and safer manoeuvring.
OEM Amplifier Retention Compatible with factory-installed amplified audio systems, preserving factory speaker performance and sound quality after head unit replacement.
Auto-Detection Reverse Camera Input Automatically detects reverse camera input in both PAL and NTSC formats for quick, hassle-free setup.
Selectable Dipswitch Configuration Onboard selectable dipswitches allow precise configuration to suit specific vehicle and head unit combinations for a clean, accurate integration.
Multiple Signal Outputs Provides dedicated outputs for reverse trigger, park brake, speed pulse, illumination, and amp remote for comprehensive system compatibility.
Multi-Language Support Supports English, German, Spanish, Italian, and French for on-screen vehicle menus, catering to a wide range of head unit configurations.
Software Updateable Supports software updates for long-term reliability and compatibility, ensuring the interface remains current as head unit firmware evolves.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | SAVW02 |
| Brand | Aerpro |
| Interface Type | CANBUS |
| Patch Lead Type | SW |
| Phone Button Compatibility | Yes |
| Voice Assistant Button Support | Yes |
| Reverse Trigger Output | Yes (Purple/White) |
| Park Brake Output | Yes (Green) |
| Speed Pulse Output | Yes (Pink) |
| Illumination Output | Yes |
| Amp Remote Output | Yes |
| Telephone Mute | No |
| OEM Amplifier Retention | Yes |
| OEM Reverse Camera Retention | No |
| Reverse Camera Auto-Detection | Yes (PAL/NTSC) |
| OPS Radar Overlay | Yes |
| Dipswitch Configuration | Yes |
| Multi-Language Support | English, German, Spanish, Italian, French |
| Software Updateable | Yes |
| Barcode | 9317114951670 |
Compatible With / Goes Well With
The SAVW02 is designed for Volkswagen vehicles. Use the Aerpro Vehicle Selector to confirm compatibility with your specific make, model, and year before ordering. The SAVW02 pairs with any SWC-compatible aftermarket head unit that includes a rear camera input. To retain a factory-fitted camera, a vehicle-specific camera retention harness is required and must be purchased separately. Contact F.A.E. to confirm the correct harness for your vehicle.
Frequently Asked Questions
Will the SAVW02 work with any aftermarket head unit?
The SAVW02 requires an SWC-compatible aftermarket head unit with a rear camera input. Steering wheel control functions retained may vary from the original OEM functions depending on the head unit model. Check your head unit's compatibility before purchasing or contact F.A.E. for guidance.
Does the SAVW02 retain the factory reverse camera?
OEM reverse camera retention is not supported by the SAVW02 directly. To retain a factory-fitted camera, an additional vehicle-specific camera retention harness is required and sold separately. Contact F.A.E. to confirm whether a compatible retention harness is available for your vehicle.
Will installing a High Definition aftermarket camera affect image quality?
Yes. When installing a High Definition camera through the SAVW02, the camera resolution will be reduced. This is a known limitation of the interface. For standard-definition camera installations, performance will not be affected.
How is the SAVW02 configured for my specific vehicle and head unit?
The SAVW02 uses selectable onboard dipswitches to allow precise configuration to suit your vehicle and head unit combination. Refer to the Aerpro installation guide or use the Aerpro Vehicle Selector to confirm the correct dipswitch settings for your setup.
Can the SAVW02 be updated after installation?
Yes. The SAVW02 supports software updates, ensuring the interface can be kept current for long-term compatibility and reliability as head unit firmware and vehicle system requirements evolve.
