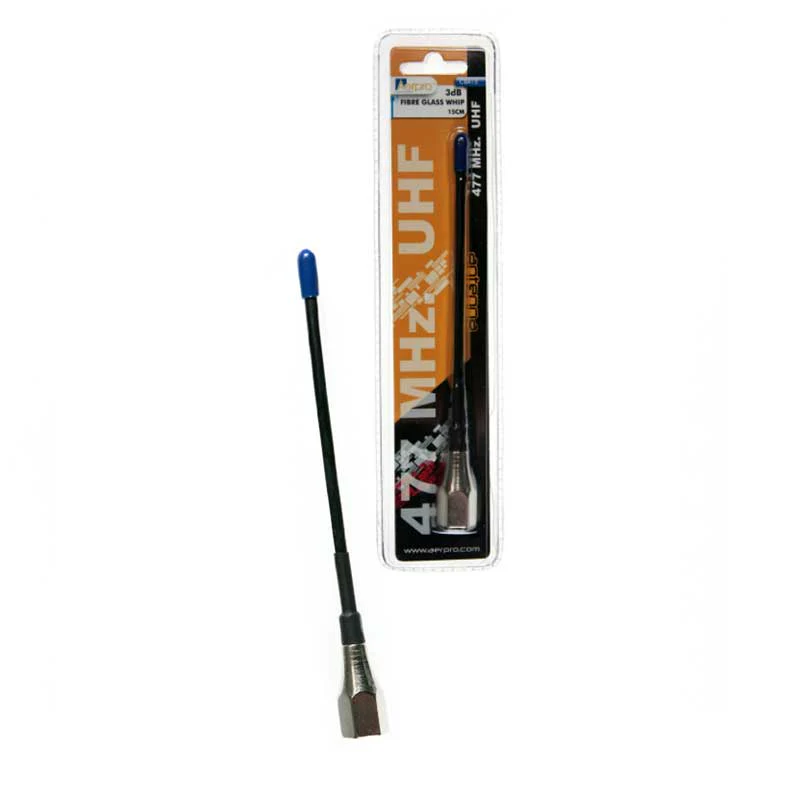

Aerpro CBA15 3dBi 477MHz 150mm Flexible UHF Antenna Whip

Best Suited For Short-Range Communication in Highly Built-Up Areas!

3dBi 477MHz 150mm Flexible UHF Antenna Whip
The Aerpro CBA15 3dBi 477MHz 150mm Flexible UHF Antenna Whip is compatible with Aerpro Elevated Feed UHF Antennas and other major brands with 5/16" mounting threads. With 3dBi gain, this low-gain antenna has a broad radiation pattern which is best suited for short-range communication in highly built-up areas including cities, dense woodlands, and mountain regions. It produces a wider UHF signal compared to higher gain antennas which is less likely to be impacted by obstructions in these landscapes.

The compact 150mm antenna whip features a high-quality flexible design that is weather-sealed and fitted with a 5/16" thread for easy removal. This antenna whip is ground-dependent, so it is recommended to be mounted on an elevated feed base or ground plane for maximum performance. The CBA15 is a discrete-size antenna whip but can deliver the range when you need it.

Features:

• Compatible with Aerpro Elevated Feed UHF Antennas and other major brands with 5/16" mounting threads.
• 3dBi Gain has a broad radiation pattern suitable for short-range communication.
• Suitable for use in areas with obstructions such as cities, dense woodlands, or mountain regions.
• Black mast with blue tip and polished metal threaded base.
• 150mm length flexible design mast which is weather sealed.
• 5/16" thread base for easy installation.
• Ground-dependent design is recommended to be mounted on an elevated feed base or ground plane for maximum performance.

Specifications:

• Frequency: 477MHz
• Gain: 3dBi
• Main Colour: Black
• Ground Independent: No
• Total Length: 150mm
• Mast Length: 110mm
• Mast Width: 4mm
• Mast Type: Soft Fiberglass Whip
• Mast Mounting Thread Size: 5/16"
• Packaging Type: Heatsealed Blister
• Weight: 0.06kg
