Aerpro AX9680PK 6.8" Head Unit Kit Ford Falcon Sedan FGX Gloss

Aerpro AX9680PK 6.8" Multimedia Head Unit Upgrade Kit Ford Falcon Sedan FGX Gloss

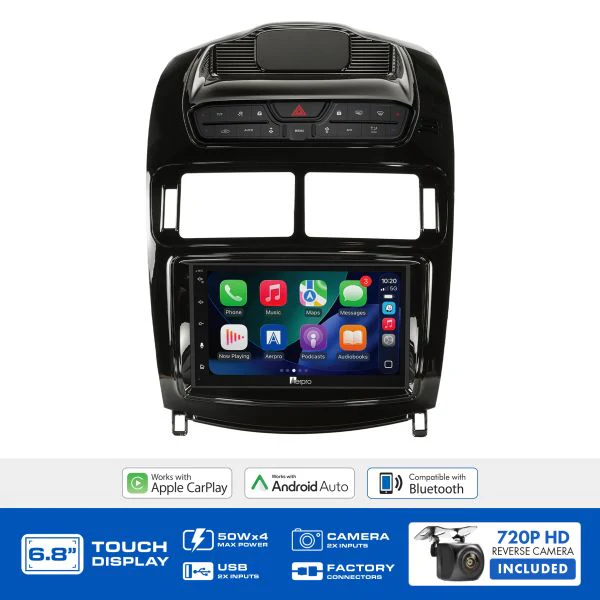

A fully matched upgrade kit for the Ford Falcon Sedan FGX Gloss (2014-2016), the AX9680PK combines a 6.8" wireless CarPlay and Android Auto multimedia receiver with a vehicle-specific piano black fascia installation kit and a 720P AHD surface mount camera, all in one box.

Product Overview

The AX9680PK is Aerpro's complete head unit upgrade solution engineered for the Ford Falcon Sedan FGX Gloss from 2014-2016. It is supplied as a three-component kit comprising the Aerpro 6.8" multimedia receiver, the vehicle-specific installation kit tailored to the Falcon FGX Sedan dashboard profile, and a 720P AHD surface mount camera. No additional accessories need to be sourced for a standard installation. The vehicle-specific installation kit includes a piano black fascia kit, a steering wheel control interface, and a universal SWC patch lead, ensuring factory steering wheel controls are retained after installation.

The 6.8" capacitive touchscreen at 1024x600 resolution supports wireless and wired Apple CarPlay and Android Auto, Bluetooth V5 with HFP 1.6 HD Voice, A2DP audio streaming, AVRCP media control, and PBAP phonebook access. Both internal and external microphone options are provided, with the external microphone and mount included in the head unit box. Audio performance is delivered via 4 x 50W maximum output, a 13-band graphic EQ covering 32Hz through to 16kHz, time alignment, subwoofer low-pass filter control, and 4V 6-channel RCA preouts covering front, rear, and subwoofer channels for external amplifier integration. Dual rear USB inputs support CarPlay and Android Auto on USB 1 and media playback on USB 2, each at 5V/1.5A charging. Dual AHD 720P-compatible camera inputs accept the included surface mount camera and an additional second camera simultaneously.

The included 720P AHD surface mount camera uses a Sony 225 1/3" CMOS sensor with a 150-degree lens angle and is mountable as a front, rear, or reverse camera. It is supplied with 6 metres of RCA video cable with an in-line reverse trigger wire. Head Unit Upgrade Kits can vary between vehicle models. Use the Aerpro What Fits Your Car Guide at aerpro.com to confirm compatibility with your specific vehicle before purchase.

Features & Benefits

Complete Vehicle-Specific Upgrade Kit for Ford Falcon Sedan FGX Gloss 2014-2016: The AX9680PK includes all components required for a complete installation in the Ford Falcon Sedan FGX Gloss from 2014-2016 without additional accessory sourcing. The vehicle-specific installation kit covers the fascia, steering wheel control interface, and patch lead requirements of the Falcon FGX Sedan Gloss platform.

Piano Black Fascia Kit for Falcon FGX Gloss Dashboard Integration: The included piano black fascia kit is designed specifically for the Ford Falcon Sedan FGX Gloss (2014-2016) dashboard profile, providing a premium gloss finish that integrates with the interior trim of the Falcon FGX Gloss variant. The AX9680PK is the piano black fascia variant of this kit, with the AX9680SK providing the same head unit specification in a satin black fascia finish for the Satin trim variant.

6.8" Capacitive Touchscreen at 1024x600: The 6.8" capacitive touchscreen delivers a large, responsive display with 1024x600 resolution for clear navigation of maps, media, and settings, well suited to the dashboard opening of the Falcon FGX Sedan.

Wireless and Wired Apple CarPlay and Android Auto: Both Apple CarPlay and Android Auto operate wirelessly for hands-free smartphone integration, or via wired USB connection for simultaneous charging. On first wireless connection, a one-time pairing via Bluetooth and Wi-Fi is required before subsequent connections become automatic.

Bluetooth V5 with HFP 1.6 HD Voice: Bluetooth V5 supports A2DP high-quality audio streaming, AVRCP media control, PBAP phonebook access, and HFP 1.6 HD Voice quality hands-free calling. Both an internal microphone and an external microphone with mount are included, allowing the external microphone to be positioned optimally in the cabin.

13-Band Graphic EQ with Time Alignment: The 13-band EQ covers 32Hz, 63Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 10kHz, 12kHz, 14kHz, and 16kHz for precise acoustic tuning, complemented by time alignment and a subwoofer low-pass filter for a complete onboard tuning toolkit.

4V 6-Channel RCA Preouts: Six RCA preamp channels at 4V covering front, rear, and subwoofer outputs allow external amplifiers to be added to the system with a high-output, low-noise signal. Subwoofer level control is also provided directly from the head unit.

720P AHD Surface Mount Camera Included: The included 720P AHD surface mount camera uses a Sony 225 1/3" CMOS sensor, a 150-degree lens angle, optional parking guidelines, and an IP67 waterproof rating. It can be mounted as a front, rear, or reverse camera and connects to the head unit via the included 6-metre RCA cable with in-line reverse trigger wire.

Dual AHD 720P Camera Inputs: Two independent AHD 720P-compatible camera inputs allow the included surface mount camera and a second camera to be connected simultaneously, supporting configurations such as front and reverse cameras.

6-Colour Button Illumination: The key illumination is selectable across six colours including red, yellow, green, blue, purple, and white, allowing the button lighting to be matched to the Falcon FGX Sedan interior.

AM/FM Tuner with RDS: FM tuning covers 87.5-108.0MHz with 18 presets, and AM covers 522-1710kHz with 12 presets, with RDS support for station and track information display.

Technical Specs

What's in the Box

Aerpro 6.8" Multimedia Receiver:

• 1x 6.8" Multimedia Double DIN Head Unit
• Double DIN Metal Frame and Mounting Hardware
• Head Unit Plastic Trim
• Wiring Harness with ISO Connection
• 3 Wire Learning SWC Lead
• External Microphone with Mount
• GPS Antenna with Adhesive Pad
• QR Digital Manual Leaflet

Vehicle Specific Installation Kit:

• Piano Black Fascia Kit
• Steering Wheel Control Interface
• Universal Patch Lead

720P AHD Surface Mount Camera:

• 720P AHD Surface Mount Camera (wired)
• 6-Metre Video Cable (RCA) with In-Line Reverse Trigger

Compatible With

The AX9680PK is engineered for the Ford Falcon Sedan FGX Gloss from 2014-2016. Head Unit Upgrade Kits can vary between vehicle models. Use the Aerpro What Fits Your Car Guide at aerpro.com to confirm compatibility with your specific vehicle before purchase. The 4V 6-channel RCA preouts are compatible with most aftermarket amplifiers requiring front, rear, and subwoofer signal inputs. The dual AHD 720P camera inputs are compatible with most aftermarket AHD 720P and standard composite cameras in addition to the included surface mount camera.

Frequently Asked Questions

What is the difference between the AX9680PK and the AX9680SK?

Both the AX9680PK and AX9680SK are complete head unit upgrade kits for the Ford Falcon Sedan FGX from 2014-2016, sharing the same head unit specification, SWC interface, and 720P AHD surface mount camera. The only difference is fascia finish: the AX9680PK includes a piano black fascia for the Gloss trim variant, while the AX9680SK suits the Satin trim variant. Choose based on which interior trim finish your specific Falcon FGX Sedan uses.

Does the AX9680PK retain the factory Ford Falcon FGX Sedan steering wheel controls?

Yes. The vehicle-specific installation kit includes a steering wheel control interface and a universal SWC patch lead that connects to the head unit's SWC input, allowing the factory steering wheel audio controls to operate with the new head unit after installation and calibration.

Is the AX9680PK specific to the Sedan body style of the Falcon FGX?

The AX9680PK is specified for the Ford Falcon Sedan FGX Gloss from 2014-2016. Use the Aerpro What Fits Your Car Guide at aerpro.com to confirm compatibility with other FGX body styles before purchase, as kit requirements including fascia fitment can vary between Falcon variants.

Can the included 720P AHD camera be used as a front camera instead of a reverse camera?

Yes. The included 720P AHD surface mount camera can be installed and configured as a front, rear, or reverse camera depending on the installation requirement. It connects to either of the head unit's two AHD 720P-compatible camera inputs via the included 6-metre RCA cable with in-line reverse trigger wire. If used as a front camera, the reverse trigger wire would not be connected and the camera would need to be activated through an alternative trigger or manual input method depending on the head unit's camera activation settings.

Can external amplifiers be connected to the AX9680PK?

Yes. The head unit provides 4V 6-channel RCA preouts covering front, rear, and subwoofer channels, allowing external amplifiers to be connected for higher output power or a dedicated subwoofer channel. The 4V output voltage provides a strong, low-noise signal compatible with most aftermarket car audio amplifiers. Subwoofer level control is also available directly from the head unit for convenient bass adjustment without accessing the amplifier directly.
