Aerpro AX9450BK 6.8" Head Unit Kit Holden VE Series 1 Dual Zone

Aerpro AX9450BK 6.8" Multimedia Head Unit Upgrade Kit Holden VE Series 1 Dual Zone

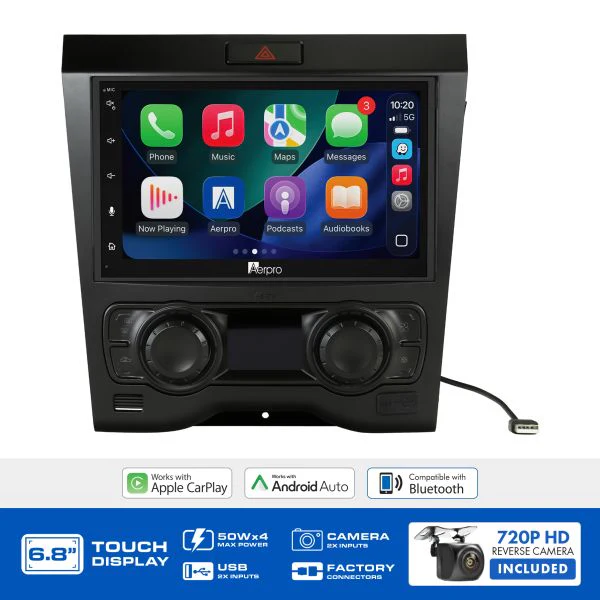

A fully matched upgrade kit for the Holden Commodore VE Series 1 Dual Zone (2006-2011), the AX9450BK combines a 6.8" wireless CarPlay and Android Auto multimedia receiver with a vehicle-specific black fascia installation kit including digital climate control retention and a 720P AHD surface mount camera, all in one box.

Product Overview

The AX9450BK is Aerpro's complete head unit upgrade solution engineered for the Holden Commodore VE Series 1 Dual Zone from 2006-2011. It is supplied as a three-component kit comprising the Aerpro 6.8" multimedia receiver, the vehicle-specific installation kit tailored to the VE Series 1 Dual Zone dashboard profile, and a 720P AHD surface mount camera. No additional accessories need to be sourced for a standard installation. The vehicle-specific installation kit includes a black fascia kit, a digital climate control retention module to retain the factory HVAC, a steering wheel control interface, and a universal SWC patch lead, ensuring factory digital climate control and steering wheel controls are retained after installation.

The 6.8" capacitive touchscreen at 1024x600 resolution supports wireless and wired Apple CarPlay and Android Auto, Bluetooth V5 with HFP 1.6 HD Voice, A2DP audio streaming, AVRCP media control, and PBAP phonebook access. Both internal and external microphone options are provided, with the external microphone and mount included in the head unit box. Audio performance is delivered via 4 x 50W maximum output, a 13-band graphic EQ covering 32Hz through to 16kHz, time alignment, subwoofer low-pass filter control, and 4V 6-channel RCA preouts covering front, rear, and subwoofer channels for external amplifier integration. Dual rear USB inputs support CarPlay and Android Auto on USB 1 and media playback on USB 2, each at 5V/1.5A charging. Dual AHD 720P-compatible camera inputs accept the included surface mount camera and an additional second camera simultaneously.

The included 720P AHD surface mount camera uses a Sony 225 1/3" CMOS sensor with a 150-degree lens angle and is mountable as a front, rear, or reverse camera. It is supplied with 6 metres of RCA video cable with an in-line reverse trigger wire. Head Unit Upgrade Kits can vary between vehicle models. Use the Aerpro What Fits Your Car Guide at aerpro.com to confirm compatibility with your specific vehicle before purchase.

Features & Benefits

Complete Vehicle-Specific Upgrade Kit for Holden VE Series 1 Dual Zone 2006-2011: The AX9450BK includes all components required for a complete installation in the Holden Commodore VE Series 1 Dual Zone from 2006-2011 without additional accessory sourcing. The vehicle-specific installation kit covers the fascia, digital climate control retention, steering wheel control interface, and patch lead requirements of the VE Series 1 Dual Zone platform.

Digital Climate Control Retention Included: The vehicle-specific installation kit includes a digital climate control retention module that retains the factory HVAC functionality after the head unit is replaced. The Holden VE Series 1 Dual Zone uses a digital climate control system integrated with the head unit architecture, and this module ensures the factory climate control continues to operate correctly after the new head unit is installed. This is addressed within the kit without requiring additional modules.

Black Fascia Kit for VE Series 1 Dashboard Integration: The included black fascia kit is designed specifically for the Holden Commodore VE Series 1 Dual Zone (2006-2011) dashboard profile, providing a clean, factory-fit finish around the 6.8" head unit that integrates with the interior trim of this Commodore generation.

6.8" Capacitive Touchscreen at 1024x600: The 6.8" capacitive touchscreen delivers a large, responsive display with 1024x600 resolution for clear navigation of maps, media, and settings, well suited to the dashboard opening of the VE Series 1.

Wireless and Wired Apple CarPlay and Android Auto: Both Apple CarPlay and Android Auto operate wirelessly for hands-free smartphone integration, or via wired USB connection for simultaneous charging. On first wireless connection, a one-time pairing via Bluetooth and Wi-Fi is required before subsequent connections become automatic.

Bluetooth V5 with HFP 1.6 HD Voice: Bluetooth V5 supports A2DP high-quality audio streaming, AVRCP media control, PBAP phonebook access, and HFP 1.6 HD Voice quality hands-free calling. Both an internal microphone and an external microphone with mount are included, allowing the external microphone to be positioned optimally in the cabin.

13-Band Graphic EQ with Time Alignment: The 13-band EQ covers 32Hz, 63Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 10kHz, 12kHz, 14kHz, and 16kHz for precise acoustic tuning, complemented by time alignment and a subwoofer low-pass filter for a complete onboard tuning toolkit.

4V 6-Channel RCA Preouts: Six RCA preamp channels at 4V covering front, rear, and subwoofer outputs allow external amplifiers to be added to the system with a high-output, low-noise signal. Subwoofer level control is also provided directly from the head unit.

720P AHD Surface Mount Camera Included: The included 720P AHD surface mount camera uses a Sony 225 1/3" CMOS sensor, a 150-degree lens angle, optional parking guidelines, and an IP67 waterproof rating. It can be mounted as a front, rear, or reverse camera and connects to the head unit via the included 6-metre RCA cable with in-line reverse trigger wire.

Dual AHD 720P Camera Inputs: Two independent AHD 720P-compatible camera inputs allow the included surface mount camera and a second camera to be connected simultaneously, supporting configurations such as front and reverse cameras.

6-Colour Button Illumination: The key illumination is selectable across six colours including red, yellow, green, blue, purple, and white, allowing the button lighting to be matched to the VE Series 1 interior.

AM/FM Tuner with RDS: FM tuning covers 87.5-108.0MHz with 18 presets, and AM covers 522-1710kHz with 12 presets, with RDS support for station and track information display.

Technical Specs

What's in the Box

Aerpro 6.8" Multimedia Receiver:

• 1x 6.8" Multimedia Double DIN Head Unit
• Double DIN Metal Frame and Mounting Hardware
• Head Unit Plastic Trim
• Wiring Harness with ISO Connection
• 3 Wire Learning SWC Lead
• External Microphone with Mount
• GPS Antenna with Adhesive Pad
• QR Digital Manual Leaflet

Vehicle Specific Installation Kit:

• Black Fascia Kit
• Digital Climate Control Retention Module
• Steering Wheel Control Interface
• Universal Patch Lead

720P AHD Surface Mount Camera:

• 720P AHD Surface Mount Camera (wired)
• 6-Metre Video Cable (RCA) with In-Line Reverse Trigger

Compatible With

The AX9450BK is engineered for the Holden Commodore VE Series 1 Dual Zone from 2006-2011. Head Unit Upgrade Kits can vary between vehicle models. Use the Aerpro What Fits Your Car Guide at aerpro.com to confirm compatibility with your specific vehicle before purchase. The 4V 6-channel RCA preouts are compatible with most aftermarket amplifiers requiring front, rear, and subwoofer signal inputs. The dual AHD 720P camera inputs are compatible with most aftermarket AHD 720P and standard composite cameras in addition to the included surface mount camera.

Frequently Asked Questions

Why is the AX9450BK specific to Dual Zone variants of the Holden VE Series 1?

The Holden Commodore VE Series 1 was available with single zone and dual zone climate control configurations. The dual zone variant uses a different digital climate control system and head unit wiring architecture compared to single zone models. The AX9450BK is engineered specifically for dual zone equipped vehicles, with the included digital climate control retention module matched to the dual zone system. Owners of VE Series 1 models with single zone climate control should confirm the correct kit using the Aerpro What Fits Your Car Guide at aerpro.com before purchase.

Does the AX9450BK retain the factory Holden VE Series 1 digital climate control?

Yes. The vehicle-specific installation kit includes a digital climate control retention module that retains the factory HVAC functionality for the dual zone climate control system in the VE Series 1. This module is specific to the dual zone architecture of this Commodore generation and is included within the kit, meaning no additional retention module needs to be sourced separately for a standard installation.

Does the AX9450BK retain the factory Holden VE Series 1 steering wheel controls?

Yes. The vehicle-specific installation kit includes a steering wheel control interface and a universal SWC patch lead that connects to the head unit's SWC input, allowing the factory steering wheel audio controls to operate with the new head unit after installation and calibration.

Can the included 720P AHD camera be used as a front camera instead of a reverse camera?

Yes. The included 720P AHD surface mount camera can be installed and configured as a front, rear, or reverse camera depending on the installation requirement. It connects to either of the head unit's two AHD 720P-compatible camera inputs via the included 6-metre RCA cable with in-line reverse trigger wire. If used as a front camera, the reverse trigger wire would not be connected and the camera would need to be activated through an alternative trigger or manual input method depending on the head unit's camera activation settings.

Can external amplifiers be connected to the AX9450BK?

Yes. The head unit provides 4V 6-channel RCA preouts covering front, rear, and subwoofer channels, allowing external amplifiers to be connected for higher output power or a dedicated subwoofer channel. The 4V output voltage provides a strong, low-noise signal compatible with most aftermarket car audio amplifiers. Subwoofer level control is also available directly from the head unit for convenient bass adjustment without accessing the amplifier directly.
