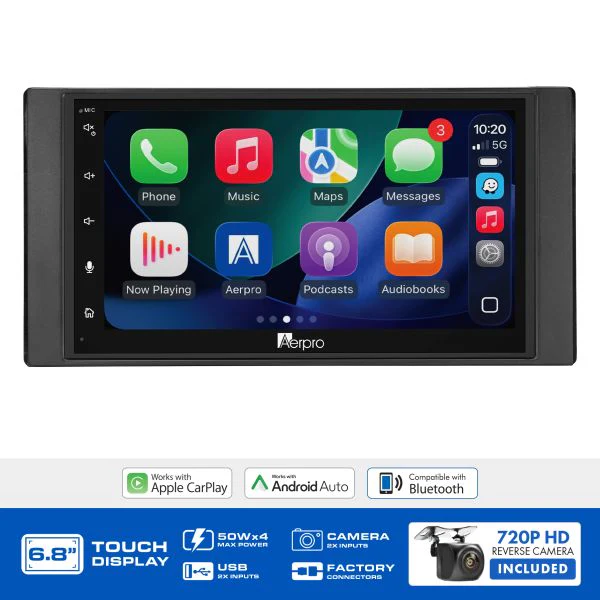

Aerpro AX8580K3 6.8" Multimedia Head Unit Upgrade Kit Subaru Various
Aerpro AX8580K3 6.8" Multimedia Head Unit Upgrade Kit Subaru Various Models
A fully matched upgrade kit for various Subaru models from 2011-2015, the AX8580K3 combines a 6.8" wireless CarPlay and Android Auto multimedia receiver with a vehicle-specific black fascia installation kit including antenna adaptor and USB adaptor, plus a 720P AHD surface mount camera, all in one box.
Product Overview
The AX8580K3 is Aerpro's complete head unit upgrade solution engineered for various Subaru models from 2011-2015. It is supplied as a three-component kit comprising the Aerpro 6.8" multimedia receiver, the vehicle-specific installation kit tailored to the Subaru dashboard profile across the supported model range, and a 720P AHD surface mount camera. No additional accessories need to be sourced for a standard installation. The vehicle-specific installation kit includes a black fascia kit, a steering wheel control interface, an antenna adaptor, a USB adaptor, and a universal SWC patch lead, ensuring factory steering wheel controls are retained after installation and that the factory antenna and USB connections interface correctly with the new head unit.
The 6.8" capacitive touchscreen at 1024x600 resolution supports wireless and wired Apple CarPlay and Android Auto, Bluetooth V5 with HFP 1.6 HD Voice, A2DP audio streaming, AVRCP media control, and PBAP phonebook access. Both internal and external microphone options are provided, with the external microphone and mount included in the head unit box. Audio performance is delivered via 4 x 50W maximum output, a 13-band graphic EQ covering 32Hz through to 16kHz, time alignment, subwoofer low-pass filter control, and 4V 6-channel RCA preouts covering front, rear, and subwoofer channels for external amplifier integration. Dual rear USB inputs support CarPlay and Android Auto on USB 1 and media playback on USB 2, each at 5V/1.5A charging. Dual AHD 720P-compatible camera inputs accept the included surface mount camera and an additional second camera simultaneously.
The included 720P AHD surface mount camera uses a Sony 225 1/3" CMOS sensor with a 150-degree lens angle and is mountable as a front, rear, or reverse camera. It is supplied with 6 metres of RCA video cable with an in-line reverse trigger wire. Head Unit Upgrade Kits can vary between vehicle models. Use the Aerpro What Fits Your Car Guide at aerpro.com to confirm compatibility with your specific Subaru model and build date before purchase.
Features & Benefits
Complete Vehicle-Specific Upgrade Kit for Subaru Various Models 2011-2015: The AX8580K3 includes all components required for a complete installation across compatible Subaru models from 2011-2015 without additional accessory sourcing. The vehicle-specific installation kit covers the fascia, steering wheel control interface, antenna adaptor, USB adaptor, and patch lead requirements of the supported Subaru platform.
Antenna Adaptor Included: The vehicle-specific installation kit includes an antenna adaptor to ensure the factory antenna connection from the supported Subaru models interfaces correctly with the head unit's antenna input, maintaining full AM and FM signal performance after installation without requiring a separate antenna adaptor to be sourced.
USB Adaptor Included: The vehicle-specific installation kit includes a USB adaptor specific to these Subaru models, allowing the factory USB connection point to interface correctly with the new head unit. This is a vehicle-specific requirement that is addressed within the kit without requiring additional accessories.
Black Fascia Kit for Subaru Dashboard Integration: The included black fascia kit is designed specifically for the dashboard profile across the supported Subaru model range from 2011-2015, providing a clean, factory-fit finish around the 6.8" head unit that integrates with the Subaru interior trim.
6.8" Capacitive Touchscreen at 1024x600: The 6.8" capacitive touchscreen delivers a large, responsive display with 1024x600 resolution for clear navigation of maps, media, and settings, suited to the dashboard opening of the supported Subaru models.
Wireless and Wired Apple CarPlay and Android Auto: Both Apple CarPlay and Android Auto operate wirelessly for hands-free smartphone integration, or via wired USB connection for simultaneous charging. On first wireless connection, a one-time pairing via Bluetooth and Wi-Fi is required before subsequent connections become automatic.
Bluetooth V5 with HFP 1.6 HD Voice: Bluetooth V5 supports A2DP high-quality audio streaming, AVRCP media control, PBAP phonebook access, and HFP 1.6 HD Voice quality hands-free calling. Both an internal microphone and an external microphone with mount are included, allowing the external microphone to be positioned optimally in the cabin.
13-Band Graphic EQ with Time Alignment: The 13-band EQ covers 32Hz, 63Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 10kHz, 12kHz, 14kHz, and 16kHz for precise acoustic tuning, complemented by time alignment and a subwoofer low-pass filter for a complete onboard tuning toolkit.
4V 6-Channel RCA Preouts: Six RCA preamp channels at 4V covering front, rear, and subwoofer outputs allow external amplifiers to be added to the system with a high-output, low-noise signal. Subwoofer level control is also provided directly from the head unit.
720P AHD Surface Mount Camera Included: The included 720P AHD surface mount camera uses a Sony 225 1/3" CMOS sensor, a 150-degree lens angle, optional parking guidelines, and an IP67 waterproof rating. It can be mounted as a front, rear, or reverse camera and connects to the head unit via the included 6-metre RCA cable with in-line reverse trigger wire.
Dual AHD 720P Camera Inputs: Two independent AHD 720P-compatible camera inputs allow the included surface mount camera and a second camera to be connected simultaneously, supporting configurations such as front and reverse or reverse and towing cameras.
6-Colour Button Illumination: The key illumination is selectable across six colours including red, yellow, green, blue, purple, and white, allowing the button lighting to be matched to the Subaru interior.
AM/FM Tuner with RDS: FM tuning covers 87.5-108.0MHz with 18 presets, and AM covers 522-1710kHz with 12 presets, with RDS support for station and track information display.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | AX8580K3 |
| Brand | Aerpro |
| Compatible Vehicles | Subaru Various Models, 2011-2015 |
| Display Size | 6.8" |
| Display Resolution | 1024 x 600 |
| Touchscreen Type | Capacitive |
| OS | Linux |
| DIN Size | 2 DIN (Double DIN) |
| Max Power (4 Ohm) | 50W x 4 |
| RCA Preamp Outputs | 4V, 6-channel (Front / Rear / Subwoofer) |
| Subwoofer Level Control | Yes |
| EQ | 13-Band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16KHz) |
| EQ Presets | 6 + 2 Custom |
| Time Alignment | Yes |
| Low-Pass Filter (Sub) | Yes |
| Loudness | Yes |
| Smartphone Connectivity | Wireless and Wired Apple CarPlay, Wireless and Wired Android Auto |
| Bluetooth Version | V5 |
| Bluetooth Profiles | A2DP, AVRCP, HFP, PBAP |
| HFP Profile | HFP 1.6 (HD Voice) |
| Microphone | Internal and External (included) |
| ID3 Tag Display | Yes |
| USB 1 (Rear) | CarPlay, Android Auto, Charging (5V/1.5A) |
| USB 2 (Rear) | Media Playback, Charging (5V/1.5A) |
| USB Max Capacity | FAT32, 32GB |
| Media Playback Formats | MP3, MP4, MKV, FLAC, Xvid |
| Camera Input 1 | Reverse Camera (720P AHD Compatible) |
| Camera Input 2 | Second Camera (720P AHD Compatible) |
| Rear A/V Input | Yes (RCA, 3 connectors) |
| Composite Video Output | Yes |
| AM Tuner | 522-1710kHz, 9kHz step, 12 presets |
| FM Tuner | 87.5-108.0MHz, 0.05MHz step, 18 presets |
| RDS | Yes |
| Button Illumination | 6-colour (Red, Yellow, Green, Blue, Purple, White) |
| OSD Language | English |
| Camera Image Sensor | Sony 225, 1/3" CMOS AHD |
| Camera Lens Angle | 150 degrees |
| Camera Mount Type | Surface Mount |
| Camera Use | Front, Rear, or Reverse |
| Camera IP Rating | IP67 |
| Camera Cable Length | 6 metres (RCA with in-line reverse trigger) |
| Fascia Finish | Black |
| Antenna Adaptor | Yes (included) |
| USB Adaptor | Yes (included) |
What's in the Box
Aerpro 6.8" Multimedia Receiver:
- 1x 6.8" Multimedia Double DIN Head Unit
- Double DIN Metal Frame and Mounting Hardware
- Head Unit Plastic Trim
- Wiring Harness with ISO Connection
- 3 Wire Learning SWC Lead
- External Microphone with Mount
- GPS Antenna with Adhesive Pad
- QR Digital Manual Leaflet
Vehicle Specific Installation Kit:
- Black Fascia Kit
- Steering Wheel Control Interface
- Antenna Adaptor
- USB Adaptor
- Universal Patch Lead
720P AHD Surface Mount Camera:
- 720P AHD Surface Mount Camera (wired)
- 6-Metre Video Cable (RCA) with In-Line Reverse Trigger
Compatible With
The AX8580K3 is engineered for various Subaru models from 2011-2015. Head Unit Upgrade Kits can vary between vehicle models. Use the Aerpro What Fits Your Car Guide at aerpro.com to confirm compatibility with your specific Subaru model and build date before purchase. The 4V 6-channel RCA preouts are compatible with most aftermarket amplifiers requiring front, rear, and subwoofer signal inputs. The dual AHD 720P camera inputs are compatible with most aftermarket AHD 720P and standard composite cameras in addition to the included surface mount camera.
Frequently Asked Questions
Which specific Subaru models is the AX8580K3 compatible with?
The source data specifies compatibility with various Subaru models from 2011-2015 without listing individual model names. The Aerpro What Fits Your Car Guide at aerpro.com is the recommended resource for confirming compatibility with your specific Subaru model, variant, and build date before purchase, as kit requirements including fascia fitment can vary between different Subaru models within this production period.
Does the AX8580K3 retain the factory Subaru steering wheel controls?
Yes. The vehicle-specific installation kit includes a steering wheel control interface and a universal SWC patch lead that connects to the head unit's SWC input, allowing the factory steering wheel audio controls to operate with the new head unit after installation and calibration.
Why does the AX8580K3 include both an antenna adaptor and a USB adaptor?
The supported Subaru models from 2011-2015 use factory antenna and USB connections that differ from the standard connectors on the head unit. The antenna adaptor bridges the factory vehicle antenna connector to the head unit's antenna input, ensuring full AM and FM signal reception. The USB adaptor allows the factory USB connection point in the Subaru's interior to interface correctly with the head unit's rear USB input, retaining the factory USB port functionality after installation. Both components are included within the kit and do not need to be sourced separately.
Can the included 720P AHD camera be used as a front camera instead of a reverse camera?
Yes. The included 720P AHD surface mount camera can be installed and configured as a front, rear, or reverse camera depending on the installation requirement. It connects to either of the head unit's two AHD 720P-compatible camera inputs via the included 6-metre RCA cable with in-line reverse trigger wire. If used as a front camera, the reverse trigger wire would not be connected and the camera would need to be activated through an alternative trigger or manual input method depending on the head unit's camera activation settings.
Can external amplifiers be connected to the AX8580K3?
Yes. The head unit provides 4V 6-channel RCA preouts covering front, rear, and subwoofer channels, allowing external amplifiers to be connected for higher output power or a dedicated subwoofer channel. The 4V output voltage provides a strong, low-noise signal compatible with most aftermarket car audio amplifiers. Subwoofer level control is also available directly from the head unit for convenient bass adjustment without accessing the amplifier directly.
