Aerpro AX8118K 6.8" Multimedia Receiver Kia Cerato 2013–2018

Aerpro AX8118K Complete Multimedia Upgrade for Kia Cerato 2013–2018

Product Overview

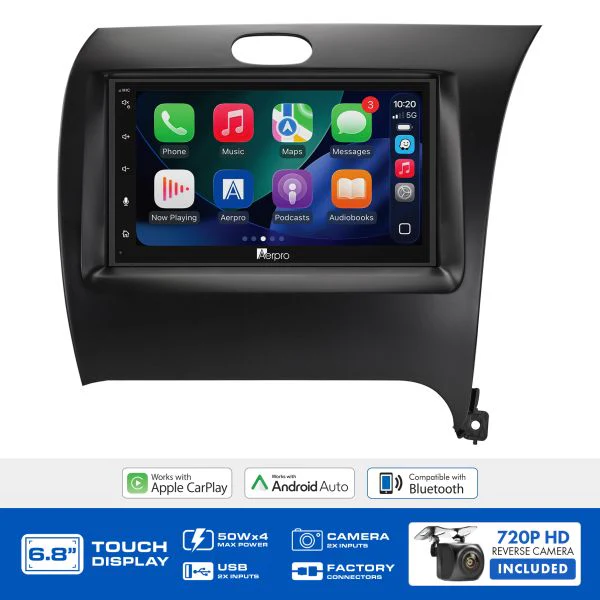

The Aerpro AX8118K is a purpose-built multimedia head unit upgrade kit designed specifically for the Kia Cerato YD (2013–2018). It replaces the factory head unit with a 6.8" capacitive touchscreen running at 1024x600 resolution, and brings Wireless Apple CarPlay and Android Auto, Bluetooth V5 hands-free calling, and a high-power 4 x 50W audio system into a vehicle that never had them from the factory.

This is a complete kit not just a head unit. It includes a vehicle-specific installation kit with facia, steering wheel control interface, USB retention interface and antenna adaptor, plus a 720P AHD Sony sensor surface mount camera with IP67 weatherproofing. Everything needed to complete a clean, factory-look install is in the box, and the kit retains your Cerato's steering wheel audio controls.

---

Key Specifications

• Display: 6.8" capacitive touchscreen, 1024x600 resolution
• OS: Linux
• DIN Size: Double DIN (2 DIN body)
• Max Power Output: 4CH x 50W (4 Ohm)
• RCA Preouts: 6-channel, 4V p-p (Front / Rear / Subwoofer)
• Bluetooth: V5 A2DP, AVRCP, HFP 1.6 (HD Voice), PBAP
• Smartphone Connectivity: Apple CarPlay & Android Auto (Wireless and Wired)
• AM/FM Tuner: AM 12 presets / FM 18 presets, RDS supported
• USB Ports: 2x Rear USB CarPlay/Android Auto + Media, both 5V / 1.5A charging
• USB Media Compatibility: FAT32, up to 32GB
• Media Formats: MP3, MP4, MKV, FLAC, Xvid
• EQ: 13-band graphic (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz)
• Preset EQs: 6 presets + 2 custom
• Camera Input: 720P AHD compatible (x2 reverse + secondary)
• Microphone: Internal + external (included)
• Button Illumination: 6-colour options (Red, Yellow, Green, Blue, Purple, White)
• Camera Sensor: Sony 225, 1/3" CMOS AHD
• Camera Lens Angle: 150°
• Camera IP Rating: IP67
• Camera Cable: 6m video cable (RCA) with inline reverse trigger
• Vehicle Fitment: Kia Cerato YD 2013–2018

---

Features & Benefits

Wireless Apple CarPlay & Android Auto no cables required: Connect your iPhone or Android phone wirelessly the moment you start the car. Access Google Maps, Waze, Spotify, and hands-free calls on the 6.8" screen without fumbling for a cable or plug in via USB for wired operation and simultaneous charging.

6.8" Capacitive Touchscreen smooth, responsive, easy to read: At 1024x600 resolution, the screen delivers sharp, clear visuals whether you're navigating outback WA or crawling through Perth traffic. Capacitive touch means it responds accurately to light finger taps, not just firm presses.

Bluetooth V5 with HD Voice crystal-clear hands-free calling: Bluetooth V5 pairs faster and holds signal more reliably than older versions. HD Voice via HFP 1.6 means phone calls sound noticeably clearer. Full phonebook access (PBAP) and audio streaming (A2DP/AVRCP) are supported as standard.

4 x 50W Max Output with 6 RCA Preouts serious audio headroom: Whether you're running the factory speakers or building a full aftermarket system, the 4V / 6-channel RCA preouts (front, rear, sub) give amplifiers a clean, strong signal to work with. The 13-band EQ and time alignment let you tune the system precisely to the Cerato's cabin acoustics.

720P AHD Sony Sensor Camera included IP67 rated, 150° view: The included surface mount camera uses a Sony 225 CMOS sensor for reliable performance at night and in the glare of a bright Australian sun. At 150° field of view and IP67 dust and water resistance, it's suited for mounting front or rear with confidence. Optional parking guidelines make low-speed manoeuvring easier.

Steering Wheel Control Retention keep your factory controls working: The included SWC interface ensures your Cerato's steering wheel buttons continue to control audio volume and track selection through the new head unit no awkward workarounds or loss of functionality.

Dual 720P AHD Camera Inputs front and rear visibility: Beyond the included reverse camera, a second AHD-compatible camera input lets you add a front or towing camera for wider situational awareness. Useful on long touring drives or when towing a caravan or trailer.

Vehicle-Specific Facia and Installation Kit factory-finish install: The black facia kit is shaped specifically for the Cerato YD dash opening, so there are no gaps, misaligned trim lines, or filler panels. The metal mounting brackets, antenna adaptor, and USB retention interface ensure the install is clean and structurally sound.

---

Technical Specs

• Display Size: 6.8"
• Display Resolution: 1024 x 600
• Touch Technology: Capacitive
• Operating System: Linux
• DIN Format: Double DIN
• Max Power Output: 4CH x 50W (4 Ohm)
• RCA Preout Voltage: 4V p-p
• RCA Outputs: 6-channel (Front L/R, Rear L/R, Subwoofer L/R)
• Subwoofer Level Control: Yes
• Bluetooth Version: V5
• Bluetooth Profiles: A2DP, AVRCP, HFP 1.6, PBAP
• HFP Version: 1.6 (HD Voice)
• Microphone: Internal + external (external mic included)
• USB1 (Rear): CarPlay / Android Auto + Charging 5V / 1.5A
• USB2 (Rear): Media Playback + Charging 5V / 1.5A
• USB File System: FAT32 up to 32GB
• Supported Media Formats: MP3, MP4, MKV, FLAC, Xvid
• FM Frequency Range: 87.5–108.0 MHz (0.05 MHz steps)
• AM Frequency Range: 522–1710 KHz (9 KHz steps)
• FM Presets: 18
• AM Presets: 12
• RDS: Yes
• EQ Bands: 13-band (32 Hz – 16 kHz)
• EQ Presets: 6 preset + 2 custom
• Time Alignment: Yes
• Low-Pass Filter (Sub): Yes
• Loudness: Yes
• Rear A/V Input: Yes (RCA, 3-pin)
• Composite Video Output: Yes
• Reverse Camera Input: Yes (720P AHD compatible)
• Second Camera Input: Yes (720P AHD compatible)
• Button LED Colours: 6 (Red, Yellow, Green, Blue, Purple, White)
• OSD Language: English
• Camera Image Sensor: Sony 225, 1/3" CMOS AHD
• Camera Resolution: 720P
• Camera Lens Angle: 150°
• Camera IP Rating: IP67
• Camera Mount Type: Surface Mount
• Camera Cable Length: 6m (RCA video, inline reverse trigger)
• Vehicle Fitment: Kia Cerato YD 2013–2018

---

Compatible With

Confirmed Vehicle Fitment:

• Kia Cerato YD (2013–2018)

---

Frequently Asked Questions

Does this head unit suit my Kia Cerato? The AX8118K is confirmed to fit the Kia Cerato YD series from 2013 to 2018. It is not confirmed for other Cerato generations. Use the Aerpro What Fits Your Car Guide to verify your specific vehicle before ordering.

Is Apple CarPlay wireless or does it need a cable? Both options are available. The AX8118K supports Wireless Apple CarPlay and Android Auto out of the box, so your phone connects automatically without a cable. You can also connect via USB for wired operation and simultaneous charging.

Will my steering wheel audio controls still work after installation? Yes. The kit includes a steering wheel control interface and a universal SWC patch lead specifically to retain your Cerato's factory steering wheel audio buttons, including volume and track control.

Does the included camera work as a front camera or only as a reverse camera? The 720P AHD surface mount camera is configurable as a front, rear, or reverse camera. The unit also has a second AHD camera input, so you can run the included camera as a reverse camera and add a separate front or towing camera simultaneously.

Can I add an aftermarket amplifier to this head unit? Yes. The AX8118K includes 6 RCA preouts (front, rear, and subwoofer channels) at 4V p-p, making it well-suited for connecting one or more aftermarket amplifiers. The dedicated subwoofer output includes level control for easy tuning.
