Aerpro AX8063BK 6.8" Head Unit Kit Holden Colorado Isuzu D-Max MU-X

Aerpro AX8063BK 6.8" Multimedia Head Unit Upgrade Kit Holden Colorado Isuzu D-Max MU-X

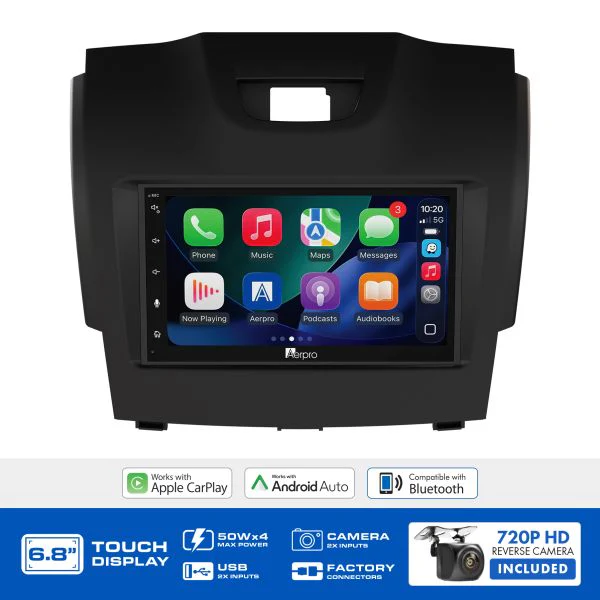

A fully matched upgrade kit for the Holden Colorado (including Colorado 7) from 2012-2014 and Isuzu D-Max and MU-X from 2012-2021, the AX8063BK combines a 6.8" wireless CarPlay and Android Auto multimedia receiver with a vehicle-specific black fascia installation kit and a 720P AHD surface mount camera, all in one box.

Product Overview

The AX8063BK is Aerpro's complete head unit upgrade solution engineered for the Holden Colorado (including Colorado 7) from 2012-2014 and the Isuzu D-Max and Isuzu MU-X from 2012-2021. It is supplied as a three-component kit comprising the Aerpro 6.8" multimedia receiver, the vehicle-specific installation kit tailored to the shared dashboard profile across these models, and a 720P AHD surface mount camera. No additional accessories need to be sourced for a standard installation. The vehicle-specific installation kit includes a black fascia kit, a steering wheel control interface, an OEM reverse camera retention harness, and a universal SWC patch lead, ensuring factory steering wheel controls and the factory reverse camera are retained after installation.

The 6.8" capacitive touchscreen at 1024x600 resolution supports wireless and wired Apple CarPlay and Android Auto, Bluetooth V5 with HFP 1.6 HD Voice, A2DP audio streaming, AVRCP media control, and PBAP phonebook access. Both internal and external microphone options are provided, with the external microphone and mount included in the head unit box. Audio performance is delivered via 4 x 50W maximum output, a 13-band graphic EQ covering 32Hz through to 16kHz, time alignment, subwoofer low-pass filter control, and 4V 6-channel RCA preouts covering front, rear, and subwoofer channels for external amplifier integration. Dual rear USB inputs support CarPlay and Android Auto on USB 1 and media playback on USB 2, each at 5V/1.5A charging. Dual AHD 720P-compatible camera inputs accept the included surface mount camera and an additional second camera simultaneously.

The included 720P AHD surface mount camera uses a Sony 225 1/3" CMOS sensor with a 150-degree lens angle and is mountable as a front, rear, or reverse camera. It is supplied with 6 metres of RCA video cable with an in-line reverse trigger wire. Note that Head Unit Upgrade Kits can vary between vehicle models. Use the Aerpro What Fits Your Car Guide at aerpro.com to confirm compatibility with your specific vehicle and build date before purchase.

Features & Benefits

Complete Vehicle-Specific Upgrade Kit for Three Model Ranges: The AX8063BK includes all components required for a complete installation across the Holden Colorado (including Colorado 7) from 2012-2014 and the Isuzu D-Max and Isuzu MU-X from 2012-2021 without additional accessory sourcing. The vehicle-specific installation kit covers the fascia, steering wheel control interface, OEM reverse camera retention, and patch lead requirements shared across these platforms.

OEM Reverse Camera Retention Harness: The vehicle-specific installation kit includes an OEM reverse camera retention harness, allowing the factory reverse camera fitted to these vehicles to remain operational and display on the new head unit after installation. This is addressed within the kit itself without requiring additional adaptors for standard factory camera setups on these models.

Black Fascia Kit for Colorado, D-Max, and MU-X Dashboard Integration: The included black fascia kit is designed specifically for the shared dashboard profile across the Holden Colorado and Isuzu D-Max and MU-X, providing a clean, factory-fit finish around the 6.8" head unit that integrates with the interior trim of these ute and SUV platforms.

6.8" Capacitive Touchscreen at 1024x600: The 6.8" capacitive touchscreen delivers a large, responsive display with 1024x600 resolution for clear navigation of maps, media, and settings, well suited to the dashboard opening across the supported model range.

Wireless and Wired Apple CarPlay and Android Auto: Both Apple CarPlay and Android Auto operate wirelessly for hands-free smartphone integration, or via wired USB connection for simultaneous charging. On first wireless connection, a one-time pairing via Bluetooth and Wi-Fi is required before subsequent connections become automatic.

Bluetooth V5 with HFP 1.6 HD Voice: Bluetooth V5 supports A2DP high-quality audio streaming, AVRCP media control, PBAP phonebook access, and HFP 1.6 HD Voice quality hands-free calling. Both an internal microphone and an external microphone with mount are included, allowing the external microphone to be positioned optimally in the cabin.

13-Band Graphic EQ with Time Alignment: The 13-band EQ covers 32Hz, 63Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 10kHz, 12kHz, 14kHz, and 16kHz for precise acoustic tuning, complemented by time alignment and a subwoofer low-pass filter for a complete onboard tuning toolkit.

4V 6-Channel RCA Preouts: Six RCA preamp channels at 4V covering front, rear, and subwoofer outputs allow external amplifiers to be added to the system with a high-output, low-noise signal. Subwoofer level control is also provided directly from the head unit.

720P AHD Surface Mount Camera Included: The included 720P AHD surface mount camera uses a Sony 225 1/3" CMOS sensor, a 150-degree lens angle, optional parking guidelines, and an IP67 waterproof rating. It can be mounted as a front, rear, or reverse camera and connects to the head unit via the included 6-metre RCA cable with in-line reverse trigger wire.

Dual AHD 720P Camera Inputs: Two independent AHD 720P-compatible camera inputs allow the included surface mount camera and a second camera to be connected simultaneously, supporting configurations such as front and reverse or reverse and towing cameras, which is particularly practical for ute and SUV towing applications.

6-Colour Button Illumination: The key illumination is selectable across six colours including red, yellow, green, blue, purple, and white, allowing the button lighting to be matched to the vehicle interior.

AM/FM Tuner with RDS: FM tuning covers 87.5-108.0MHz with 18 presets, and AM covers 522-1710kHz with 12 presets, with RDS support for station and track information display.

Technical Specs

What's in the Box

Aerpro 6.8" Multimedia Receiver:

• 1x 6.8" Multimedia Double DIN Head Unit
• Double DIN Metal Frame and Mounting Hardware
• Head Unit Plastic Trim
• Wiring Harness with ISO Connection
• 3 Wire Learning SWC Lead
• External Microphone with Mount
• GPS Antenna with Adhesive Pad
• QR Digital Manual Leaflet

Vehicle Specific Installation Kit:

• Black Fascia Kit
• Steering Wheel Control Interface
• OEM Reverse Camera Retention Harness
• Universal Patch Lead

720P AHD Surface Mount Camera:

• 720P AHD Surface Mount Camera (wired)
• 6-Metre Video Cable (RCA) with In-Line Reverse Trigger

Compatible With

The AX8063BK is engineered for the Holden Colorado (including Colorado 7) from 2012-2014 and the Isuzu D-Max and Isuzu MU-X from 2012-2021. Head Unit Upgrade Kits can vary between vehicle models and variants. Use the Aerpro What Fits Your Car Guide at aerpro.com to confirm compatibility with your specific vehicle and build date before purchase. The 4V 6-channel RCA preouts are compatible with most aftermarket amplifiers requiring front, rear, and subwoofer signal inputs. The dual AHD 720P camera inputs are compatible with most aftermarket AHD 720P and standard composite cameras in addition to the included surface mount camera.

Frequently Asked Questions

Does the AX8063BK retain the factory reverse camera in the Colorado, D-Max, and MU-X?

Yes. The vehicle-specific installation kit includes an OEM reverse camera retention harness that connects the factory reverse camera to the new head unit, allowing it to continue displaying on the 6.8" screen when reverse gear is selected. This is addressed within the kit itself without requiring additional camera adaptors for standard factory reverse camera setups on these models.

Does the AX8063BK retain the factory steering wheel controls?

Yes. The vehicle-specific installation kit includes a steering wheel control interface and a universal SWC patch lead that connects to the head unit's SWC input, allowing the factory steering wheel audio controls to operate with the new head unit after installation and calibration.

Is the AX8063BK compatible with the Colorado 7 as well as the standard Colorado?

Yes. The AX8063BK is confirmed compatible with the Holden Colorado including the Colorado 7 (the SUV variant) from 2012-2014. Both variants share a compatible dashboard profile within this date range. Use the Aerpro What Fits Your Car Guide at aerpro.com to confirm compatibility for your specific build date and variant before purchase.

Can the included 720P AHD camera be used alongside the retained factory reverse camera?

Yes. The head unit provides two independent AHD 720P-compatible camera inputs. The factory reverse camera connects through the OEM retention harness to one camera input, and the included 720P AHD surface mount camera can be connected to the second camera input for use as a front, towing, or additional reverse camera. This allows dual camera functionality with both the factory reverse camera and the included surface mount camera connected simultaneously.

Can external amplifiers be connected to the AX8063BK?

Yes. The head unit provides 4V 6-channel RCA preouts covering front, rear, and subwoofer channels, allowing external amplifiers to be connected for higher output power or a dedicated subwoofer channel. The 4V output voltage provides a strong, low-noise signal compatible with most aftermarket car audio amplifiers. Subwoofer level control is also available directly from the head unit for convenient bass adjustment without accessing the amplifier directly.
