Aerpro AX8018K 6.8" Head Unit Kit Holden Commodore VT VU VX

Aerpro AX8018K 6.8" Multimedia Head Unit Upgrade Kit Holden Commodore VT VU VX

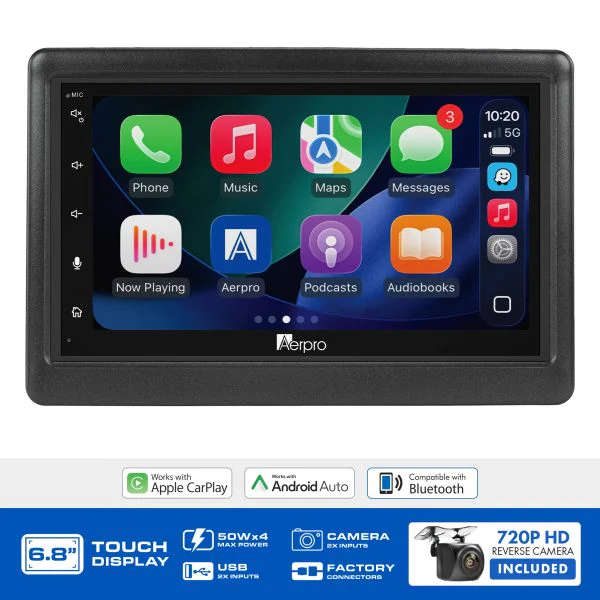

A fully matched upgrade kit for the Holden Commodore VT, VU, and VX from 1997-2002, the AX8018K combines a 6.8" wireless CarPlay and Android Auto multimedia receiver with a vehicle-specific dark grey fascia installation kit including OEM head unit removal keys, plus a 720P AHD surface mount camera, all in one box.

Product Overview

The AX8018K is Aerpro's complete head unit upgrade solution engineered for the Holden Commodore VT, VU, and VX from 1997-2002. It is supplied as a three-component kit comprising the Aerpro 6.8" multimedia receiver, the vehicle-specific installation kit tailored to the Commodore VT, VU, and VX dashboard profile, and a 720P AHD surface mount camera. No additional accessories need to be sourced for a standard installation. The vehicle-specific installation kit includes a dark grey fascia kit, metal mounting brackets, a steering wheel control interface, a universal SWC patch lead, and OEM head unit removal keys, ensuring factory steering wheel controls are retained and that the factory head unit can be cleanly extracted without additional tools.

The 6.8" capacitive touchscreen at 1024x600 resolution supports wireless and wired Apple CarPlay and Android Auto, Bluetooth V5 with HFP 1.6 HD Voice, A2DP audio streaming, AVRCP media control, and PBAP phonebook access. Both internal and external microphone options are provided, with the external microphone and mount included in the head unit box. Audio performance is delivered via 4 x 50W maximum output, a 13-band graphic EQ covering 32Hz through to 16kHz, time alignment, subwoofer low-pass filter control, and 4V 6-channel RCA preouts covering front, rear, and subwoofer channels for external amplifier integration. Dual rear USB inputs support CarPlay and Android Auto on USB 1 and media playback on USB 2, each at 5V/1.5A charging. Dual AHD 720P-compatible camera inputs accept the included surface mount camera and an additional second camera simultaneously.

The included 720P AHD surface mount camera uses a Sony 225 1/3" CMOS sensor with a 150-degree lens angle and is mountable as a front, rear, or reverse camera. It is supplied with 6 metres of RCA video cable with an in-line reverse trigger wire. Head Unit Upgrade Kits can vary between vehicle models. Use the Aerpro What Fits Your Car Guide at aerpro.com to confirm compatibility with your specific vehicle before purchase.

Features & Benefits

Complete Vehicle-Specific Upgrade Kit for Commodore VT, VU, and VX 1997-2002: The AX8018K includes all components required for a complete installation in the Holden Commodore VT, VU, and VX from 1997-2002 without additional accessory sourcing. The vehicle-specific installation kit covers the fascia, metal mounting brackets, steering wheel control interface, OEM head unit removal keys, and patch lead requirements of these models.

OEM Head Unit Removal Keys Included: The vehicle-specific installation kit includes OEM head unit removal keys specific to the Commodore VT, VU, and VX factory radio. These keys allow the factory head unit to be extracted cleanly from the DIN cage without tools or risk of damage to the surrounding trim, which is a necessary first step before the new head unit and fascia can be installed.

Dark Grey Fascia Kit for Commodore VT, VU, and VX Dashboard Integration: The included dark grey fascia kit is designed specifically for the Holden Commodore VT, VU, and VX dashboard profile from 1997-2002, providing a factory-fit finish around the 6.8" head unit that integrates with the interior trim colour of these Commodore generations.

Metal Mounting Brackets Included: The vehicle-specific installation kit includes dedicated metal mounting brackets that secure the Double DIN head unit correctly within the Commodore VT, VU, and VX dashboard opening, ensuring a solid, rattle-free installation that sits flush with the fascia.

6.8" Capacitive Touchscreen at 1024x600: The 6.8" capacitive touchscreen delivers a large, responsive display with 1024x600 resolution for clear navigation of maps, media, and settings, well suited to the dashboard opening of the Commodore VT, VU, and VX.

Wireless and Wired Apple CarPlay and Android Auto: Both Apple CarPlay and Android Auto operate wirelessly for hands-free smartphone integration, or via wired USB connection for simultaneous charging. On first wireless connection, a one-time pairing via Bluetooth and Wi-Fi is required before subsequent connections become automatic.

Bluetooth V5 with HFP 1.6 HD Voice: Bluetooth V5 supports A2DP high-quality audio streaming, AVRCP media control, PBAP phonebook access, and HFP 1.6 HD Voice quality hands-free calling. Both an internal microphone and an external microphone with mount are included, allowing the external microphone to be positioned optimally in the cabin.

13-Band Graphic EQ with Time Alignment: The 13-band EQ covers 32Hz, 63Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 10kHz, 12kHz, 14kHz, and 16kHz for precise acoustic tuning, complemented by time alignment and a subwoofer low-pass filter for a complete onboard tuning toolkit.

4V 6-Channel RCA Preouts: Six RCA preamp channels at 4V covering front, rear, and subwoofer outputs allow external amplifiers to be added to the system with a high-output, low-noise signal. Subwoofer level control is also provided directly from the head unit.

720P AHD Surface Mount Camera Included: The included 720P AHD surface mount camera uses a Sony 225 1/3" CMOS sensor, a 150-degree lens angle, optional parking guidelines, and an IP67 waterproof rating. It can be mounted as a front, rear, or reverse camera and connects to the head unit via the included 6-metre RCA cable with in-line reverse trigger wire.

Dual AHD 720P Camera Inputs: Two independent AHD 720P-compatible camera inputs allow the included surface mount camera and a second camera to be connected simultaneously, supporting configurations such as front and reverse or reverse and towing cameras.

6-Colour Button Illumination: The key illumination is selectable across six colours including red, yellow, green, blue, purple, and white, allowing the button lighting to be matched to the Commodore interior.

AM/FM Tuner with RDS: FM tuning covers 87.5-108.0MHz with 18 presets, and AM covers 522-1710kHz with 12 presets, with RDS support for station and track information display.

Technical Specs

What's in the Box

Aerpro 6.8" Multimedia Receiver:

• 1x 6.8" Multimedia Double DIN Head Unit
• Double DIN Metal Frame and Mounting Hardware
• Head Unit Plastic Trim
• Wiring Harness with ISO Connection
• 3 Wire Learning SWC Lead
• External Microphone with Mount
• GPS Antenna with Adhesive Pad
• QR Digital Manual Leaflet

Vehicle Specific Installation Kit:

• Dark Grey Fascia Kit
• Metal Mounting Brackets
• Steering Wheel Control Interface
• Universal Patch Lead
• OEM Head Unit Removal Keys

720P AHD Surface Mount Camera:

• 720P AHD Surface Mount Camera (wired)
• 6-Metre Video Cable (RCA) with In-Line Reverse Trigger

Compatible With

The AX8018K is engineered for the Holden Commodore VT, VU, and VX from 1997-2002. Head Unit Upgrade Kits can vary between vehicle models. Use the Aerpro What Fits Your Car Guide at aerpro.com to confirm compatibility with your specific vehicle before purchase. The 4V 6-channel RCA preouts are compatible with most aftermarket amplifiers requiring front, rear, and subwoofer signal inputs. The dual AHD 720P camera inputs are compatible with most aftermarket AHD 720P and standard composite cameras in addition to the included surface mount camera.

Frequently Asked Questions

Why does the AX8018K include OEM head unit removal keys?

The Holden Commodore VT, VU, and VX use a DIN-cage style factory head unit that is secured by internal spring clips rather than screws. The factory head unit can only be released by inserting the correct removal keys into the small slots on the face of the unit, which compress the retaining clips and allow the head unit to slide forward and out of the cage. The correct removal keys for these Commodore models are included in the AX8018K vehicle-specific installation kit, ensuring the factory unit can be cleanly extracted without damage to the unit or surrounding trim before the new head unit and fascia are installed.

Does the AX8018K retain the factory Holden Commodore steering wheel controls?

Yes. The vehicle-specific installation kit includes a steering wheel control interface and a universal SWC patch lead that connects to the head unit's SWC input, allowing the factory steering wheel audio controls to operate with the new head unit after installation and calibration. The Commodore VT, VU, and VX use a resistive-type SWC signal that is supported by the standard SWC interface included in this kit.

Does the AX8018K include a reverse camera retention lead for these Commodore models?

No. The vehicle-specific installation kit for the AX8018K does not include a reverse camera retention lead, as the Holden Commodore VT, VU, and VX were not originally fitted with factory reverse cameras. The 720P AHD surface mount camera included in the kit can be installed as a new reverse camera for the vehicle, connected directly to the head unit's reverse camera input via the included 6-metre RCA cable with in-line reverse trigger wire.

Can the included 720P AHD camera be used as a front camera instead of a reverse camera?

Yes. The included 720P AHD surface mount camera can be installed and configured as a front, rear, or reverse camera depending on the installation requirement. It connects to either of the head unit's two AHD 720P-compatible camera inputs via the included 6-metre RCA cable with in-line reverse trigger wire. If used as a front camera, the reverse trigger wire would not be connected and the camera would need to be activated through an alternative trigger or manual input method depending on the head unit's camera activation settings.

Can external amplifiers be connected to the AX8018K?

Yes. The head unit provides 4V 6-channel RCA preouts covering front, rear, and subwoofer channels, allowing external amplifiers to be connected for higher output power or a dedicated subwoofer channel. The 4V output voltage provides a strong, low-noise signal compatible with most aftermarket car audio amplifiers. Subwoofer level control is also available directly from the head unit for convenient bass adjustment without accessing the amplifier directly.
