Aerpro APC181 Spare Wheel Reverse Camera Jeep Wrangler 2007-On
Aerpro APC181 Spare Wheel Reverse Camera Jeep Wrangler 2007-On
A clean, factory-style reverse camera solution for the Jeep Wrangler, the APC181 mounts discreetly to the factory spare wheel carrier to deliver a 105° rear view with AHD 720P output and IP68 waterproofing without any permanent vehicle modification.
Product Overview

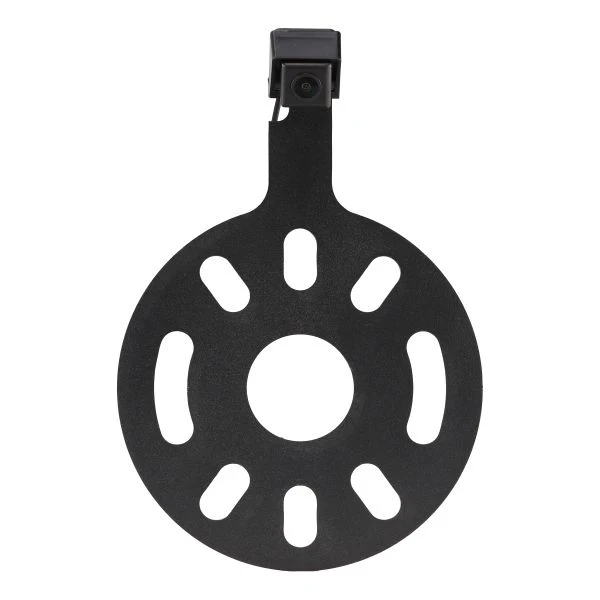

The APC181 is Aerpro's vehicle-specific spare wheel mounted reverse camera, engineered exclusively for Jeep Wrangler models from 2007-on. Rather than replacing a brake light or tailgate handle, the APC181 mounts directly to the factory spare wheel carrier, providing a seamless installation position that requires no permanent modification to the vehicle. The durable metal housing provides a robust, weather-resistant construction suited to the Wrangler's off-road and outdoor use profile. The 105° diagonal viewing angle reduces rear blind spots during reversing and parking manoeuvres, while selectable parking guidelines (switchable via loop wire) provide visual reference in tight spaces and can be enabled or disabled to suit the driver's preference.
Video output is selectable between AHD 720P and CVBS via the loop wire, providing broad compatibility with aftermarket head units including those with AHD camera inputs such as the Aerpro AM705, as well as Aerpro Advanced Safety Vision monitors and standard RCA composite displays. The 4-pin heavy duty camera cable runs 0.5 metres from the camera to the connector, with a 10-metre extension cable included alongside a 4-pin to RCA adapter for integration with most aftermarket displays. Built with an IP68 waterproof rating and an operating temperature range of -30°C to +80°C, the APC181 performs reliably in all weather and climate conditions. Please note that the APC181 is not compatible with factory head units and cannot be adapted to connect to the original factory radio.
Features & Benefits
Jeep Wrangler Specific Fitment: Engineered exclusively for the Jeep Wrangler (2007-on), the APC181 is designed to mount to the factory spare wheel carrier, providing a factory-style installation that integrates with the vehicle's original exterior styling without permanent modification.
Spare Wheel Carrier Mount, No Permanent Modification Required: The camera mounts discreetly to the spare wheel carrier without drilling additional holes or making permanent modifications to the vehicle body, making it a clean and reversible installation.
105° Wide Diagonal Viewing Angle: The wide viewing angle reduces the blind spot directly behind the vehicle during reversing and parking. The spare wheel carrier position places the camera at a height and angle well suited to capturing the full rear view behind the Wrangler.
Selectable Parking Guidelines: Visual parking guidelines are switchable via loop wire during installation. The white loop wire controls guideline display and defaults to on. Guidelines can be disabled if the connected head unit provides its own overlay or if the driver prefers an unobstructed view.
AHD 720P or CVBS Video Output: Output format is selectable via the green loop wire, defaulting to AHD 720P for compatibility with AHD-capable head units and monitors. Switching to CVBS provides compatibility with standard composite RCA inputs on a wider range of aftermarket displays.
IP68 Waterproof Rating: The IP68 rating confirms full protection against dust ingress and continuous water immersion, providing reliable performance in rain, mud, water crossings, and the demanding off-road environments the Jeep Wrangler is regularly used in.
Wide Operating Temperature Range: Rated from -30°C to +80°C, the APC181 operates dependably in both extreme cold and high-heat environments, making it suitable for use across all Australian climates and off-road conditions.
Durable Metal Housing: The metal housing construction provides the structural resilience needed to withstand the vibration, impacts, and harsh outdoor conditions associated with regular off-road use in a Jeep Wrangler.
Includes 10-Metre Heavy Duty Cable and 4-Pin to RCA Adapter: The 10-metre extension cable provides ample reach from the rear spare wheel carrier to the head unit location in the cabin, and the included 4-pin to RCA adapter allows connection to standard RCA camera inputs without additional accessories.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | APC181 |
| Brand | Aerpro |
| Compatible Vehicle | Jeep Wrangler, 2007-on |
| Installation Position | Spare Wheel Mount |
| Camera Orientation | Reverse |
| Image Sensor Type | CMOS |
| Viewing Angle (Diagonal) | 105° |
| Minimum Illumination | 0.1 Lux |
| Video Output | AHD 720P or CVBS (selectable via loop wire) |
| TV System | NTSC (CVBS) |
| Parking Guidelines | Selectable (loop wire, default: on) |
| Green Loop Wire | AHD / CVBS selection (default: AHD) |
| White Loop Wire | Guidelines on/off (default: on) |
| Waterproof Rating | IP68 |
| Housing Material | Metal |
| Operating Voltage | 12V DC (9-16V) |
| Current Consumption | 450mA |
| Operating Temperature | -30°C to +80°C |
| Camera Cable Length | 0.5m (camera) + 10m (extension) |
| Connector Type (Camera End) | 4-Pin Heavy Duty Female |
| Connector Type (Harness End) | 4-Pin Heavy Duty Male (RCA adapter included) |
| Trigger Wire | Not included |
| Adaptable to Factory Screen | No |
What's in the Box
- 1x APC181 Spare Wheel Reverse Camera
- 10-metre Video Cable (4-pin heavy duty)
- 4-pin to RCA Adapter Cable
Goes Well With
The APC181 connects directly to any aftermarket head unit with an AHD 720P or standard RCA composite reverse camera input. It is compatible with the Aerpro AM705 head unit, which features a dedicated 720P AHD reverse camera input, providing a matched Aerpro system for the Jeep Wrangler. Note that the APC181 is not compatible with the factory Jeep Wrangler head unit and cannot be adapted to connect to the original factory radio. An aftermarket head unit is required for this camera to function. A trigger wire is not included and reverse trigger activation is managed through the head unit or installation harness.
Frequently Asked Questions
Why is the spare wheel carrier used as the mounting position rather than a brake light or tailgate handle?
The Jeep Wrangler's rear-mounted spare wheel carrier is the most practical and OEM-compatible camera mounting location for this vehicle. The rear door opens to the side on the Wrangler, meaning a brake light or tailgate handle mount would rotate with the door and not provide a stable rearward-facing view when the door is closed. The spare wheel carrier remains fixed relative to the rear of the vehicle, providing a consistent camera position regardless of door movement.
Is the APC181 compatible with Jeep Wrangler models across all generations from 2007-on?
The APC181 is specified for Jeep Wrangler models from 2007-on. Confirm your specific Wrangler generation and build year with the supplier before purchase, as spare wheel carrier profile variations between JK (2007-2018) and JL (2018-on) generations may affect fitment.
Is the APC181 compatible with the factory Jeep Wrangler head unit?
No. The APC181 is not compatible with factory head units and cannot be adapted to connect to the original factory radio in the Jeep Wrangler. An aftermarket head unit with a reverse camera input (AHD 720P or RCA composite) is required for this camera to operate.
How do I select between AHD 720P and CVBS output?
Video output format is selected via the green loop wire during installation. The default configuration with the loop wire connected is AHD 720P. Cutting or leaving the green loop wire open switches the output to CVBS composite for compatibility with standard RCA camera inputs. Select the output format that matches the camera input type on the connected head unit or monitor before completing the installation.
Can the parking guidelines be turned off?
Yes. The white loop wire controls the parking guidelines. The default configuration with the white loop wire connected displays fixed guidelines on screen. Cutting or leaving the white loop wire open disables the guidelines. If the connected head unit generates its own dynamic parking guideline overlay, disabling the camera's fixed guidelines prevents a double overlay from appearing on screen.
