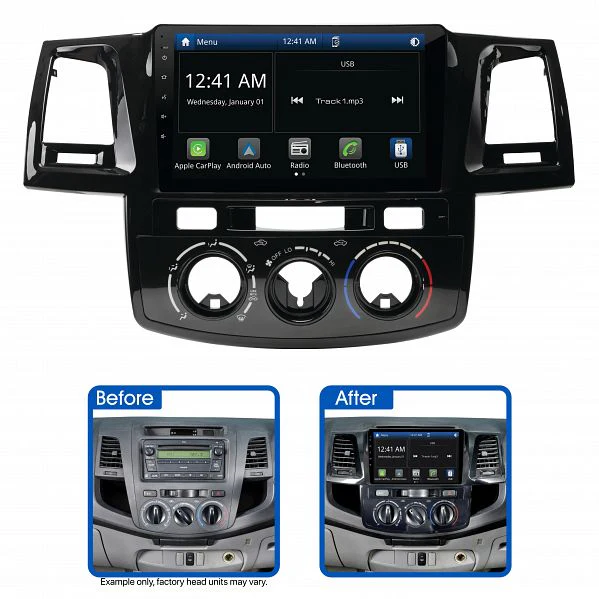

Aerpro AMTO9 9" Multimedia Receiver With SWC Suit Toyota Hilux 2005 - 2011

Built-In Bluetooth For Hands-Free Phone Calls & Wireless Audio Streaming!

9" Multimedia Receiver with Wireless Apple CarPlay & Android Auto
The Aerpro AMTO9 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Toyota Hilux (2005-2011) non-amplified vehicles with factory steering wheel controls. Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input as well as an AM/FM radio tuner.

Sound quality is superb with 40Wx4 max output, 8 bands graphic EQ, and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA pre-outs. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMTO9 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls and the factory reverse camera (If Equipped).

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• Suits vehicles with factory steering wheel controls only.
• Not suitable for factory-amplified vehicles.
• Reverse Camera Retention uses the reverse camera input of the head unit.
• This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.

Vehicle Feature Retention:

• Steering Wheel Controls: Yes
• Factory Reverse Camera: Yes (If Equipped, Model Dependant)
• AUX Input: N/A
• USB Input: N/A
• Parking Tones: N/A
• Factory Amplifier: No
• Vehicle Menu: N/A
• Other: N/A

Features:

• To suit Toyota Hilux (2005-2011) non-amplified vehicles with factory steering wheel controls
• Includes all the parts required to complete the installation and to retain important vehicle features
• Apple CarPlay & Android Auto (Wireless / Wired)
• Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (Optional AMHXD3 Required, Sold Separately)
• Large 9" capacitive touchscreen display
• Steering wheel control and factory reverse camera retention (If Equipped)
• Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
• AM / FM Tuner with RDS & presets (18FM/12AM)
• Rear USB input (1.5A Max Charging)
• Reverse camera input (AHD 720P Compatible) & rear A/V input
• 40Wx4 Max with 8 bands graphic EQ and time alignment capabilities
• 4V/5CH RCA Preout and subwoofer level control

Specifications:

• LCD Display:
  Size: 9"
  Resolution: 1024x600
  Touch Screen: Capacitive (G+G)
• System Specifications:
  OS System / CPU: Linux 3.4.5 / SPHE8368U
  RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output:
  Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
  MAX Power (4 Ohm): 4CH x 40W
  Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
• Device Ports:
  USB (Rear) Playback Formats: CPAA & Media
  USB (Rear) Power - Voltage/Amps: 5V/1.5A
  USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  Rear A/V Input (RCA Type - 3 Pcs.): Yes
  Composite Video Outputs: Yes
  Reverse Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless & Wired)
• Bluetooth:
  Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  Bluetooth Version: V4.2+EDR
  Microphone: Built-In & External Microphone
  ID3 Tag/Information (Artist, Album, Song): Yes
  HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  AM/FM (# Of Presets): AM 12 (6X2) / FM 18 (6X3)
  FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
  AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
  RDS: Yes
  FM Antenna Connector Impedance: 50 Ohm
  FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  RCA Preamp Output: 2-Pair (Front / Rear)
  Subwoofer RCA Output: Yes
  Subwoofer Level Control: Yes
  Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  Loudness: Yes
  LPF - Frequencies (Sub): Yes
  8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  OSD Language: English
  LED Colour (Buttons / Keys): White
• Accessories:
  Power Harness: Yes with ISO/3.5mm Jack
  AV-In Cable (RCA with Audio L/R, Video In): Yes
  Reverse Camera Input (With 12V Power Supply to the Camera): Yes
  4.1CH Audio Out Cable: Yes
  External Microphone: Included
• Vehicle Compatibility: Toyota Hilux (2005 - 2011)
• Weight: 3.00kg

Kit Inclusions:

• AM9X Multimedia Receiver
• Gloss Black Facia Kit
• Steering Wheel Control Interface Harness
• Camera Retention Adaptor
• Stickers For Manual HVAC
