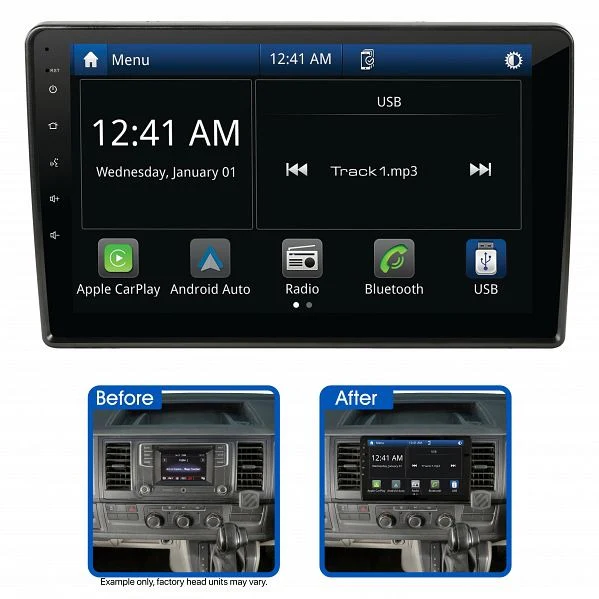

Aerpro AMAVW2 10" Multimedia Receiver Suit Volkswagen Various Models

Built-In Bluetooth For Hands-Free Phone Calls & Wireless Audio Streaming!

10" Multimedia Receiver With Wireless Apple CarPlay & Android Auto
The Aerpro AMAVW2 10" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Volkswagen Amarok (2011-2016)*, Beetle (2012- 2014), Caddy (2005-2015), Eos (2007-2014), Golf (2004-2013)*, Jetta (2006-2015)*, Passat (2006-2015)*, Polo (2010-2015)*, Scirocco (2009-2014)*, Tiguan (2008-2014)* and Transporter (2010-2015) vehicles. Featuring a large 10" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, dual rear USB inputs as well as an AM/FM radio tuner. Sound quality is superb with 50Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMAVW2 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls and the factory amplified system (model dependant**).

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• (*) Due to the size of the head unit, please be aware of the following:
  Amarok (2011-2016): Kit may partially cover top buttons.
  Golf (2004-2009): Kit covers vent dial, may still be accessible but not tested.
  Jetta (2006-2011): Kit covers vent dial, may still be accessible but not tested.
  Passat (2006-2015): Kit covers part of hazard or clock on some models.
  Polo (2010-2015): Kit covers part of buttons.
  Scirocco (2009-2014): Kit covers vent adjusters.
  Tiguan (2008-2014): Kit partially covers hazard button.
• (**) Factory amplifier retention:
  Compatible with factory Panasonic amplified systems.
  Not compatible with factory Blaupunkt amplified systems, for these vehicles please use the Aerpro AMVW3 Head Unit Upgrade Kit.
  May need a trigger wired in for the amplifier.

Vehicle Feature Retention:

• Steering Wheel Controls: Yes (including phone button)
• Factory Reverse Camera: No
• AUX Input: N/A
• USB Input: N/A
• Parking Tones: No
• Factory Amplifier: Yes (model dependant**)
• Vehicle Menu: N/A
• Other: N/A

Features:

• To suit Volkswagen Amarok (2011-2016)*, Beetle (2012- 2014), Caddy (2005-2015), Eos (2007-2014), Golf (2004-2013)*, Jetta (2006-2015)*, Passat (2006-2015)*, Polo (2010-2015)*, Scirocco (2009-2014)*, Tiguan (2008-2014)* and Transporter (2010-2015) vehicles
• Includes all the parts required to complete the installation
• Apple CarPlay & Android Auto (wireless / wired)
• Large 10" capacitive touchscreen display
• Steering wheel control and factory amplified system (model dependant**) retention
• Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
• AM / FM Tuner with RDS & presets (18FM/12AM)
• Rear USB input (1.5A max charging)
• Dual camera inputs (AHD 720P compatible) & rear A/V input
• 50Wx4 Max with 8 band graphic EQ and time alignment capabilities
• 4V/5CH RCA Preout and subwoofer level control

Specifications:

• LCD Display:
  Size: 10"
  Resolution: 1024x600
  Touch Screen: Capacitive (G+G)
• System Specifications:
  OS System / CPU: Linux 3.4.5 / SPHE8368U
  RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output:
  Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
  MAX Power (4 Ohm): 4CH x 50W
• Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
• Device Ports:
  USB 1 (Rear) Playback Formats: CP,AA & Media
  USB 2 (Rear) Playback Formats: Media
  USB (Rear) Power - Voltage/Amps: 5V/1.5A Each
  USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  Rear A/V Input (RCA Type - 3pcs): Yes
  Composite Video Outputs: Yes
  Reverse Camera Input: Yes (720P AHD Compatible)
  Second Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
  Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  Bluetooth Version: V4.2+EDR
  Microphone: Built-in & External Microphone
  ID3 Tag/Information (Artist, Album, Song): Yes
  HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
  FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
  AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
  RDS: Yes
  FM Antenna Connector Impedance: 50 Ohm
  FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  RCA Preamp Output: 2-Pair (Front / Rear)
  Subwoofer RCA Output: Yes
  Subwoofer Level Control: Yes
  Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  Loudness: Yes
  LPF - Frequencies (Sub): Yes
  8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  OSD Language: English
  LED Colour (Buttons / Keys): White
• Accessories:
  Power Harness: Yes with ISO/3.5mm jack
  AV-In Cable (RCA with Audio L/R, Video In): Yes
  Reverse Camera Input (with 12V power supply to the camera): Yes
  4.1CH Audio Out Cable: Yes
  External Microphone: Included

Vehicle Compatibility:

• Volkswagen Amarok 2011 - 2016
• Volkswagen Beetle 2012 -
• Volkswagen Caddy 2005 - 2015
• Volkswagen EOS 2007 - 2014
• Volkswagen Golf 2004 - 2009 MK5
• Volkswagen Golf 2009 - 2013 MK6
• Volkswagen Jetta 2006 - 2015
• Volkswagen Passat 2006 - 2015
• Volkswagen Polo 2010 - 2014
• Volkswagen Scirocco 2009 - 2014
• Volkswagen Tiguan 2008 - 2014
• Volkswagen Transporter T5 2010 - 2015

Kit Inclusions:

• AM10X Multimedia Receiver
• Matte Black Facia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Amplifier Retention Harness
• Antenna Adaptor
