AERPRO AMATO46 9" Multimedia Receiver to Suit Toyota Camry/Aurion (2006-2011) - Non-Amplified (Black)
AERPRO AMATO46 9" Multimedia Receiver to Suit Toyota Camry/Aurion (2006-2011) - Non-Amplified (Black)

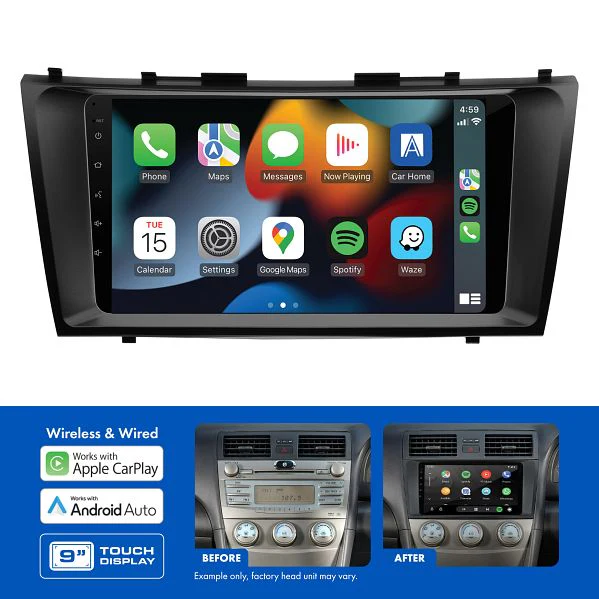

Transform your Toyota Camry or Aurion with the AERPRO AMATO46 complete 9" multimedia receiver upgrade kit, featuring wireless and wired Apple CarPlay/Android Auto connectivity, large capacitive touchscreen display, comprehensive steering wheel control retention, dual camera inputs with AHD 720P compatibility, 50Wx4 maximum power output with 8-band graphic equalizer and time alignment, 4V/5CH RCA preouts for system expansion, and all necessary installation components for non-amplified 2006-2011 Toyota Camry/Aurion vehicles.
Product Overview
The AERPRO AMATO46 represents a comprehensive vehicle-specific head unit upgrade solution engineered specifically for Toyota Camry and Aurion models from 2006-2011 equipped with non-amplified factory audio systems. This complete installation kit combines the advanced AM9X multimedia receiver with vehicle-specific black fascia panel, steering wheel control interface harness, and SWC patch lead, providing all necessary components for professional plug-and-play installation without requiring additional parts purchases. The centerpiece AM9X multimedia receiver features a large 9" capacitive touchscreen display with 1024×600 resolution and G+G touch technology, delivering responsive control and clear visibility for navigation, media playback, and system settings across diverse lighting conditions. Advanced smartphone connectivity provides both wireless and wired Apple CarPlay and Android Auto functionality, enabling seamless iPhone and Android device integration for navigation apps, music streaming, messaging, and hands-free calling without cable dependence while maintaining wired connection options for charging and stable connectivity. The Linux 3.4.5 operating system running on SPHE8368U CPU with 128MB RAM and 256MB flash memory ensures smooth operation and reliable performance across multimedia functions. Built-in Bluetooth V4.2+EDR supports A2DP, AVRCP, HFP, and PBAP profiles for wireless audio streaming and hands-free calling through included external microphone plus built-in microphone, with HFP 1.6 profile providing HD voice quality. Dual rear USB inputs provide media playback and device charging at 5V/1.5A each, supporting FAT32 formatted drives up to 32GB capacity for extensive music library access. Comprehensive AM/FM tuner with RDS functionality offers 18 FM presets (6×3) and 12 AM presets (6×2), covering frequency spans from 87.5-108.0MHz (FM) and 529-1629KHz (AM) with Motorola antenna connector and 50-ohm impedance compatibility. Four-channel amplification delivers 25W RMS per channel (4Ω at 14.4V) with 50W maximum power capability, while 8-band graphic equalizer (50/200/400/800/1K/3K/7K/15K Hz) and time alignment capabilities enable precise sound tuning. System expansion capabilities include 4V/5CH RCA preamp outputs with dedicated subwoofer output and level control, supporting external amplifier integration for enhanced audio performance. Dual camera inputs accept AHD 720P compatible cameras for front and rear viewing applications, while rear A/V input accommodates additional video sources. The included steering wheel control interface harness maintains factory steering wheel functionality without losing convenient audio control access. Important installation note: park brake wire connection to vehicle park brake is required for Apple CarPlay and Android Auto functionality, ensuring compliance with distracted driving safety requirements.
Features & Benefits
Complete Vehicle-Specific Installation Kit Includes AM9X multimedia receiver, vehicle-specific black fascia panel, steering wheel control interface harness, and SWC patch lead providing all necessary components for professional installation in Toyota Camry/Aurion 2006-2011 non-amplified vehicles, eliminating need for separate parts sourcing while ensuring proper fitment and factory feature retention without additional purchases.
Wireless and Wired CarPlay/Android Auto Provides flexible smartphone connectivity supporting both wireless and wired Apple CarPlay and Android Auto functionality, enabling seamless iPhone and Android device integration for navigation apps, music streaming, messaging, and hands-free calling with freedom from cable management while maintaining wired connection options for simultaneous charging and stable connectivity.
Large 9" Capacitive Touchscreen Display Features responsive 1024×600 resolution capacitive touchscreen with G+G (glass-on-glass) construction delivering clear visibility, accurate touch response, and intuitive control of navigation, media playback, and system settings, providing modern infotainment experience that transforms vehicle interior with contemporary large-screen technology matching newer vehicle standards.
Comprehensive Audio System Capabilities Delivers 50Wx4 maximum amplification with 8-band graphic equalizer, time alignment, loudness control, and 8 preset EQ modes (Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft), combined with 4V/5CH RCA preamp outputs and dedicated subwoofer output with level control for professional sound tuning and external amplifier integration supporting advanced audio system builds.
Dual Camera Input with AHD Support Accepts two AHD 720P compatible camera inputs for comprehensive front and rear view monitoring, supporting advanced high-definition analogue camera systems that deliver superior image quality compared to traditional CVBS cameras while maintaining simple analogue installation procedures, enhancing safety awareness and parking assistance capabilities.
Factory Feature Retention Maintains critical factory steering wheel control functionality through included interface harness and patch lead, preserving convenient hands-on-wheel audio control operation that ensures drivers can safely adjust volume, change tracks, and manage phone calls without removing hands from steering wheel, maintaining factory convenience features with aftermarket technology.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AERPRO |
| Model | AMATO46 |
| Barcode | 9317114952929 |
| Vehicle Compatibility | Toyota Camry/Aurion 2006-2011 (Non-Amplified Only) |
| Kit Inclusions | AM9X Receiver, Black Fascia, SWC Interface Harness, SWC Patch Lead |
| Display Size | 9" |
| Display Resolution | 1024×600 |
| Touch Screen Type | Capacitive (G+G) |
| Operating System | Linux 3.4.5 |
| CPU | SPHE8368U |
| RAM | 128MB |
| Flash Memory | 256MB |
| DIN Size | 2 DIN Short Body |
| Power Output (RMS) | 4CH × 25W (4Ω @ 14.4V, 1kHz, THD 10%) |
| Power Output (Max) | 4CH × 50W (4Ω) |
| Media Playback | MP3, AAC, FLAC, Xvid, MPEG 1/2/4 |
| USB Ports | 2 × Rear USB (5V/1.5A Each) |
| USB 1 Functions | CarPlay, Android Auto, Media Playback |
| USB 2 Functions | Media Playback |
| USB Max Capacity | FAT32 32GB |
| CarPlay/Android Auto | Wireless and Wired |
| Bluetooth | V4.2+EDR (A2DP, AVRCP, HFP, PBAP) |
| Bluetooth Profile | HFP 1.6 (HD Voice) |
| Microphone | Built-in + External Included |
| FM Presets | 18 (6×3) |
| AM Presets | 12 (6×2) |
| FM Frequency | 87.5-108.0MHz (0.05MHz Step) |
| AM Frequency | 529-1629KHz (9KHz Step) |
| RDS | Yes |
| Antenna Connector | Motorola, 50Ω Impedance |
| RCA Preamp Outputs | 4V/5CH (Front, Rear, Subwoofer) |
| Subwoofer Control | Level Control, LPF |
| Equalizer | 8-Band (50/200/400/800/1K/3K/7K/15K Hz) |
| EQ Presets | 8 Modes (Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft) |
| Time Alignment | Yes |
| Loudness | Yes |
| Camera Inputs | 2 × AHD 720P Compatible (Front + Rear) |
| Rear A/V Input | Yes (RCA Type - 3pcs) |
| Composite Video Output | Yes |
| Steering Wheel Controls | Retained (with Included Interface) |
| LED Button Color | White |
| OSD Language | English |
| Park Brake Requirement | Yes (Required for CarPlay/Android Auto) |
Compatible With
Toyota Vehicle Applications:
- Toyota Camry 2006-2011 (Non-Amplified Audio Systems Only)
- Toyota Aurion 2006-2011 (Non-Amplified Audio Systems Only)
Important Vehicle Compatibility Notes:
- Suits non-amplified factory audio systems only
- NOT compatible with factory amplified audio systems
- Use Aerpro What Fits Your Car Guide to verify exact vehicle compatibility
Smartphone Compatibility:
- Apple iPhone (iOS) - CarPlay wireless and wired
- Android smartphones - Android Auto wireless and wired
- Bluetooth-enabled devices for wireless audio streaming
Camera Compatibility:
- AHD 720P cameras (front and rear)
- Traditional CVBS cameras (reduced resolution)
- Factory reverse camera retention (requires APVTY17 harness - sold separately)
Optional Accessories:
- APVTY17 - Factory reverse camera retention harness
- External amplifiers (via 4V/5CH RCA preamp outputs)
- Powered subwoofers (via dedicated subwoofer RCA output)
- AHD cameras for front/rear view applications
Media Compatibility:
- USB flash drives (FAT32, up to 32GB)
- Audio formats: MP3, AAC, FLAC
- Video formats: Xvid, MPEG 1/2/4
Important Installation Requirements:
- Park brake wire MUST be connected to vehicle park brake for CarPlay/Android Auto functionality
- Professional installation recommended for optimal feature retention
Frequently Asked Questions
Is this kit compatible with my Toyota Camry or Aurion with factory amplified audio?
No, the AMATO46 is specifically designed for non-amplified factory audio systems only. Vehicles equipped with factory amplified audio systems require different harness solutions. Verify your vehicle's audio system specifications using the Aerpro What Fits Your Car Guide before purchasing to ensure correct kit selection.
Why does the park brake wire need to be connected for CarPlay and Android Auto?
The park brake wire connection is a legal safety requirement that prevents driver distraction by restricting certain head unit functions while the vehicle is in motion. Apple CarPlay and Android Auto will not function unless the park brake wire is properly connected to the vehicle's park brake signal, ensuring compliance with distracted driving regulations.
Does this kit retain my factory reverse camera?
The kit includes dual camera inputs supporting new camera installation, but factory reverse camera retention requires the separately-sold APVTY17 retention harness. This additional harness adapts the factory camera signal to work with the new head unit's camera input, maintaining your existing reverse camera functionality.
Can I use both wireless and wired connections for CarPlay and Android Auto?
Yes, the AM9X multimedia receiver supports both wireless and wired Apple CarPlay and Android Auto connectivity. You can connect wirelessly for cable-free convenience or use wired connections when you want simultaneous device charging or prefer the stability of wired connectivity, with seamless switching between connection modes.
What additional components might I need for installation?
The AMATO46 includes all standard components for basic installation including fascia, receiver, and steering wheel control retention. However, if you want to retain your factory reverse camera, you'll need the APVTY17 harness (sold separately). If adding external amplifiers or subwoofers, you'll need appropriate RCA cables and amplifier wiring kits. Professional installation ensures proper park brake wire connection and feature verification.
