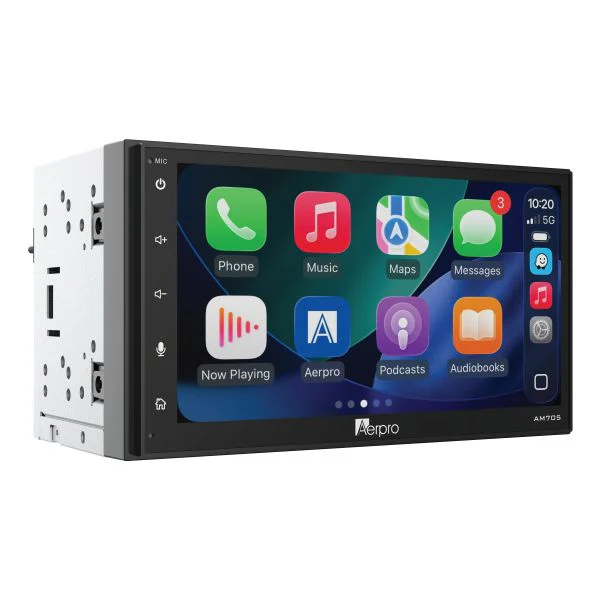

Aerpro AM705 6.8" Multimedia Receiver Wireless CarPlay Android Auto
Aerpro AM705 6.8" Multimedia Receiver with Wireless Apple CarPlay and Android Auto
A complete multimedia upgrade for your dash, the AM705 combines wireless smartphone integration, Bluetooth V5, dual AHD camera inputs, and advanced audio tuning in a universal double DIN chassis.
Product Overview
The AM705 is Aerpro's 6.8" double DIN multimedia head unit, designed to bring modern smartphone connectivity, high-power audio performance, and everyday driving convenience to a wide range of vehicles. The 6.8" capacitive touchscreen displays at 1024x600 resolution for sharp, responsive control across maps, media, and menus. Wireless and wired Apple CarPlay and Android Auto allow instant access to navigation, music, calls, and messages the moment you get in the vehicle, with wired connection available via the rear USB input for simultaneous charging. Bluetooth V5 with HFP 1.6 HD Voice support enables hands-free calling and audio streaming with internal and external microphone options, full phonebook access, and ID3 tag display for artist, album, and song information.
Two 720P AHD camera inputs support a reverse camera plus an additional front or towing camera simultaneously, improving visibility in parking, towing, and manoeuvring situations. Audio performance is handled by 4 x 50 watts maximum power output and six 4V RCA preouts covering front, rear, and subwoofer channels, with a 13-band parametric EQ, time alignment, low-pass filter, loudness control, and subwoofer level adjustment for precise system tuning. AM and FM tuning with RDS, USB media playback supporting MP3, MP4, MKV, FLAC, and Xvid formats, and six-colour customisable button illumination round out the feature set. The AM705 is supplied with a full installation kit including ISO wiring harness, external microphone, GPS antenna, metal mounting frame, and a 3-wire learning SWC lead. A vehicle-specific fascia kit and steering wheel control interface are required for most vehicles and are sold separately.
Features & Benefits
Wireless and Wired Apple CarPlay and Android Auto: Connects to Apple and Android smartphones wirelessly for cable-free access to navigation, music, calls, and messages, or via the rear USB input for wired connection with simultaneous 5V/1.5A charging support.
6.8" Capacitive Touchscreen at 1024x600: The large capacitive display provides sharp, smooth, and responsive touch control across all head unit functions, with a clear and bright screen suited to both day and night use.
Bluetooth V5 with HFP 1.6 HD Voice: Bluetooth V5 supports A2DP audio streaming, AVRCP media control, HFP 1.6 hands-free calling with HD Voice quality, and PBAP phonebook access, with both internal and external microphone options for clear call quality in any installation scenario.
Dual 720P AHD Camera Inputs: Two independent AHD-compatible camera inputs support a reverse camera and a second front or towing camera simultaneously, providing improved visibility and safety in parking and towing situations without additional converters.
6 x 4V RCA Preouts: Six RCA preamp outputs at 4V covering front, rear, and subwoofer channel pairs allow direct connection to external amplifiers at a high output voltage, minimising noise in the signal chain and providing the headroom needed for high-performance audio system integration.
13-Band EQ with Time Alignment and Subwoofer Control: The 13-band equaliser covers frequencies from 32Hz to 16kHz across eight preset EQ modes plus two custom slots. Time alignment, low-pass filter, loudness control, and dedicated subwoofer level adjustment provide comprehensive system-level tuning from the head unit.
High-Power Audio Output at 4 x 50W Max: Four channels of 50 watts maximum power output drive speakers directly from the head unit in systems not using external amplifiers, with clean output suited to full-range speaker configurations.
USB Media Playback with Dual USB Inputs: Two rear USB inputs support media playback from FAT32-formatted drives up to 32GB in MP3, MP4, MKV, FLAC, and Xvid formats, with 5V/1.5A charging on both ports. USB1 is dedicated to CarPlay and Android Auto with charging, and USB2 is dedicated to media playback with charging.
AM and FM Tuner with RDS: AM tuning covers 522-1710kHz with 12 presets, and FM tuning covers 87.5-108.0MHz with 18 presets and RDS support for station and programme information display.
Steering Wheel Control Compatible: The AM705 accepts steering wheel control input via an Aerpro SWC adaptor (sold separately), allowing factory steering wheel audio buttons to operate with the head unit after installation.
Six-Colour Button Illumination: Button and key illumination is selectable across six colours (Red, Yellow, Green, Blue, Purple, White) to match the vehicle interior lighting scheme.
Universal Double DIN Chassis: Fits a wide range of vehicles using the standard double DIN mounting format, supplied with a metal mounting frame and hardware for straightforward installation.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | AM705 |
| Brand | Aerpro |
| Display Size | 6.8" |
| Display Resolution | 1024 x 600 |
| Touchscreen Type | Capacitive |
| OS | Linux |
| DIN Size | Double DIN |
| Power Output | 4 x 50W Max (4 Ohm) |
| RCA Preamp Outputs | 6 x 4V (Front / Rear / Subwoofer) |
| Preamp Output Voltage | 4V p-p |
| Subwoofer Level Control | Yes |
| Smartphone Connectivity | Wireless and Wired Apple CarPlay, Wireless and Wired Android Auto |
| Bluetooth Version | V5 |
| Bluetooth Profiles | A2DP, AVRCP, HFP, PBAP |
| HFP Profile | HFP 1.6 (HD Voice) |
| Microphone | Internal + External |
| ID3 Tag Display | Yes (Artist, Album, Song) |
| USB Input 1 (Rear) | CarPlay / Android Auto with Charging (5V / 1.5A) |
| USB Input 2 (Rear) | Media Playback with Charging (5V / 1.5A) |
| USB Max Capacity | FAT32, 32GB |
| Media Playback Formats | MP3, MP4, MKV, FLAC, Xvid |
| Camera Input 1 | Reverse Camera (720P AHD Compatible) |
| Camera Input 2 | Front / Towing Camera (720P AHD Compatible) |
| Rear A/V Input | Yes (RCA, 3 connectors) |
| Composite Video Output | Yes |
| AM Tuner | 522-1710kHz, 9kHz step, 12 presets |
| FM Tuner | 87.5-108.0MHz, 0.05MHz step, 18 presets |
| RDS | Yes |
| DAB | No |
| EQ | 13-Band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16KHz) |
| EQ Presets | 6 Preset + 2 Custom |
| Loudness | Yes |
| Low-Pass Filter | Yes |
| Time Alignment | Yes |
| Steering Wheel Control | Yes (Aerpro SWC Adaptor required, sold separately) |
| Button Illumination | 6-Colour (Red, Yellow, Green, Blue, Purple, White) |
| OSD Language | English |
What's in the Box
- 1x Double DIN Head Unit
- Double DIN Metal Frame and Mounting Hardware
- Head Unit Plastic Trim
- Wiring Harness with ISO Connection
- 3-Wire Learning SWC Lead
- External Microphone with Mount
- GPS Antenna with Adhesive Pad
- QR Digital Manual Leaflet
Goes Well With
The AM705 is a universal double DIN unit that requires a vehicle-specific fascia kit for a clean, factory-fit finish in most vehicles. An Aerpro steering wheel control interface is also required to retain factory steering wheel audio button functionality. For vehicles requiring a secondary ISO harness connection, the Aerpro APP8 Headunit Secondary ISO Harness provides a clean wiring solution. The six 4V RCA preouts make the AM705 well suited to pairing with external amplifiers such as the R2-300X4 for front and rear speakers and the R2-250X1 or R2-1200X1 for subwoofer channels. A reverse camera is recommended to take advantage of the dedicated AHD camera input.
Frequently Asked Questions
Does wireless CarPlay and Android Auto require any setup?
On first connection, wireless CarPlay and Android Auto require a one-time pairing between the smartphone and the AM705 via Bluetooth and Wi-Fi. Once paired, the smartphone connects automatically each time it is brought within range of the vehicle, providing a truly wireless experience. For first-time setup or in vehicles where wireless connectivity is interrupted, wired connection via the rear USB1 input is available as an alternative.
Can I connect two cameras at the same time?
Yes. The AM705 features two independent 720P AHD-compatible camera inputs, allowing a reverse camera and a second front or towing camera to be connected simultaneously. The reverse camera input activates automatically when reverse gear is selected, while the second camera input can be configured for manual or automatic activation depending on the installation.
Does the AM705 include DAB digital radio?
No. The AM705 does not include DAB digital radio. It includes AM and FM analogue tuning with RDS. If DAB reception is required, an external DAB tuner module would need to be sourced separately and connected via the auxiliary input.
Will my factory steering wheel controls work with the AM705?
The AM705 supports steering wheel control input via an Aerpro SWC adaptor purchased separately. A 3-wire learning SWC lead is included in the box to connect the SWC adaptor to the head unit. Use the Aerpro Vehicle Selector at aerpro.com to find the correct SWC interface for your specific vehicle and OEM audio system.
Does the AM705 require a fascia kit for installation?
Most vehicles require a vehicle-specific fascia kit to achieve a clean, factory-fit double DIN installation. The AM705 is supplied with a universal metal mounting frame and hardware, but a vehicle-specific fascia plate is needed to fill the gap between the head unit and the factory dashboard opening in most applications. Visit aerpro.com and use the What Fits My Car tool to find the correct fascia kit for your vehicle.
Original: $361.46
-65%$361.46
$126.51Product Information
