Aerpro AKTO38 | 9/10" Install Kit Suit Toyota Kluger 2014 - 2019 (Compatible With Pioneer DMH-AP6650BT & Kenwood DMX80AXS)
Upgrade Your Toyota Kluger (2014–2019) With Factory 360 Camera to A 9/10" Head Unit!
9/10" Headunit Installation Kit
The Aerpro AKTO38 9/10" Installation Kit includes everything required to install a 9/10" trapezoid-shaped radio into your Toyota Kluger (2014–2019) with factory 360 camera, while retaining essential vehicle features including steering wheel control functionality.
Note: Head unit ISO harness is not included in the kit. It is recommended to be installed with an Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).
Important Information:
- Designed for universal trapezoid-shaped head units such as Pioneer DMH-AP6650BT, Kenwood DMX80AXS, Aerpro AM9X & AM10X, and various Android head units. Not compatible with standard DIN or double DIN sized radios.
- This kit does not support Pioneer CAN Bus features but includes a steering wheel control adapter. On boot-up, go to Menu → Steering Wheel Control → With Adapter.
- The facia kit is designed for left-hand drive (LHD) vehicles. It fits without modification, but it is recommended to remove the lower clip behind the factory silver trim to avoid panel bowing.
- Feature retention may vary depending on the radio model used.
Vehicle Compatibility:
- Toyota Kluger 2014–2019 (with factory 360 camera)
Vehicle Feature Retention:
- Steering Wheel Controls: Yes (including phone button)
- Factory Reverse Camera: Yes
- AUX Input: Yes
- USB Input: Yes
- Parking Tones: N/A
- Factory Amplifier: Yes
- Vehicle Menu: No
Features:
- To suit Toyota Kluger (2014–2019) vehicles with factory 360 camera
- Includes all components needed for installation and factory feature retention
- Retains factory reverse camera and steering wheel controls (including phone button)
- Compatible with Aerpro APP8 aftermarket head unit harness adapters for simplified installation

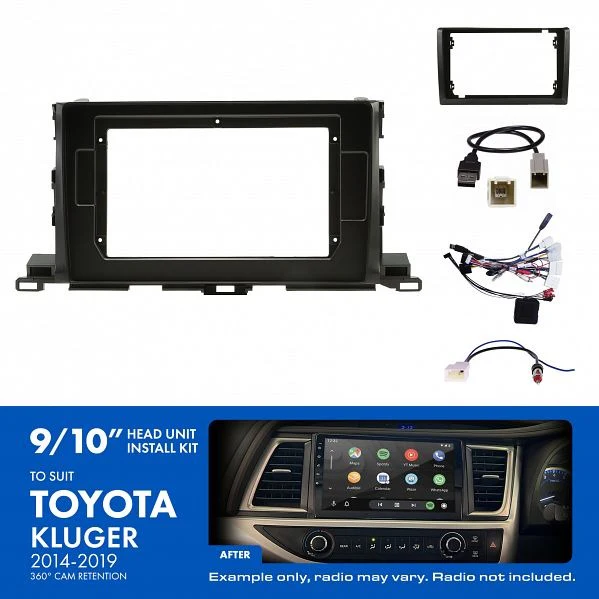

Kit Inclusions:
- Black Facia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- Adaptor for 9" and 10" radios
- Antenna Adaptor
- Camera Retention Adaptor
- Factory USB Retention Harness
