Aerpro AKNI2 Nissan Navara D23 2015-2019 9/10 Inch Head Unit Installation Kit
Aerpro AKNI2 Nissan Navara D23 2015-2019 9/10 Inch Head Unit Installation Kit
A complete 9/10 inch head unit installation kit for the Nissan Navara D23 (2015-2019) without factory navigation, retaining steering wheel controls including the phone button, factory reverse camera, USB input, and vehicle menu clock adjustments with a gloss black fascia and adaptor.
Product Overview
The Aerpro AKNI2 is a 9/10 inch installation kit engineered specifically for the Nissan Navara D23 (2015-2019) in vehicles without factory navigation. The kit includes all components required to mount a universal trapezoid shaped 9/10 inch radio into the dashboard while retaining steering wheel controls including the phone button, factory reverse camera, USB input, and vehicle menu clock adjustments.
Compatible head units include the Pioneer DMH-AP6650BT, Kenwood DMX80AXS, Alpine INE-AW409S, INE-AX809, INE-AW409S-10 and INE-AX809-10, Aerpro AM9X and AM10X, and various Android head units. A head unit ISO harness is not included - the Aerpro APP8 Head Unit Secondary ISO Harness is recommended and sold separately. This kit does not support Pioneer CAN Bus features. On boot-up, instead of selecting CAN Bus Adapter, go to Menu and select Steering Wheel Control > With Adapter. Feature retention is radio dependent. This kit is not compatible with standard DIN or double DIN sized radios.
Features & Benefits
Retains Steering Wheel Controls Including Phone Button: The included steering wheel control interface harness and SWC patch lead retain full factory steering wheel control functionality including the phone button.
Retains Factory Reverse Camera: Factory reverse camera retention is supported by this kit, maintaining the reverse camera feed through the new aftermarket head unit.
Retains Factory USB Input: A factory USB retention harness is included, preserving factory USB input functionality after installation.
Retains Vehicle Menu Clock Adjustments: Vehicle menu clock adjustment functionality is retained after installation.
Gloss Black Fascia and Adaptor: The gloss black fascia kit and gloss black 9/10 inch trapezoid adaptor provide a clean, premium finish suited to the Nissan Navara D23 dashboard.
APP8 Compatible for Simplified Installation: The kit is designed for use with the Aerpro APP8 aftermarket head unit harness adapter (sold separately), simplifying the secondary ISO connection during installation.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | AKNI2 |
| Brand | Aerpro |
| Compatible Vehicle | Nissan Navara D23 2015-2019 (without factory navigation) |
| Head Unit Size | 9 inch and 10 inch (Trapezoid shape) |
| Kit Inclusions | Gloss Black Fascia Kit, Gloss Black 9"/10" Trapezoid Adaptor, SWC Interface Harness, SWC Patch Lead, Antenna Adaptor, Factory USB Retention Harness |
| ISO Harness Included | No - Aerpro APP8 recommended (sold separately) |
| Steering Wheel Control Retention | Yes (including phone button) |
| Factory Reverse Camera Retention | Yes |
| AUX Input Retention | No |
| USB Input Retention | Yes |
| Parking Tones | N/A |
| Factory Amplifier Retention | No |
| Vehicle Menu | Yes (Clock Adjustments) |
| Pioneer CAN Bus Support | No - select Steering Wheel Control > With Adapter on boot-up |
| Feature Retention | Radio dependent |
| Barcode | 9317114953254 |

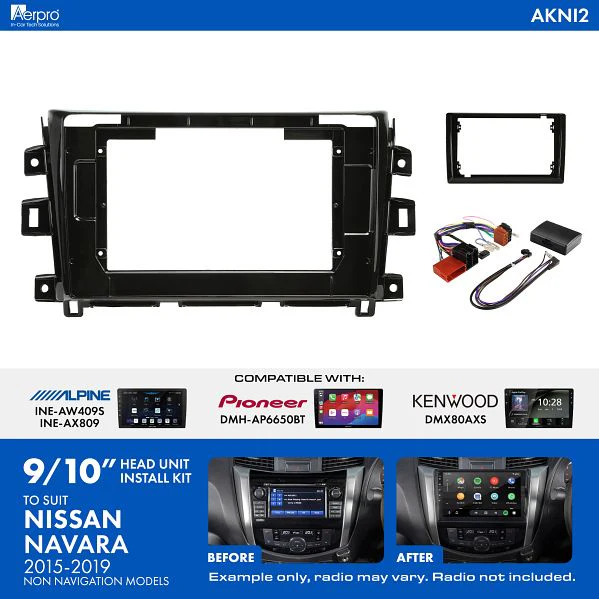

What's in the Box
- Gloss Black Fascia Kit
- Gloss Black 9"/10" Trapezoid Adaptor
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- Antenna Adaptor
- Factory USB Retention Harness
Compatible With
- Nissan Navara D23 2015-2019 (without factory navigation)
Compatible Head Units (9/10 inch Trapezoid):
- Pioneer DMH-AP6650BT
- Kenwood DMX80AXS
- Alpine INE-AW409S
- Alpine INE-AX809
- Alpine INE-AW409S-10
- Alpine INE-AX809-10
- Aerpro AM9X
- Aerpro AM10X
- Various Android Head Units
Not compatible with standard DIN or double DIN sized radios.
Frequently Asked Questions
Is an ISO harness included in this kit?
No. The AKNI2 does not include a head unit ISO harness. Aerpro recommends pairing this kit with the Aerpro APP8 Head Unit Secondary ISO Harness, which is sold separately. Please add the APP8 to your order to complete the installation.
Does this kit support Pioneer CAN Bus features?
No. The AKNI2 does not support Pioneer CAN Bus features. When using a Pioneer head unit, on boot-up do not select CAN Bus Adapter. Instead, go to Menu and select Steering Wheel Control > With Adapter to correctly configure the steering wheel control interface included in this kit.
Will this kit fit a Nissan Navara with factory navigation?
No. The AKNI2 is designed for Nissan Navara D23 (2015-2019) vehicles without factory navigation. A different kit will be required for factory navigation models. Please contact us to confirm the correct kit for your vehicle.
Does this kit retain AUX input?
No. AUX input retention is not supported by the AKNI2. Only USB input retention is included via the factory USB retention harness in the kit.
Does this kit work with both 9 inch and 10 inch head units?
Yes. The gloss black adaptor included in the kit accommodates both 9 inch and 10 inch trapezoid shaped radios, providing flexibility across all listed compatible head unit models.
