Aerpro AKTO39 | 9/10" Install Kit Suit Toyota Corolla Hatch 2012 - 2015 (Compatible With Pioneer DMH-AP6650BT & Kenwood DMX80AXS)

Perfect Fit, Full Function — Upgrade Your Corolla Without Compromise!

Aerpro AKTO39 9/10" Installation Kit
The Aerpro AKTO39 9/10" Installation Kit comes with all of the components required to install a 9/10" trapezoid-shaped radio into your Toyota Corolla Hatch (2012-2015) vehicles whilst maintaining important vehicle features such as Steering Wheel Control functionality.

The head unit ISO harness is not included in the kit. Recommended to be installed with an Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).

Important Information:

• This kit is developed to suit universal trapezoid-shaped radios such as Pioneer DMH-AP6650BT, Kenwood DMX80AXS, and Aerpro AM9X & AM10X, and various Android Head Units. It will not suit standard DIN or double DIN-sized radios.

• This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.

• Feature Retention will be radio-dependent.
• Retains steering wheel controls (including phone button) and factory reverse camera retention (if equipped)
• To simplify installation, this kit is compatible with Aerpro APP8 aftermarket headunit harness adapters

Features

• To suit Toyota Corolla Hatch (2012-2015) vehicles.
• Includes all the parts required to complete the installation and to retain important vehicle features.
• Retains steering wheel controls (including phone button) and factory reverse camera retention (if equipped).
• To simplify installation, this kit is compatible with Aerpro APP8 aftermarket headunit harness adapters.

Vehicle Feature Retention:

• Steering Wheel Controls: Yes (Including Phone Button)
• Factory Reverse Camera: Yes (If Equipped)
• AUX Input: Yes
• USB Input: Yes (Model Dependent)
• Parking Tones: N/A
• Factory Amplifier: No
• Vehicle Menu: No

Vehicle Compatibility:

• Toyota Corolla Hatch (2012 - 2015)

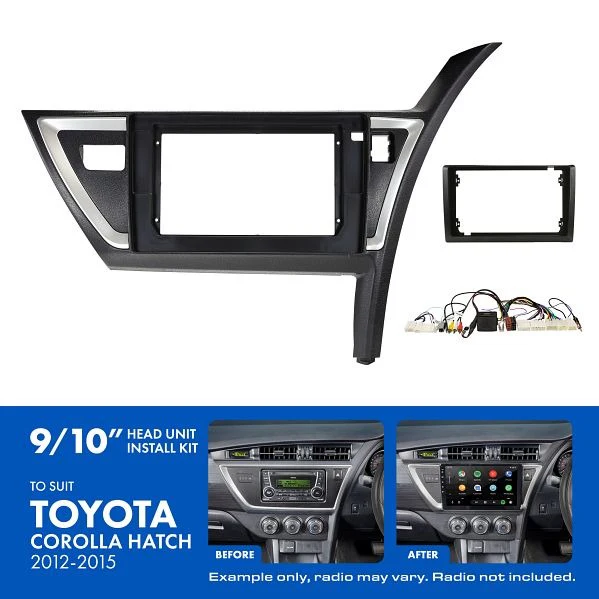

Kit Inclusions:

• Black & Silver Facia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Adaptor to allow for 9" and 10" radios to be installed
• Antenna Adaptor
• Camera Retention Adaptor
• Factory USB Retention Harness
