Get a massive 10.1-inch display in a single DIN chassis without cutting your dash.

Product Overview

The Nakamichi NA3625-WUX solves the big-screen dilemma for vehicles with single DIN dash openings, deploying a motorized 10.1-inch capacitive touchscreen from a standard single DIN chassis. This flip-out receiver delivers full Apple CarPlay and Android Auto smartphone integration through the expansive high-brightness display, providing navigation, messaging, and media control without requiring permanent dashboard modifications or custom fabrication. When parked, the screen retracts into the dash-mounted chassis for security and clean aesthetics. Beyond smartphone mirroring, the NA3625-WUX includes comprehensive AM/FM radio with RDS supporting 18 FM and 12 AM presets, built-in Bluetooth for additional device pairing, and a 10-band equalizer for precise audio tuning across any music source. The 4×50W amplifier drives factory or aftermarket speakers while 4V pre-outputs for front, rear, and dedicated subwoofer channels provide clean signal to external amplifiers. Dual USB ports maintain charging and media playback options, reversing camera input enhances safety, and steering wheel control compatibility with button learning preserves factory convenience features.

Key Specifications

10.1-inch motorized flip-out capacitive touchscreen with high-brightness display
Single DIN installation chassis (50mm height, standard 180mm width)
Apple CarPlay and Android Auto compatibility (wired connection)
AM/FM tuner with RDS: 18 FM presets, 12 AM presets
Built-in Bluetooth for hands-free calling and wireless audio streaming
10-band graphic equalizer for detailed sound customization
4×50W maximum amplifier output to 4-8Ω speakers
4V front, rear, and subwoofer pre-outputs with dedicated subwoofer volume control
Dual USB ports for charging and media playback
1080P HD video playback support
Multi-format audio support: MP3, WMV, AAC, FLAC
Video format support: H264, WMV, FLV
Reversing camera input with dedicated video input
2 video outputs for additional displays
Steering wheel control compatibility with button learning function
External microphone support for enhanced hands-free calling
Multi-color key backlighting and custom wallpaper support
Includes IR remote control

Features & Benefits

Big Screen, Small Space – The motorized flip-out mechanism deploys a 10.1-inch display from a single DIN opening, delivering tablet-sized visuals in vehicles where double DIN installations aren't possible. Perfect for classic cars, commercial vehicles, or any ute with a single DIN dash that you want to modernize without cutting metal.

CarPlay and Android Auto Integration – Connect your iPhone or Android device and access navigation, messaging, calls, and streaming apps through the familiar smartphone interface displayed across the generous 10.1-inch screen. The large display makes map details, album artwork, and contact lists easily readable at a glance.

Retractable Security Design – The screen retracts flush into the dash-mounted chassis when you park, hiding the premium display from opportunistic thieves and protecting the screen from sun damage when the vehicle sits unused. Simple push-button deployment brings it back to life when you start driving.

High-Brightness Wide-Angle Display – The capacitive touchscreen delivers smartphone-like responsiveness with enhanced brightness and wide viewing angles. Whether navigating under direct Australian sun or sharing the display with passengers, visibility remains excellent from multiple seating positions.

Complete Audio Control – The 10-band graphic equalizer provides precise frequency adjustment across the audio spectrum, letting you compensate for cabin acoustics, optimize aftermarket speakers, or simply dial in your preferred sound signature. Individual control over bass, midrange, and treble frequencies ensures your music sounds exactly how you want it.

Comprehensive Radio Coverage – Access the full Australian AM/FM broadcast spectrum with RDS support displaying station information and traffic alerts. Store 18 FM stations and 12 AM presets for instant access to your favourite channels, providing entertainment options when smartphone connectivity isn't available or you'd rather save mobile data.

4V Pre-Outputs for System Growth – Higher voltage pre-outputs deliver cleaner signal to external amplifiers compared to standard 2V units, reducing noise interference and improving sound quality in upgraded systems. The dedicated subwoofer output with adjustable volume control lets you fine-tune bass levels from the head unit without adjusting amplifier gains.

Dual USB Versatility – Two USB ports enable simultaneous device charging and media playback. Charge your passenger's phone while running CarPlay from yours, or play lossless FLAC music files from a USB drive while keeping your smartphone battery topped up on long highway runs.

Reversing Camera Ready – The dedicated camera input switches automatically to rear view when you select reverse gear, essential for navigating tight parking spaces, hitching caravans, or reversing trailers where rear visibility is compromised. The large 10.1-inch display provides exceptional camera detail compared to smaller screens.

Factory Control Retention – The built-in steering wheel control interface with button learning function adapts to your vehicle's existing controls, maintaining convenient thumb access to volume, track skip, and source selection. The included external microphone ensures clear voice pickup for hands-free calling without relying on your phone's built-in mic.

Technical Specs

Display: 10.1" motorized flip-out capacitive touchscreen, high-brightness, wide viewing angle
Installation: Single DIN (50mm height × 180mm width)
Smartphone Integration: Apple CarPlay, Android Auto (wired connection via USB)
Radio Tuner: FM/AM with RDS, 18 FM presets, 12 AM presets
Bluetooth: Built-in for hands-free calling and audio streaming
Audio Processing: 10-band graphic equalizer
Audio Output: 4 channels × 50W maximum, 4-8Ω speaker impedance
Pre-Outputs: 4V front, 4V rear, 4V subwoofer (with volume control)
Video Outputs: 2 outputs for additional displays
Video Input: 1 input for reversing camera
USB Ports: Dual USB (charging and media playback)
Video Playback: 1080P HD support
Video Formats: H264, WMV, FLV
Audio Formats: MP3, WMV, AAC, FLAC
Reversing Camera: Dedicated input with auto-switching
Steering Wheel Control: SWI jack with button learning function
Microphone: External microphone included
Customization: Multi-color key backlighting, custom wallpaper support
Remote Control: IR remote included
Installation: Single DIN chassis (standard 50mm × 180mm opening)

Frequently Asked Questions

Will this fit my single DIN dash opening?

Yes, the NA3625-WUX installs in any standard single DIN opening (50mm height × 180mm width). The screen flips out and up when deployed, so ensure you have adequate clearance above the dash opening for the 10.1-inch display to extend fully without obstruction.

Is CarPlay and Android Auto wireless or wired?

This model requires a wired USB connection for CarPlay and Android Auto. You'll need to plug in your iPhone or Android device via one of the dual USB ports, though the second USB remains available for charging additional devices or media playback.

Does the screen retract automatically when I turn off the car?

Yes, the motorized screen typically retracts when you turn off the ignition, protecting the display and maintaining a low-profile appearance when parked. Manual retraction is also available via the control interface for additional security.

Can I use this with my factory steering wheel controls?

Yes, the NA3625-WUX includes an SWI jack for connecting steering wheel control harnesses, plus a button learning function that adapts to your vehicle's specific button configuration. A vehicle-specific steering wheel control harness is required and sold separately.

What's the advantage over a tablet mount?

The NA3625-WUX integrates directly with your vehicle's audio system, powers on with ignition, connects to factory speakers and amplifiers, maintains steering wheel controls, provides reversing camera input, and includes AM/FM radio. Tablet mounts offer none of these integrations and require separate power management.

Compatible With / Goes Well With

Single DIN fascia kits and trim panels (vehicle-specific)
ISO wiring harnesses with primary and secondary connectors
Steering wheel control retention harnesses (vehicle-specific)
Aftermarket reversing cameras with composite video output
Vehicle-specific antenna adaptors for factory AM/FM connection
External 4-channel amplifiers via 4V RCA pre-outputs
Monoblock subwoofer amplifiers via dedicated 4V sub output
Component speakers and coaxial speakers (4Ω to 8Ω)
Additional rear-seat displays via dual video outputs
Universal or vehicle-specific single DIN mounting brackets
External microphones for improved hands-free call clarity

Apple CarPlay/Android Auto

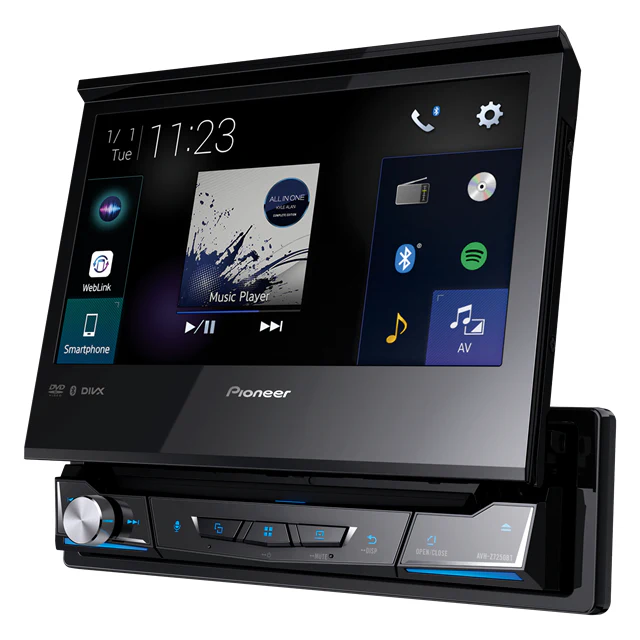

Pioneer AVH-Z7250BT 7" Touch-Screen Multimedia Player with Apple CarPlay, Android Auto & Bluetooth
