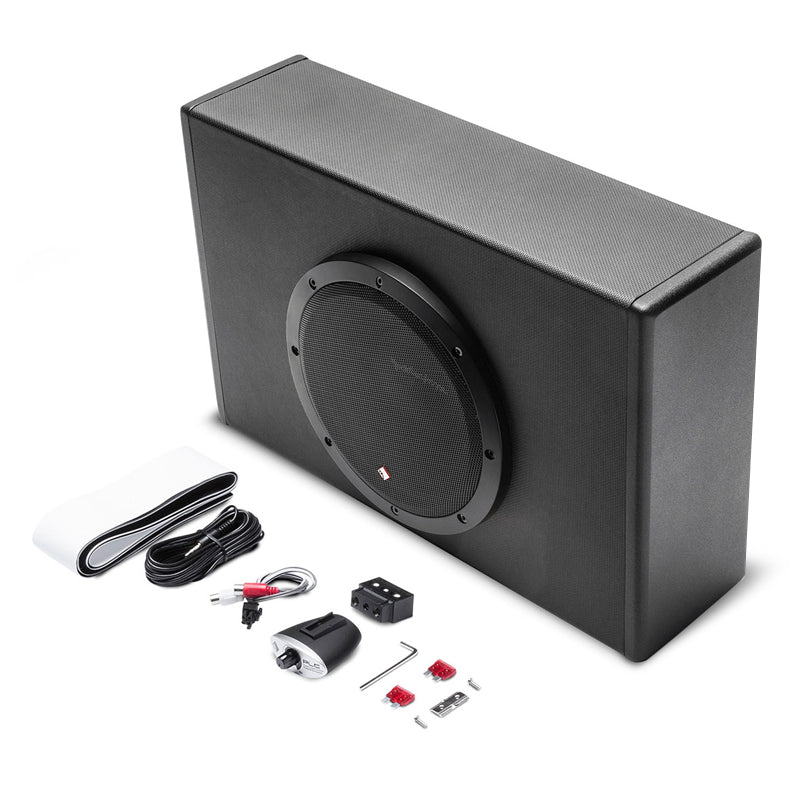

Rockford Fosgate P300-8P Punch 8" 300 Watt Powered Vented Enclosure

When space is the deciding factor but bass cannot be left behind, the P300-8P packs a high-output 8" woofer and 300-watt Class D amplifier into a slim vented enclosure suited for trucks and small car applications alike.

Product Overview

The P300-8P is Rockford Fosgate's compact all-in-one powered subwoofer enclosure, designed for installations where a 10" or 12" powered enclosure will not fit but genuine low-end performance is still required. The slim vented MDF enclosure houses an 8" proprietary woofer impedance-optimised for the integrated 300-watt Class D amplifier in a closed-loop design, ensuring the driver and amplifier work together as a matched system from the factory. The vented slot-port enclosure extends low-frequency output down to 30 Hz, delivering powerful bass reproduction from a compact footprint. An onboard variable Low-Pass crossover (50-200 Hz), Bass EQ with 0 to +12 dB of boost, and a 0-180 degree phase switch are accessible on the amplifier plate, while the included Punch Level Control remote handles bass adjustment from the driver's seat. An intelligent auto turn-on/off circuit with three selectable modes (Remote Trigger, DC Offset Sense, and Audio Sense) eliminates the need for a dedicated remote turn-on wire in OEM installations. Separate RCA and high-level speaker inputs make it compatible with both aftermarket and factory head units. Quick-release input connectors allow the enclosure to be removed when space is needed. The heat-activated vinyl finish resists marks and scuffs in daily use. CEA-2006 (amplifier) and CEA-2031 (woofer) compliant, Klippel verified, with a 1-year warranty.

Features & Benefits

300-Watt Class D Amplifier with Closed-Loop Design: The integrated amplifier is an impedance-matched, closed-loop Class D design tuned specifically for the P300-8P's proprietary 8" woofer, ensuring maximum efficiency and precise driver control at all output levels within the compact enclosure footprint.

High-Efficiency, Low Current Amplifier Design: The Class D amplifier topology keeps current consumption low relative to output, making the P300-8P compatible with stock electrical systems in trucks and small vehicles where alternator capacity has not been upgraded.

Vented Enclosure for Extended Low-Frequency Output: The slot-port vented enclosure extends bass reproduction down to 30 Hz, providing powerful low-frequency output from an 8" driver in a slim footprint, suited to both truck under-seat and small car boot installations.

Slim Design for Truck and Small Car Applications: The compact enclosure dimensions make the P300-8P well suited to tight installation locations, including truck under-seat positions and the limited boot spaces of sub-compact and small hatchback vehicles.

Klippel Verified Woofer: The 8" proprietary woofer has been verified through the Klippel certification programme, which measures and corrects non-linear distortion parameters to deliver the best possible transient accuracy and low-frequency output from a compact, impedance-matched driver.

Intelligent Auto Turn-On/Off: Three selectable turn-on modes (Remote Trigger, DC Offset Sense, and Audio Sense) allow the P300-8P to power on automatically in any installation scenario, including factory head units without a dedicated remote output.

Variable Low-Pass Crossover: Continuously variable from 50 to 200 Hz at 12 dB/octave Butterworth, the onboard crossover integrates cleanly with full-range speakers across virtually any crossover point set by the main system amplifier or head unit.

Onboard Bass EQ: 0 to +12 dB of onboard bass boost corrects for acoustic deficiencies in the vehicle interior and adds presence to the low-frequency output without an external equaliser.

Phase Switch: A 0 to 180 degree phase control allows the subwoofer to be time-aligned with the main speakers acoustically, compensating for physical placement differences for a coherent, integrated bass response.

Included Punch Level Control Remote: The Punch Level Control is included in the box, allowing bass output to be adjusted from the driver's seat in real time without accessing the amplifier plate directly.

Quick-Release Input Connections: Input connections use quick-disconnect fittings, allowing the enclosure to be removed from the vehicle quickly when cargo or passenger space is needed, without tools or cable work.

High and Low-Level Inputs: Separate RCA (low-level, 150mV-6V) and speaker-level (high-level, 300mV-12V) inputs via a single RCA pair summed L/R support both aftermarket and OEM head unit installations from the same unit.

Thermal and Over/Under Voltage Protection: Onboard protection monitors both operating temperature and supply voltage, shutting the amplifier down safely before damage occurs under fault conditions.

Precision MDF Enclosure with Vinyl Finish: Constructed from 5/8" Medium Density Fiberboard for optimal acoustic properties, covered with a heat-activated vinyl finish that resists marks and scuffs in daily use.

CEA-2006 and CEA-2031 Compliant: Amplifier power ratings conform to CEA-2006 industry standards at 14.4V with 1% or less THD. Woofer power handling conforms to CEA-2031, confirming both ratings are real, tested figures.

Technical Specs

Specification	Detail
SKU	P300-8P
Series	Punch
Woofer Size	8"
Woofer Quantity	1
Woofer Series	Proprietary
Power Handling	300W RMS
Integrated Amplifier	300W RMS
Amplifier Class	Class D
Enclosure Type	Vented
Enclosure Material	5/8" MDF
Enclosure Finish	Heat-Activated Vinyl
Frequency Response	30 Hz - 200 Hz
Low-Pass Crossover	Variable 50-200 Hz @ 12 dB/octave Butterworth
Bass EQ	0 to +12 dB
Phase Control	0 to 180 degrees
Input Switch	High-Level (Speaker) / Low-Level (RCA)
Signal Input	1 x RCA Pair (L/R Summed)
Input Sensitivity (Low-Level)	150 mV - 6V
Input Sensitivity (High-Level)	300 mV - 12V
Input Impedance	20k Ohms
Auto Turn-On Selector	Remote Trigger / DC Offset Sense / Audio Sense
Remote Control	Punch Level Control (included)
Visual Indicators	POWER / PROTECT LED
Heatsink Type	Extruded Aluminium
Cooling	Convection
Power Wire Gauge	8 AWG (B+/GND), 18 AWG (Remote)
Power Input Connector	Quick Disconnect
Fuses	20A total (2 x 10A ATO)
Compliance	CEA-2006 (amplifier), CEA-2031 (woofer), Klippel Verified
Dimensions (H x W x D)	11.4" x 17.6" x 5.6" (289 mm x 448 mm x 141 mm)
Shipping Weight	19 lbs (8.6 kg)
Warranty	1 Year

Goes Well With

The P300-8P is a standalone bass solution requiring no separate subwoofer amplifier or enclosure. For factory head unit installations, the high-level speaker inputs and Audio Sense auto turn-on allow direct connection without additional interface hardware. For aftermarket head unit installations, the RCA input connects directly from the head unit's subwoofer pre-out. To complement the P300-8P with front and rear speaker amplification, the PBR400X4D or R2-200X2 pair naturally via a standard RCA pre-out from the head unit. For installations in trucks where a larger driver is preferred and space allows, the P300-10T or P300-12T are direct step-up options in the same powered truck enclosure range. An 8-gauge power and ground cable run to the battery is required, along with the 2 x 10A ATO fuses included in the box.

Frequently Asked Questions

How does the P300-8P differ from the P300-10T and P300-12T?

All three are 300-watt powered enclosures sharing the same amplifier specification, feature set, and installation approach. The P300-8P uses an 8" vented enclosure with a frequency response from 30 Hz and the smallest physical footprint, making it the right choice for the tightest installation spaces in small cars and trucks. The P300-10T and P300-12T use sealed enclosures with 10" and 12" drivers respectively, each in progressively larger wedge-profile enclosures suited to larger truck under-seat locations where more space is available.

Why does the P300-8P use a vented enclosure while the P300-10T and P300-12T are sealed?

The vented design allows the 8" driver to produce extended low-frequency output down to 30 Hz, matching the low-end reach of the larger sealed 10" and 12" enclosures despite the smaller driver size. The port tuning compensates for the reduced cone area of the 8" woofer, delivering strong bass output from a notably more compact enclosure footprint.

Can the P300-8P be connected directly to a factory head unit?

Yes. The high-level speaker inputs accept signal from the factory head unit's speaker outputs directly, and the Audio Sense or DC Offset Sense auto turn-on modes allow the enclosure to power on without a dedicated remote turn-on wire. This makes the P300-8P a straightforward plug-in bass upgrade for OEM systems without requiring head unit replacement.

What are the three auto turn-on modes, and which should I use?

Remote Trigger mode powers the amplifier on when a 12V signal is received at the remote input terminal, requiring a remote turn-on wire from the head unit. DC Offset Sense mode detects a DC voltage change on the high-level speaker input to trigger turn-on, suitable for OEM systems where the speaker output changes state when the head unit powers on. Audio Sense mode detects an incoming audio signal and triggers turn-on automatically, making it the most universal option for both OEM and aftermarket installations without a dedicated remote output.

What is Klippel Verification, and why does it matter for a compact powered enclosure?

Klippel is an independent speaker measurement and certification programme that identifies and corrects non-linear distortion parameters in speaker drivers, including suspension non-linearities and motor force variation across the cone's travel range. In a compact powered enclosure where the driver and amplifier are a matched system and the 8" cone is working hard to deliver 30 Hz output, Klippel verification confirms that the woofer's performance envelope has been accurately measured and optimised to deliver clean, low-distortion bass at the rated 300 watts across its full operating range.

8" Active Subwoofer Enclosure

Rockford Fosgate P300-8P Punch 8" 300-Watt Powered Enclosure

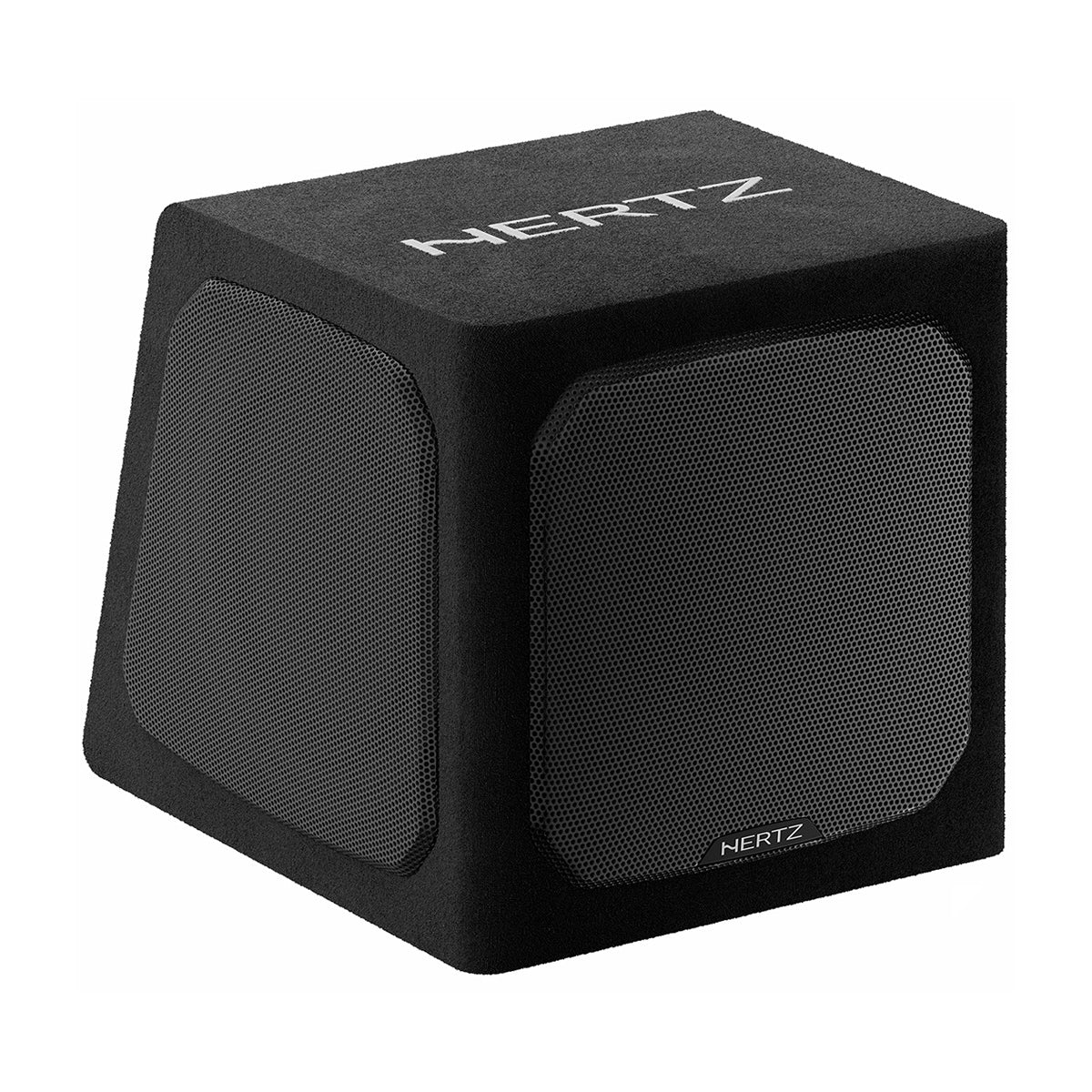

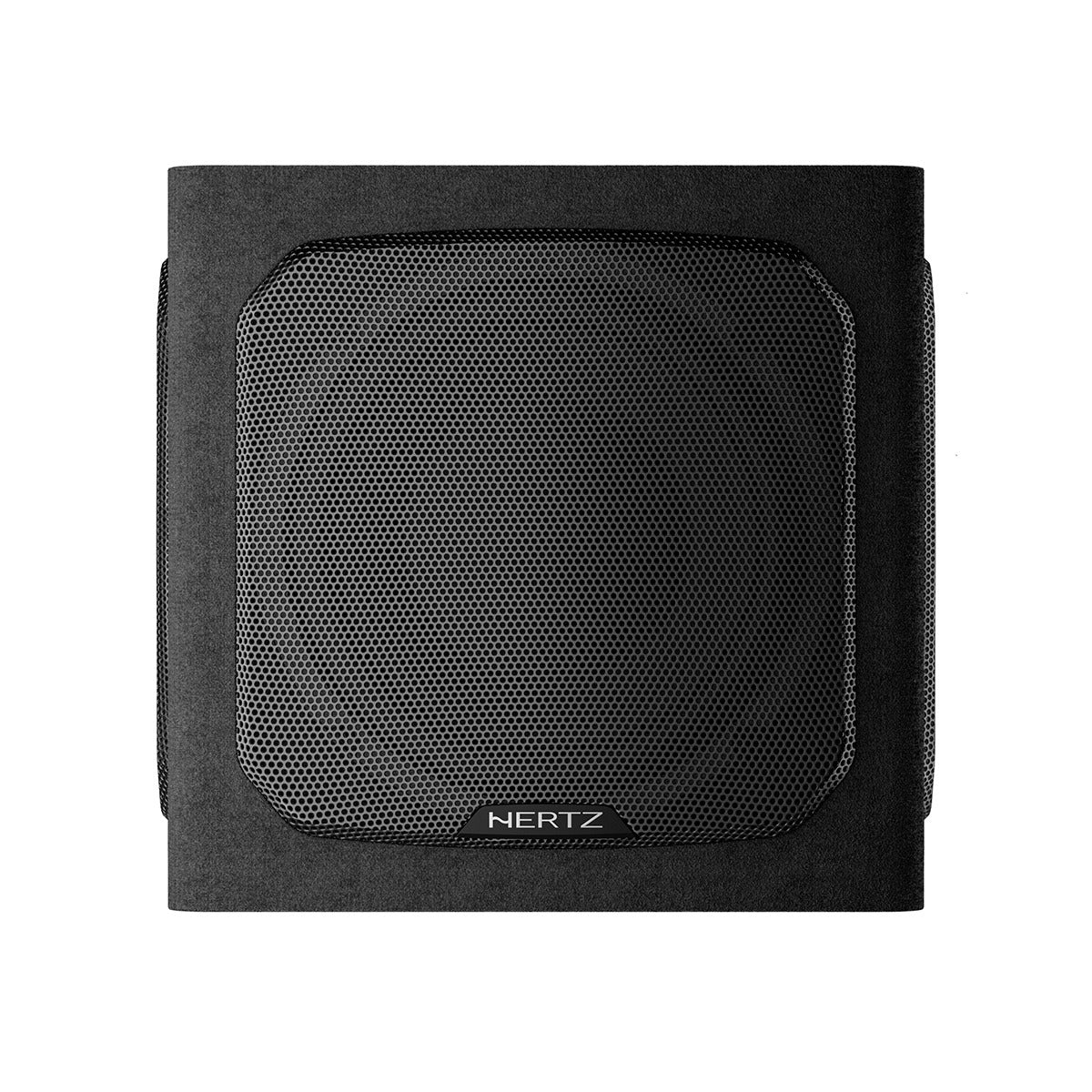

Hertz DBA 201 Dieci Series 8" 440W Double Passive Radiator Loaded Active Subwoofer Enclosure

Hertz HZSBNNP Aerpro APSBNNP & Hertz ESF20.5 Integrated Vehicle Enclosure Pack Suit Nissan Navara NP300

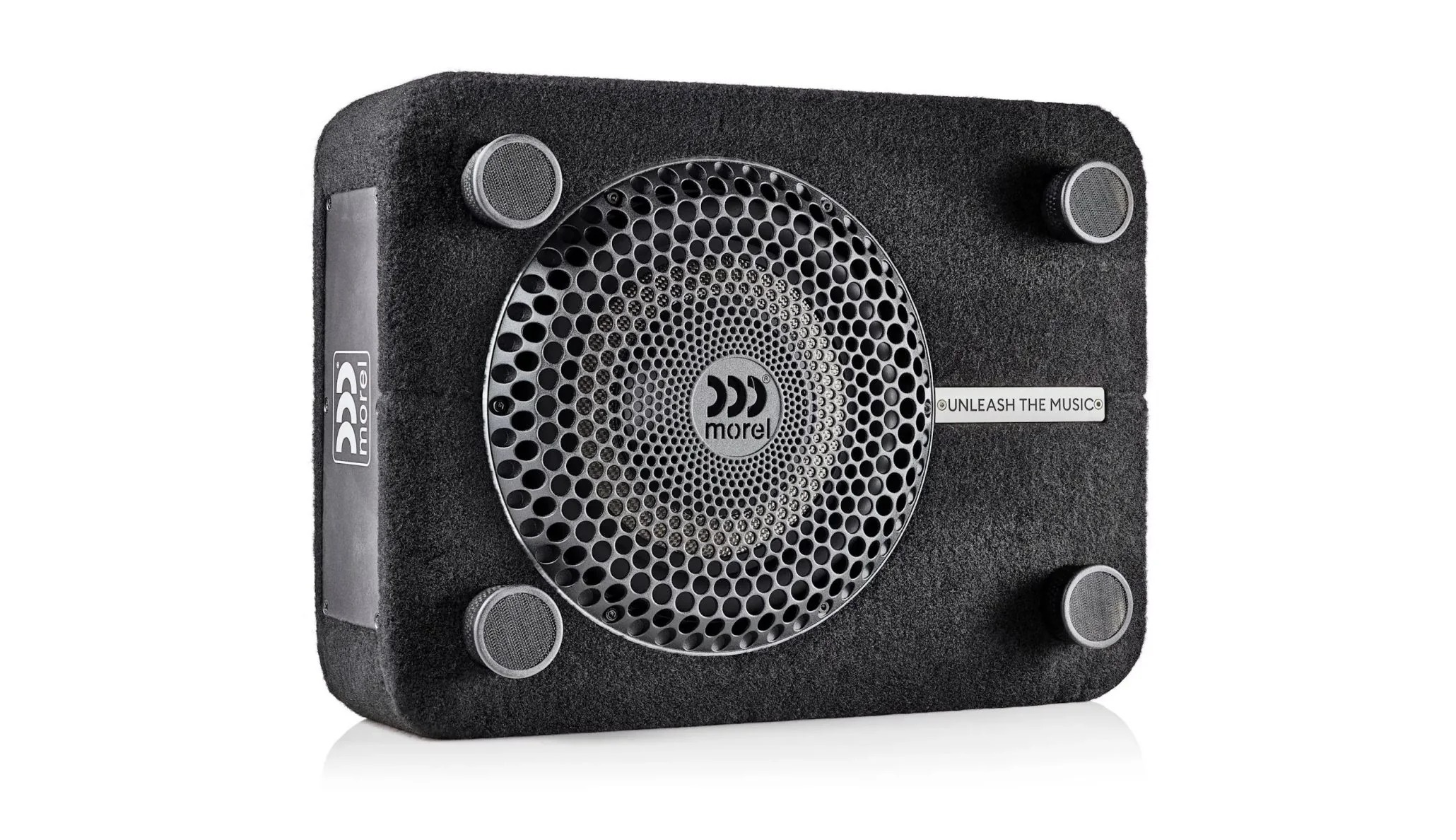

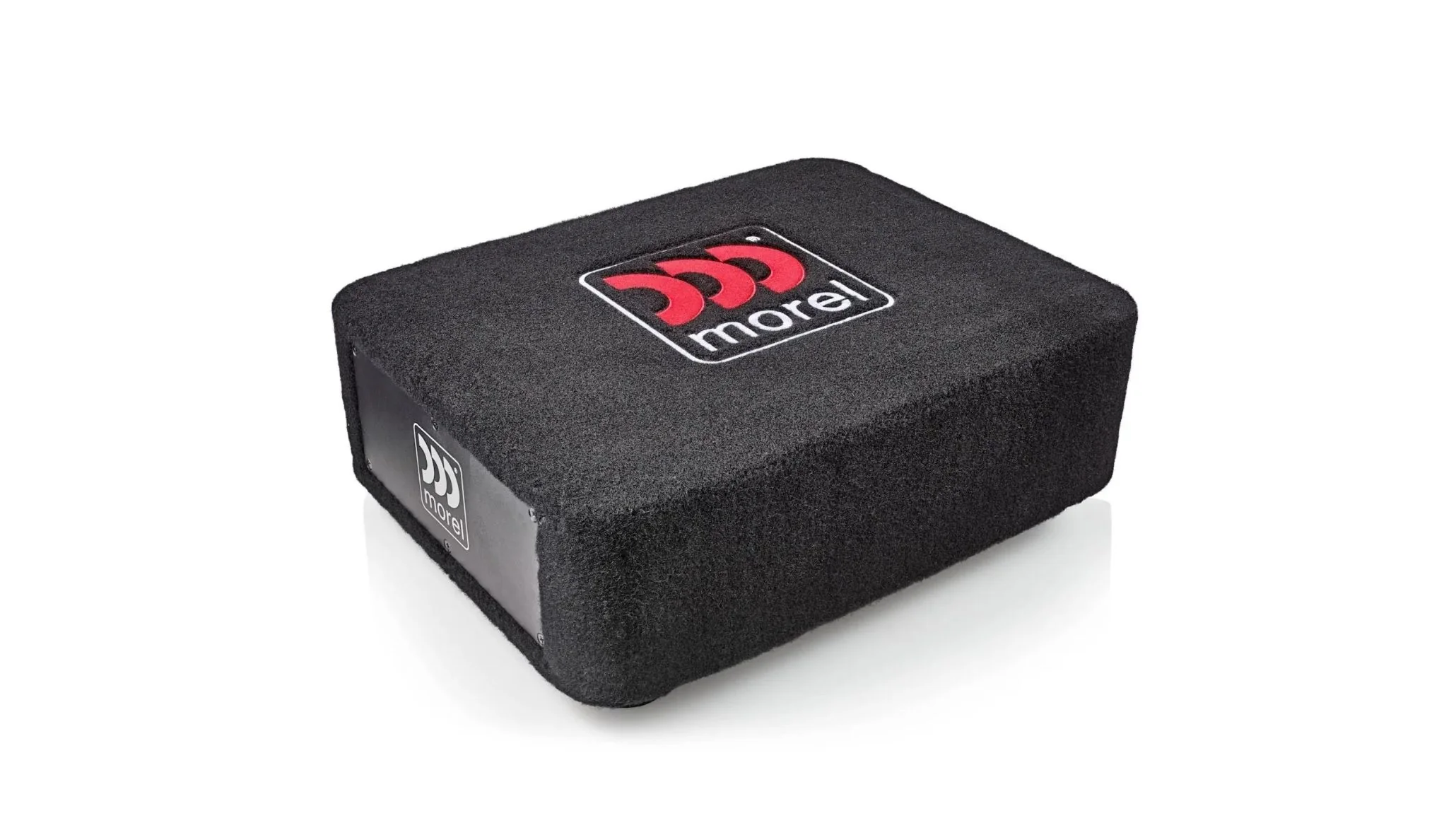

Morel Primo PSL 8AE 8 Inch Active Subwoofer Enclosure with 350W Integrated Amplifier
