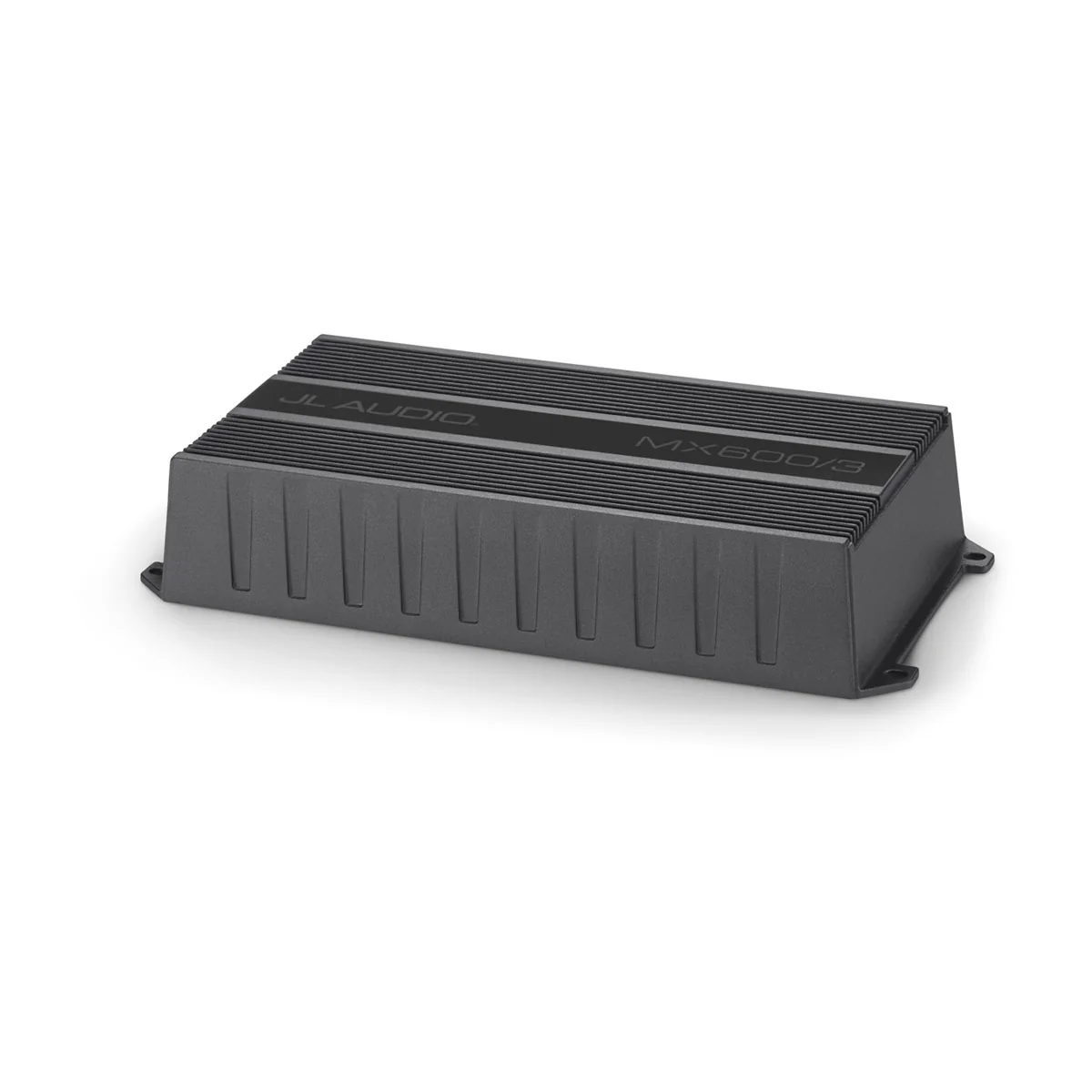

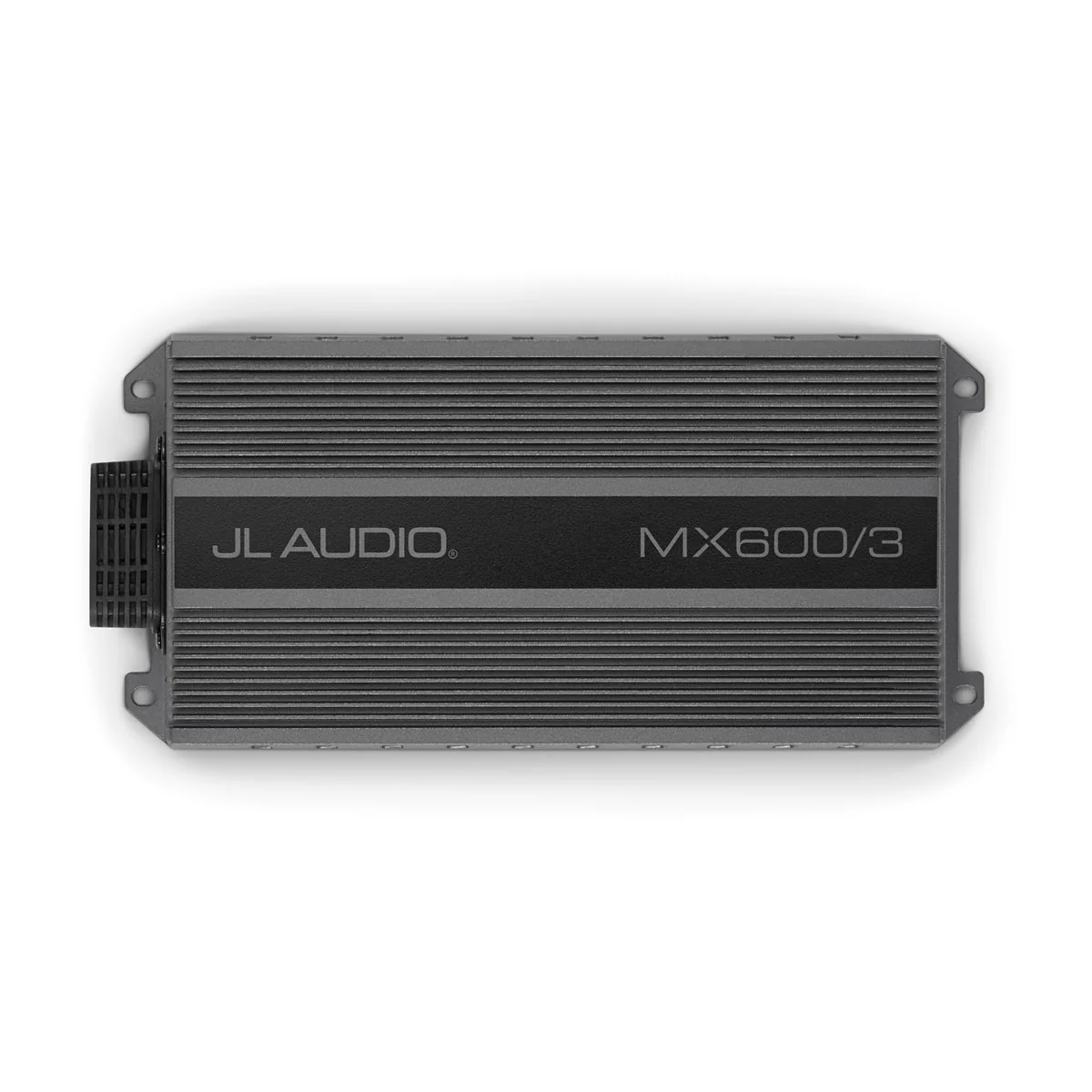

JL Audio JLA-010-03326-00 MX600/3 Marine Amplifier - 3 Channel System Amplifier

Ultra-compact IPX7 waterproof marine amplifier delivering 600 watts across three channels for complete speaker and subwoofer systems.

Product Overview

The JL Audio MX600/3 Marine Amplifier (JLA-010-03326-00) represents the ultimate solution for space-constrained marine and powersports audio installations, combining 600 watts of system power with full IPX7 waterproof protection in an incredibly compact chassis. This 3-channel Class D amplifier delivers 100 watts per channel to full-range speakers and 400 watts to a dedicated subwoofer channel, providing complete system amplification in a single unit measuring just 9.33" x 1.77" x 4.50". The IPX7 rating ensures complete protection against water immersion up to 1 meter for 30 minutes, making it ideal for harsh marine environments, open boats, jet skis, UTVs, and powersports vehicles where exposure to splashing, rain, and moisture is constant. Built-in crossovers with adjustable frequencies, bass boost control, and switchable channel input modes enable precise system tuning without external processors. The ultra-low profile and lightweight design (3.18 lbs) allow mounting in locations impossible for conventional amplifiers, while marine-grade construction ensures long-term reliability in saltwater conditions.

Features & Benefits

The 3-channel configuration delivers 100 watts RMS per channel to front speakers at 2 ohms, plus 400 watts to a subwoofer channel, providing complete system amplification for boats, UTVs, and powersports vehicles. Full IPX7 waterproof rating protects against complete water immersion, far exceeding splash-resistant IPX2 ratings, ensuring reliable operation even when fully submerged temporarily during washdowns, heavy weather, or water sports activities. Ultra-compact dimensions (9.33" x 1.77" x 4.50") and light weight (3.18 lbs) enable installation behind dash panels, under seats, in storage compartments, or directly exposed in engine bays where larger amplifiers cannot fit. Class D efficiency minimizes heat generation, eliminating the need for bulky heatsinks or active cooling. Built-in 12 dB/octave crossovers allow independent high-pass filtering for main channels (35-300 Hz range) and low-pass filtering for subwoofer channel (40-400 Hz range), ensuring clean frequency distribution without external processors. Bass boost control provides 0 to +12 dB gain at 43 Hz for enhanced low-end impact. Switchable channel input mode allows 2 or 4-channel input configuration for system flexibility. Power and signal connections via pigtail design with no exposed terminals enhance waterproofing integrity.

Technical Specifications

Specification	Details
Model	JLA-010-03326-00 MX600/3 Marine Amplifier
Configuration	3-Channel System Amplifier
Amplifier Class	Class D
Main Channels @ 14.4V / 4Ω	75W RMS x 2 channels
Main Channels @ 14.4V / 2Ω	100W RMS x 2 channels
Subwoofer Channel @ 14.4V / 4Ω	250W RMS x 1 channel
Subwoofer Channel @ 14.4V / 2Ω	400W RMS x 1 channel
Main Channels @ 12.5V / 2Ω	80W RMS x 2 channels
Subwoofer Channel @ 12.5V / 2Ω	300W RMS x 1 channel
Total System Power	600 watts
Frequency Response	20 Hz - 20 kHz (+0/-1dB)
Signal-to-Noise Ratio	>88 dB (main/sub channels)
SNR @ 1W	>68 dB (analog inputs)
THD+N @ Rated Power	<1% @ 2Ω per channel
Damping Factor	>115 @ 4Ω, >54 @ 2Ω (50 Hz)
Main Ch Crossover	High-pass: 35-300 Hz, 12 dB/octave
Sub Ch Crossover	Low-pass: 40-400 Hz, 12 dB/octave
Bass Boost	0 to +12 dB @ 43 Hz
Input Voltage Range	250mV-4V (Low) / 750mV-15V (High)
Operating Voltage	11-15 VDC
Water/Dust Rating	IPX7 (submersion protection)
Fuse Rating	60A
Recommended Fuse Type	AFS, AGU, or MaxiFuse™
Min. Wire Gauge	4 AWG (power/ground)
Dimensions (W x H x D)	237 x 45 x 115 mm (9.33" x 1.77" x 4.50")
Weight	1.44 kg (3.18 lbs)
Warranty	3 years
Included Accessories	Power/signal pigtails, mounting screws

Compatible With / Goes Well With

JL Audio Marine Speakers: M3 Marine Speakers (coaxial or component), M3 Enclosed Tower Speakers for main channel amplification with high-pass filtering

JL Audio Marine Subwoofers: M3 Marine Subwoofer models for dedicated subwoofer channel, optimized for sealed or ported marine enclosures

JL Audio Source Units: MediaMaster 55 Stereo, MediaMaster 105 Stereo, JL Audio Receivers for signal source and system control

Powersports Applications: Polaris RZR Stealthbox systems (SB-POL-RZG2SPKR/M3-650i, SB-POL-RZG3/10TW3), compatible with UTV, ATV, side-by-side, and motorcycle audio systems

Installation Requirements: 4 AWG copper power and ground wiring, 60A fuse (AFS/AGU/MaxiFuse), optional RBC-1 remote bass control for subwoofer level adjustment, 2-ohm stable speakers for maximum power output

Frequently Asked Questions

What makes the IPX7 rating superior to IPX2 ratings found on other marine amplifiers? IPX7 certification means the amplifier survives complete water immersion up to 1 meter depth for 30 minutes, compared to IPX2 which only protects against light splashing. This makes the MX series ideal for installations in open boats, personal watercraft, jet skis, or UTVs where the amplifier may be fully exposed to heavy rain, waves, or washdowns. You can mount the MX amplifier in engine compartments or exposed locations without worry, whereas IPX2-rated amplifiers require protected, covered mounting locations.

Can this amplifier power a complete boat audio system with speakers and subwoofer? Yes, the 3-channel design is specifically engineered for complete system amplification. Connect your helm or cockpit speakers to channels 1-2 (100W each at 2 ohms) with high-pass filtering, and your marine subwoofer to the dedicated sub channel (400W at 2 ohms) with low-pass filtering. The built-in crossovers eliminate the need for external processors, and the bass boost control allows tuning low-end response to your preference.

Where can I mount this amplifier given its IPX7 waterproof rating? The IPX7 rating allows mounting virtually anywhere including fully exposed locations. Common installations include directly on bulkheads in engine compartments, underneath driver seats in UTVs, behind dash panels in boats, on roll bars in side-by-sides, or in storage compartments. The compact dimensions (9.33" x 1.77" x 4.50") fit locations where standard amplifiers won't. The pigtail connection design with no exposed terminals maintains waterproof integrity even in harsh conditions.

How does the switchable channel input mode work and when would I use it? The input mode switch configures how input signals feed the amplifier. In 2-channel mode, channels 1-2 receive one stereo signal while the sub channel receives a separate subwoofer signal (requires 3 sets of RCA inputs from source). In 4-channel mode, the amplifier can accept a 4-channel input where channels 3-4 are summed to create the subwoofer signal (useful when source has front/rear outputs but no dedicated sub output). This flexibility accommodates various source unit configurations.

Why would I choose the MX600/3 over separate 2-channel and monoblock amplifiers? The MX600/3 provides complete system amplification in a single ultra-compact, fully waterproof package, simplifying installation and reducing space requirements dramatically compared to multiple amplifiers. It requires only one power/ground wire run, one fuse holder, and one set of mounting screws. The integrated crossovers and system matching eliminate tuning complications. For space-constrained installations where mounting multiple amplifiers is impractical or impossible, the MX600/3 delivers professional system performance in the smallest possible footprint with the highest level of water protection available.
